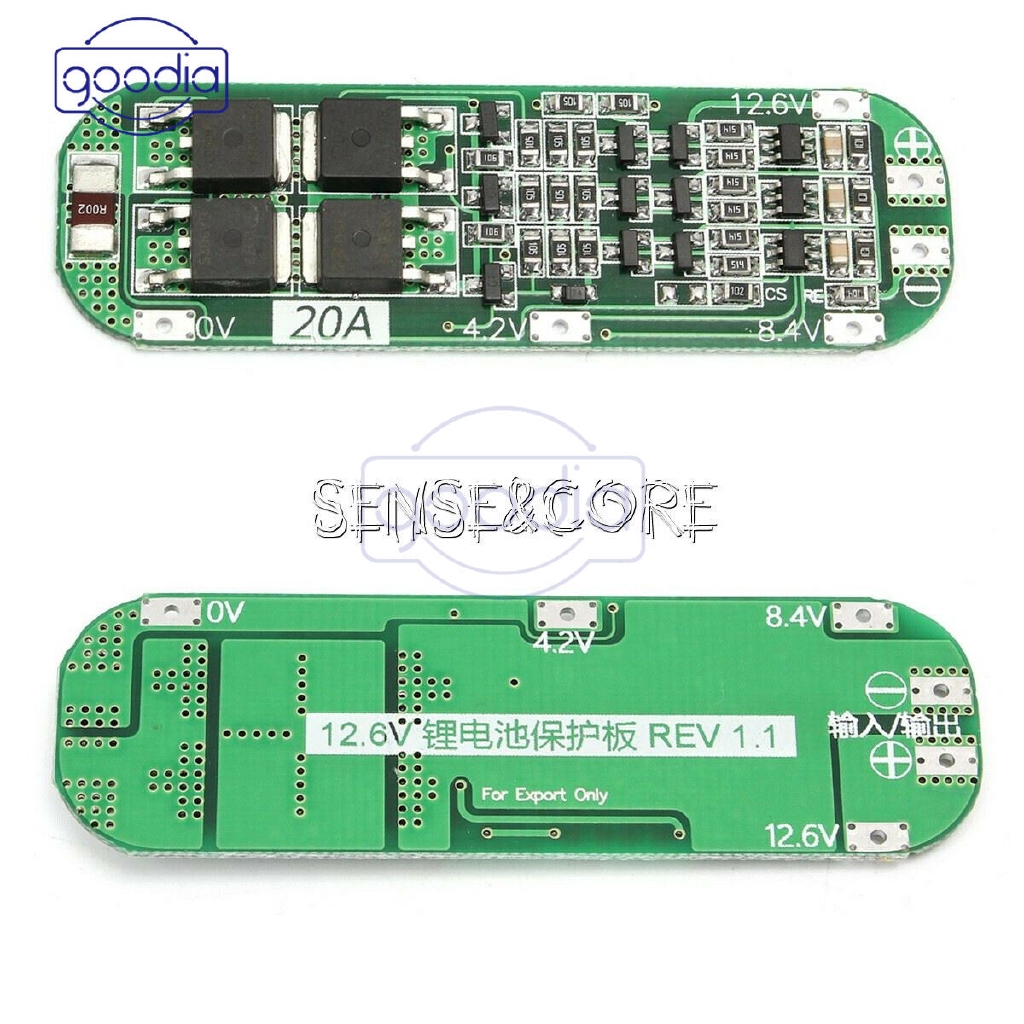

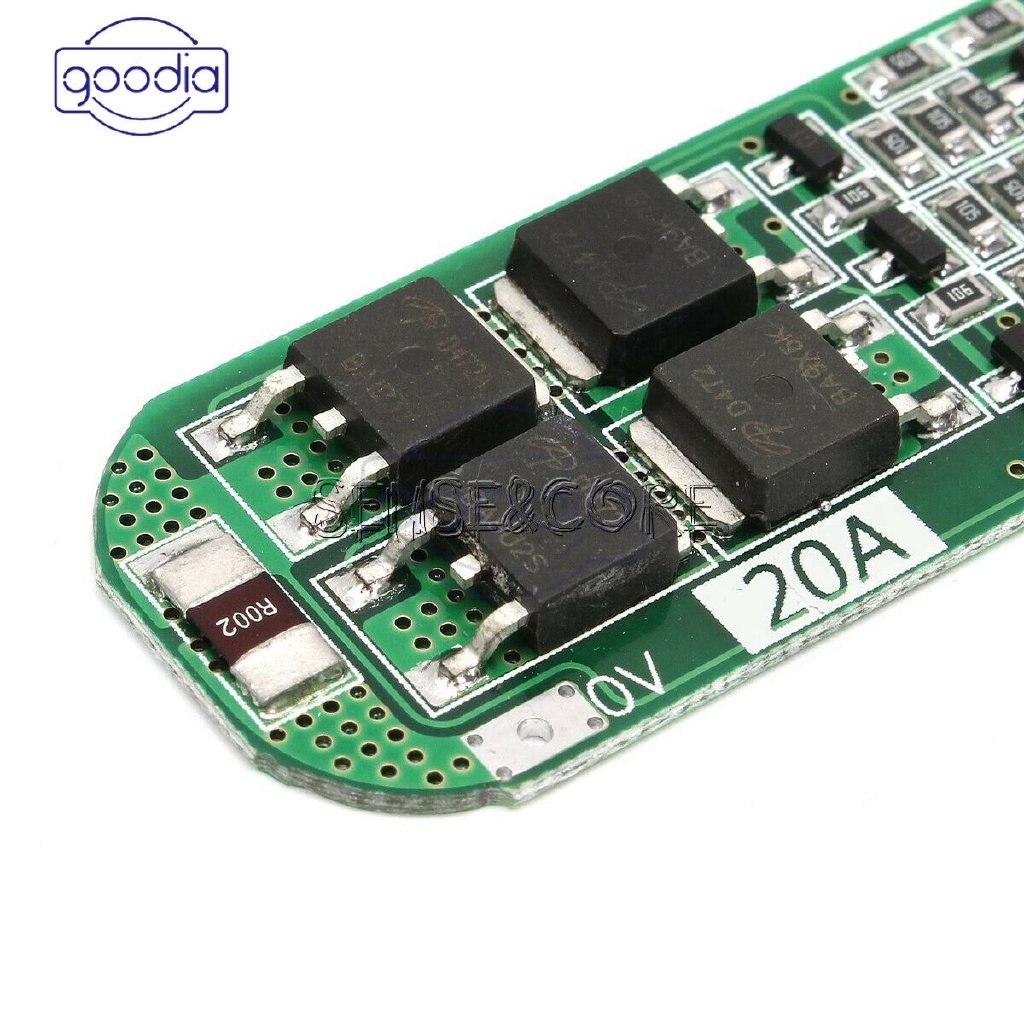

3S 20A
Features: Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB BoardSuitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Product size:
59*20*3.4mmProduct weight: 4.4g
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W

Precautions:
1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2.After connection,it need to first charge activation, then will have the output.
Note: Do not mix the good battery and poor battery to use.The internal resistance of 3 battery capacity are closer will be better.Please buyers know the professional knowledge of this module before buying

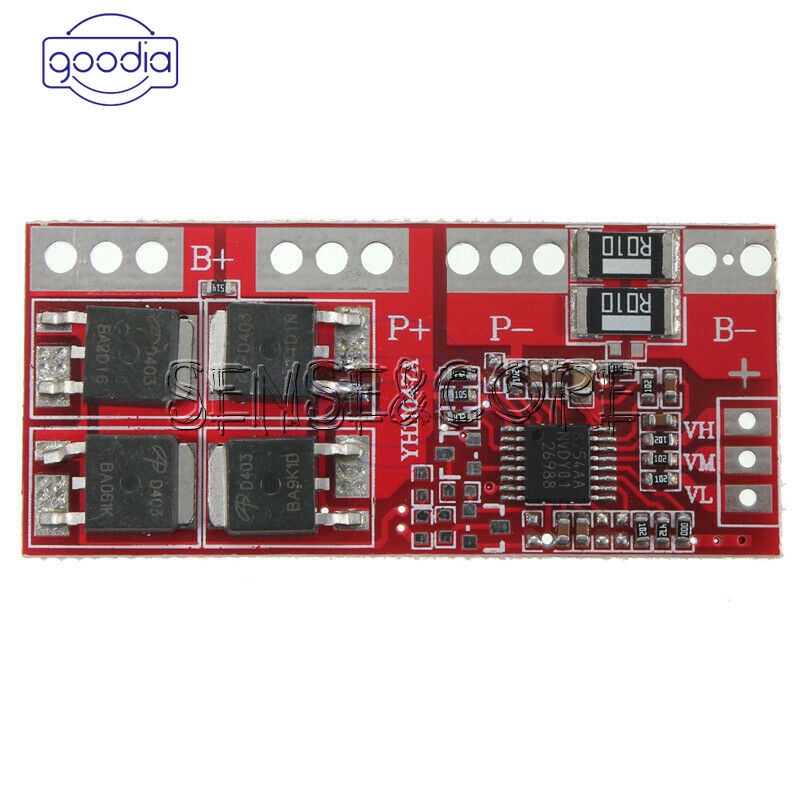

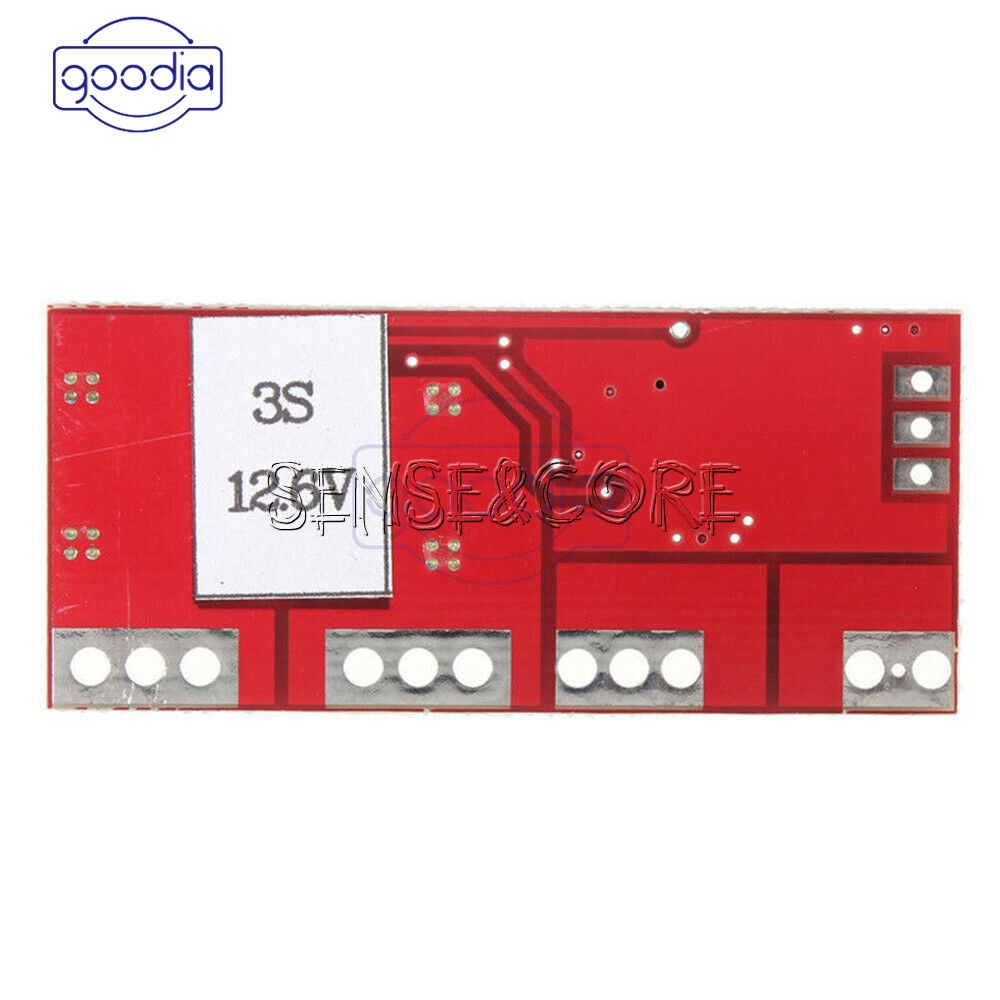

3S 30A
Specification:

Brand new and high quality
Module:3S Li-ion Lithium Battery Protection Board
Overcharge detection voltage :4.25±0.025V
Overcharge Lift the voltage:4.15±0.05V
Over discharge detection voltage :2.50±0.08V
Over discharge Lift the voltage:3.00±0.1V
Overcurrent current:20-30A
Working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A)
Remove protection condition automatic recovery, without activation

Protections:
Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Operating temperature: -40-85℃
Size: Approx. 50x22x4mm

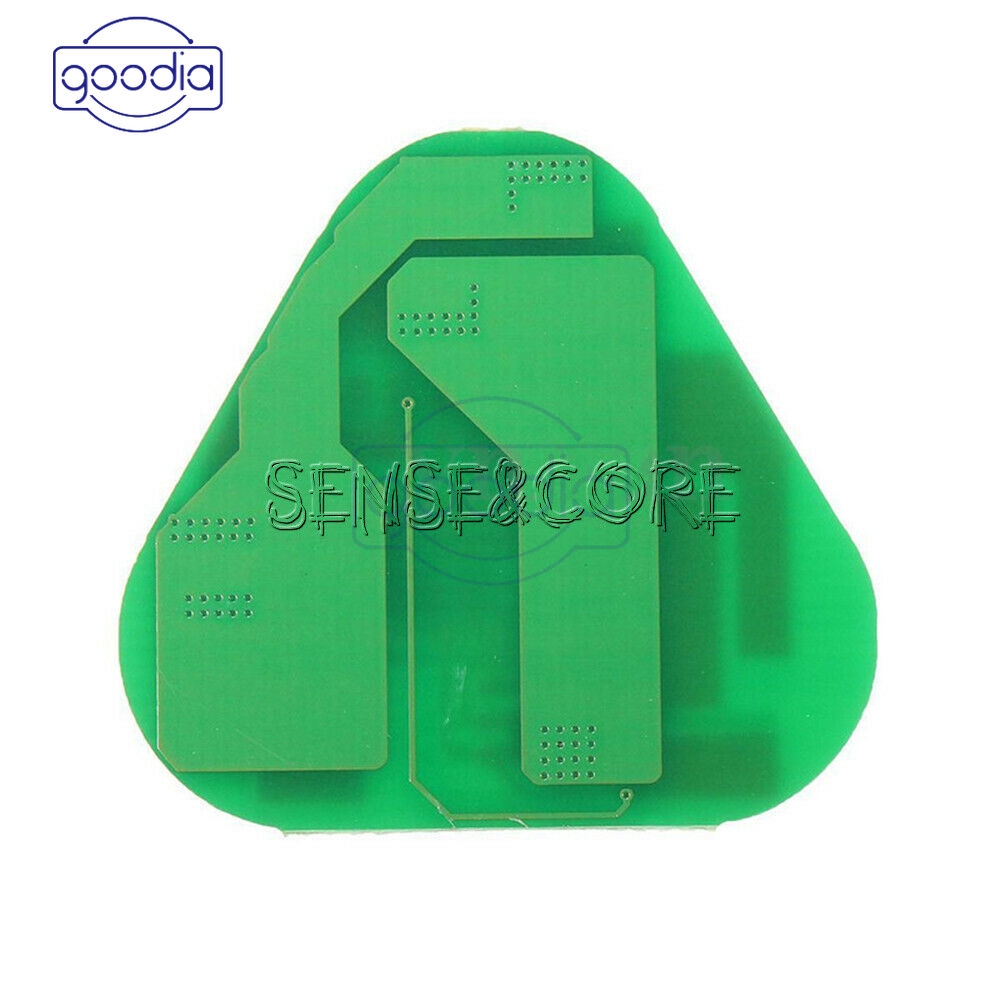

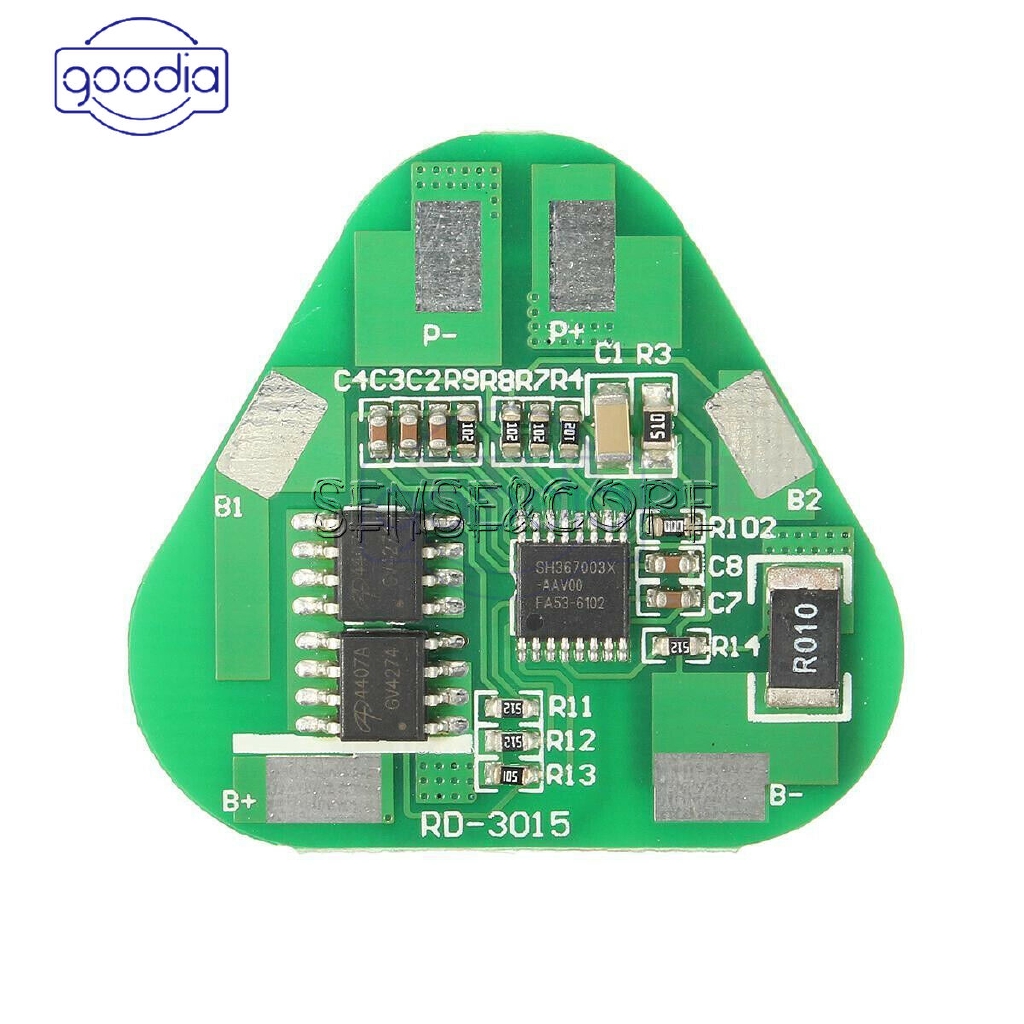

3S 4A
Features:
1.For Lithium battery operating voltage: 10.8V ~12.6V
2.Applicable for
10.8V (3.6V * 3S) lithium battery & packs
11.1V (3.7V * 3S) lithium battery & packs
12.6V (4.2V * 3S) lithium battery & packs
3.Cylindrical Lithium battery (Li-ion)
4.Prismatic Lithium Polymer battery (Li-Po)
5.Could also work for 3S2P (6 cells) , 3S3P (9 cells), 3S4P (12 cells) etc.
6.Protections: Short circuit protection,overcharge protection ,over-discharge protection and over current protection

Parameters:
1.Maximum protection voltage ( for every single cell ): 4.255V ± 0.05V
2.Minimum protection voltage ( for every single cell ): 2.35V ± 0.05V
3.Maximum operating current: 4A
4.Size: 35mm * 32mm

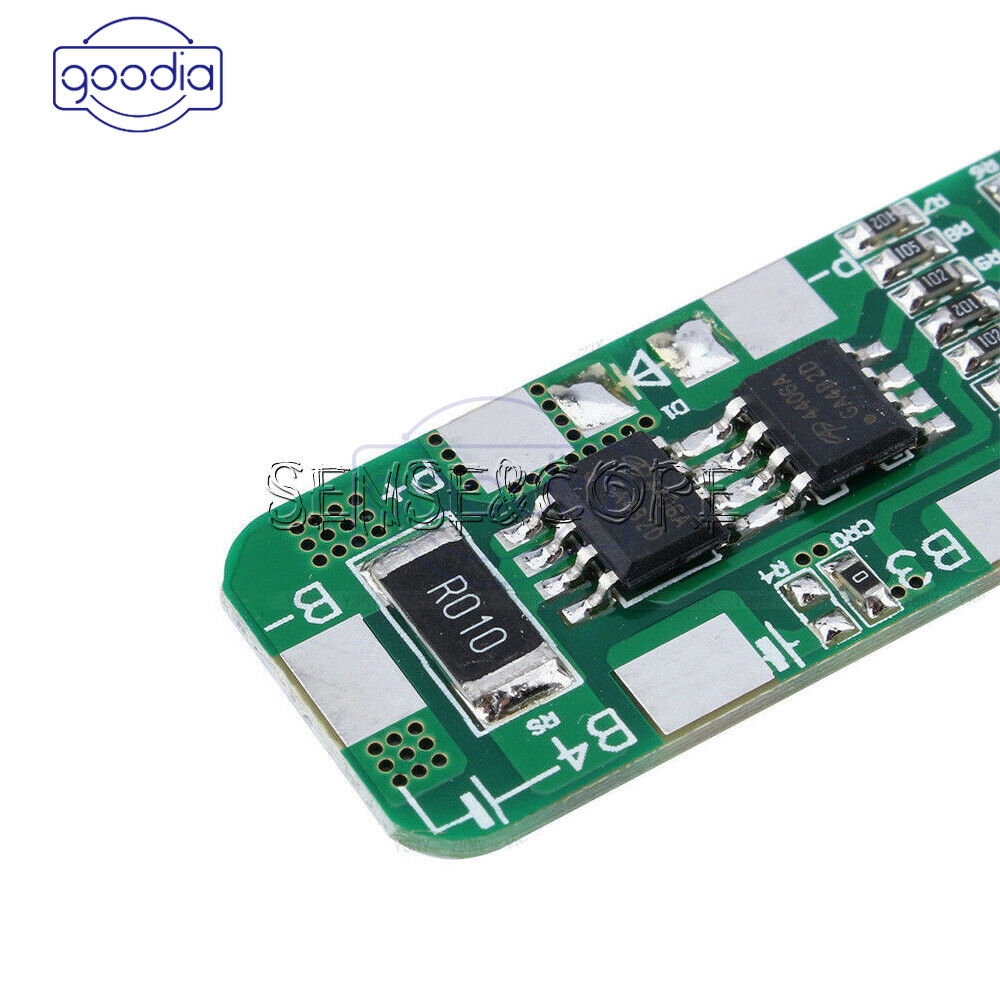

3S 4A-5A
Feature:
Properties of the lithium battery protection board
Model: HH - P3-10.8
Charging voltage range: 4.25-4.35 v±0.05v
Size: 48 * 15 * 1.0 mm
Discharge voltage range: 2.5-3.0V±0.05v
Maximum working current: 3A
Working temperature: - 40 --- +50 ℃
Maximum instantaneous current: 4-6A
Storage conditions: - 40 --- +80 ℃
Static electricity: less than 6 uA
Useful life time: more than 50000 hours
Resistance: less than 45 m Ω
Short circuit protection: can protect,need charging

Function:
Connect the lithium battery with protection board according to the wiring diagram, when the battery voltage is between the charging pressure and discharge voltage, and the P +, P - charging after 1 seconds,the output voltage P + and P - is the same as the battery voltage.

package included: as you choose
