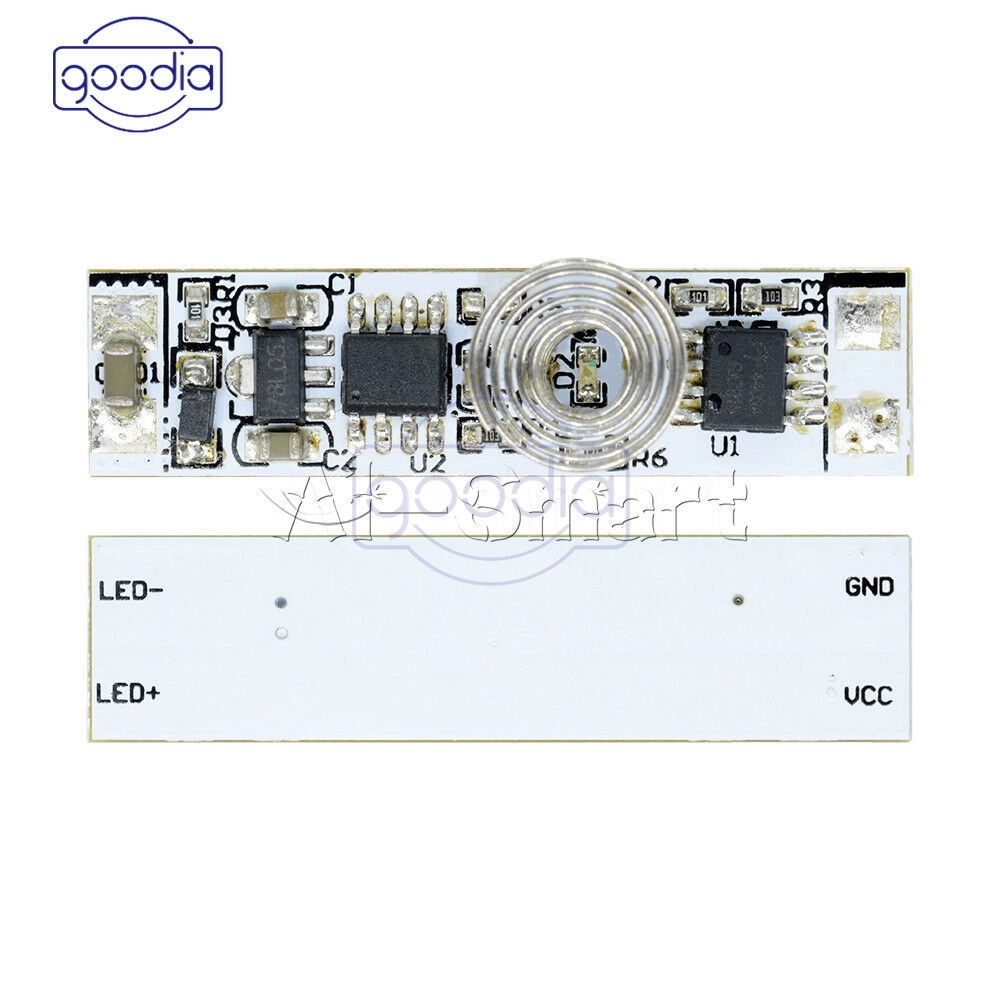

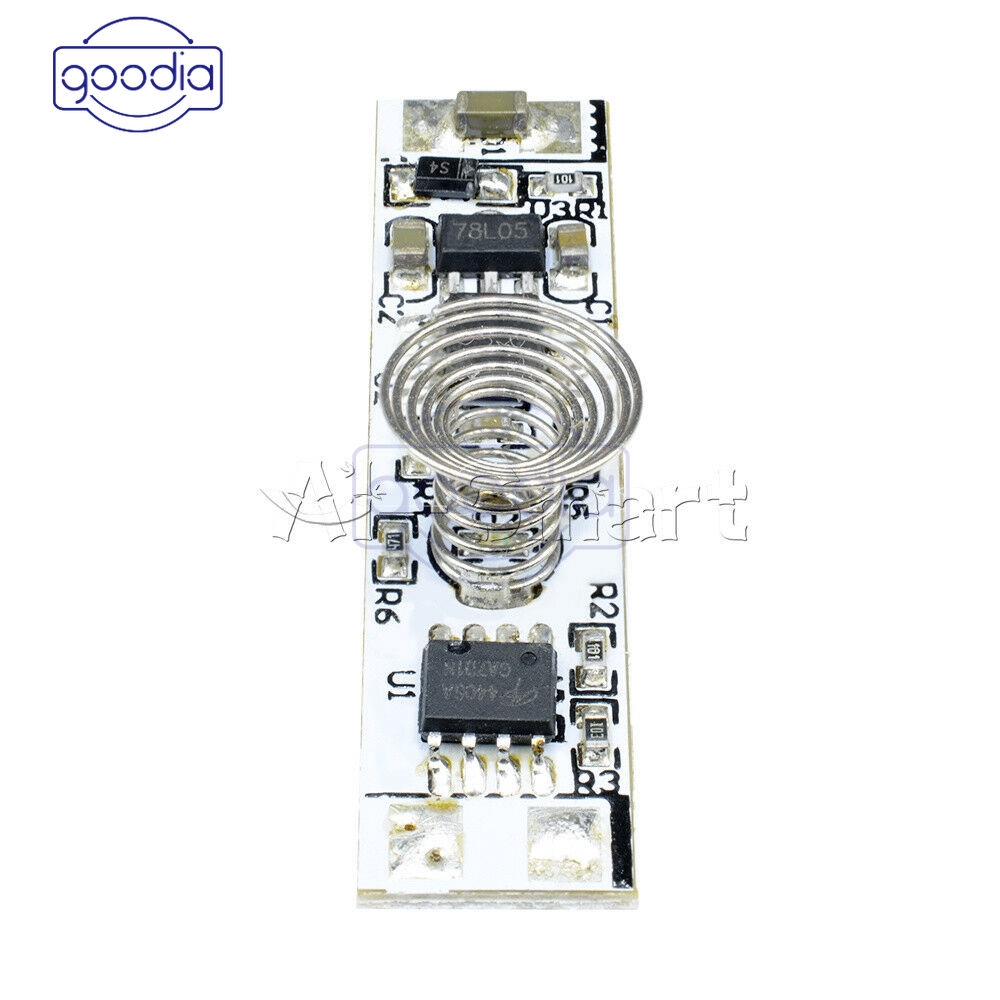

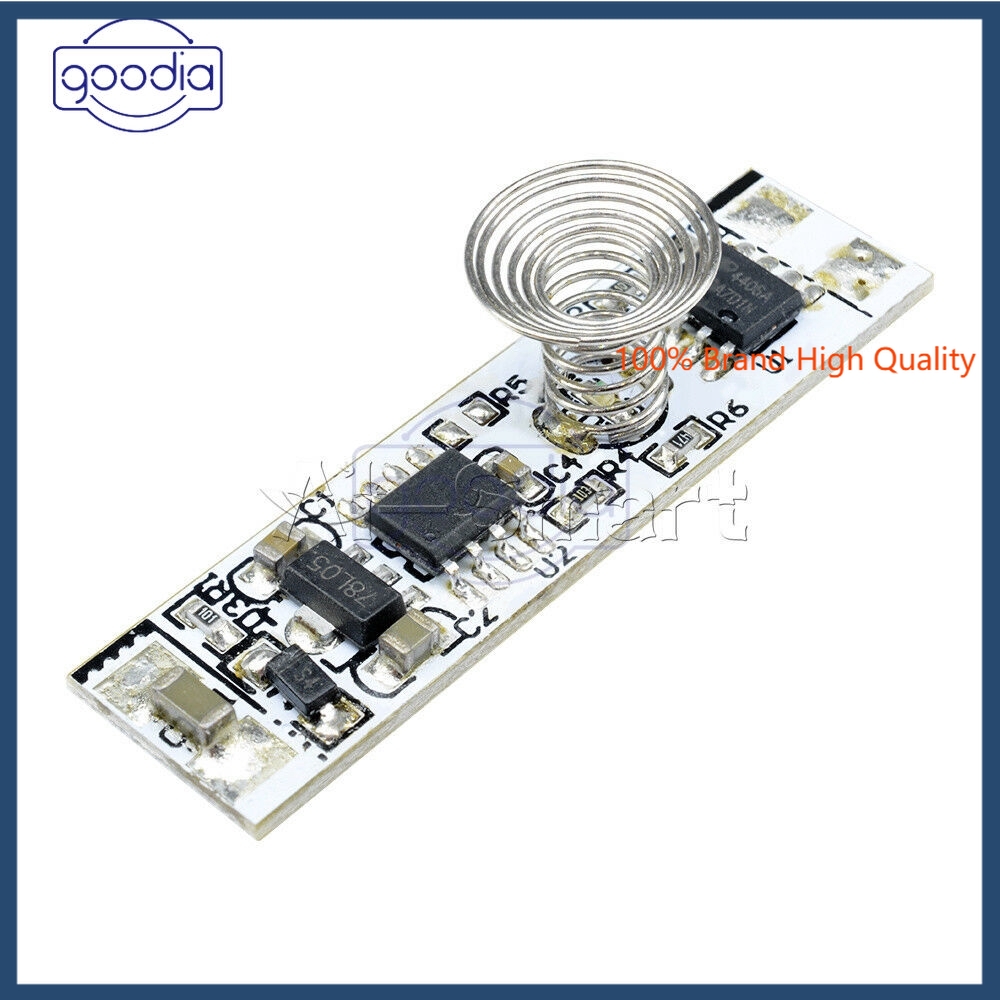

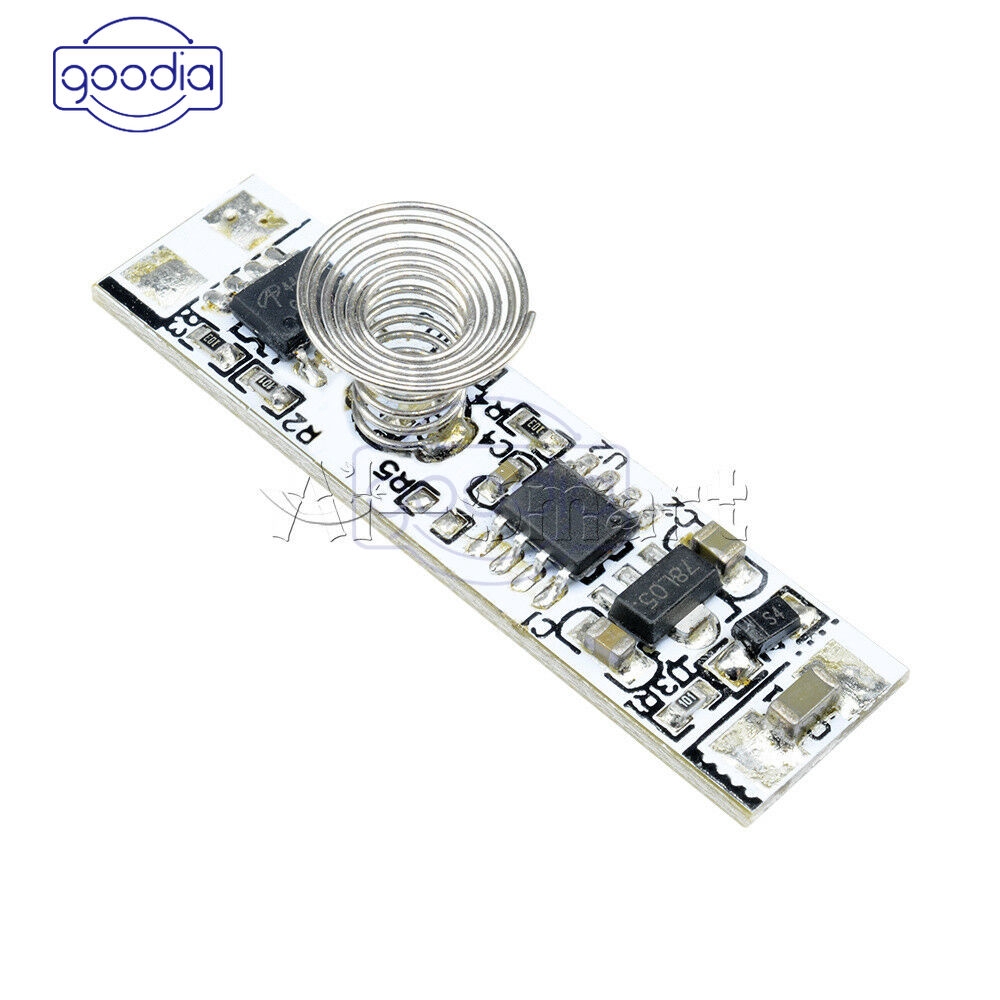

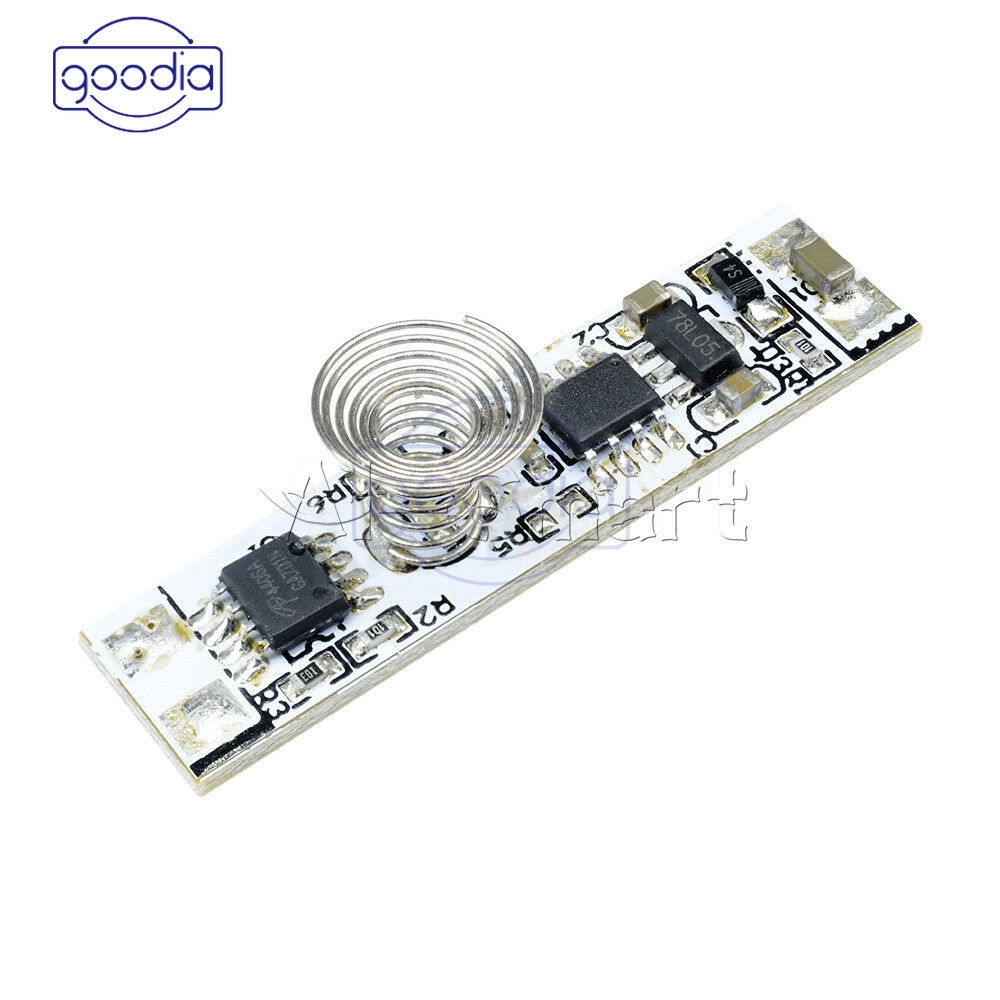

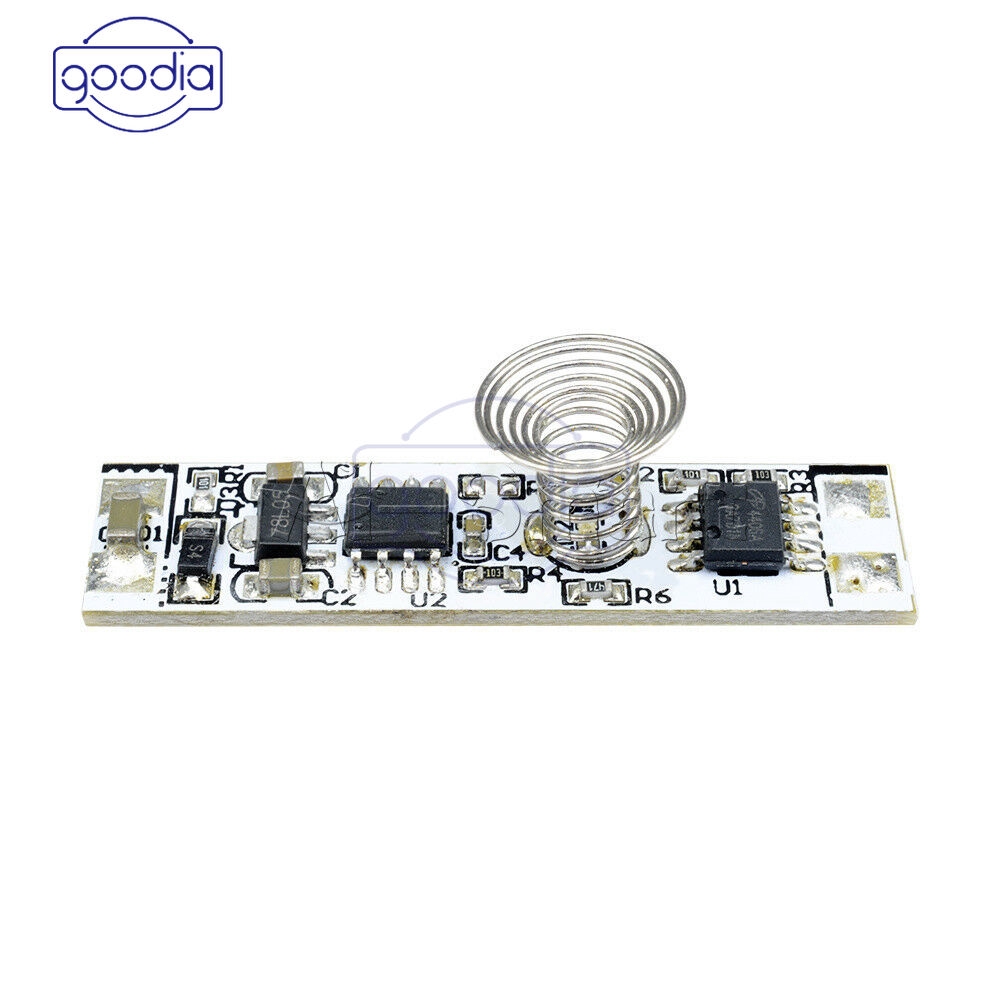

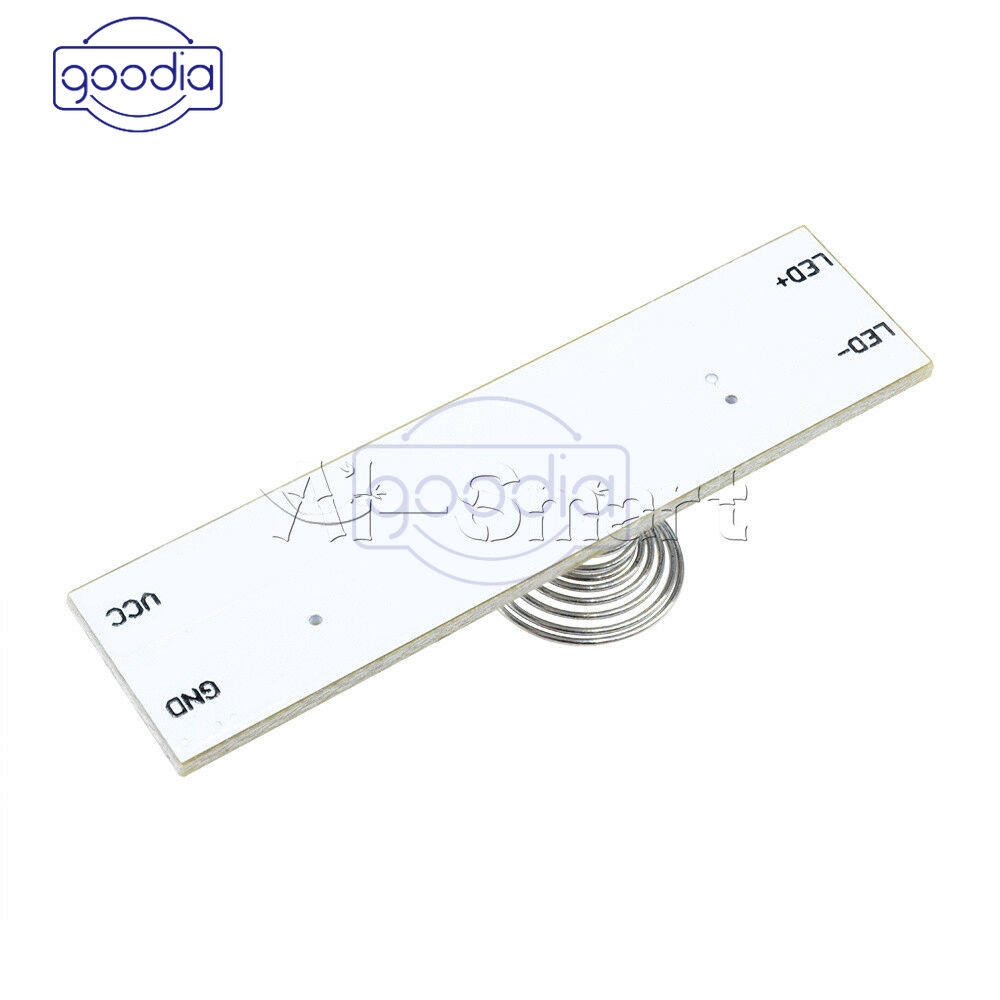

✈【Fast/COD】✈ 1Pc 3A 9V-24V 30W Touch Switch Capacitive Sensor Module LED Dimming Control

Detail ✈【Fast/COD】✈ 1Pc 3A 9V-24V 30W Touch Switch Capacitive Sensor Module LED Dimming Control

[Friends Welcome to #OlahragaOutdoorElektronik# store ]
Description:
1. Input voltage: 9v-24v
2. Output voltage: 9v-24v
3. Load power: 30W
4. Load current: 3A
5. Standby current: 10mA
6. Standby power consumption: 0.1w
7. Operating temperature: -20 ℃~ 65 ℃
8. Type: Touch_S (L40W10)

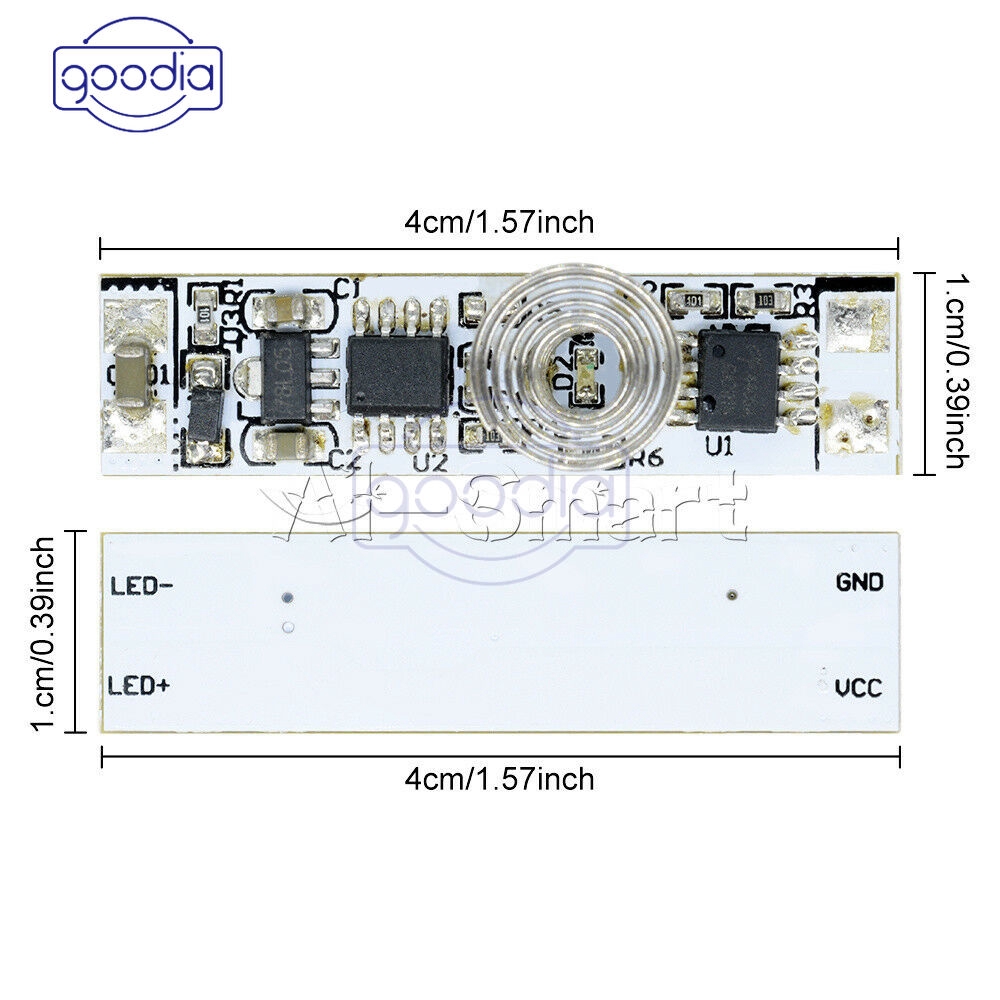

9. Size: 40mm * 10mm * 1.2mm
(Note: test conditions Vin = 12V)

Instructions for use:
Module size 40mm * 10 * 1.2 (mm), for width> = 10mm of the hard light or other lamps;
Using a wide voltage work program, the input voltage 9V to 24V can be,
Note that the output load voltage is approximately equal to the input voltage;
Module anti-interference and self-adaptability is better, widely used in civilian hard-light type control
The status of this version LED is always on.
This series is a four-in-one version of the model,
The default factory setting is one-way dimming

Mode description:
Touch_Sensor_S00 (general switch):
S00 mode, fast touch switch lamp on / off state, no dimming function. Effect gradient.

Touch_Sensor_S01 (Unidirectional dimming):
S01 mode, fast touch switch lamps on / off state;
In the case of open, long touch to enter one-way dimming
(keep touching, dimming to maximum or minimum brightness, automatically stop dimming),
Let go lock the brightness,
The switching brightness is the last lock brightness.
In the off condition, the long touch will be dimmed
from the previous brightness to the brighter direction.
Effect gradient.

Touch_Sensor_S02 (Cycle Dimming)
S02 mode, fast touch switch lighting on / off state;
In the case of open, long touch into the cycle dimming (keep touching, dimming to the highest or lowest brightness,
automatically in the opposite direction of light, so the cycle), let go lock the brightness,
The switching brightness is the last lock brightness.
In the off condition, the long touch will be dimmed from the
previous brightness to the brighter direction. Effect gradient.

Touch_Sensor_S03 (three-segment dimming)
S03 mode, fast touch switch lighting status. Brightness of three,
respectively, 30%, 60%, 100%, switching effect gradient.

Note:
It is required to install and then power on. If the power supply is installed,
May change the environmental parameters, may affect the sensitivity.
Touch spring installation, please avoid contact
with the electromagnetic signal changes in the complex contacts,
Try to avoid the use of heavy water for vapor environment,
to prevent possible malfunctions.
Please understand the product operating parameters before use

Package Included:
1PC*9V-24V 30W Touch Switch Capacitive Touch Sensor Module
