✈【Fast/COD】✈ 18650 Li-ion Lithium Lead-acid Battery Capacity Meter Discharge Tester 1.2-12VDC

Detail ✈【Fast/COD】✈ 18650 Li-ion Lithium Lead-acid Battery Capacity Meter Discharge Tester 1.2-12VDC

Description：
100% brand new and high quality
Material: Electrical components
Color: See pictures
HW-586 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650
Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results
Maximum support 15V 3A discharged through the discharge voltage and current, itself does not discharge
Maximum capacity statistics support 9999Ah (9999000mAh)
Automatically identify and develop appropriate battery termination voltage can also be manually adjusted
Specifications:
Power supply voltage: DC4.5-6V (micro USB connector)
Operating Current: less than 70mA
Discharge voltage: 1.00V-15.00V 0.01V resolution
Termination voltage range: 0.5-11.0V
Supported by current: 3.000A 0.001A resolution
Maximum voltage measurement error: 1% + 0.02V
Maximum current measurement error: 1.5% + - 0.008A
Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.

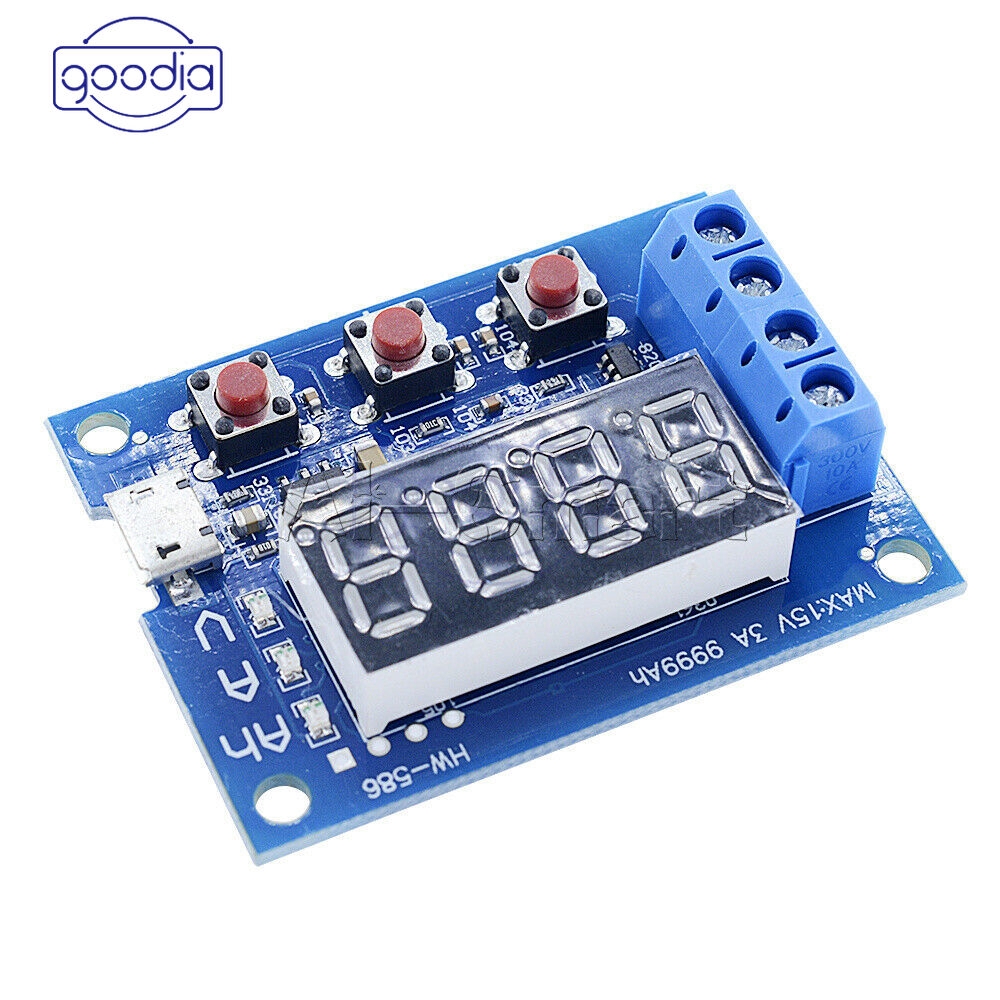

Board size: 50mmX37mm

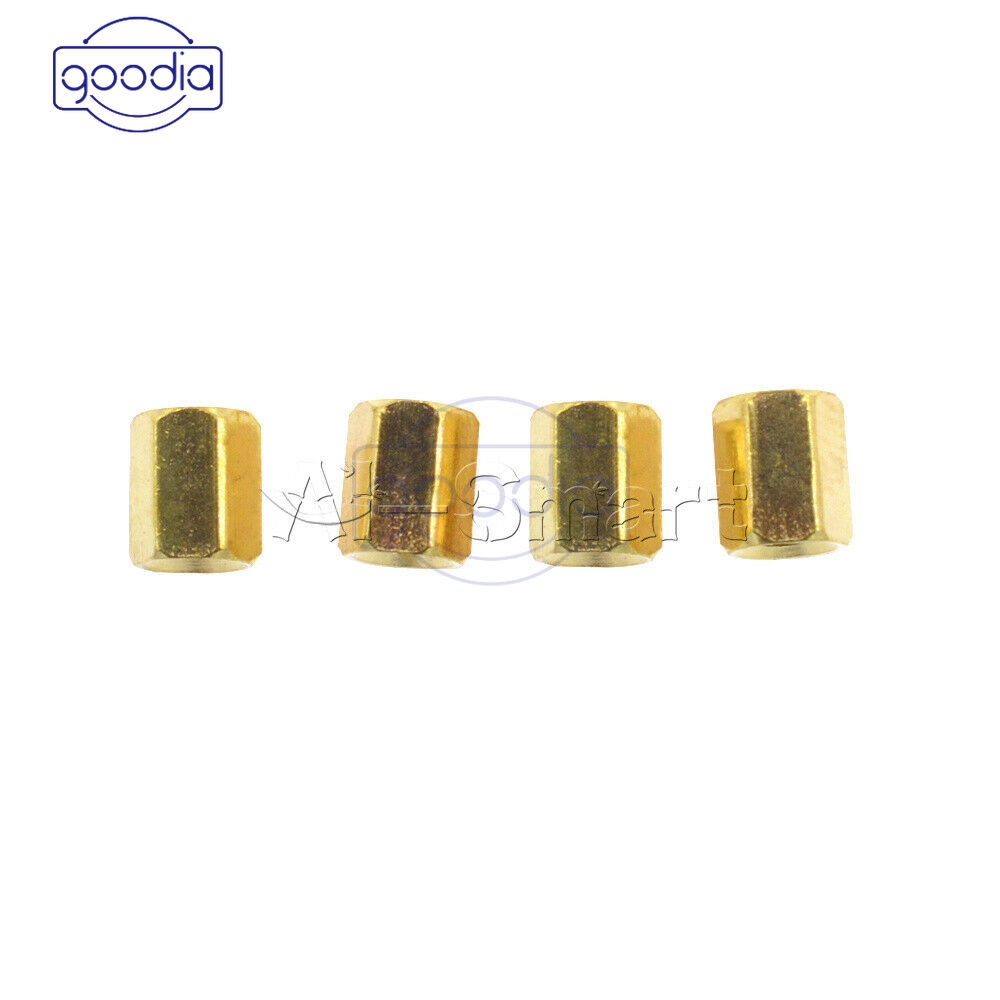

Finished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height)

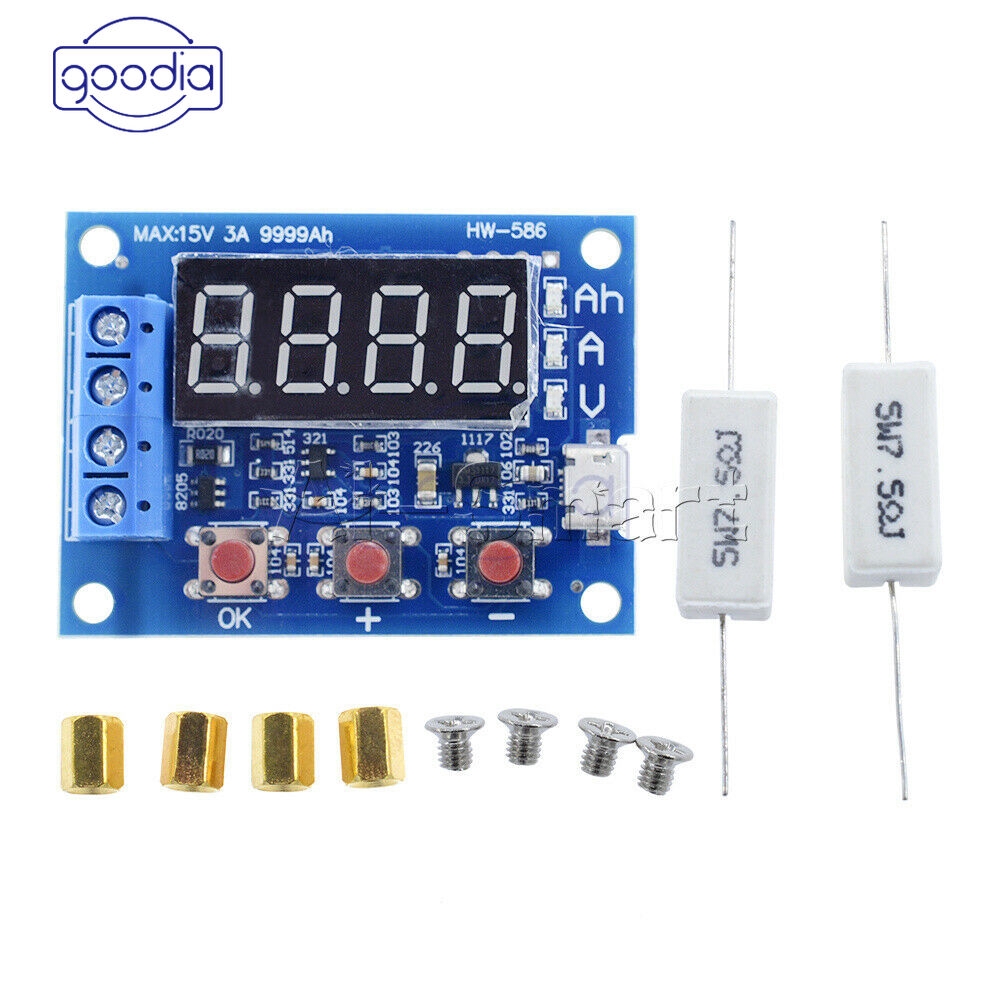

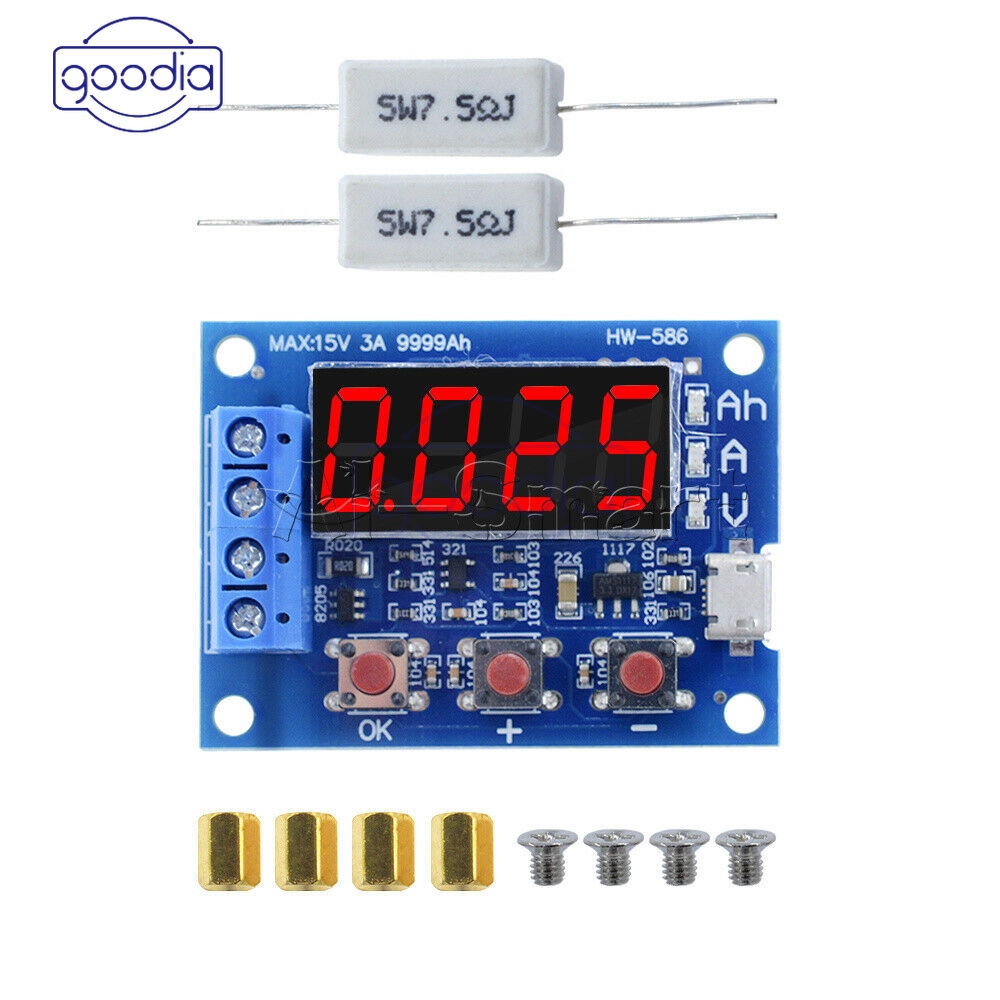

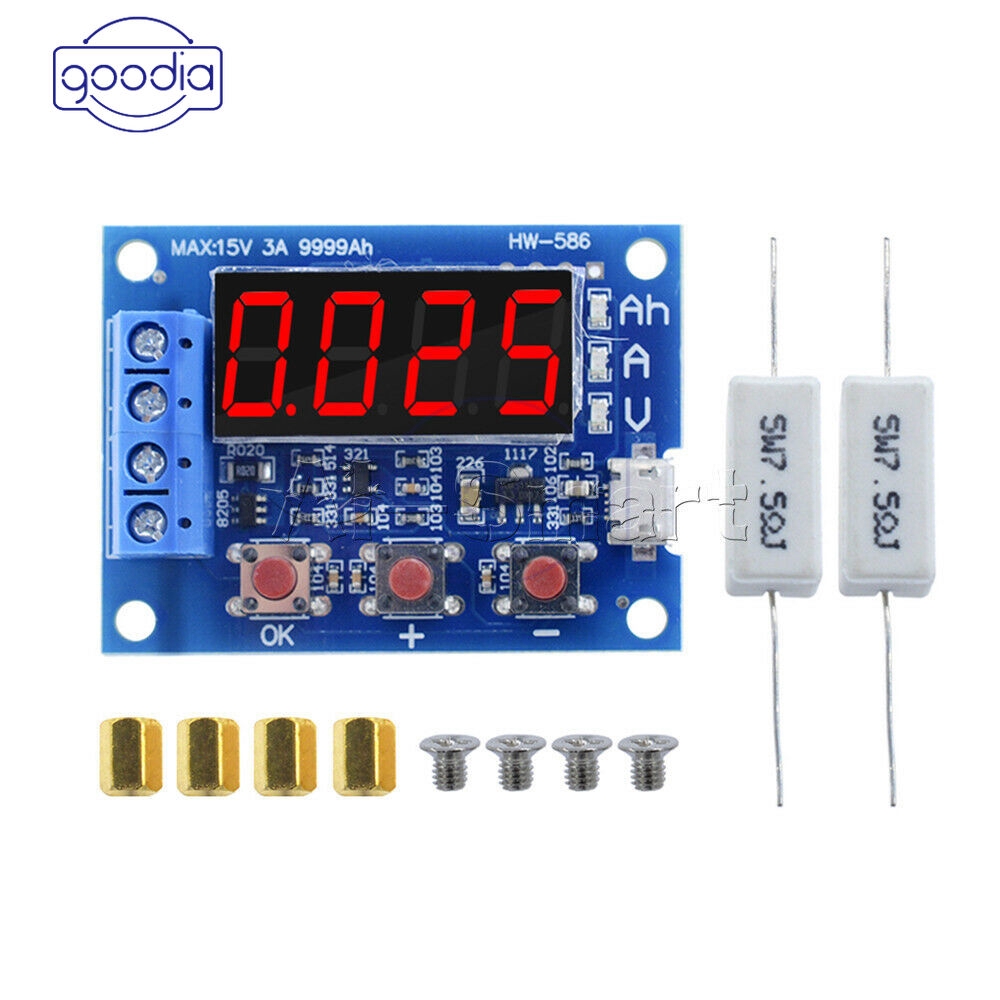

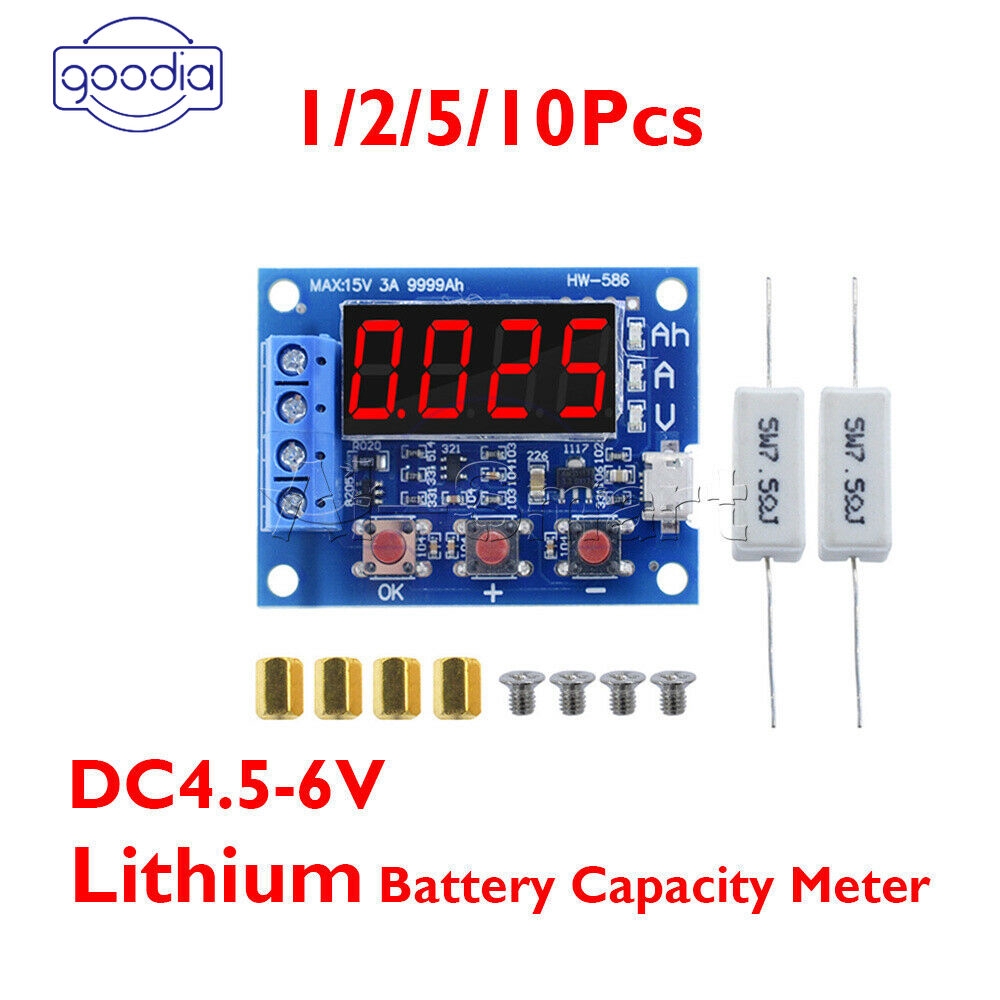

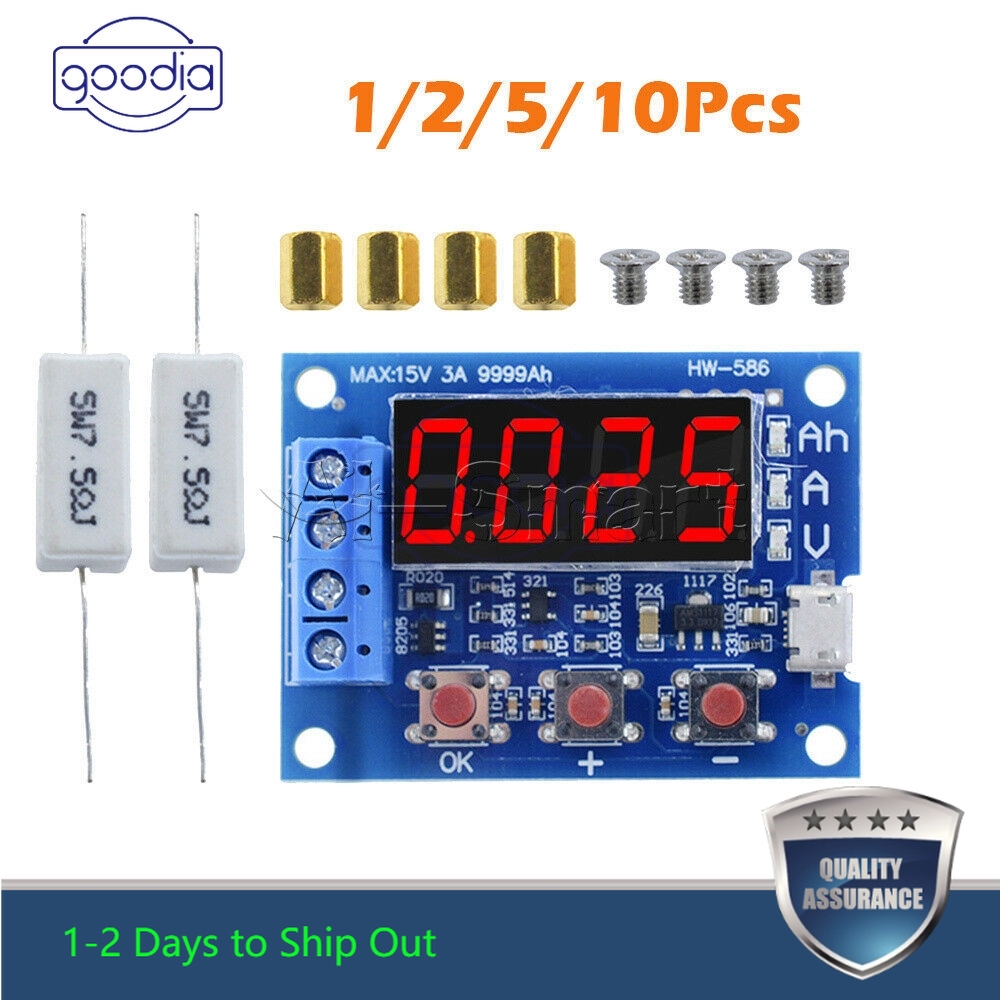

Package Included:
1Pc x battery capacity tester

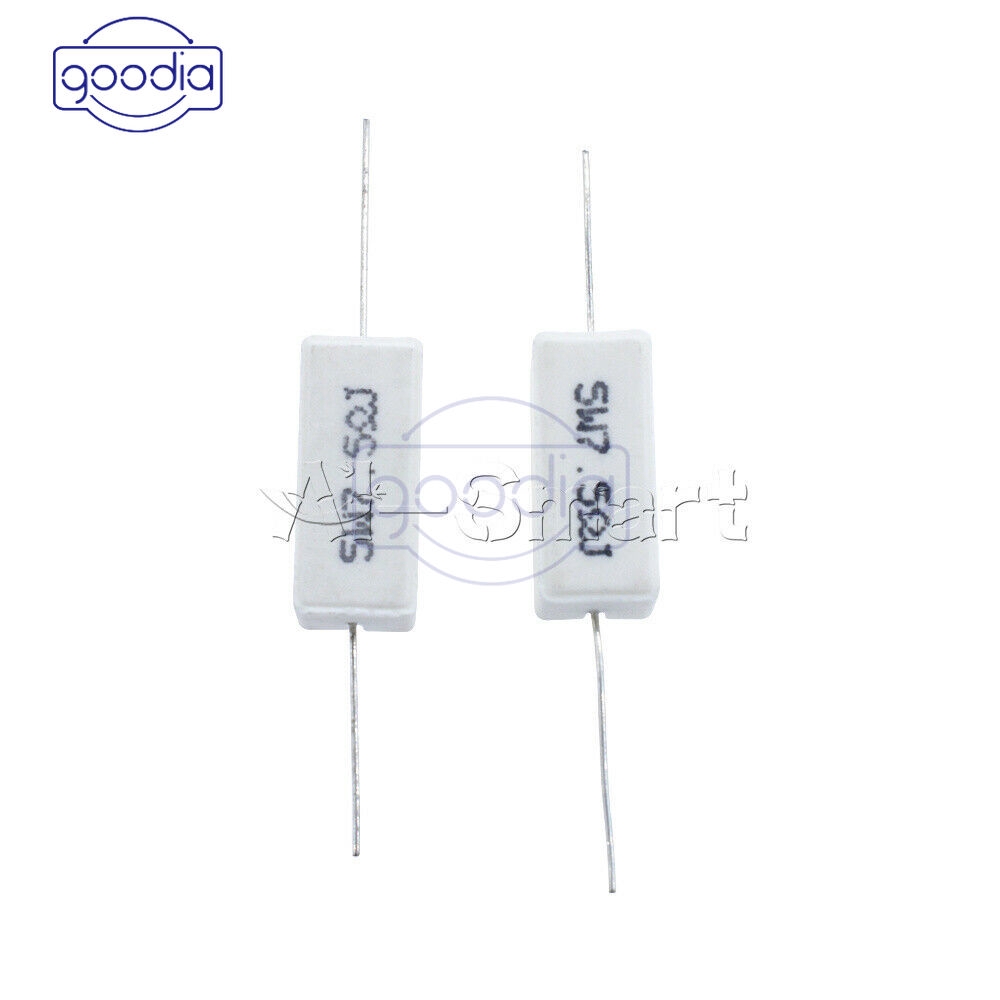

1Pc x Load resistors
