FAN PROC ALSEYE DOUBLE TOWER H120D FAN PROCESSOR

Detail FAN PROC ALSEYE DOUBLE TOWER H120D FAN PROCESSOR

Support untuk Socket:
Intel: LGA775 / 115X / 1366 / 2011
AMD: FM1 / FM2 / AM2 / AM2+ / AM3 / AM3+ / AM4

Product Feature:
- Direct Air Tunnel Effect
Dual fans make the heat sink and the whole cooling channels aligned, maximizing
the heat output.
- Stamping FIN
The heat pipe is stamped between the fins,
increased contact area between the fins and the heat pipe can enhance conduction
efficiency greatly.

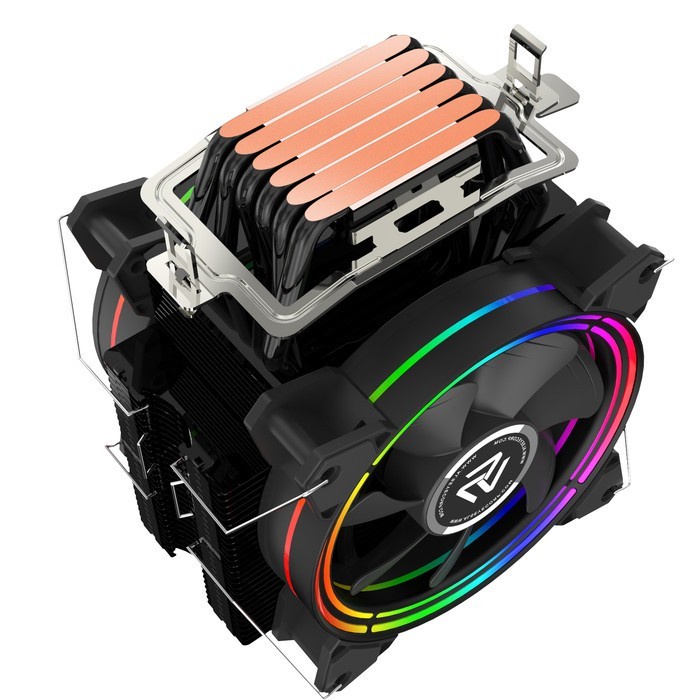

- MORE HEAT-PIPES
Improve Cooling Efficiency
6 x U-shaped heat-pipes for fast transfer of heat, to make sure the CPU is
running at optimal performance
- Excellent Performance LED Fan
Ultra wide PWM RPM range and rifle bearing，increased cooling performance
- Universal Socket Compatibility
Multiple socket to support

Specifications:
Product Dimensions: 123x154x106 mm
Heatsink Dimensions: 154x123x58 mm
Heatsink Weight: 518 g
Heat pipe: Ø6 mm×6 pcs
Fan Dimensions1: 20x120x25 mm
Fan Rated Voltage: DC 12V
Fan Rated Current: 0.15~0.3 A
Fan Speed±10%: 800-2000 R.P.M.
Fan Airflow: ≤18.3~≤45.2 CFM
Fan Air Pressure: 0.41~2.14 mm/H2O±10%
Fan Noise: 24.1~35.5 dB(A)
Fan Connector: 4-pin（PWM）
Bearing Type: Rifile
Fan MTTF: 40.000hours

Gambar produk
