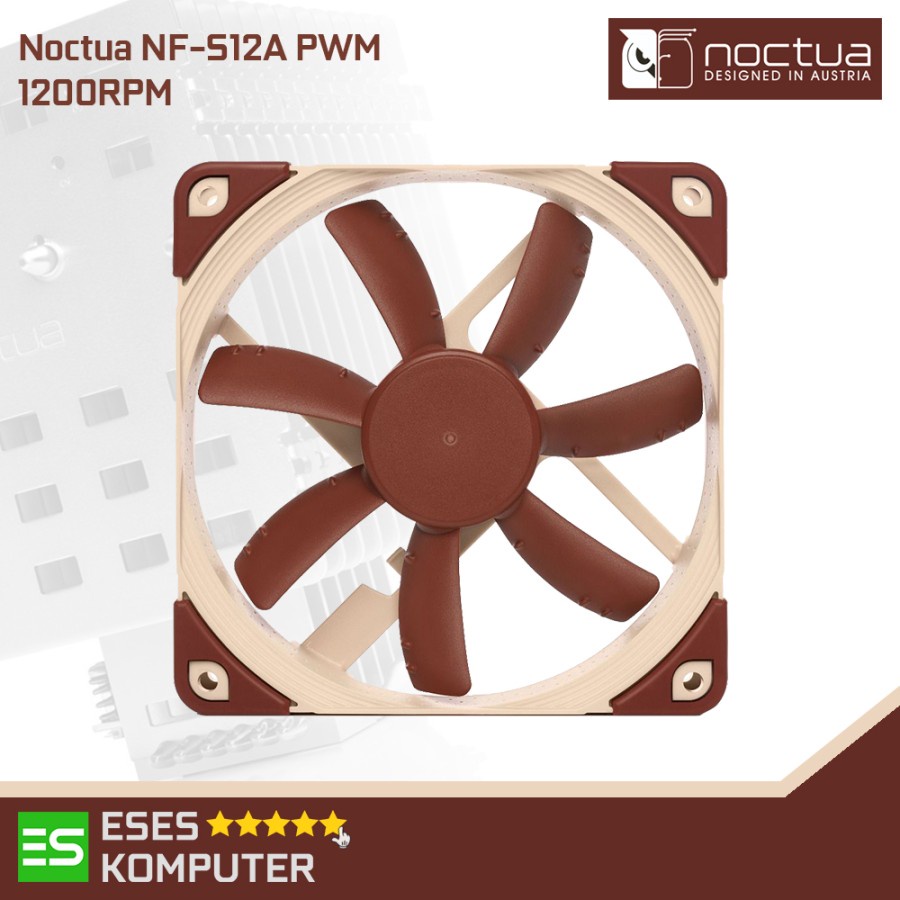

Fan Noctua NF-S12A PWM | 12CM 120MM 1200 RPM

Detail Fan Noctua NF-S12A PWM | 12CM 120MM 1200 RPM

Fitur :
• The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%.
• The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1200 to 900rpm.

Spesifikasi :
FAN Specification
Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry S-Series with Anti-Stall Knobs
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1200 RPM
Rotational speed with L.N.A. (+/- 10%) 900 RPM
Min. rotational speed @ 20% PWM (+/-20%) 300 RPM
Airflow 107,5 m³/h
Airflow with L.N.A. 83,2 m³/h
Acoustical noise 17,8 dB(A)
Acoustical noise with L.N.A. 10,7 dB(A)
Static pressure 1,19 mm H₂O
Static pressure with L.N.A. 0,73 mm H₂O
Input power (max.) 1,44 W
Input current (max.) 0,12 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Warranty 6 years

Garansi Resmi 6 Tahun by PT. Foxhound

* Pembelian dapat dilengkapi Faktur Pajak.
* Membeli berarti setuju dengan Catatan Toko.
* Seluruh produk kami 100% Orginal dan Bergaransi Resmi.

Jika produk rusak di masa garansi resmi, kapanpun kami siap melayani RMA ke Distributor.
