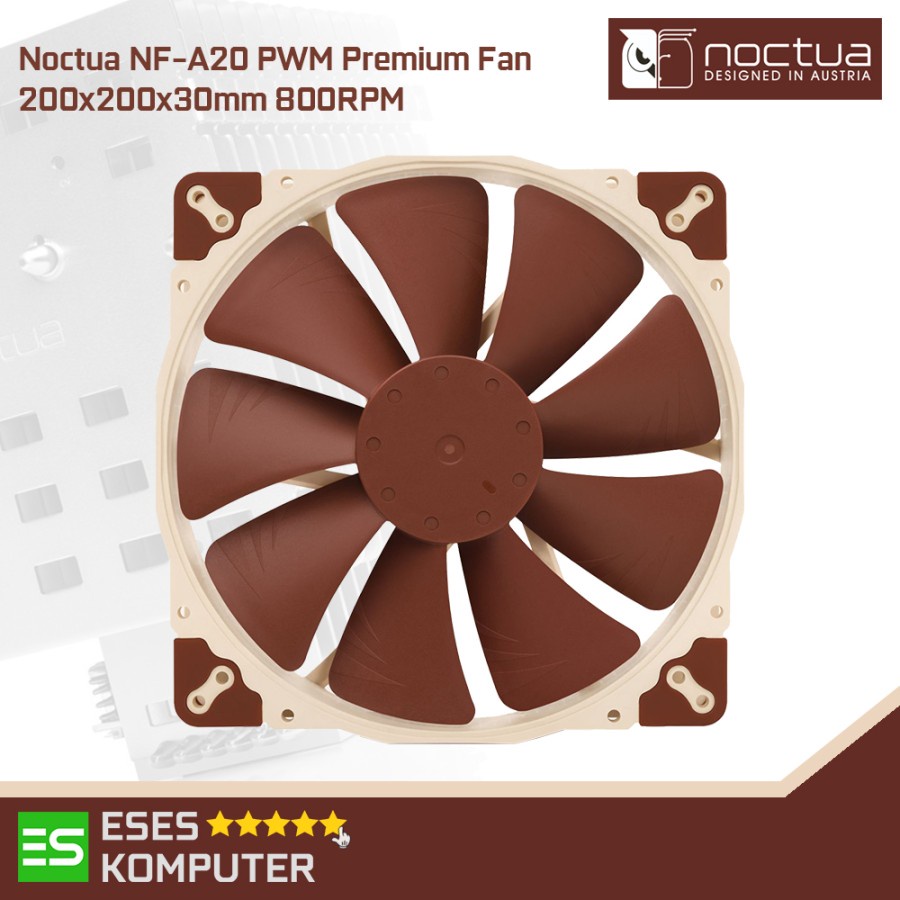

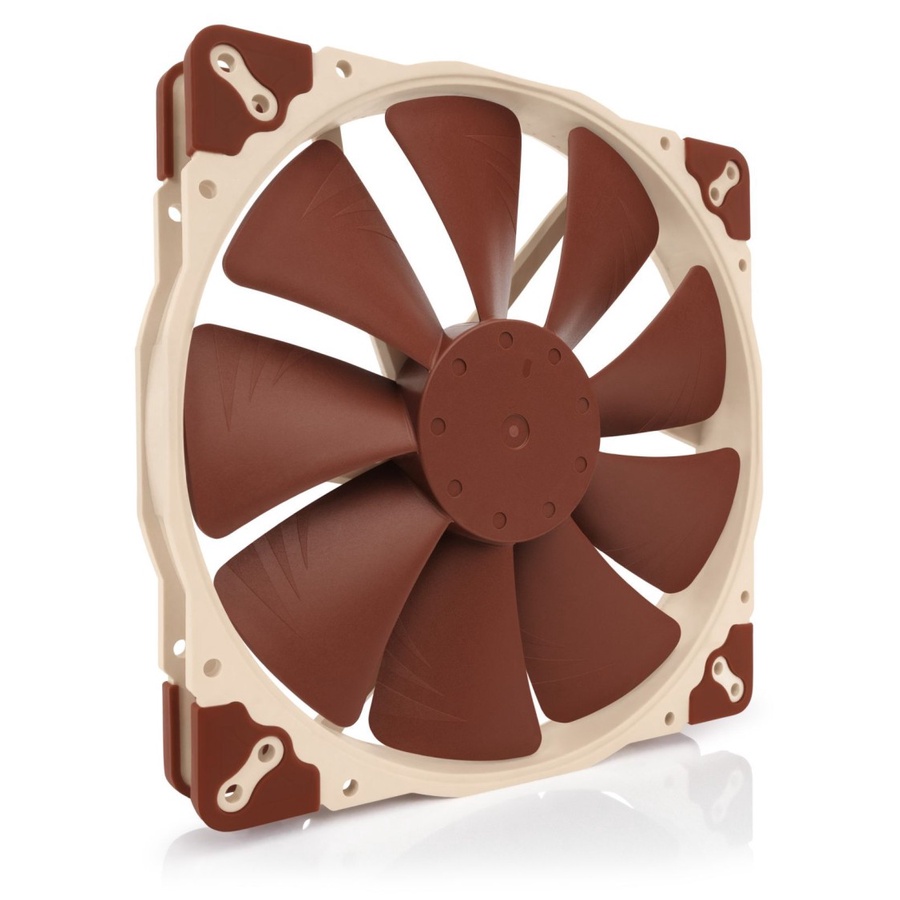

Fan Noctua NF-A20 PWM Premium Fan | 20CM 200MM | 800RPM

Detail Fan Noctua NF-A20 PWM Premium Fan | 20CM 200MM | 800RPM

Spesifikasi :
The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctua’s award-winning A-series to the increasingly popular 20cm form factor.

FAN Specification
Size 200x200x30 mm
Mounting hole spacing 154x154, 110x180, 170x170 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 800 RPM
Rotational speed with L.N.A. (+/- 10%) 550 RPM
Min. rotational speed (PWM, +/-20%) 350 RPM
Airflow 146,9 m³/h
Airflow with L.N.A. 100,8 m³/h
Acoustical noise 18,1 dB(A)
Acoustical noise with L.N.A. 10,7 dB(A)
Static pressure 1,08 mm H₂O
Static pressure with L.N.A. 0,51 mm H₂O
Max. input power 0,96 W
Max. input current 0,08 A
Operating voltage 12 V
Voltage PWM signal 5 V
MTTF > 150.000 h

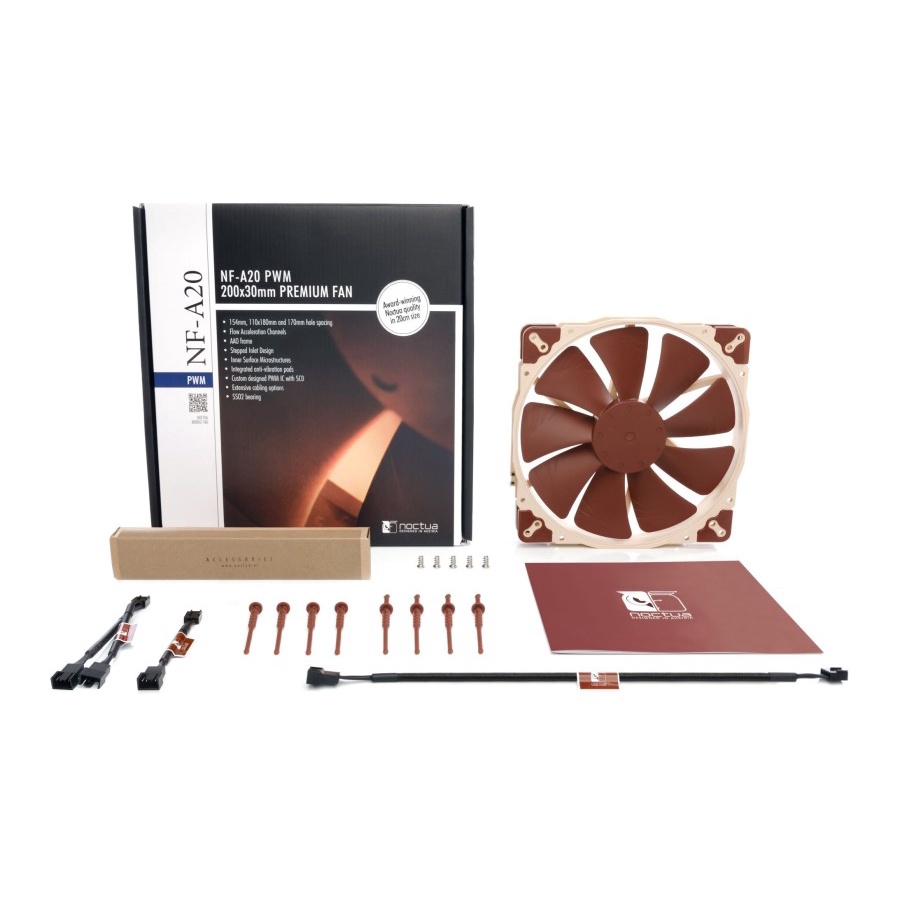

Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-pin y-cable
30cm extension cable
NA-AV3 anti-vibration mounts
NA-AV4 anti-vibration mounts
Fan screws
Warranty 6 years
