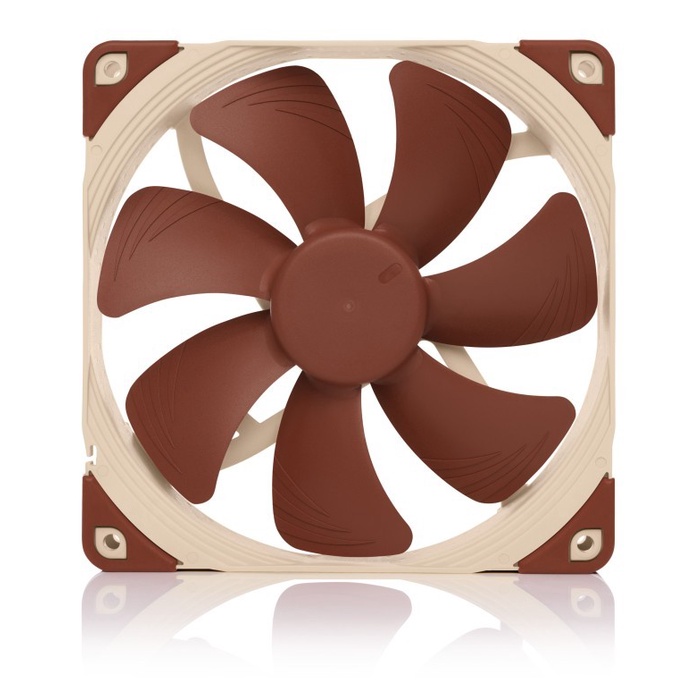

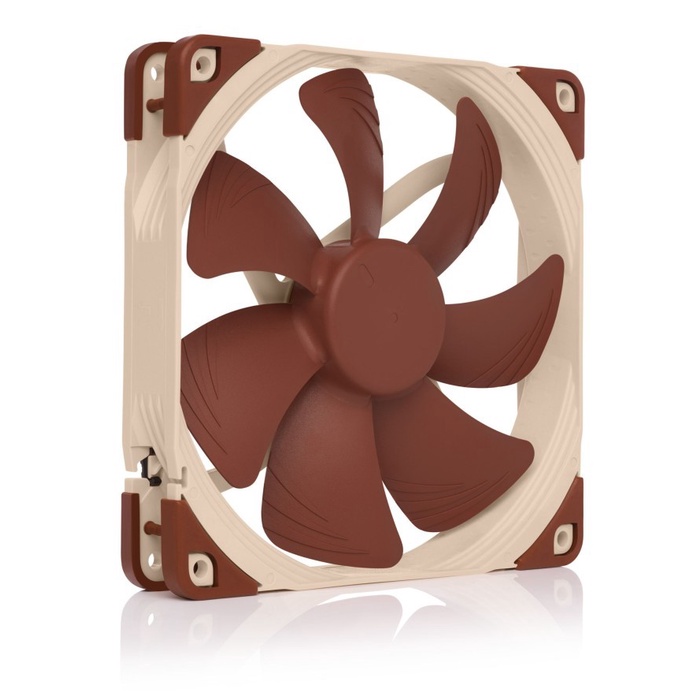

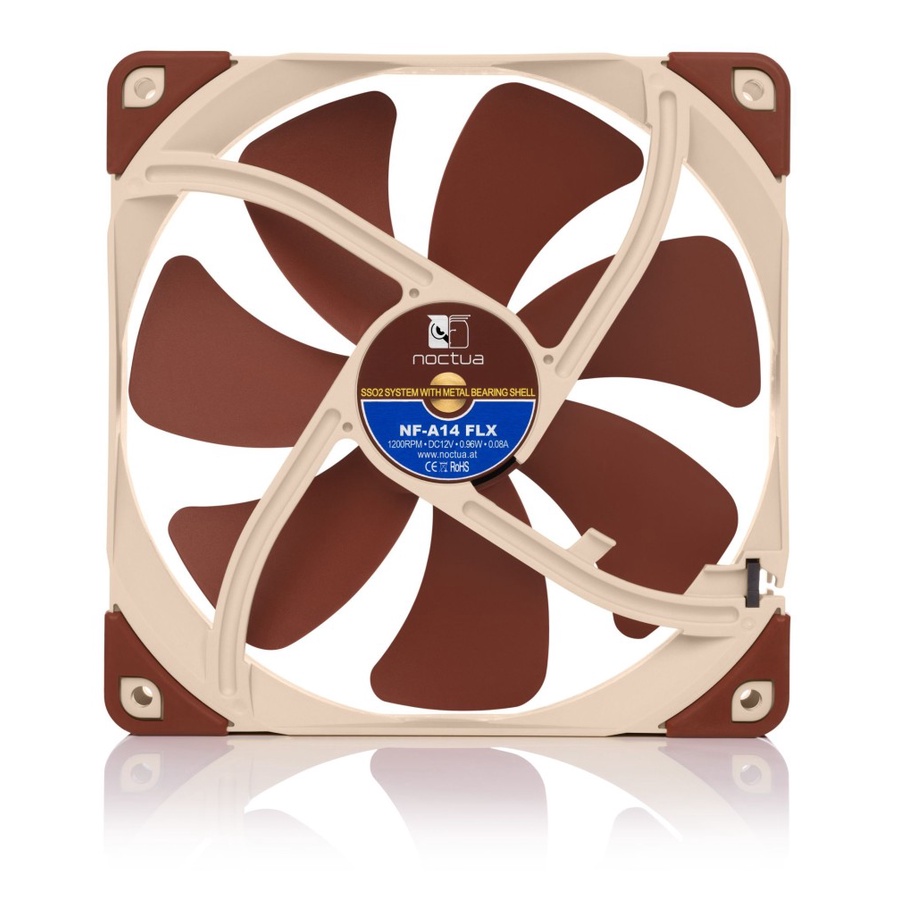

Fan Noctua NF-A14 FLX | 14CM 140MM 1200RPM

Detail Fan Noctua NF-A14 FLX | 14CM 140MM 1200RPM

Fitur :
• The NF-A14 is a premium quality quiet 140mm fan with a square frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard.
• Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A14 further improves the renowned quiet cooling performance of the award-winning NF-P14. The FLX version provides 1200/1050/900rpm speed settings via the supplied Low-Noise Adaptors.
• Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Spesifikasi :
FAN Specification
Size 140x140x25 mm
Mounting hole spacing 124,5x124,5 mm
Connector & pin-configuration 3-pin
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1200 RPM
Rotational speed with L.N.A. (+/- 10%) 1050 RPM
Rotational Speed with U.L.N.A. (+/- 10%) 900 RPM
Airflow 115,5 m³/h
Airflow with L.N.A. 101,9 m³/h
Airflow with U.L.N.A. 88,7 m³/h
Acoustical noise 19,2 dB(A)
Acoustical noise with L.N.A. 16.4 dB(A)
Acoustical noise with U.L.N.A. 13.8 dB(A)
Static pressure 1,51 mm H₂O
Static pressure with L.N.A. 1,18 mm H₂O
Static pressure with U.L.N.A. 0,89 mm H₂O
Input power (max.) 0,96 W
Input current (max.) 0,08 A
Operating voltage 12 V
MTTF > 150.000 h

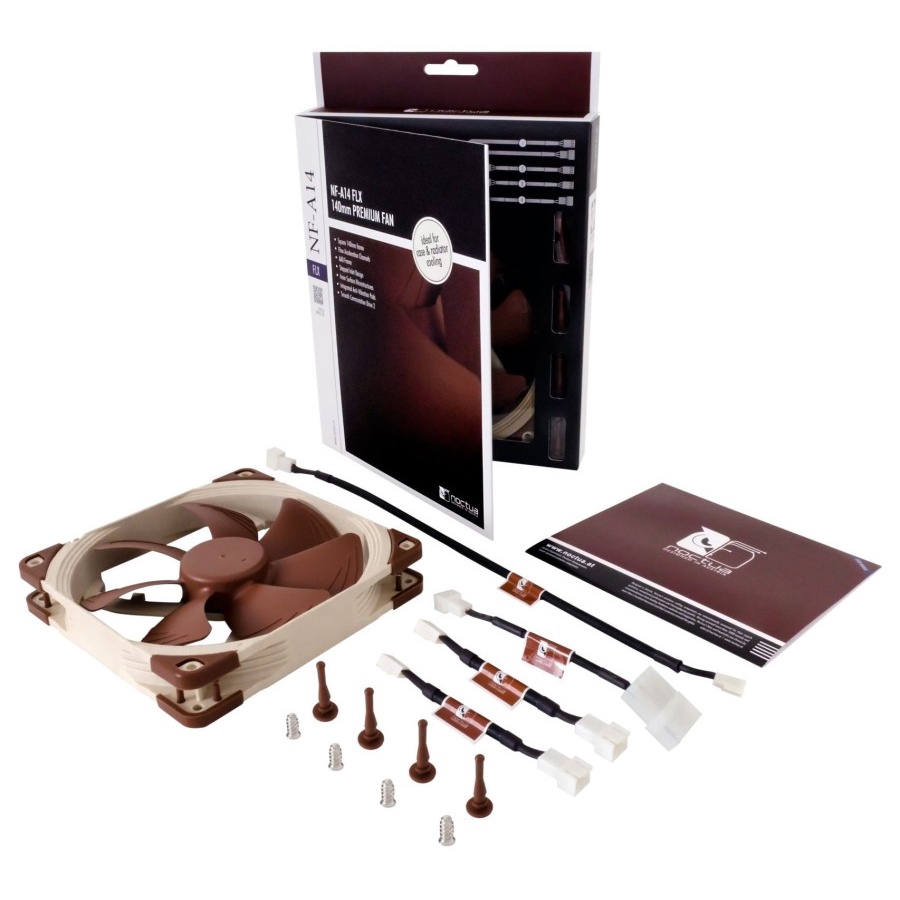

Scope of delivery
Low-Noise Adaptor (L.N.A.)
Ultra-Low-Noise Adaptor (U.L.N.A.)
3:4-Pin Adaptor
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

Garansi Resmi 6 Tahun by PT. Foxhound

* Pembelian dapat dilengkapi Faktur Pajak.
* Membeli berarti setuju dengan Catatan Toko.
* Seluruh produk kami 100% Orginal dan Bergaransi Resmi.

Jika produk rusak di masa garansi resmi, kapanpun kami siap melayani RMA ke Distributor.

Gambar produk
