Detail Fan Casing 12cm Enermax D.F Vegas Duo
Fan Casing 12cm Enermax D.F Vegas Duo
D•F•VEGAS DUO
Model UCDFVD12P
Dimension (mm) 120(W) x 120(H) x 25(D)
Speed Mode Ultra Silent Silent Performance
Speed (RPM) 800 ~ 1100 800 ~ 1300 800 ~ 1500
Air Flow (CFM) 33.21 ~ 45.33 33.21 ~ 53.66 33.21 ~ 61.92
Air Flow (m3/h) 56.43 ~ 77.02 56.43 ~ 91.17 56.43 ~ 105.20
Static Pressure (mm-H2O) 0.979 ~ 1.297 0.979 ~ 1.425 0.979 ~ 1.898
Noise (dBA) 16 ~ 18 16 ~ 20 16 ~ 22
Rated Voltage (V) 12 12 12
Input Current (A) 0.21 0.23 0.25
Input Power (W) 2.5 2.8 3.0
MTBF (hrs) ≧160,000 @ 25°C
LED Color 2 colors (Red and Green)
LED Number 24 (2 colors*12)
LED Type Patented circular type LED with 13 modes
Connector 1 x 4 pin PWM connector , 1 x 4 pin fan power adaptor
Accessory 8 x screws , 1 x adhesive tape

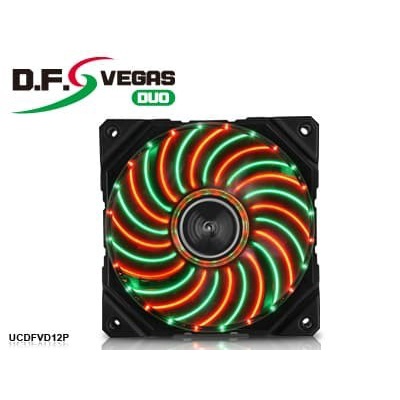

Gambar produk
