Description:
This is the mini ZVS suite, the package is very small, can not use ordinary battery power supply, it is recommended to high-power switching power supply, etc., 5 to 12V power supply current will not be less than 5A! Note that the power supply to high-power power, power must be sufficient, the working voltage less than 5V does not work, the current less than 5A does not work.

The operating voltage does not exceed 12V or less than 5V, only refers to the voltage when the circuit is work, not the output voltage of the power supply without load! more than 12V or less than 5V power supply, the circuit is prone to problems, the seller is not responsible!

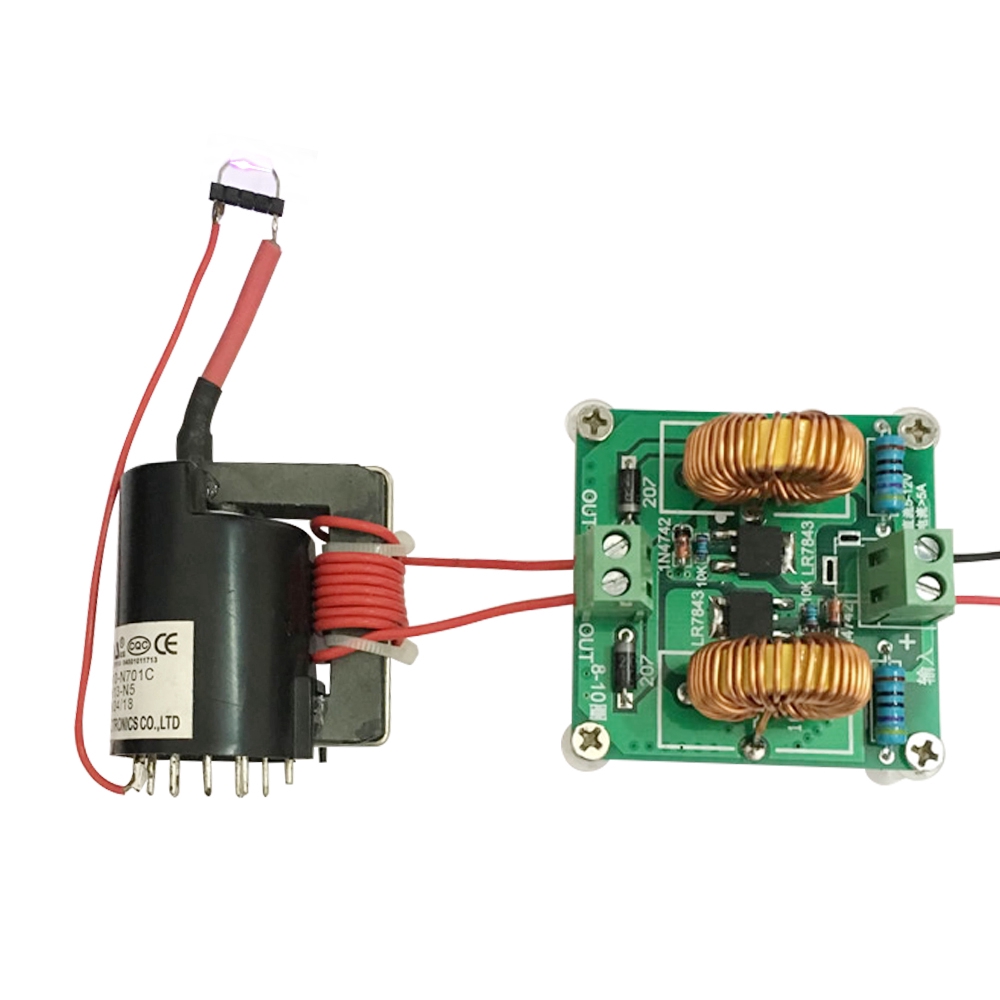

12V power supply push high voltage package, power 60W or so, MOS tube does not heat, no extra heat dissipation. If used do induction heating, then do not work long hours, after all, limited power, induction heating, primary coil heating is relatively large, attention heat dissipation. make sure all components are soldered properly, the positive and negative of the power line are not connected, and after the load (heating coil, high voltage package), the power supply connected again! no electricity without tax! unloaded damage easily damage! no tax confirmed, the 2 MOS tubes are easy to conduct at the same time, and then the heat is burned out!

Maximum power 120W (12V induction heating) batteries, power supply must ensure that the work voltage is above 4.5V! if you can not that the voltage above 4.5V during work, do not use batteries or batteries! do not use dry batteries!

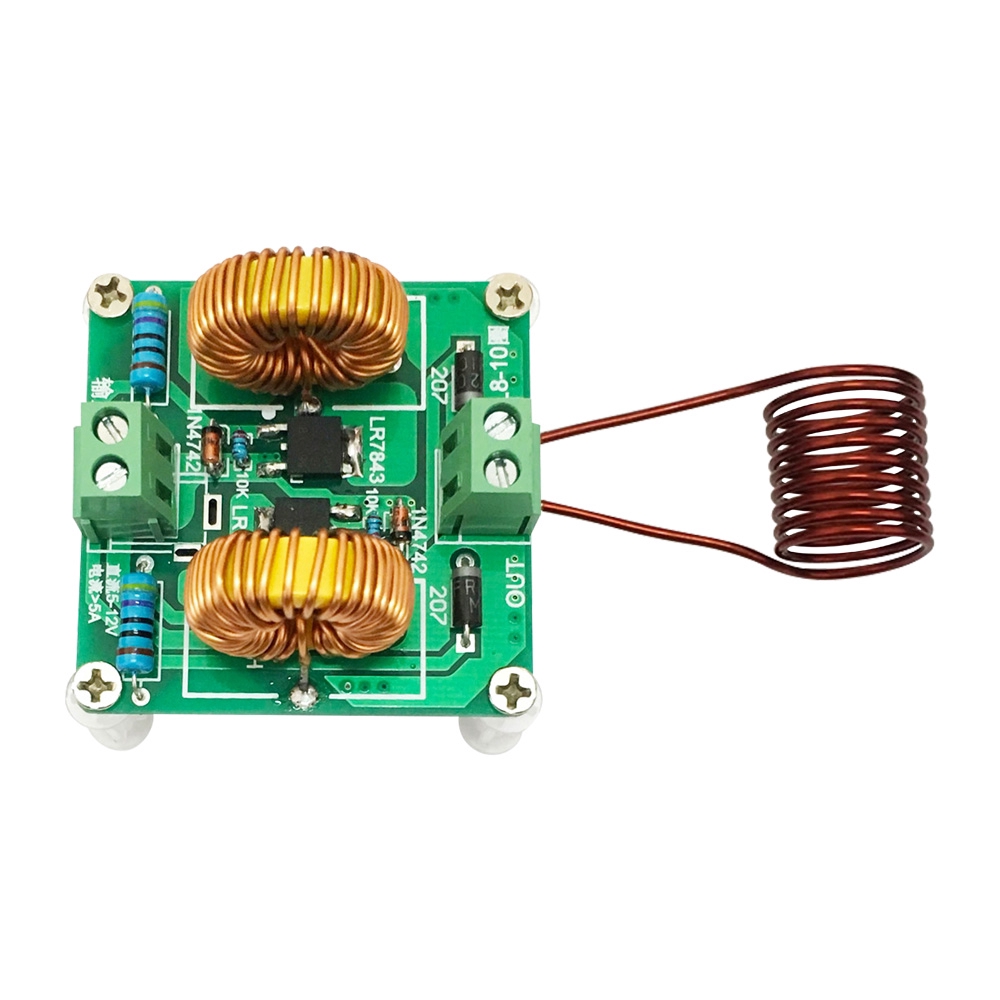

the width of the heated coil should be as high as 1/3 ~ 1/2 of the inside diameter of the heating coil, and the maximum not exceed 2/3!

Heating the diameter of the object as much as possible within the control of 20mm, too large heating will difficult to heat up red, after all, limited power.
induction heating, the general work of 5 minutes to power down cooling. because the induction heating
Current is relatively large, coil heating is relatively large. when heated, some of the heat is the heated object is passed to the heating coil. Long, the temperature of the heating coil is very high. like The heating coil is attached to the terminal, will melt the plastic part of the terminal!

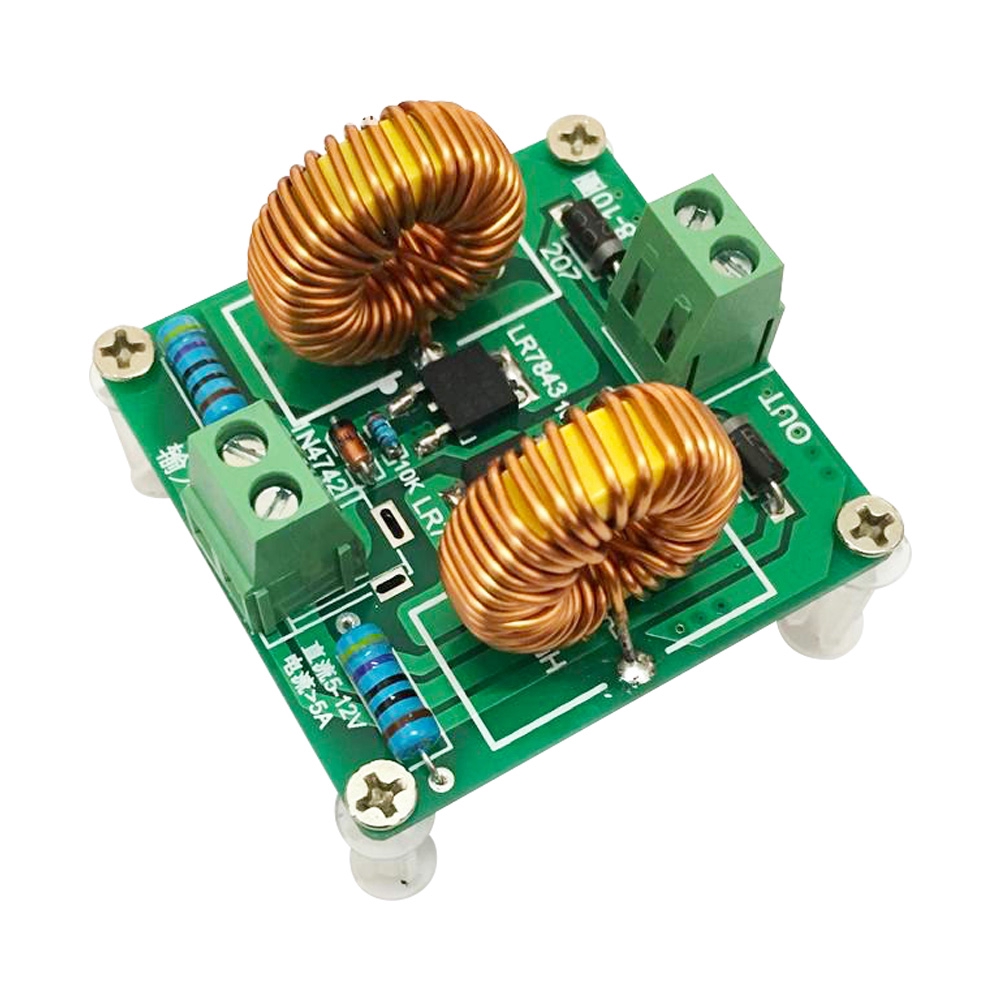

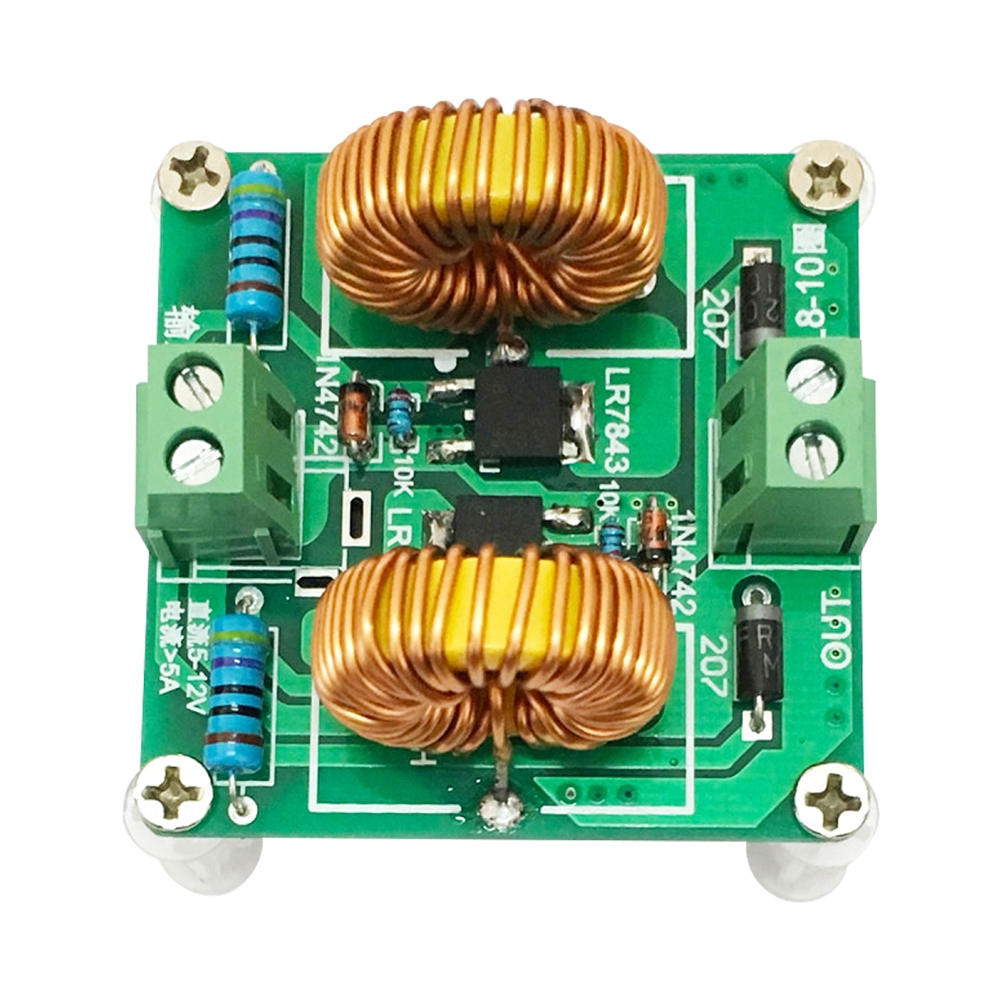

1. tin welding pads are sturdy and can be subjected to repeated disassembly and disassembly, and it is not easy to fall;
2. 1.6mm plates are thick and not dependent self-bending (ie bending under non-human conditions). poor plates will bend with time and environmental changes.
3. the impedance is stable and reliable;

Package Included:

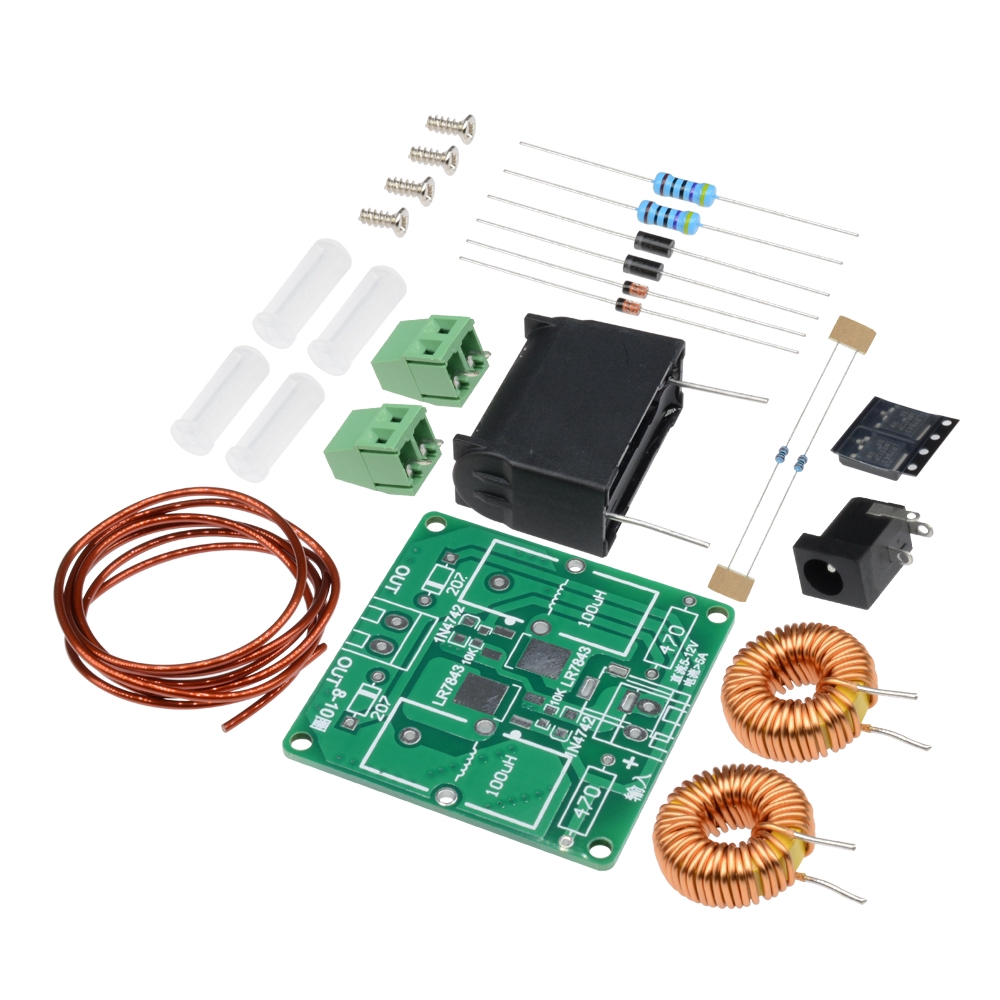

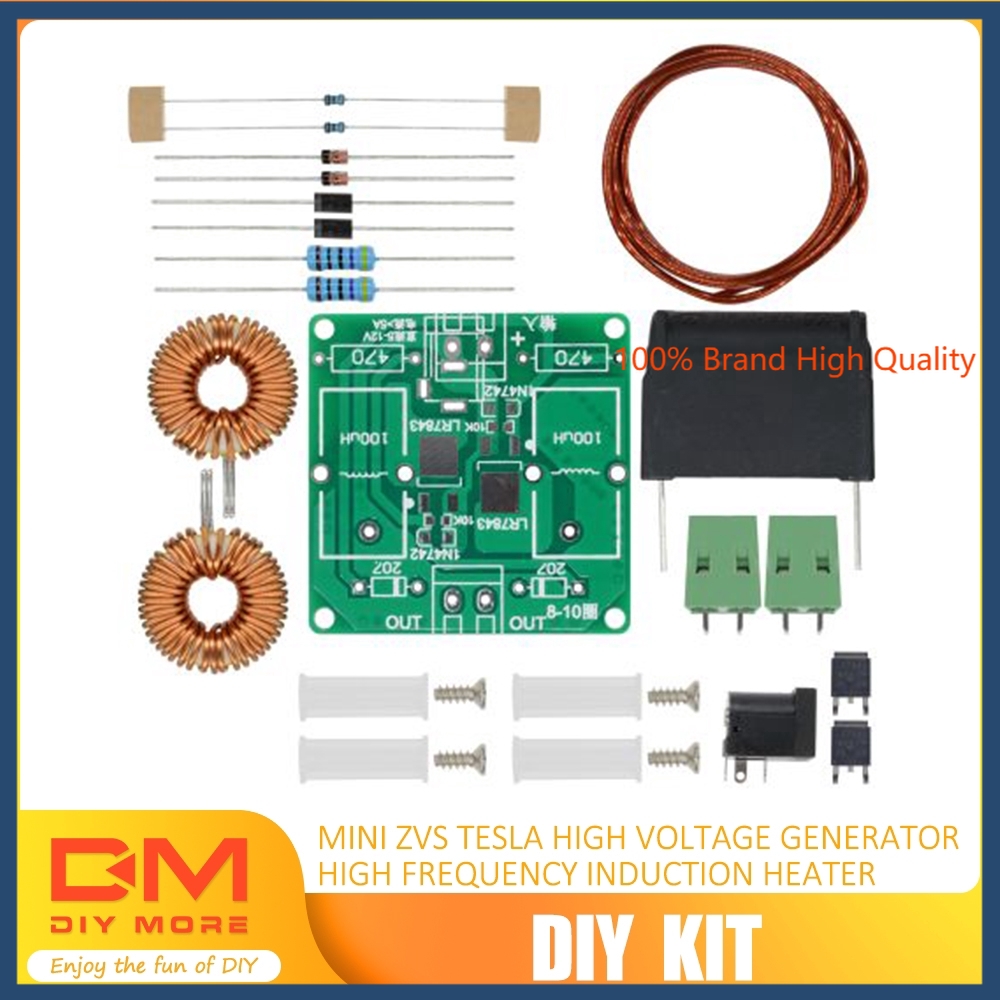

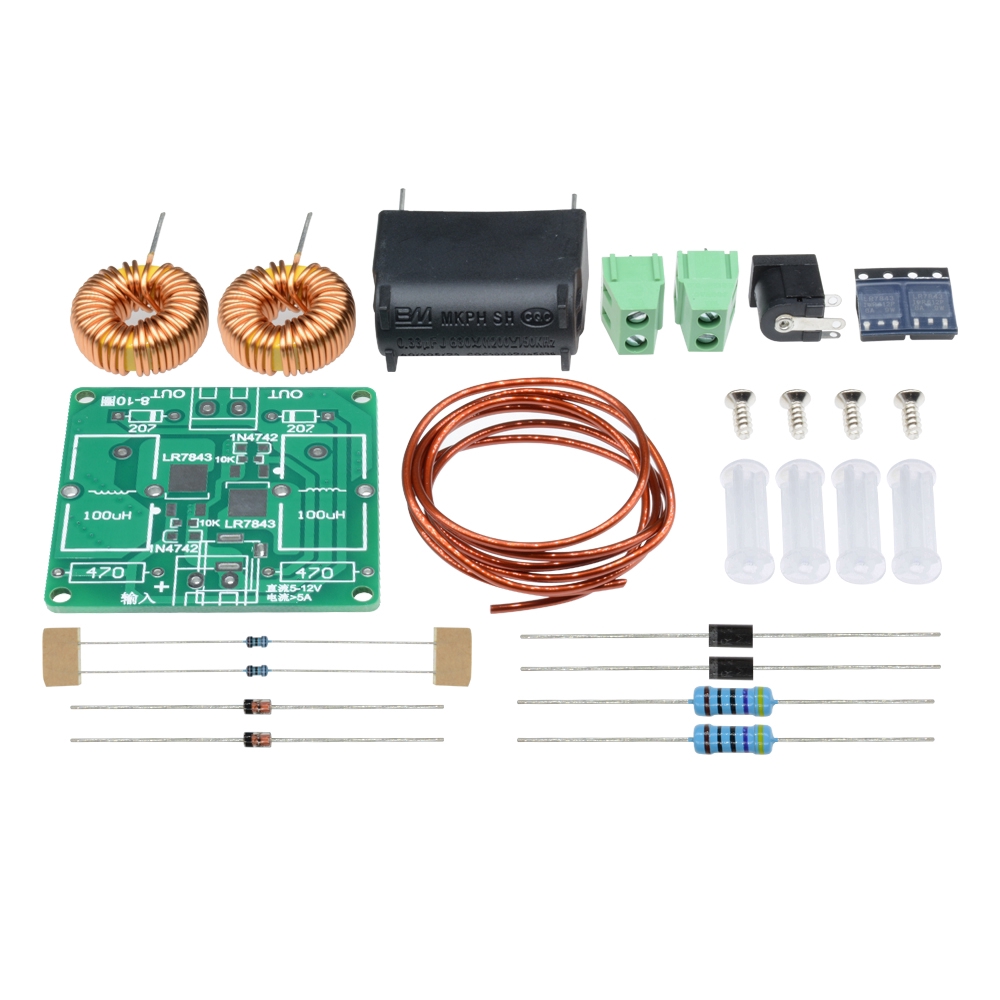

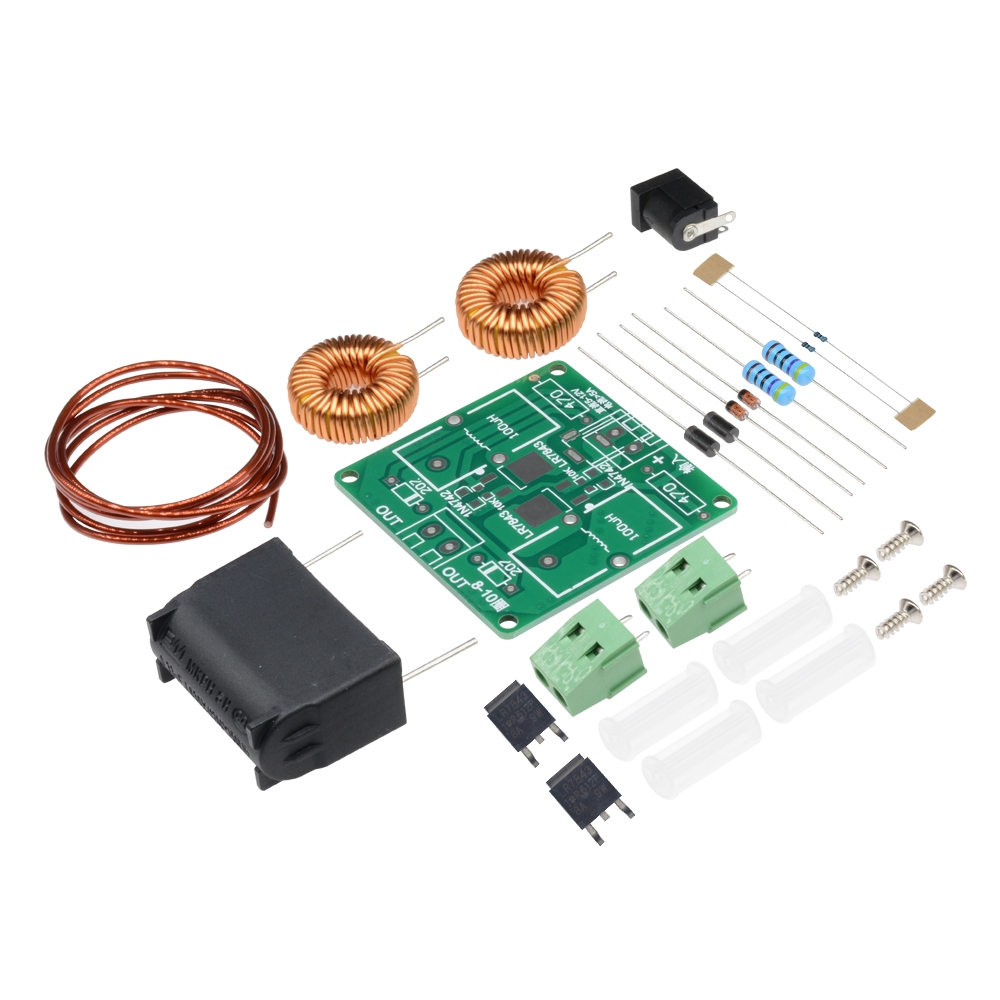

1PC ZVS Tesla High Voltage Generator High Frequency Induction Heating Machine Kit
