〖Factory Supplier/COD〗 STM32F407VET6 Development Board Core407V Cortex-M4 STM32 Core-board Mainboard

Detail 〖Factory Supplier/COD〗 STM32F407VET6 Development Board Core407V Cortex-M4 STM32 Core-board Mainboard

【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please click and give me five-star✧✧✧✧✧thanks. My product is very good quality, my price is also very Cost-effective, my friends, just enjoying your shopping here, come on baby!】


Description:

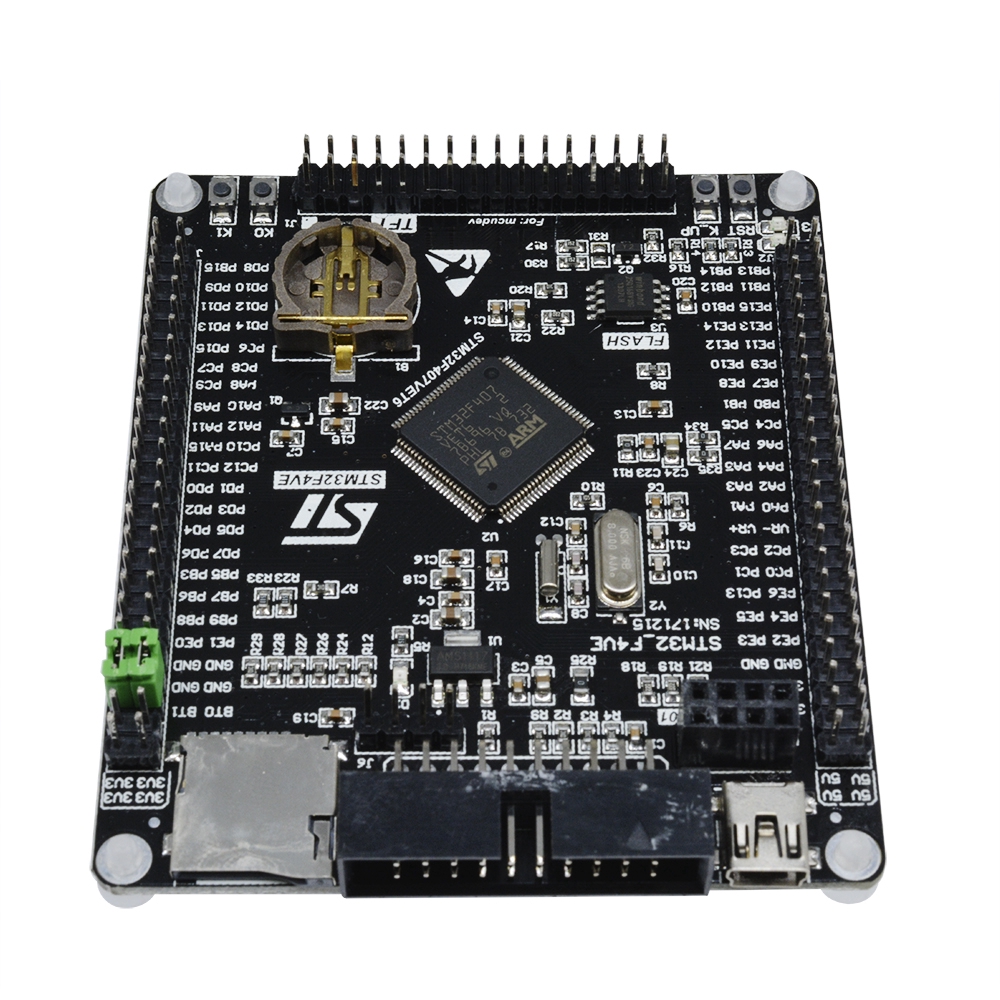

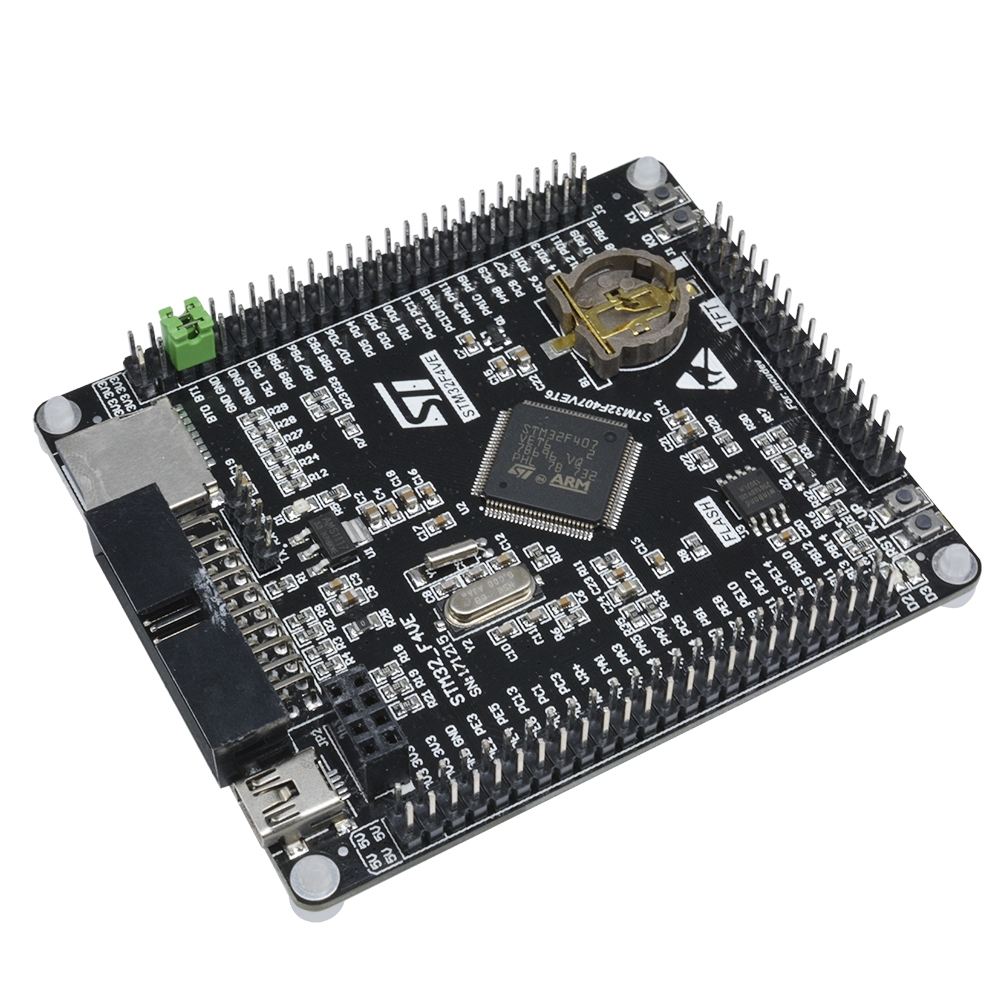

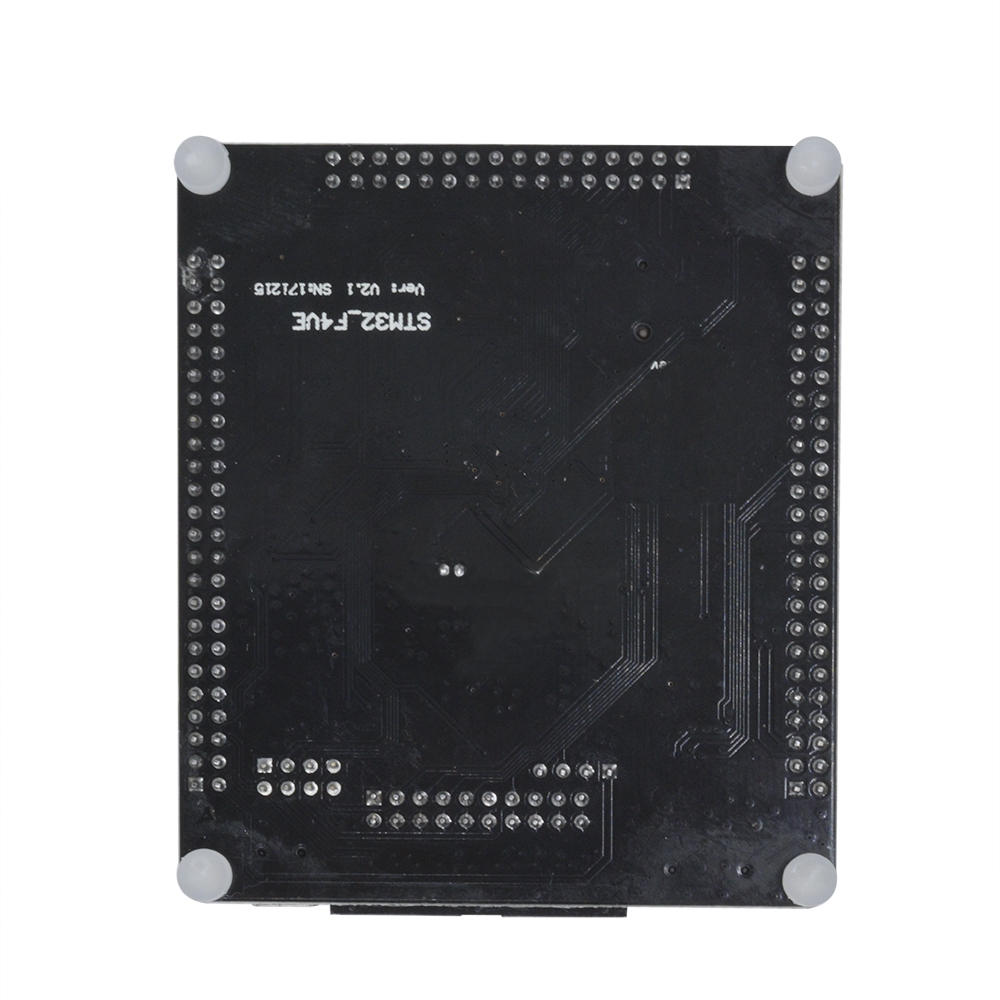

Core407V is a small STM32 development board that features an STM32F407VET6 device as the
microcontroller, supports further expansion. It is ideal for starting application development
with STM32F family

Important Product Features:
Onboard: SD card slot
RTC Battery: CR1220
Wireless Communication: NRF2401 Interface
Data storage: W25Q16
Support FMSC LCD Interface
Multi-user keys
All the CPU-10 lead
2.54mm integer multiples spacing pin

STM32F407VET6: the high performance STM32 MCU which features:
Core: Cortex-M4 32-bit RISC
Feature: a full set of single-cycle DSP instructions
Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
Operating Voltage: 1.8V-3.6V
Package: LQFP100
Storage Resources: 512kB Flash, 192+4kB SRAM
Resource: 3 x SPI,3 x USART, 2 x UART, 2 x I2S, 3 x I2C; 1 x FSMC,1 x SDIO,2 x CAN; 1 x USB 2.0
FS/HS Controler(with DMA); 1 x USB HS ULPI; (used for external USB HS PHY)1 x 10/100 Ethernet
MAC;1 x 8 to 12-bit parallel camera interface; 3 x AD(12 bit,1us),2 x DA(12 bit)

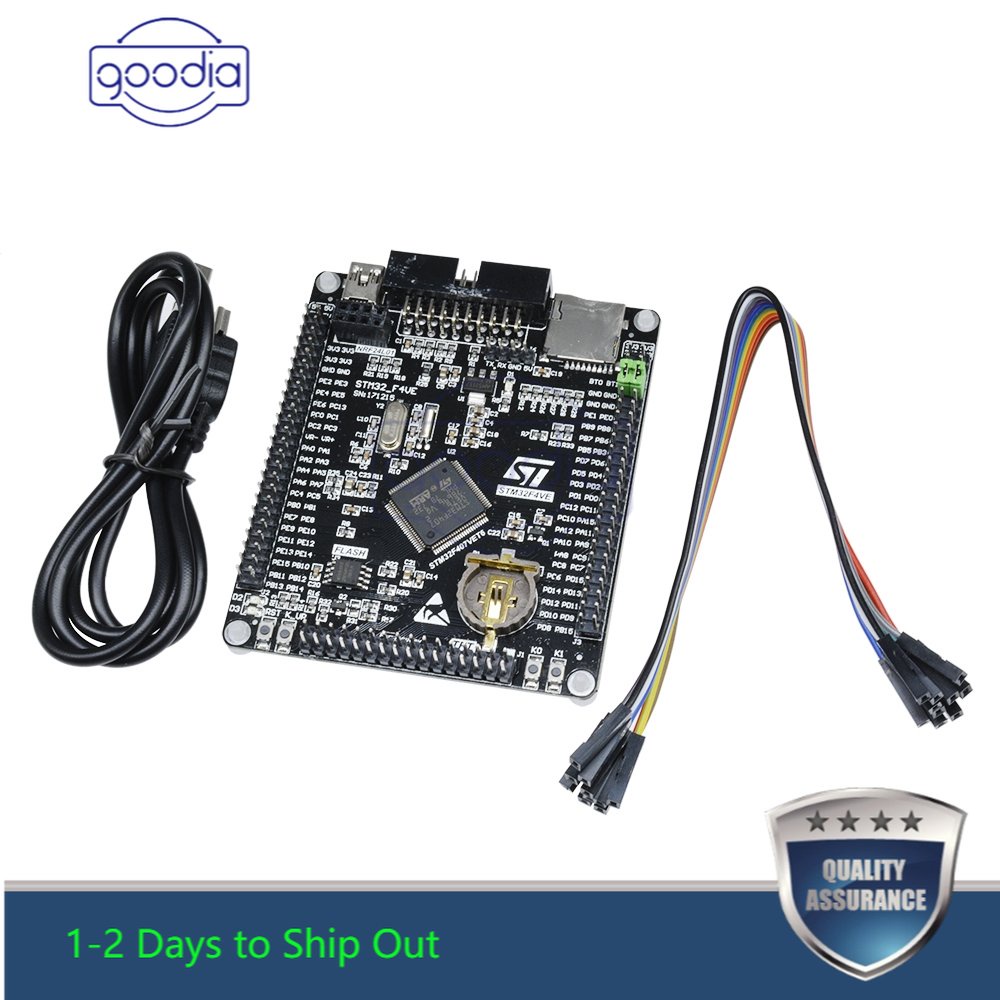

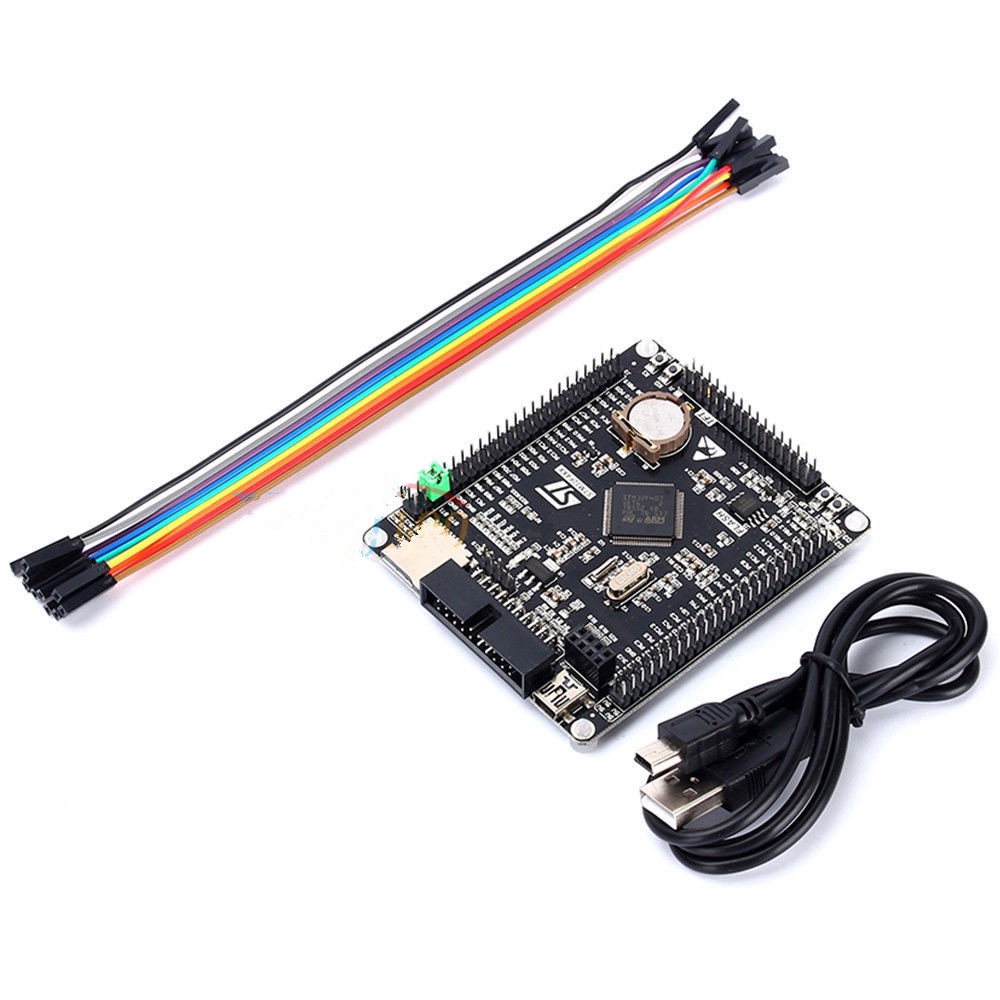

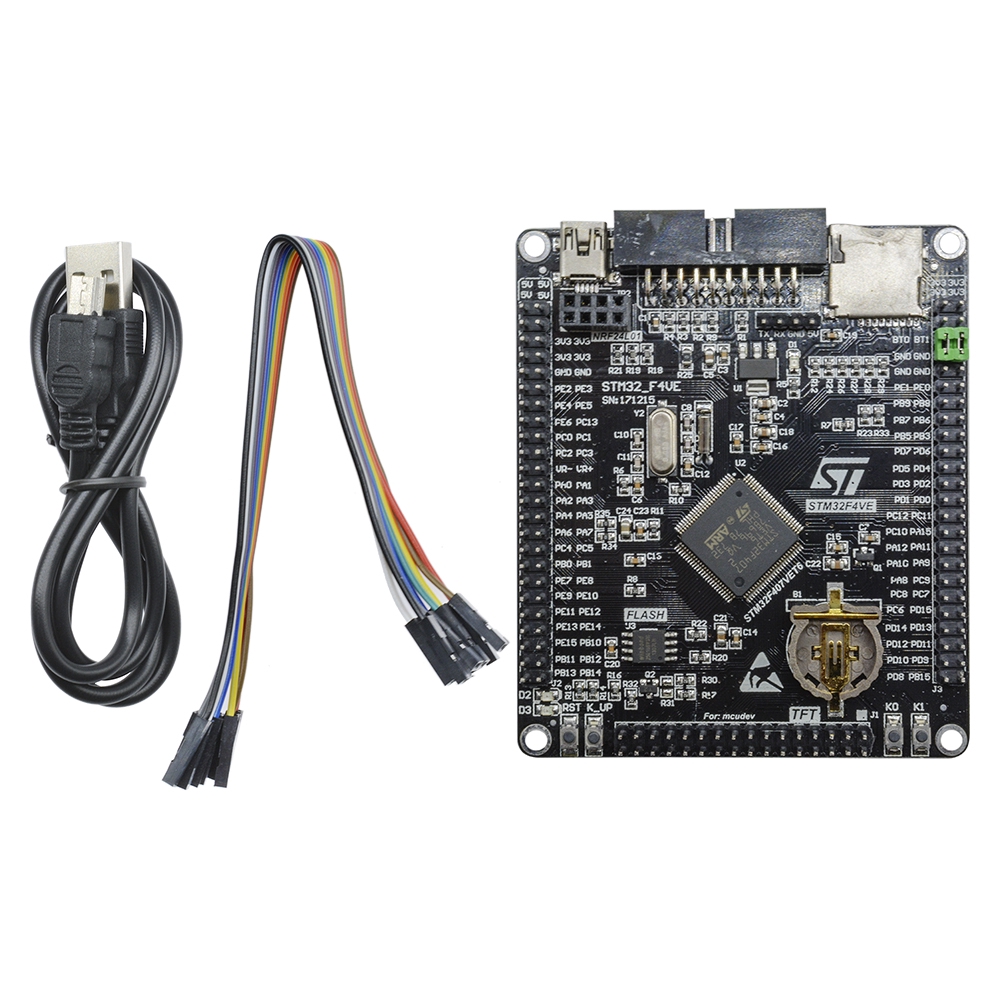

Package Included:
1 x STM32F407VET6 Board
1 x Dupont Cable

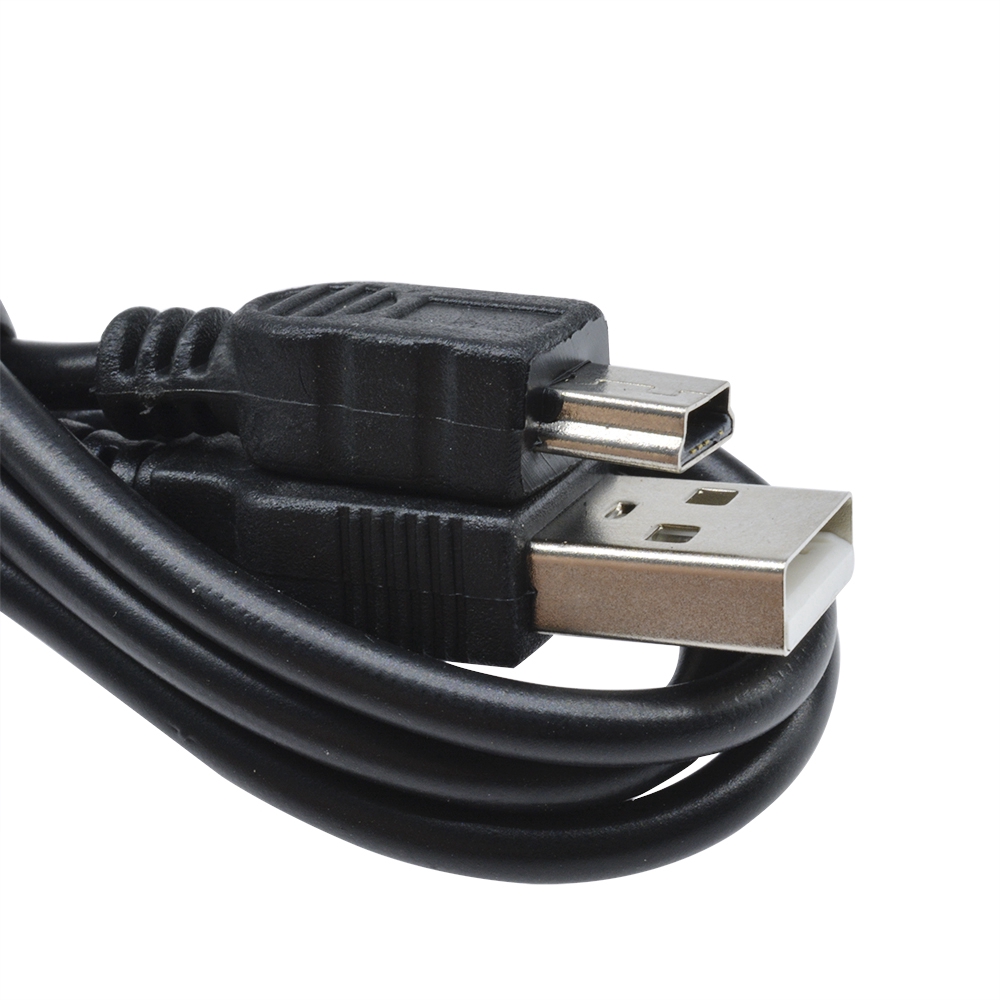

1 x Mini USB Cable

#DIYMORE #STM32F407VET6 #Development #Board #Core407V #Cortex-M4 #STM32 #Core #Board #Mainboard
