〖Factory Supplier/COD〗Motor Driver Semikonduktor bts7960b btn7960 43A H-Bridge PWM untuk Arduino
Deskripsi singkat
Elektronik > Kelistrikan > Kelistrikan Lainnya > 〖Factory Supplier/COD〗Motor Driver Semikonduktor bts7960b btn7960 43A H-Bridge PWM untuk Arduino
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

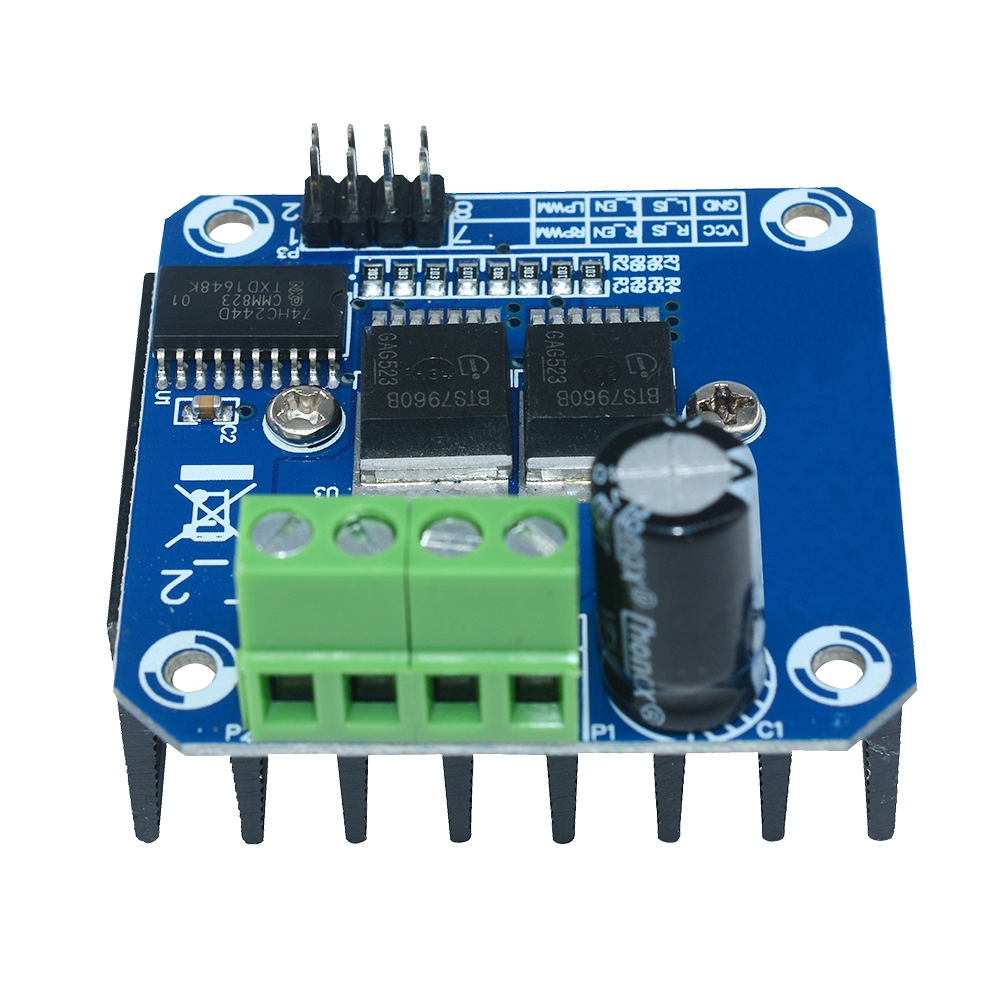

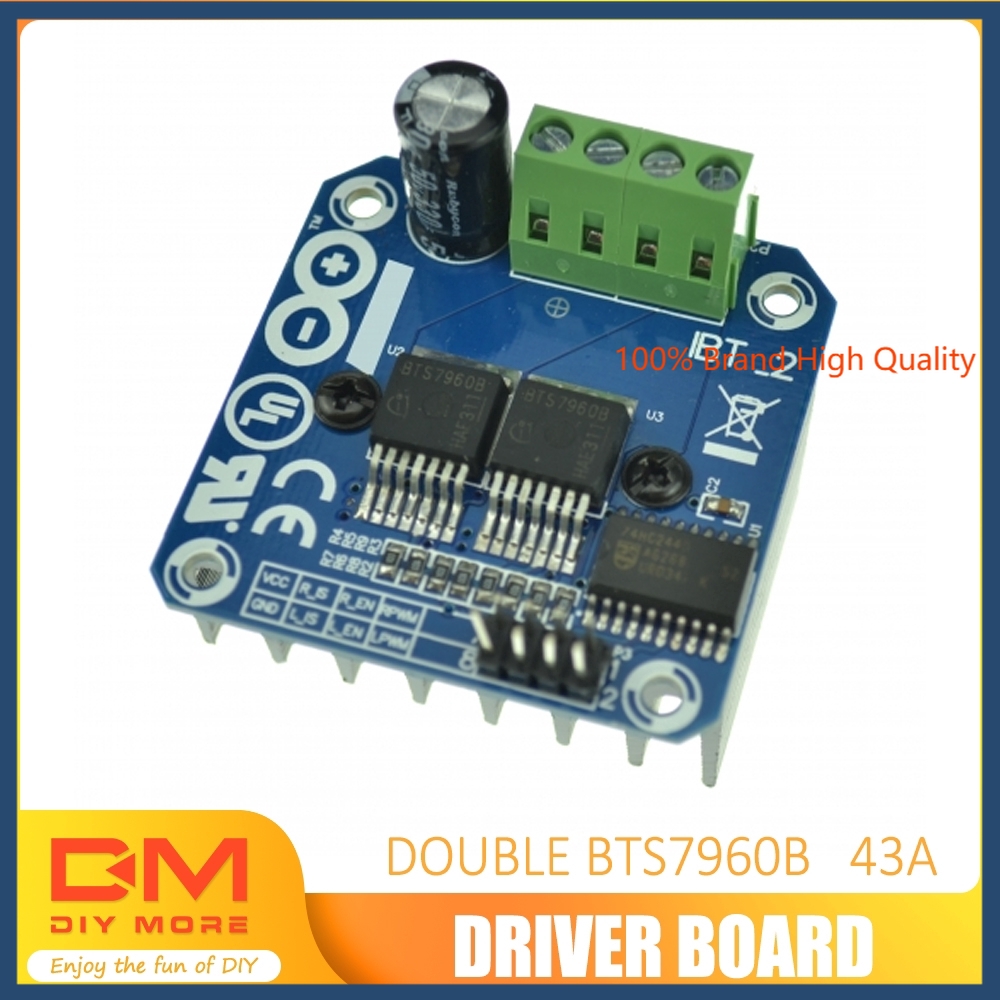

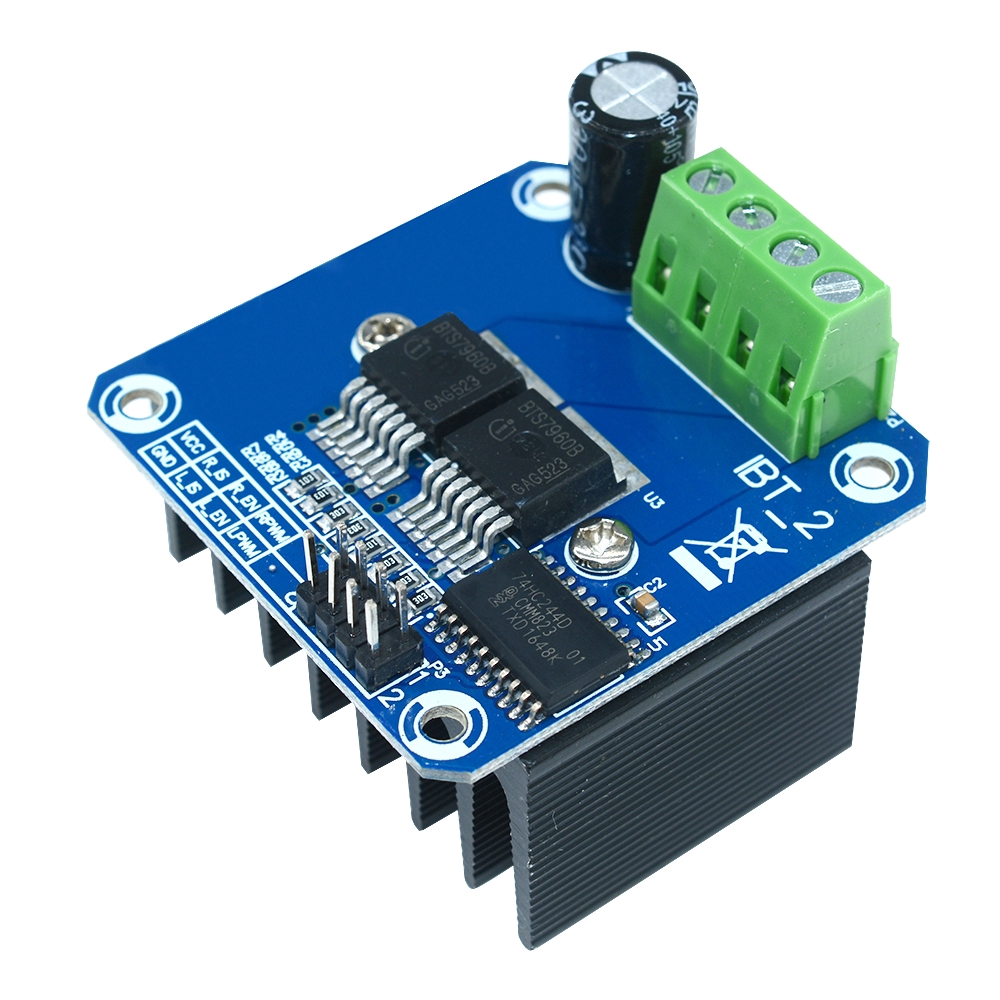

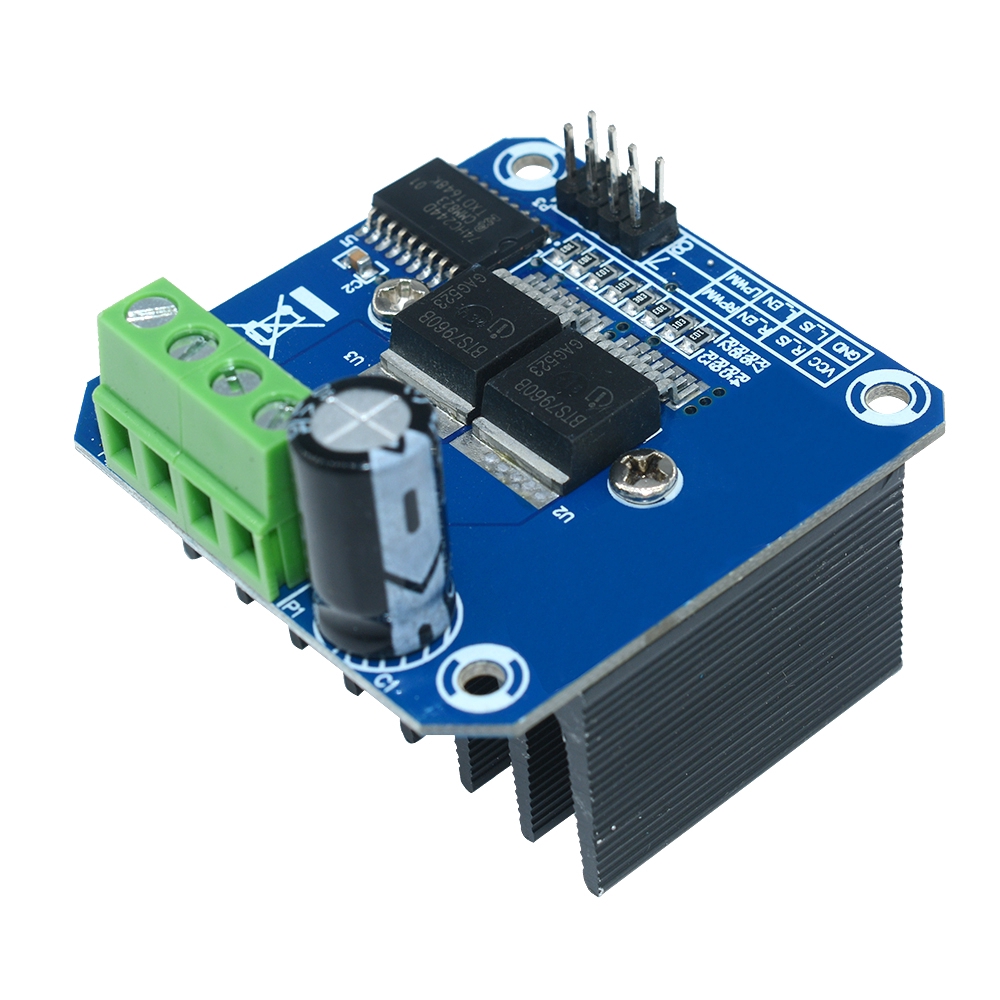

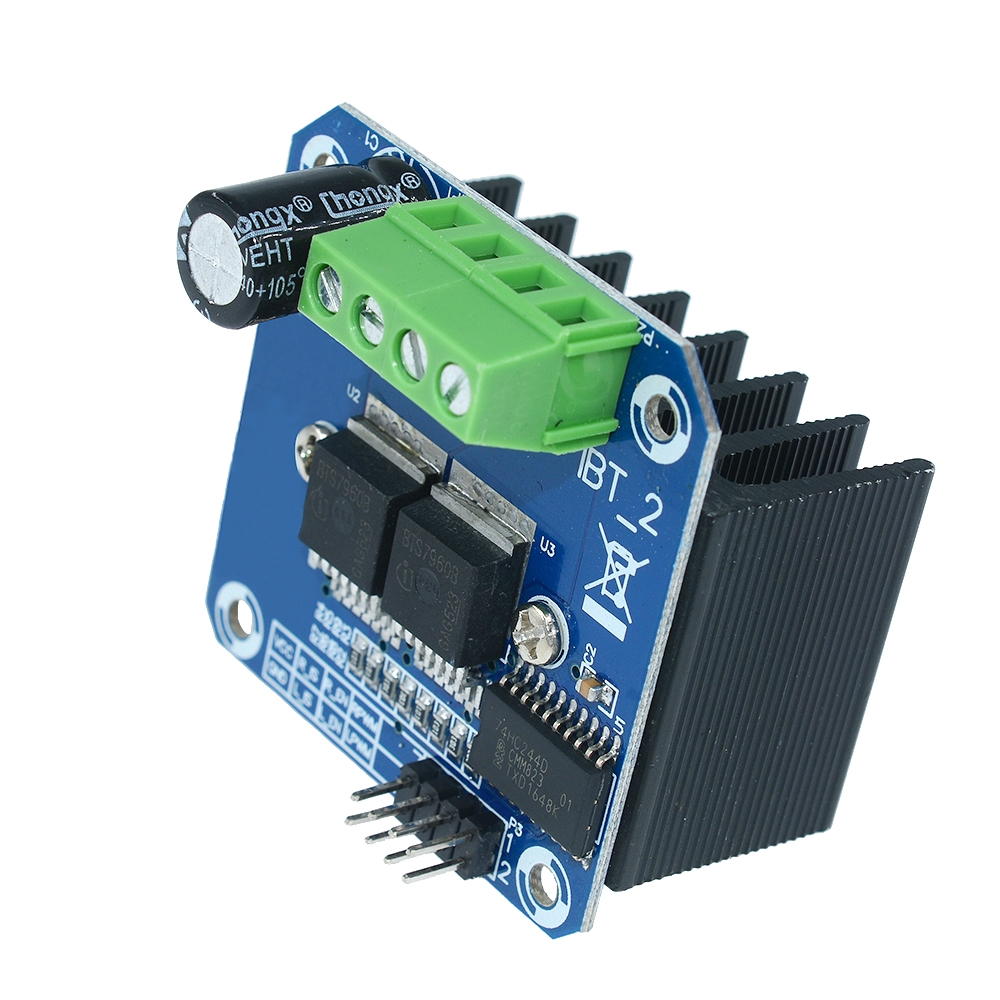

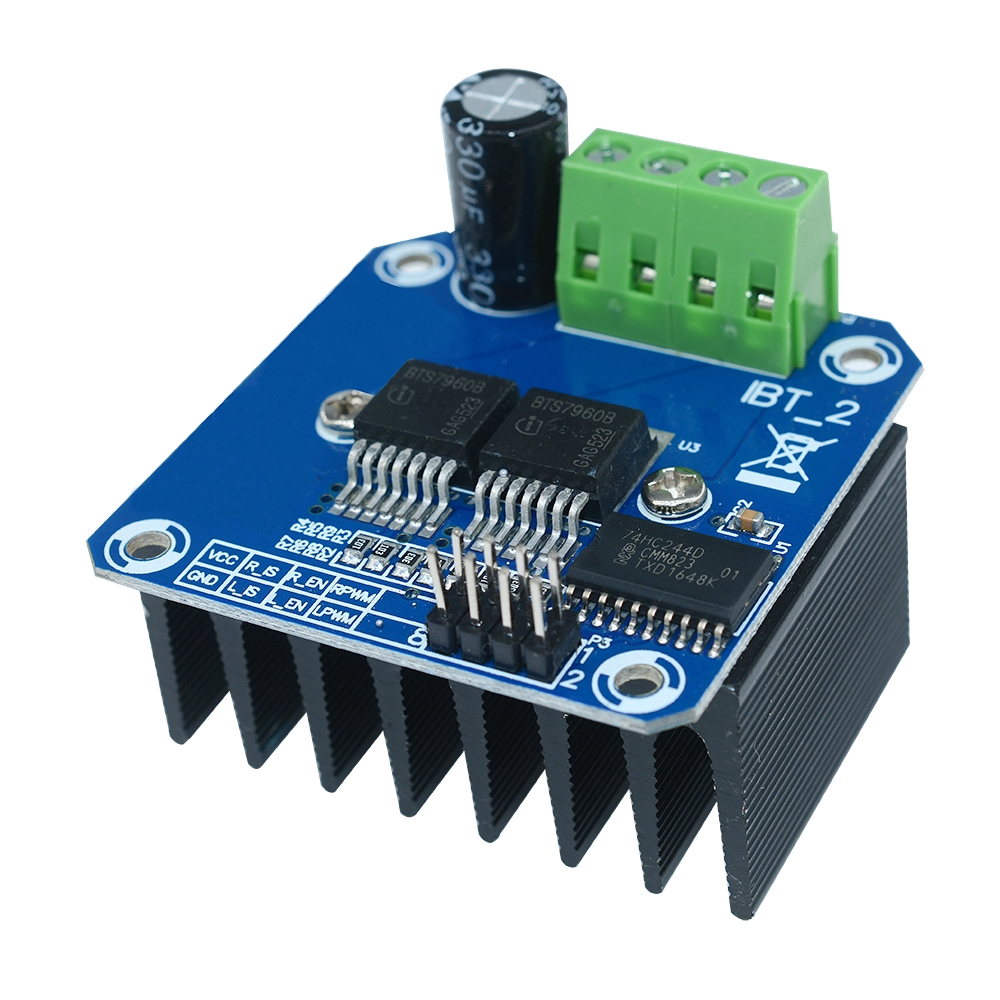

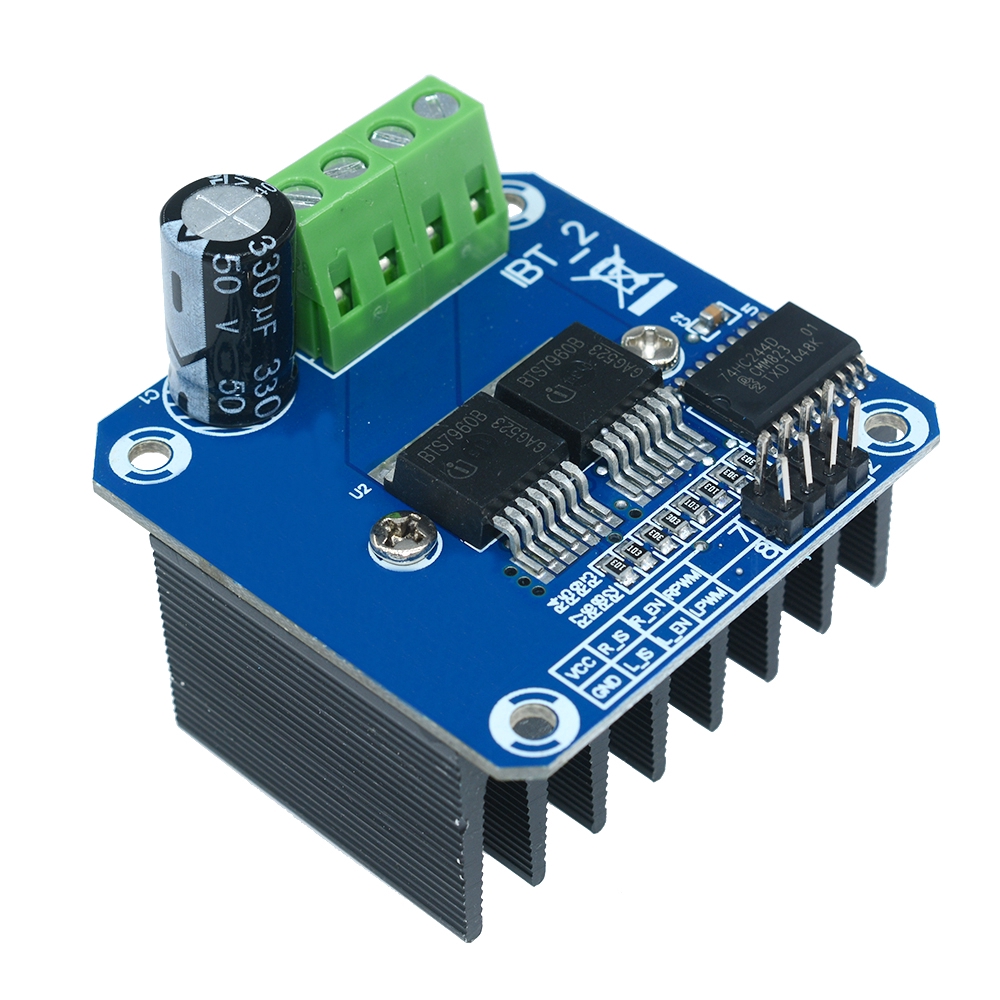

Detail 〖Factory Supplier/COD〗Motor Driver Semikonduktor bts7960b btn7960 43A H-Bridge PWM untuk Arduino
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickSpecification:
Double BTS7960 large current (43 A) H bridge driver;
5V isolate with MCU, and effectively protect MCU;
5V power indicator on board;
voltage indication of motor driver output end;
can solder heat sink;
Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
isolation chip 5 V power supply (can share with MCU 5 V);
Size: 4 * 5 * 1.2 cm;
Able to reverse the motor forward, two PWM input frequency up to 25kHZ;
two heat flow passing through an error signal output;
isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
the supply voltage 5.5V to 27V
Package Included:
1 x Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM For Arduino smart Car
【After sales policy】 We will provide a free replacement or repair service in the following cases:
1. We make logistics mistakes
2.We send the wrong product
3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty
4.You receive a fake one
»Still have questions? ….Let's CHAT NOW!
Gambar produk
