Detail 〖Factory Supplier/COD〗Modul Relay 4 Channel 5V Untuk PIC AVR DSP ARM msp430 Arduino
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickSpecification:

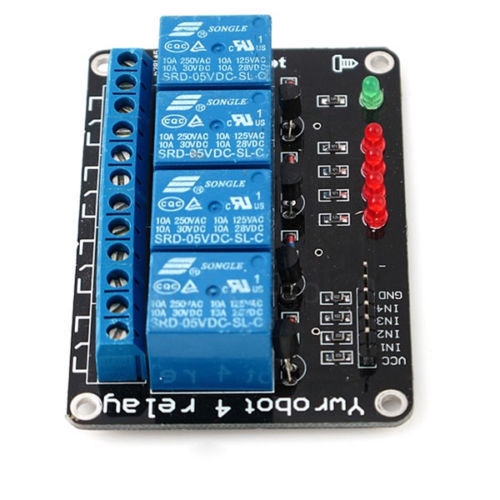

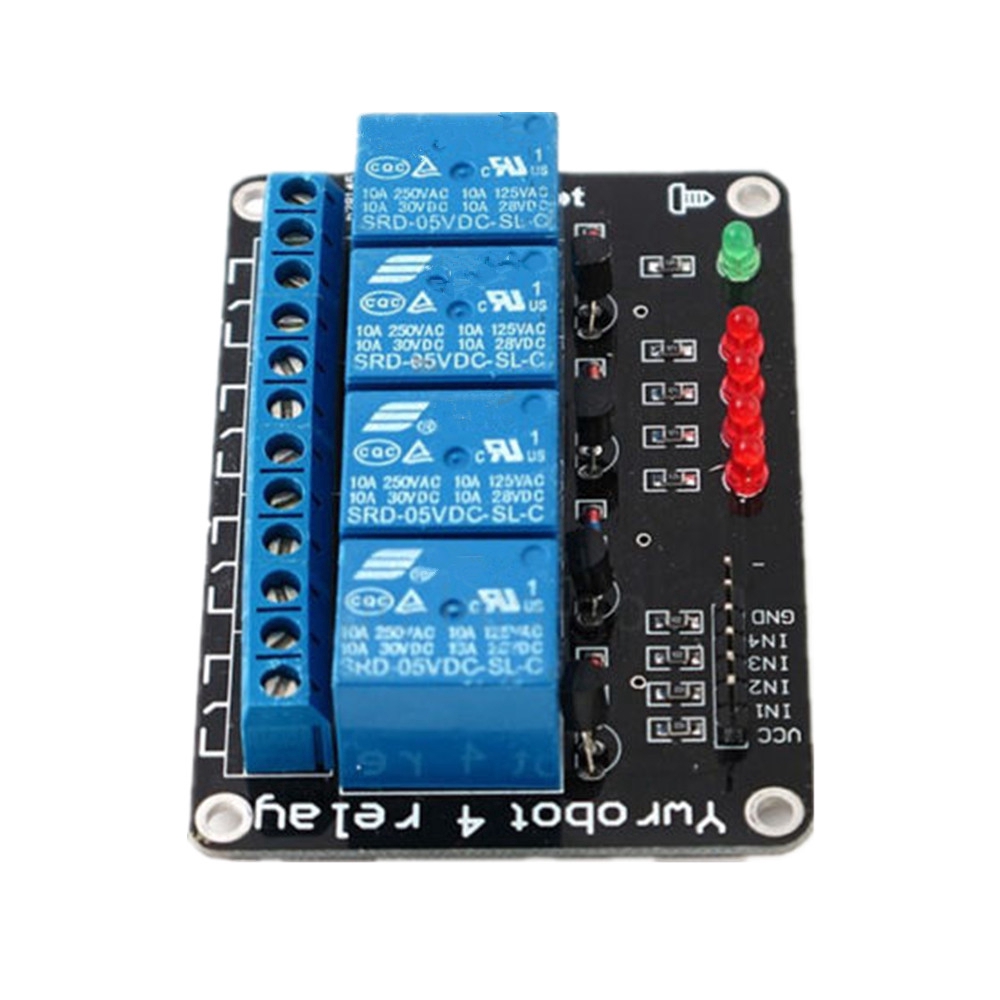

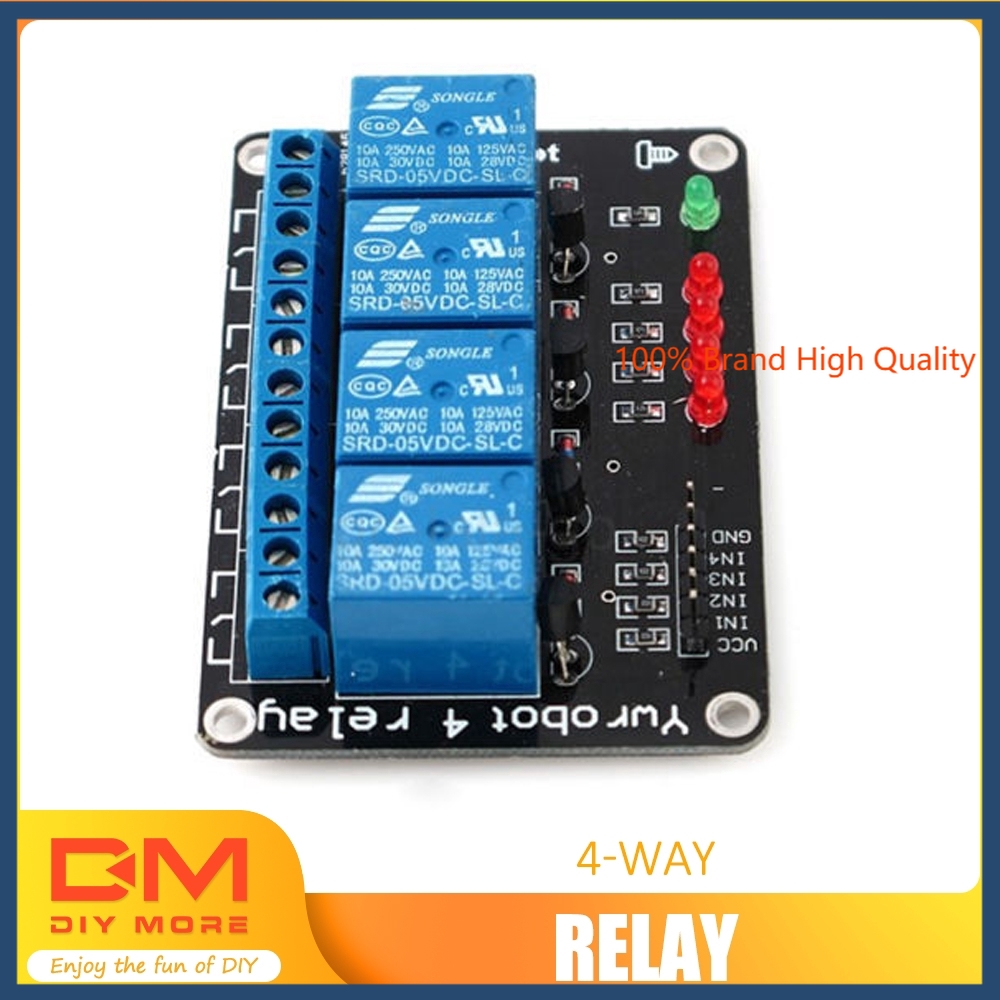

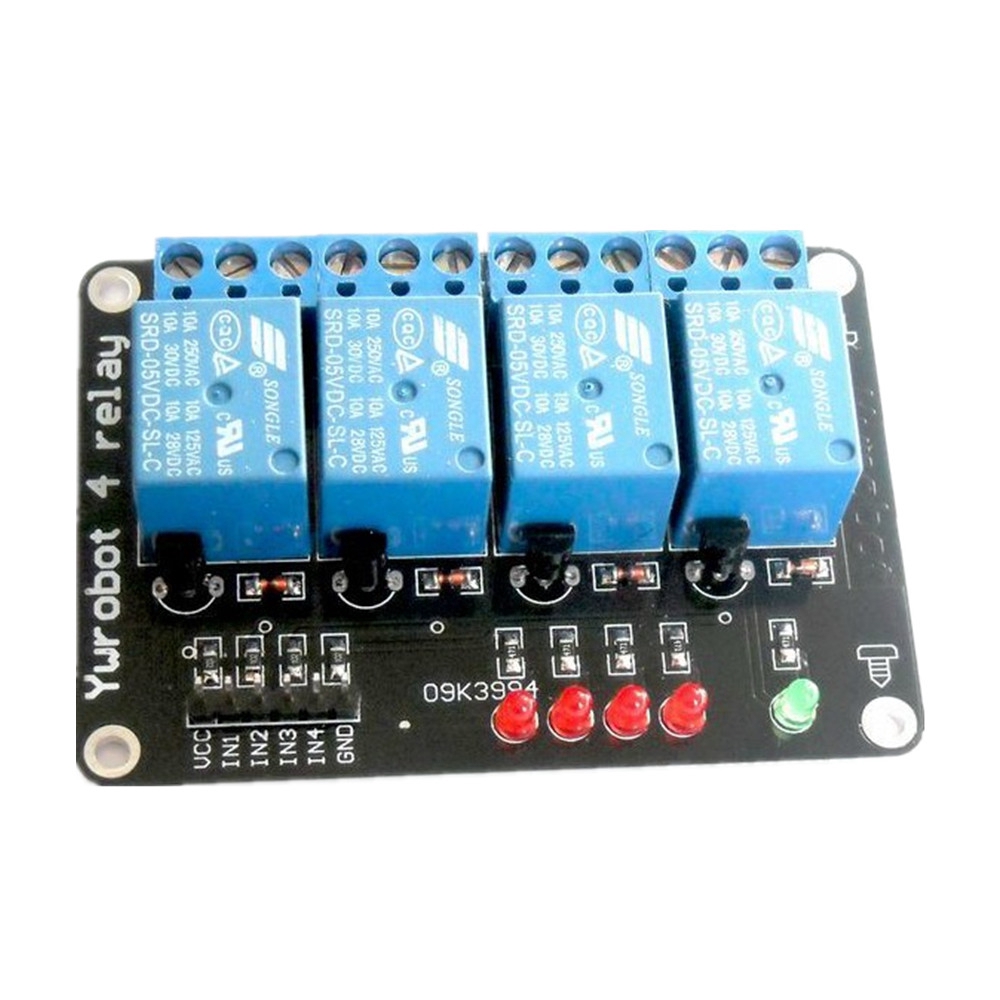

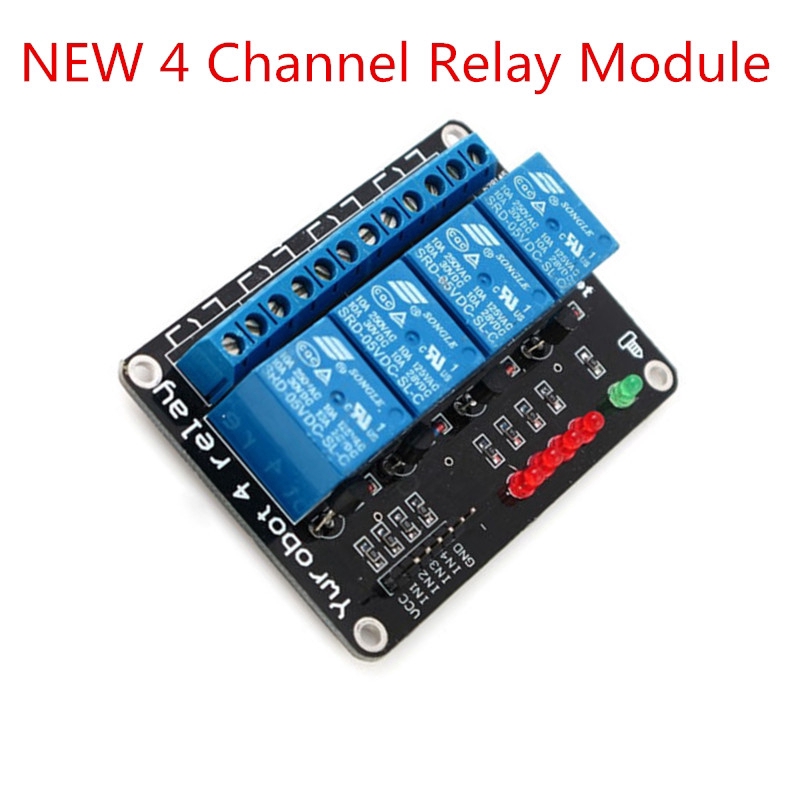

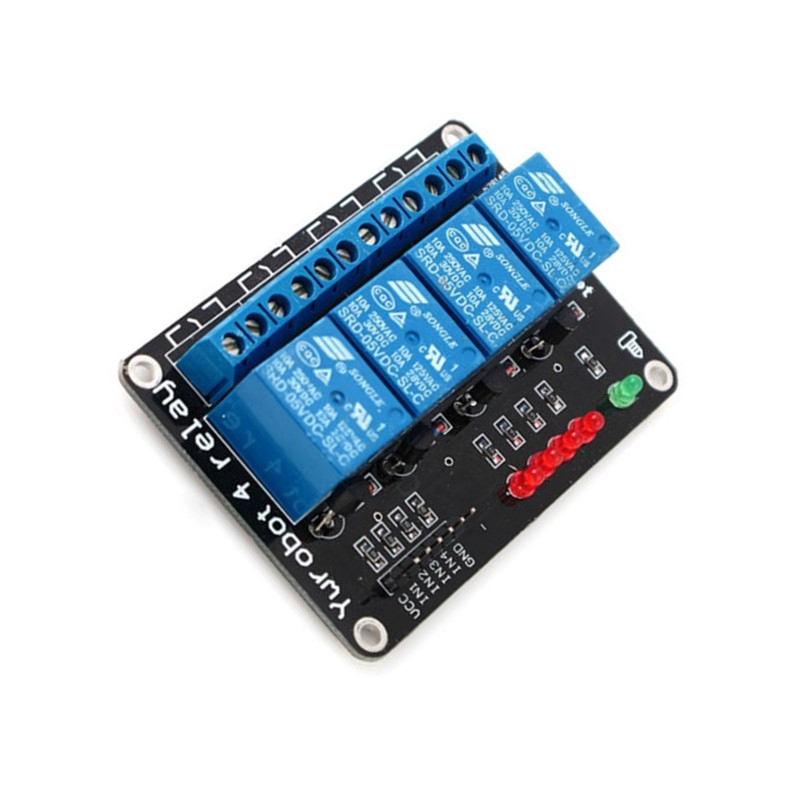

This is a 4-Channel Relay interface board, which can control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller.
Rated voltage: AC220V/DC30V
Coil power: 0.1A 0.5W
Rated current: 10A
Contact switch current: 0.1A
Contact switch voltage: 5V
Protective characteristics: protect
Contact load: 2000W
Applied range: voltage
Contact form: NC/NO
With 4 mounting holes, diameter of each hole is 3.1mm, easy to install
Apply superior SONGLE relay, SPDT(single-pole double-throw), one common port, one NO and one NC
Low level actuation(indicator ON), high level release(indicator OFF)
Maximum output of relay: DC30V 10A, AC250V 10A
Indication LED's for Relay output status
VCC: positive pole of power system
GND: negative pole of power system
IN1--IN4: Controlling port of relay
Size: 77*53*17mm(L*W*H)
Package Included:
1PCS*5V Eight 4 Channel Relay Module For PIC AVR DSP ARM Arduino
#DIYMORE #4-Channel #RelayModule
