Detail 〖Factory Supplier/COD〗Board Prototype PCB ATmega328P 2.54MM Untuk Arduino R3
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please click100% brand new and high quality
PCB Dimension: 68.58mm x 53.34mm / 2.7" x 2.1"
PCB Thickness: 1.6mm
Material: high quality FR-4 glass fiber PCB.
All holes are plated through
Top and bottom side are identical copper layers.
Pads pitch:
In the white frame range: 2.00mm / 0.079", hole diameter 0.8mm / 0.031".
Other pads pitch: 2.54mm / 0.1", hole diameter 0.9mm / 0.035".
you need to weld the pins by yourself.
No retail package
Package included:

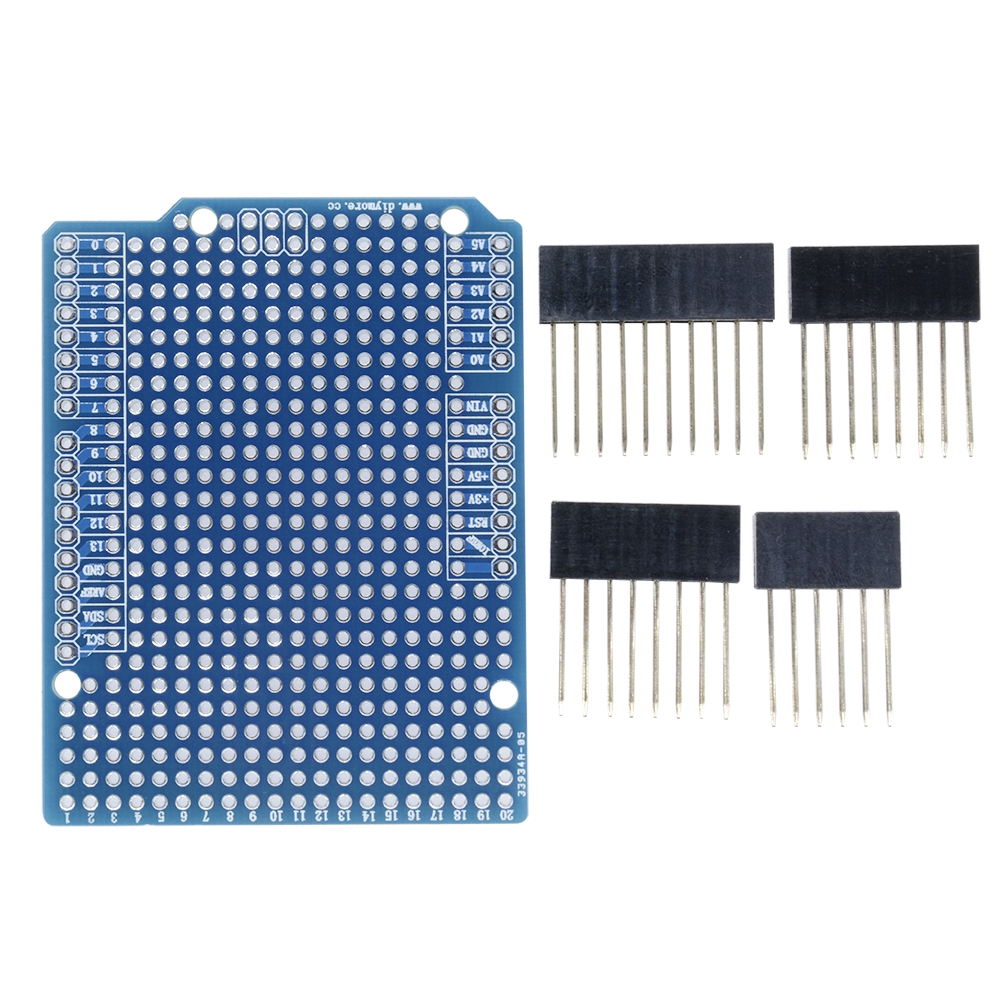

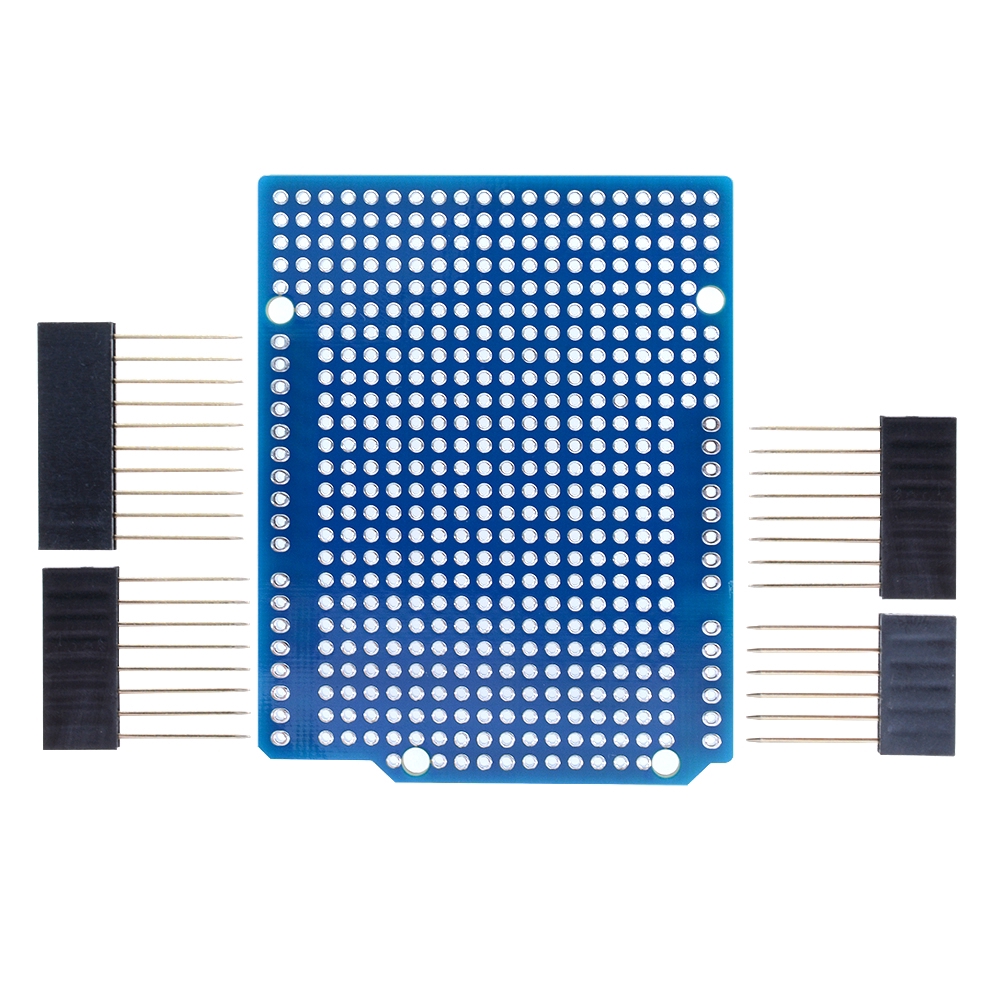

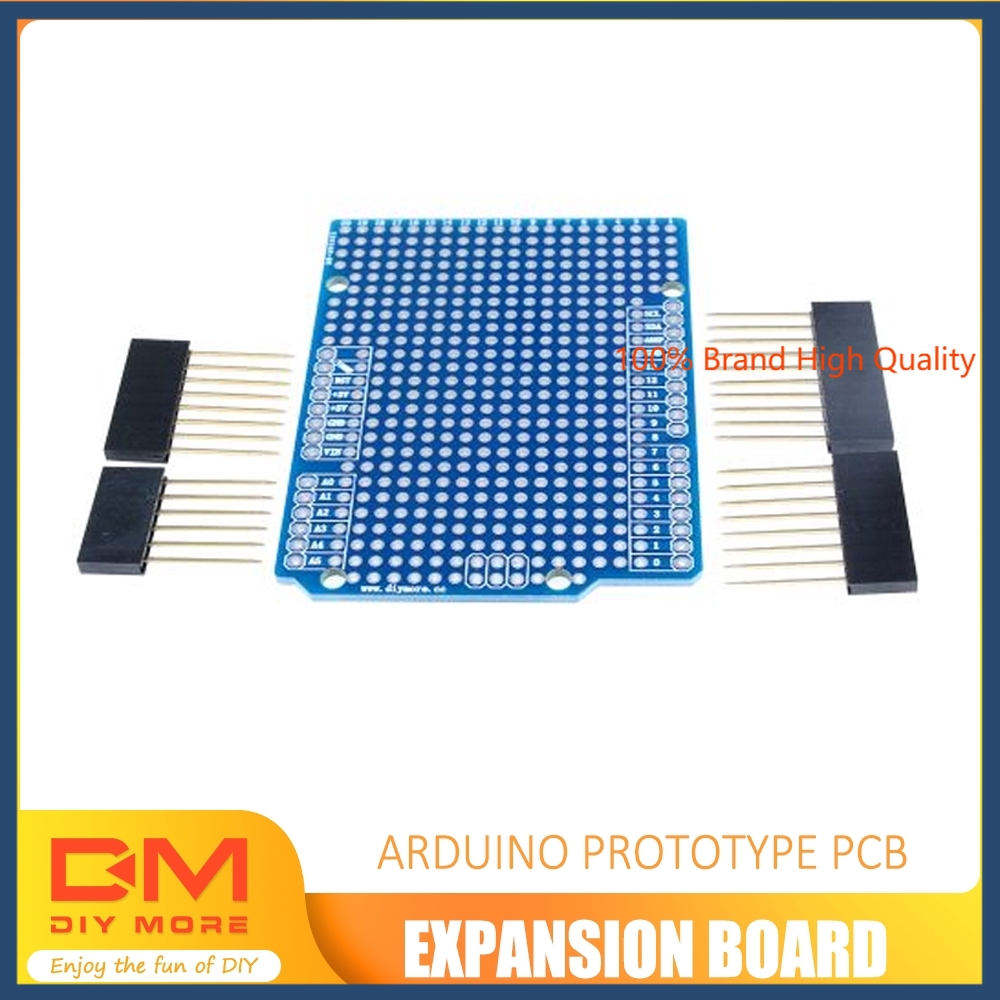

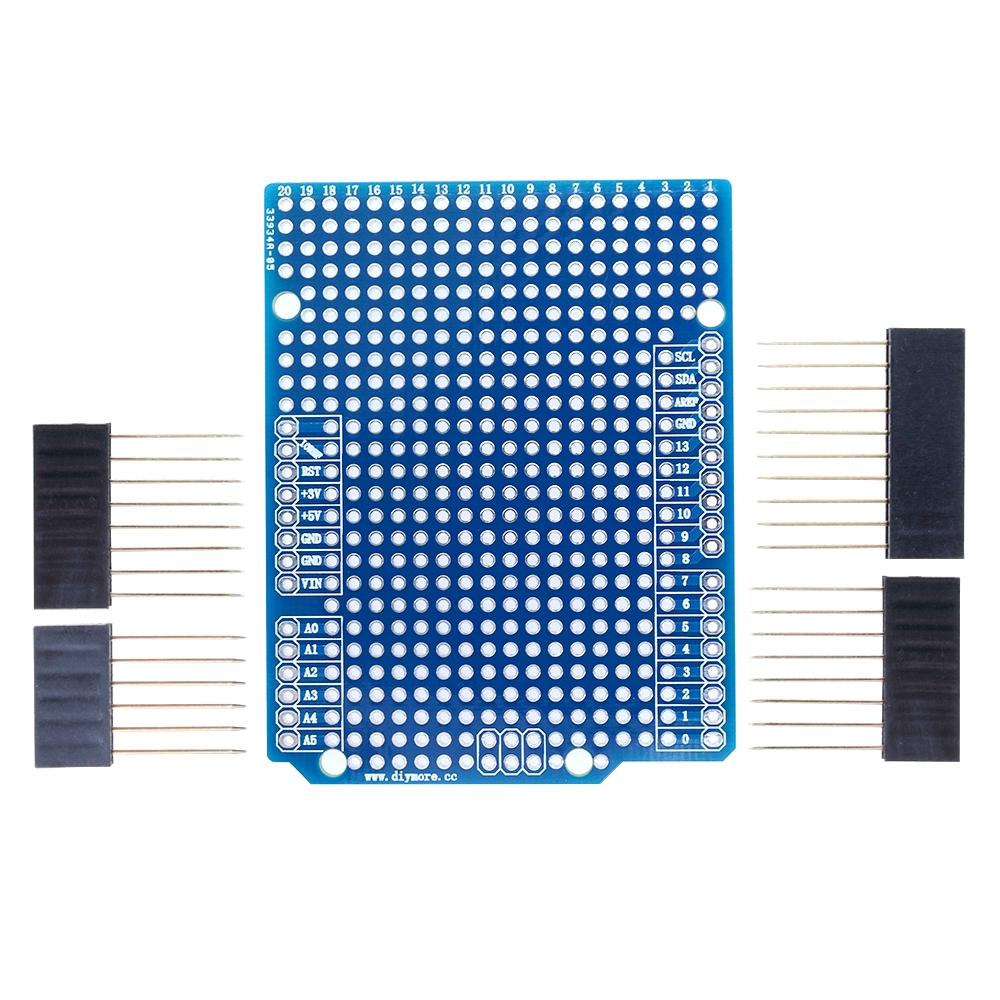

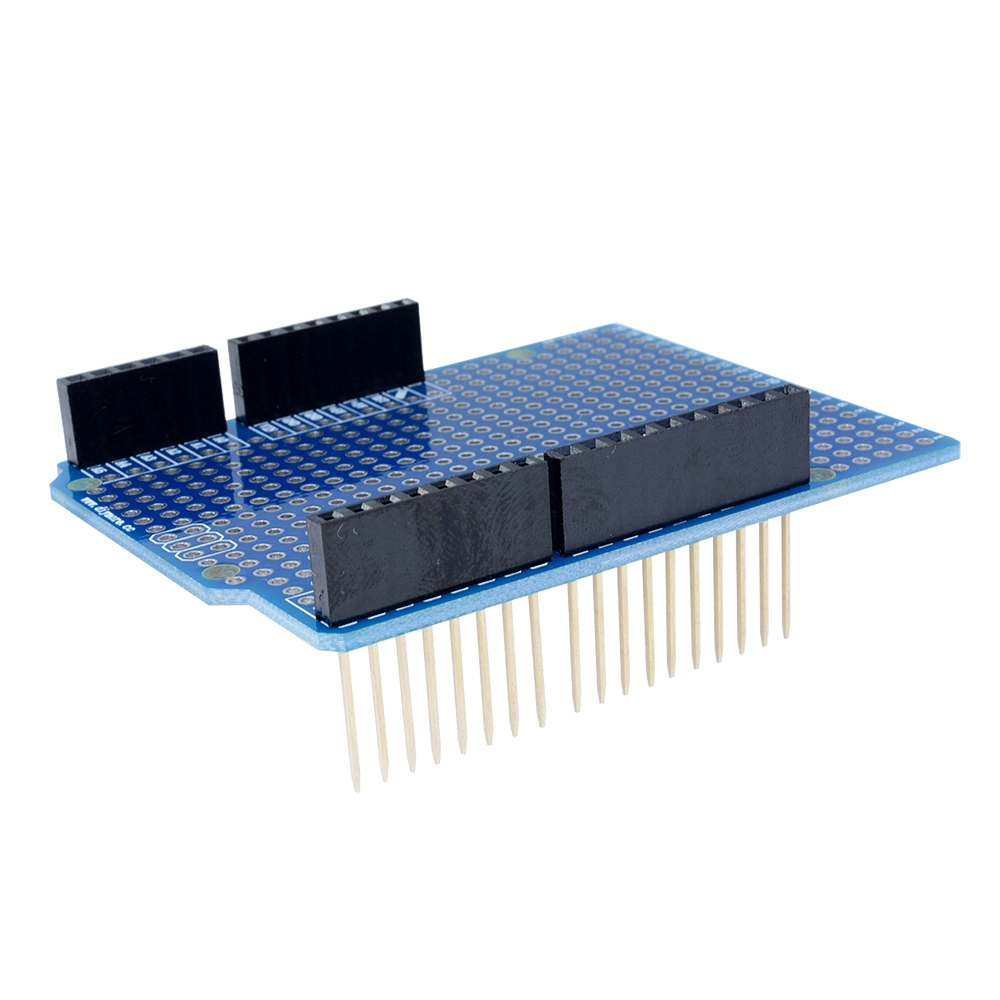

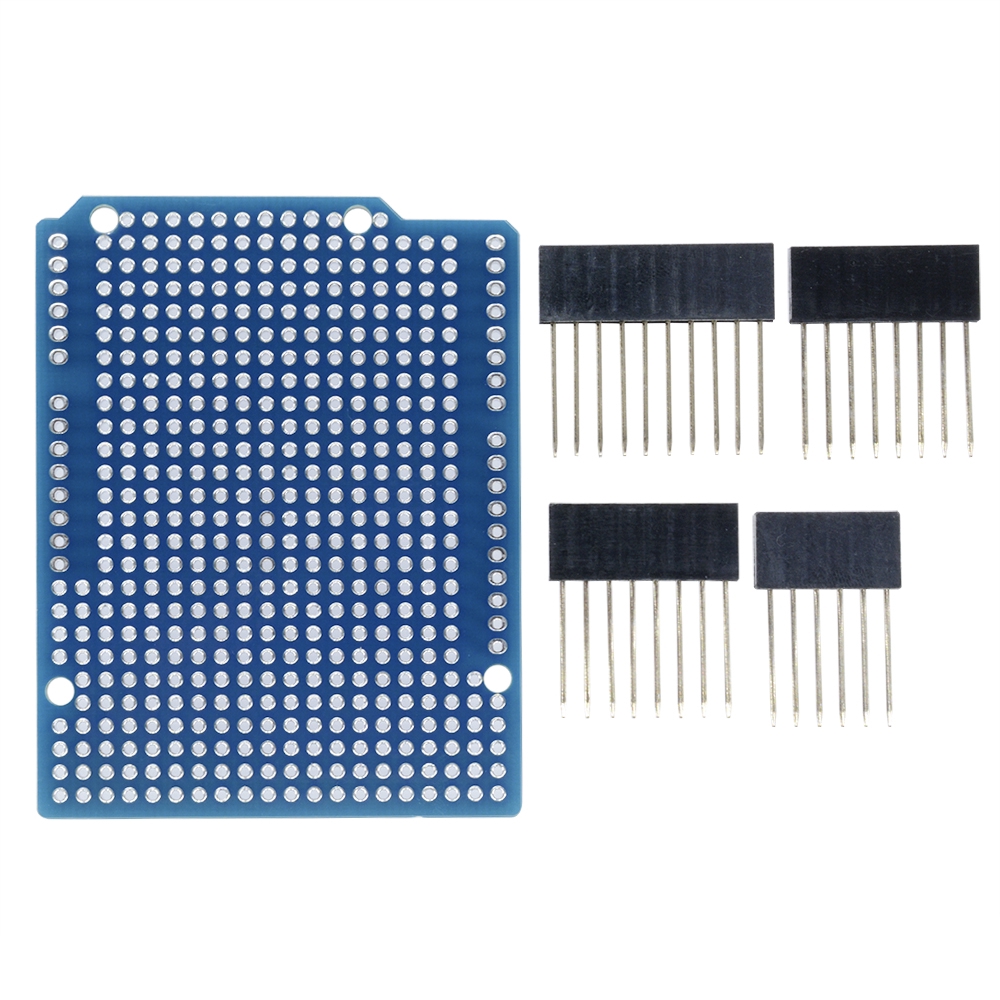

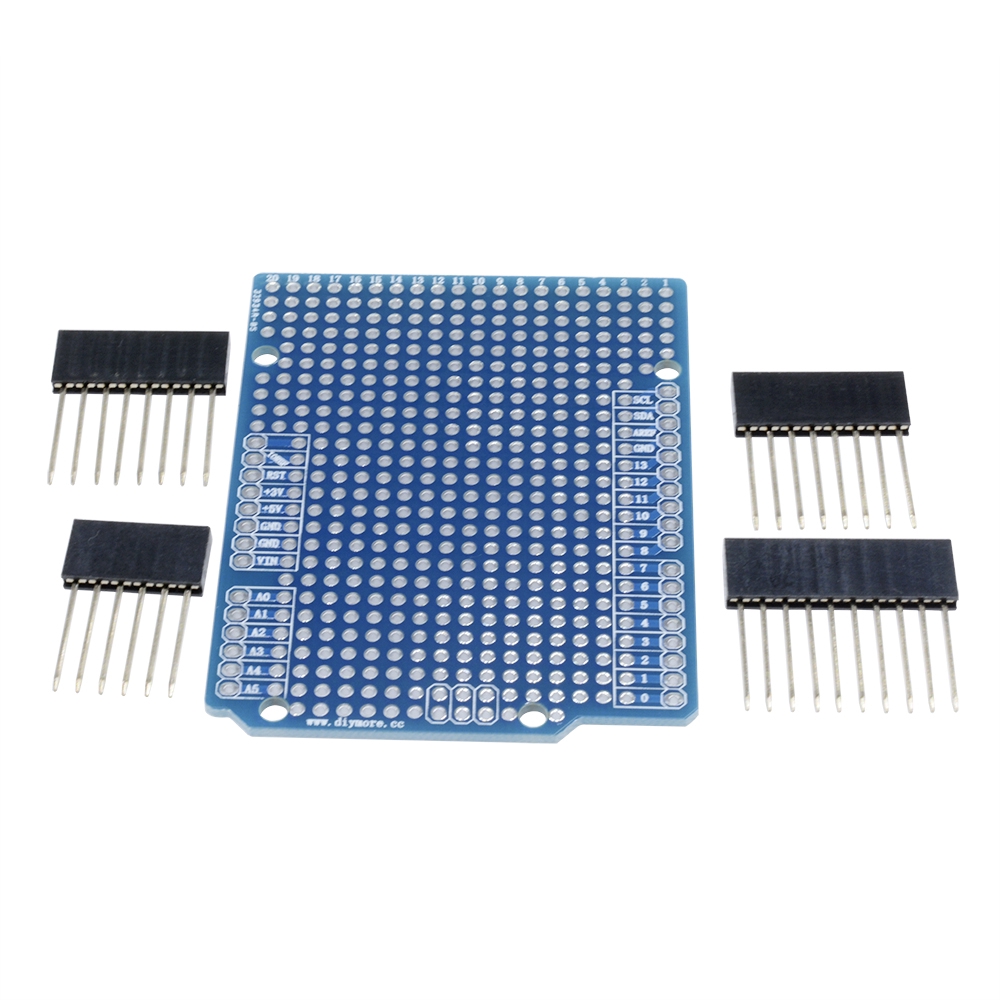

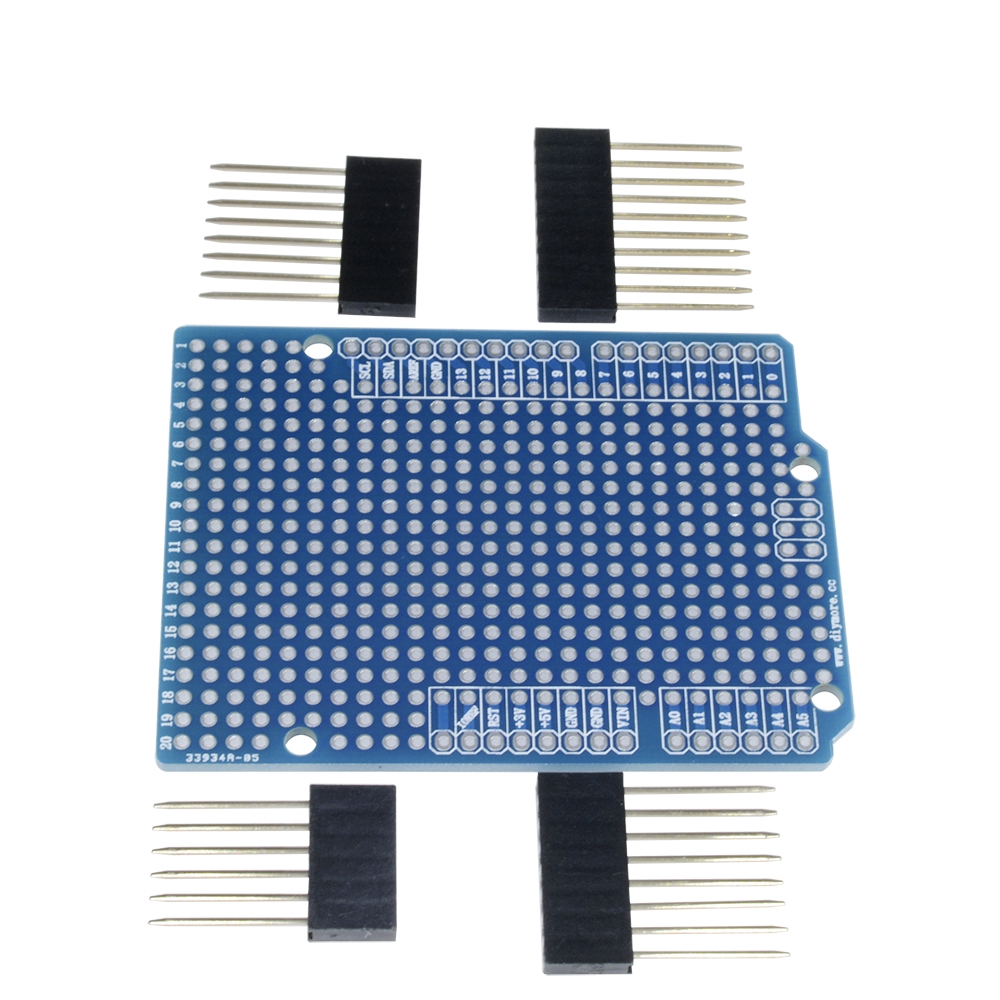

1Pc x Prototype PCB for Arduino UNO R3 Shield Board
#DIYMORE #Arduino #UNO #R3 #Shield #Board #Prototype #PCB #Atmega328P #2.54mm #Pitch #Breadboard
【After sales policy】 We will provide a free replacement or repair service in the following cases:
1. We make logistics mistakes
2.We send the wrong product
3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty
4.You receive a fake one
