Detail 〖Factory Supplier/COD〗| ad22b04 12V 4CH mt8870 DTMF Modul Relay Decoder Signal Remote Control PLC
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickTypical applications:
Home lighting system

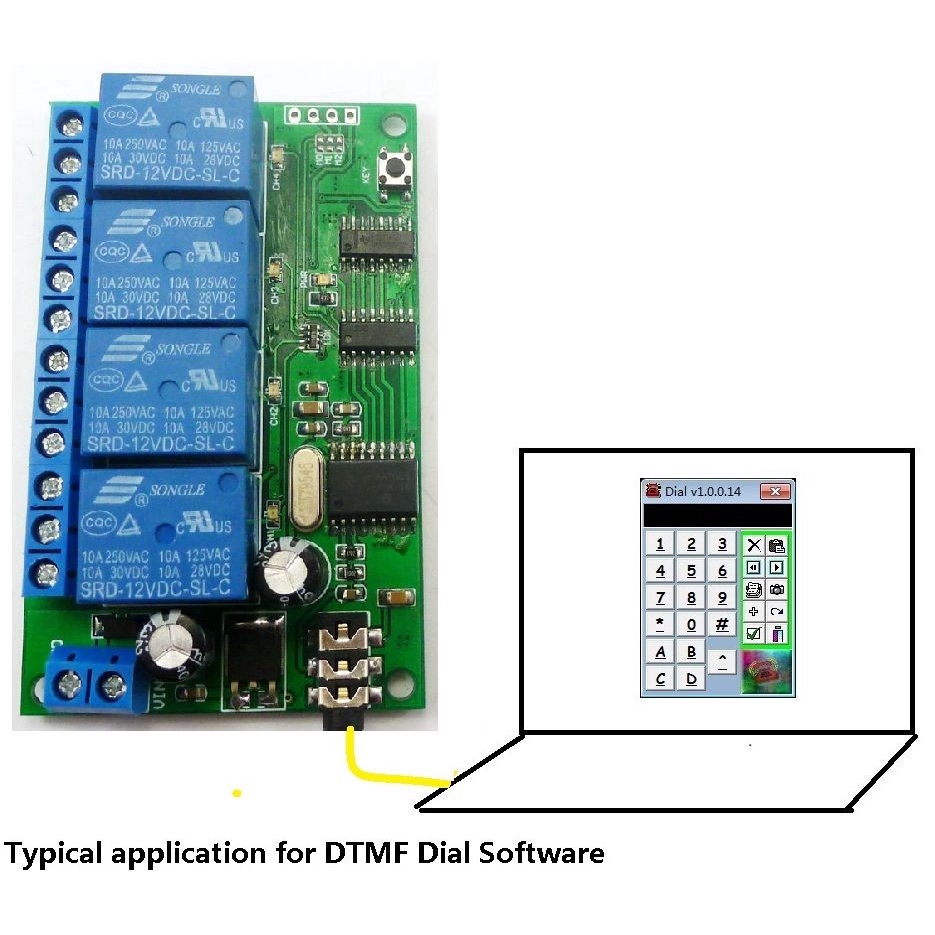

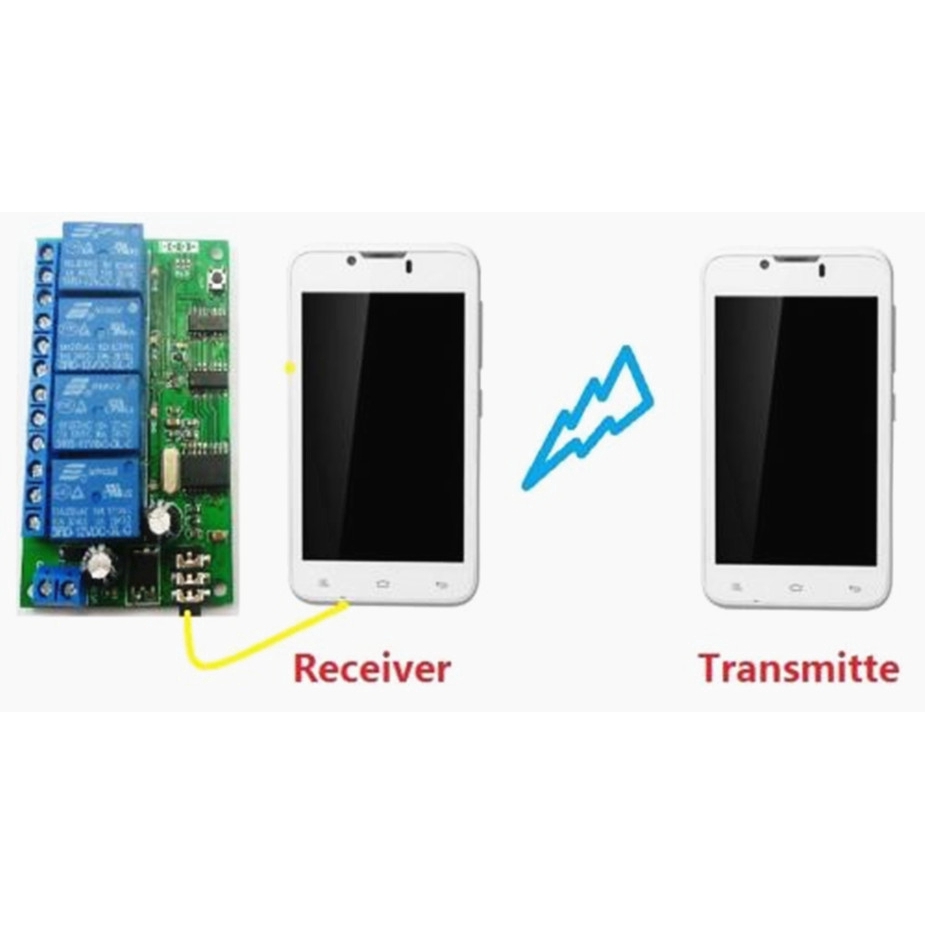

DTMF Remote control switch
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp

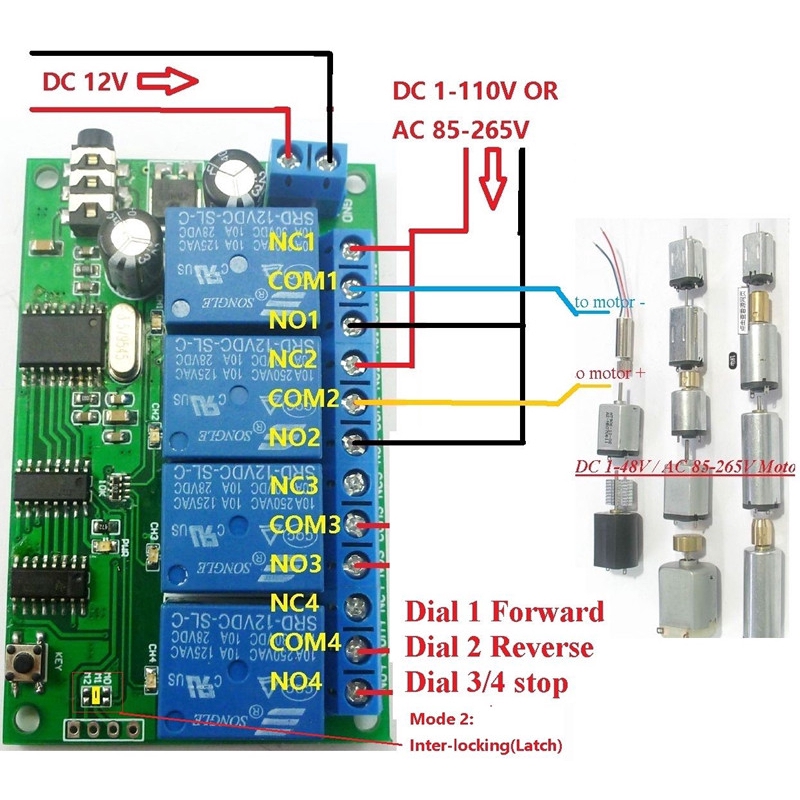

12V DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control
Functional characteristics:
1 Product model: AD22B04
2.working voltage DC 12V, with reverse polarity protection
3.Operating Current: Standby 11-13 MA, 1 relay "open" 44MA, 2 relays "Open" 77MA, 3 relays "Open" 110MA, 4 relays"open" 140MA
4 eight modes of operation:Non-locking (Momentary ), self-locking (Toggle),inter-locking (Latch), 5/20/60/120/250-second delay
5 The default control command is 1/2/3/4.Example:
Dial 1 to control relay 1, dial 2 to control relay 2, dial 3 to control relay 3, dial 4 to control relay 4; control commands can be changed any 1-4 bits.
(For more details, refer to " AD22B04_4 channel DTMF controller commands setting manual ").
6 Size: 50 * 80 * 19.5mm
7 Weight: 59 grams

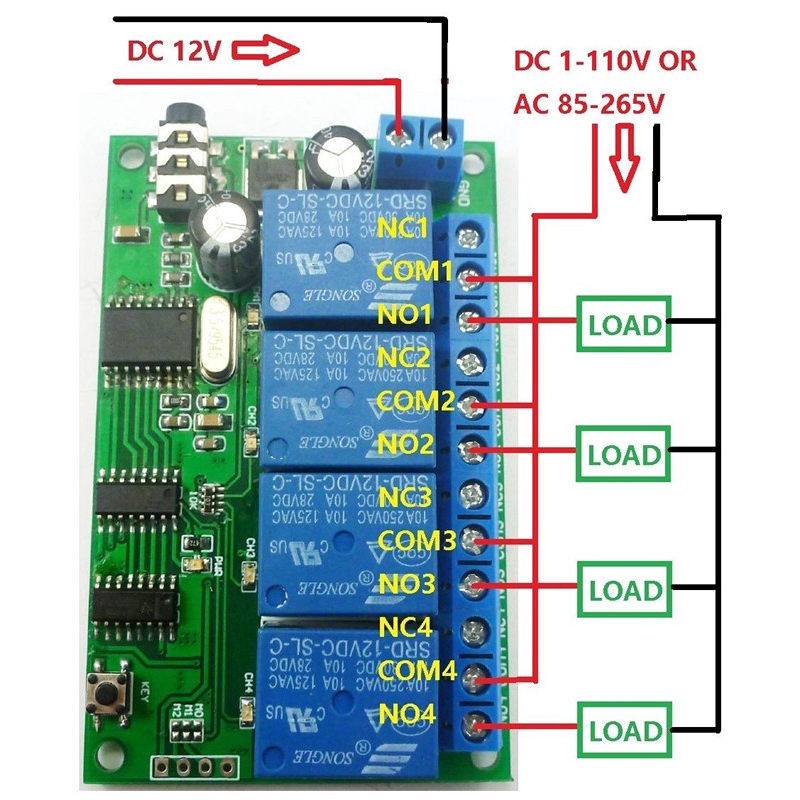

8 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

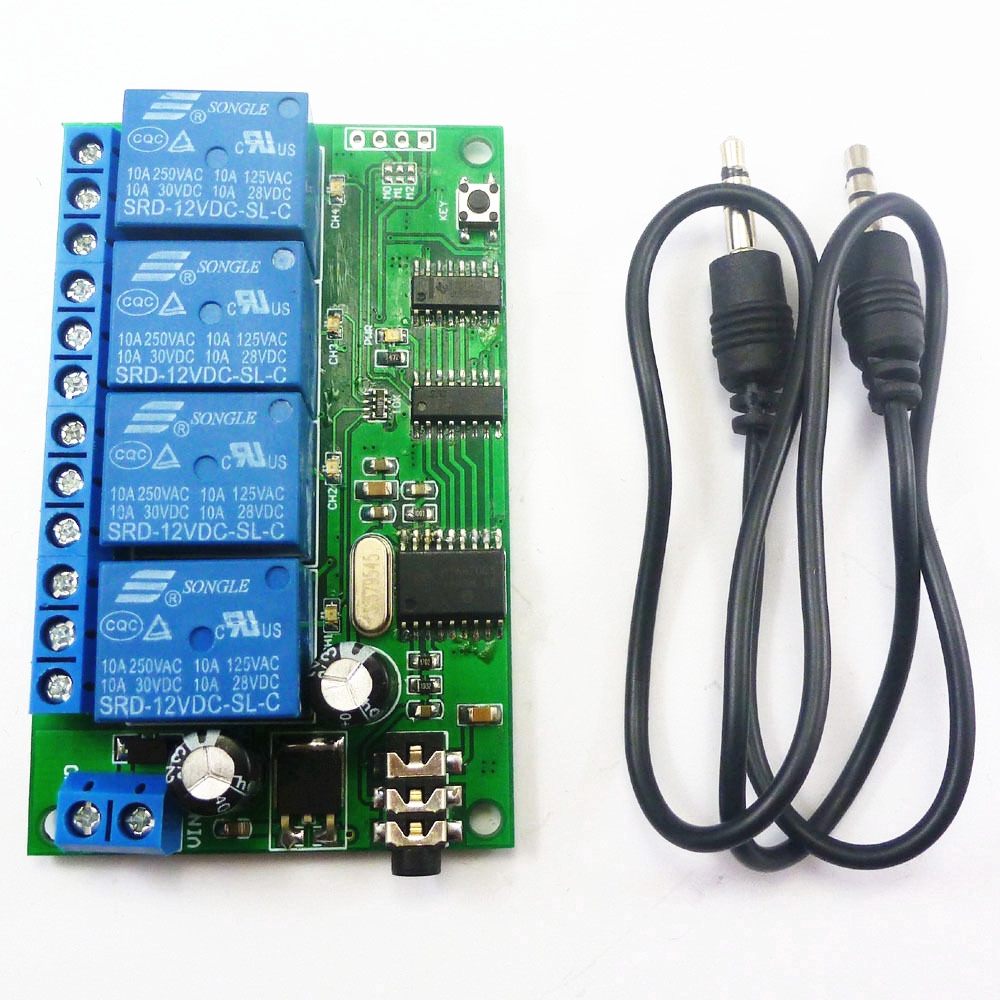

Package Include:

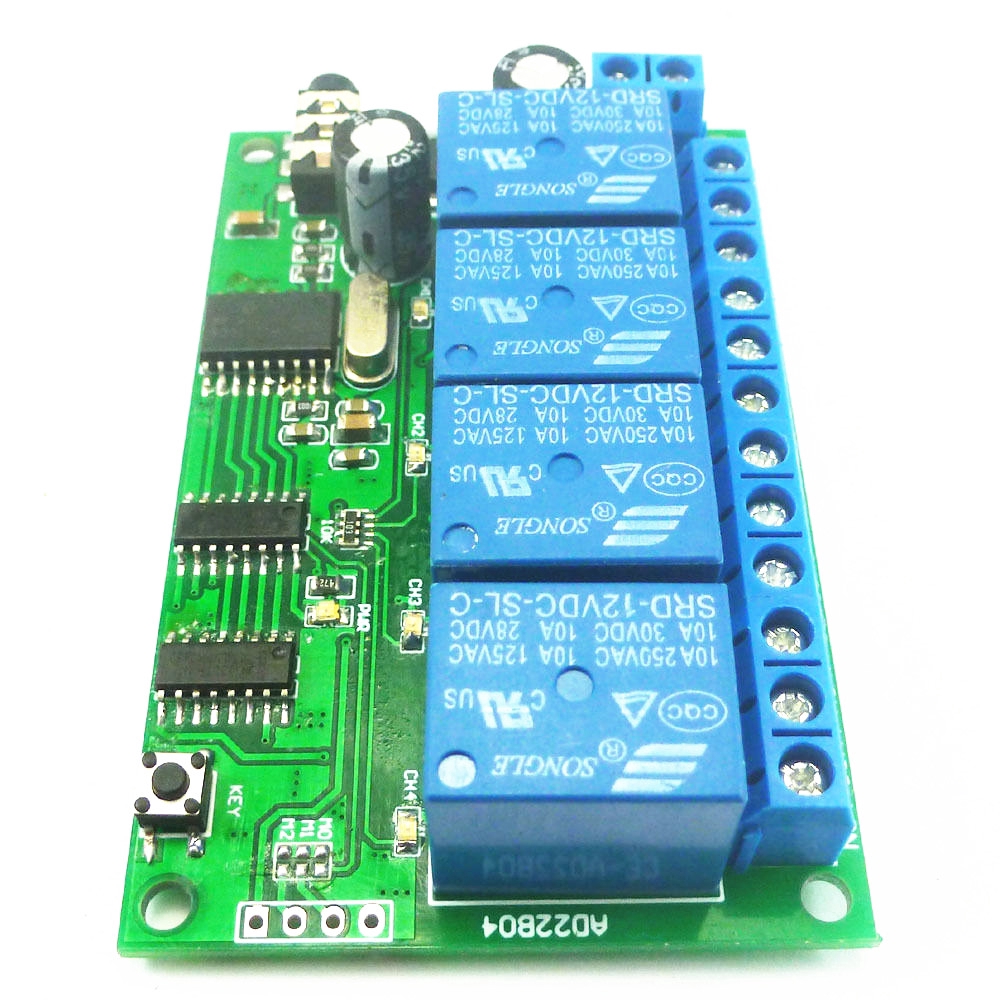

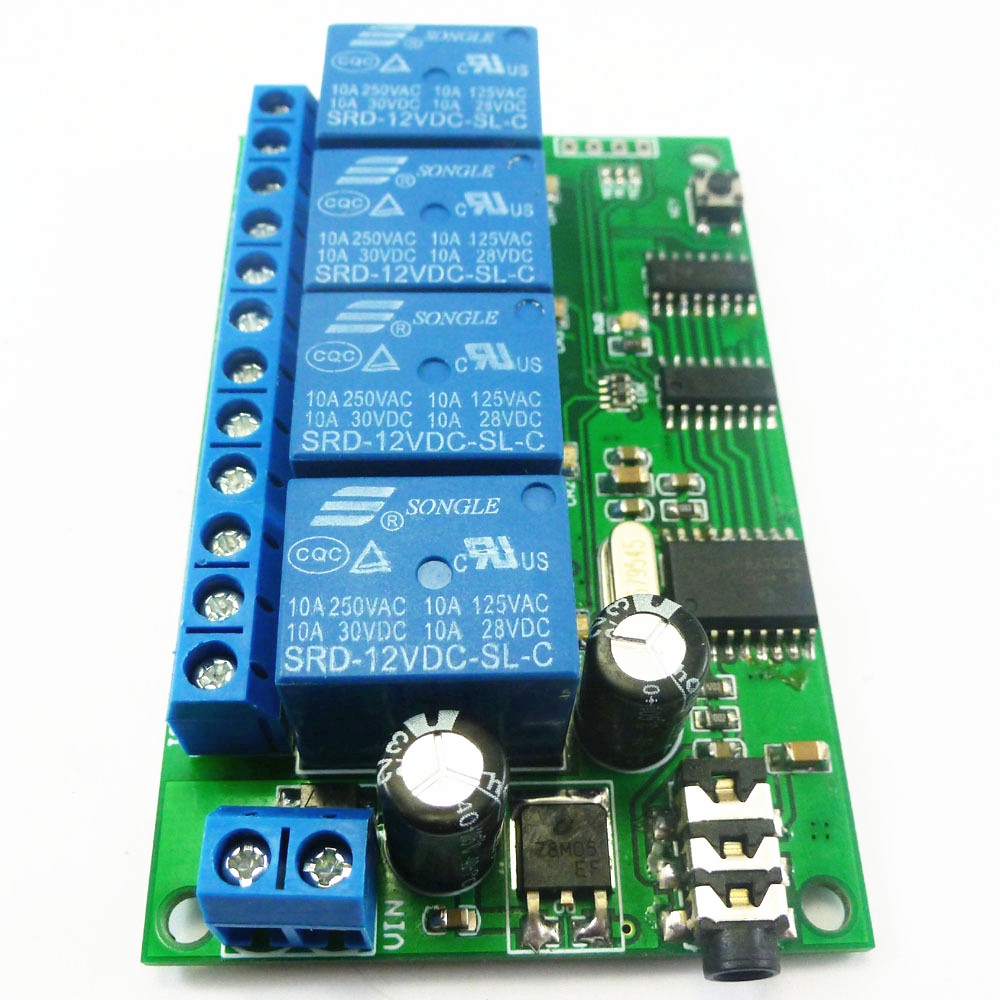

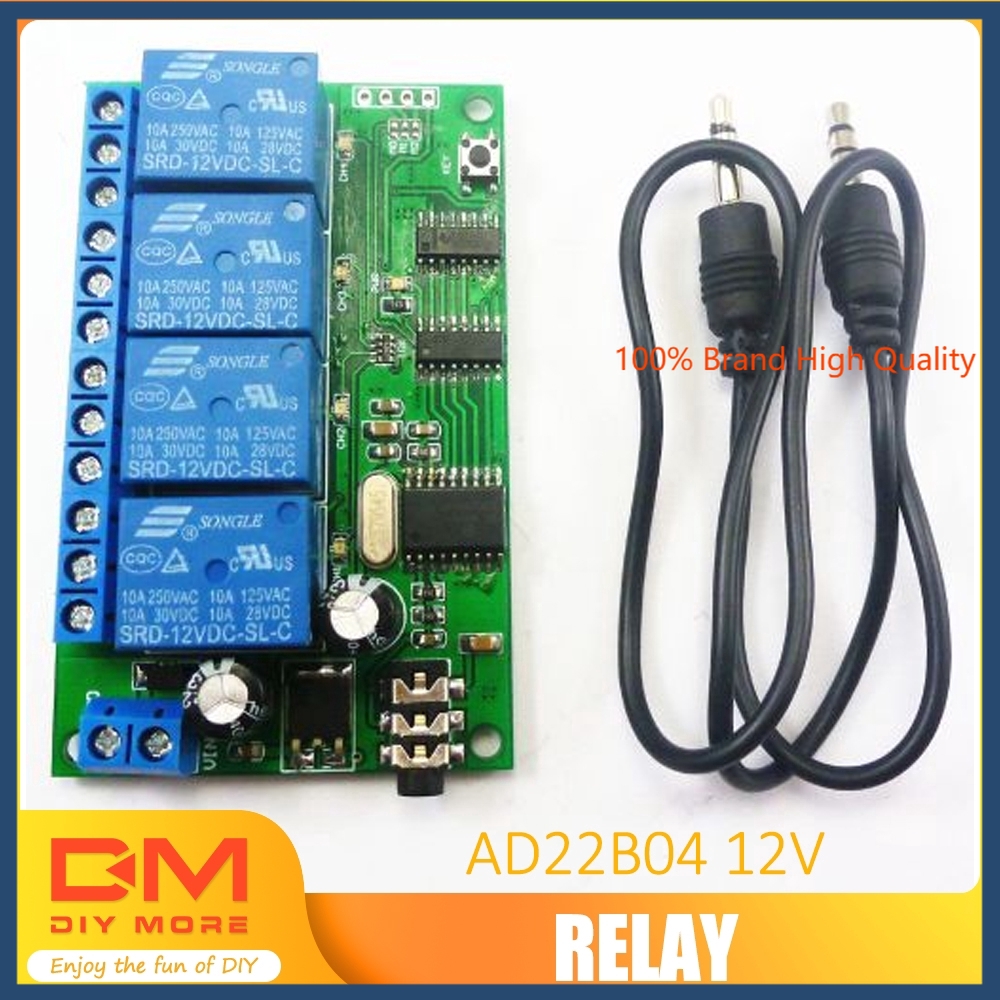

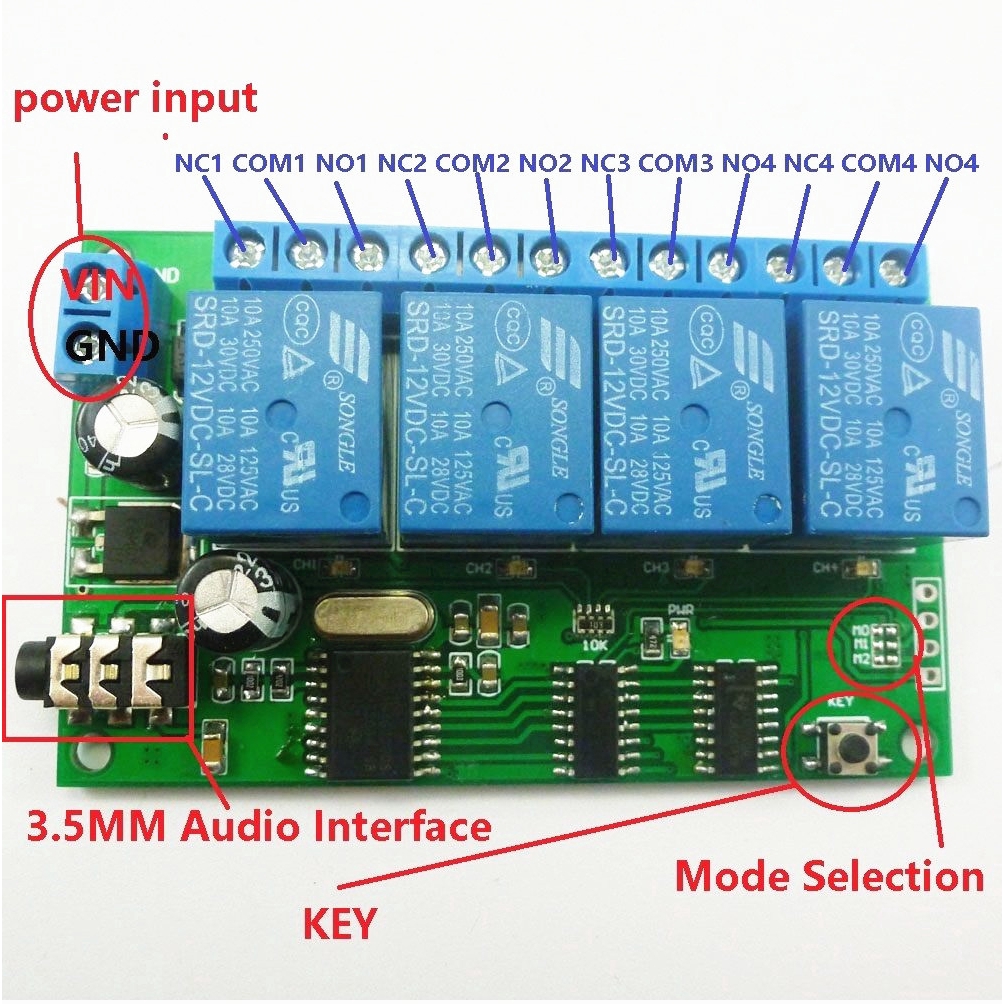

1 x AD22B04 DC 12V 4 Channel DTMF Decoder Relay Board
1 x Male to Male audio wire (3.5mm jack )
#DIYMORE #Bluetooth #Relay #Module #Android #Remote #control #Relais #Switch#Arduino #Motor
【After sales policy】 We will provide a free replacement or repair service in the following cases:
1. We make logistics mistakes
2.We send the wrong product
3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty
4.You receive a fake one
