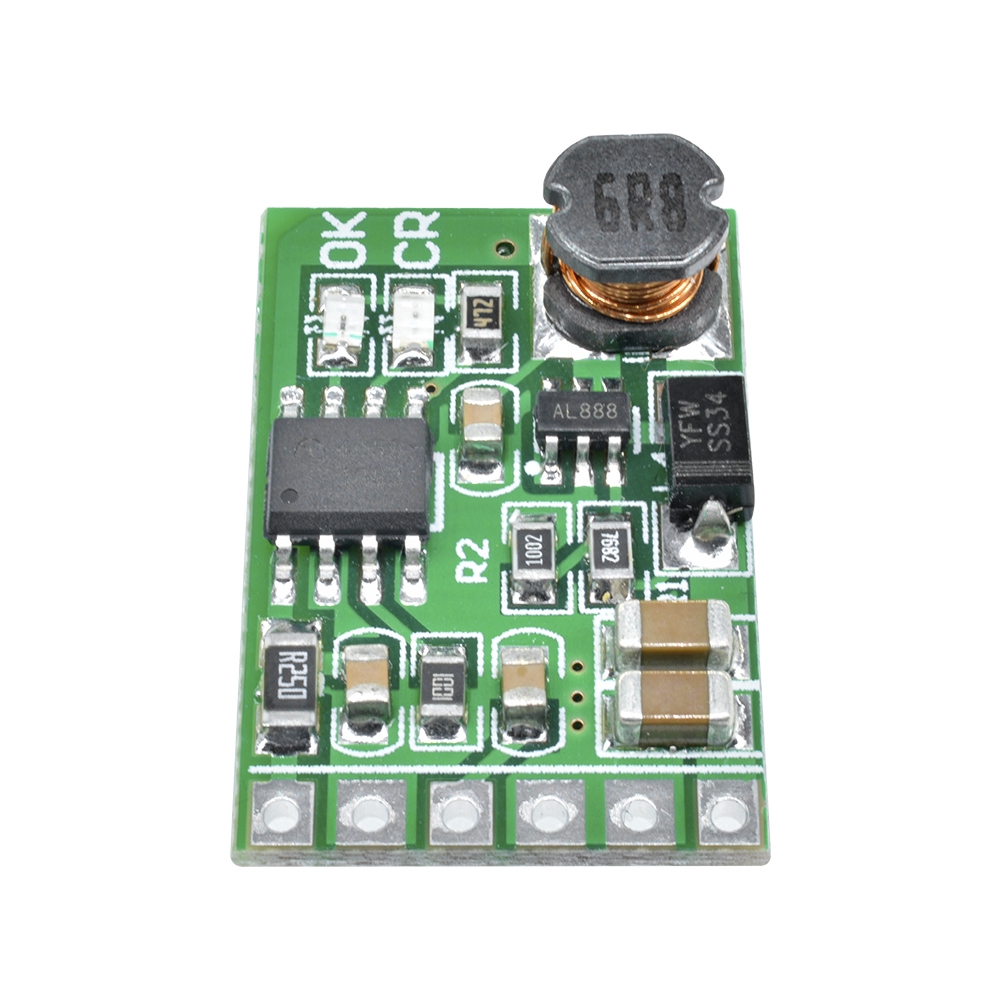

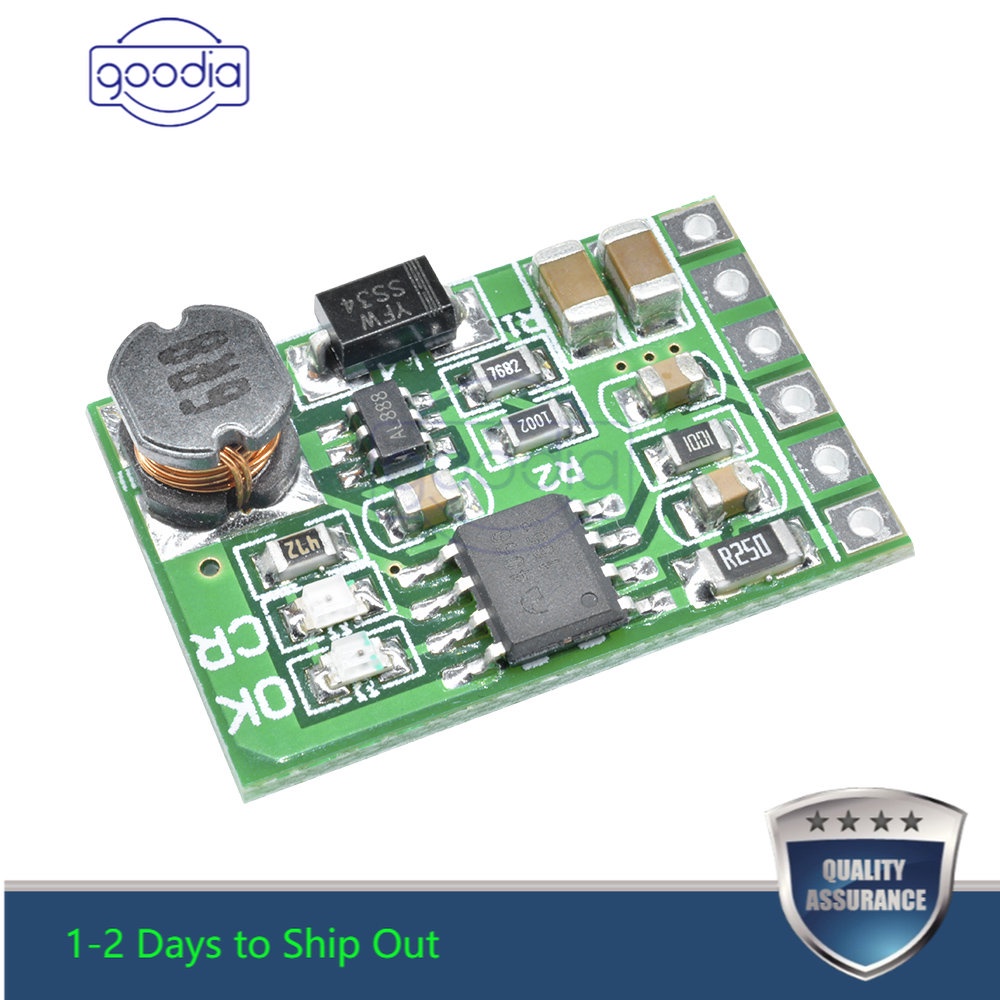

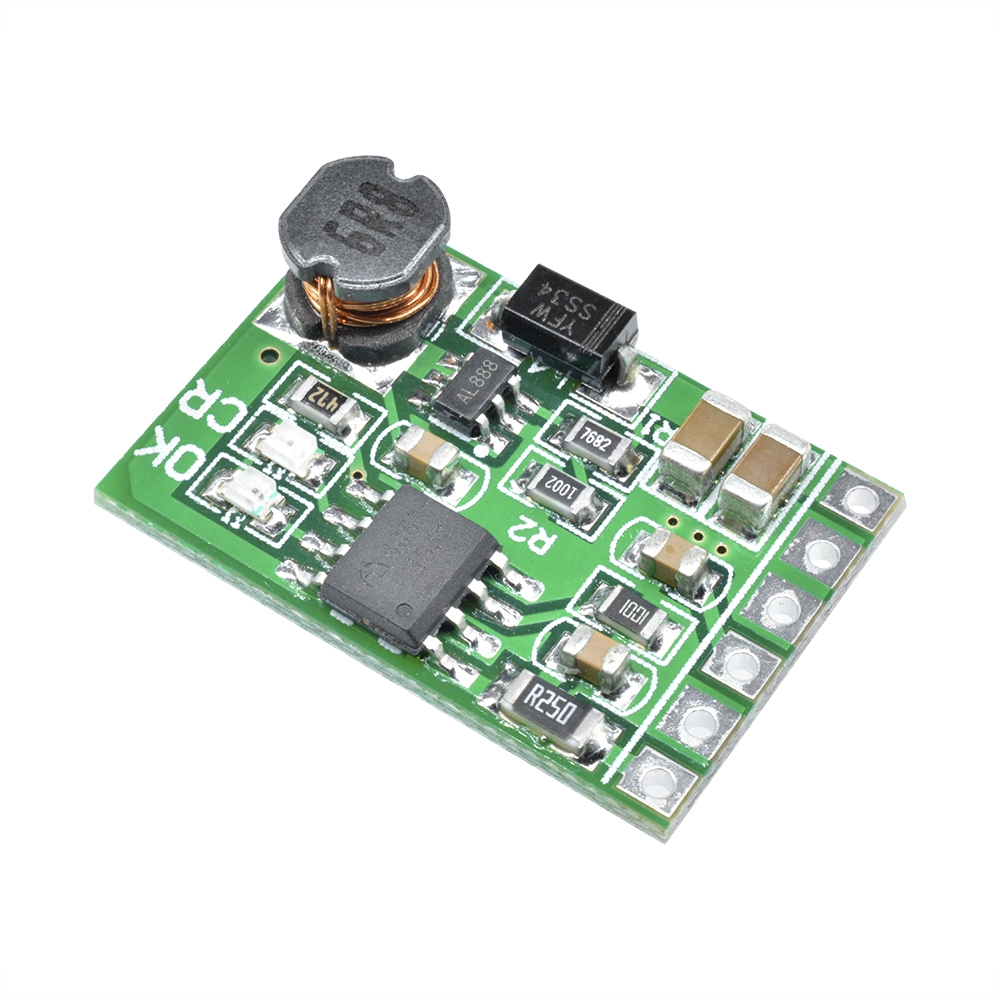

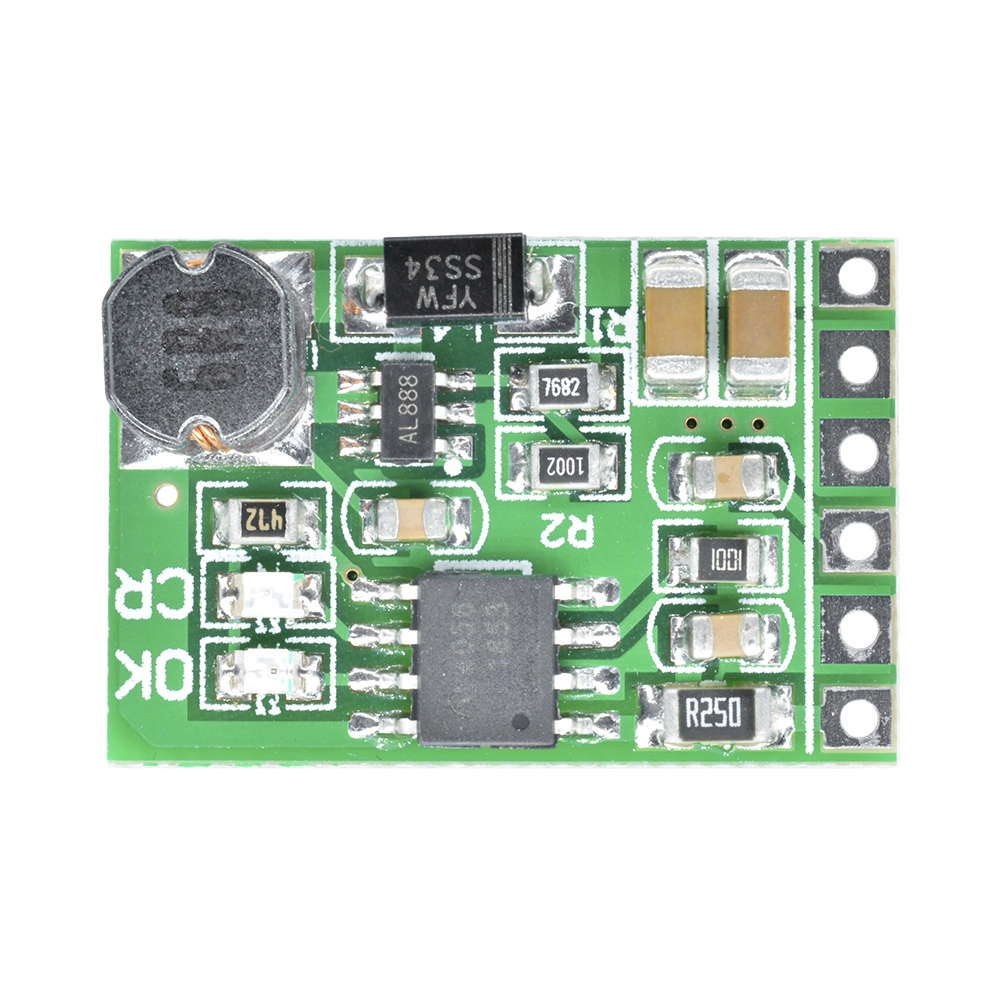

Detail 〖Factory Supplier/COD〗 5V UPS mobile power Board Charger & Step-up DC DC Converter boost Module
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please click and give me five-star✧✧✧✧✧thanks. My product is very good quality, my price is also very Cost-effective, my friends, just enjoying your shopping here, come on baby!】

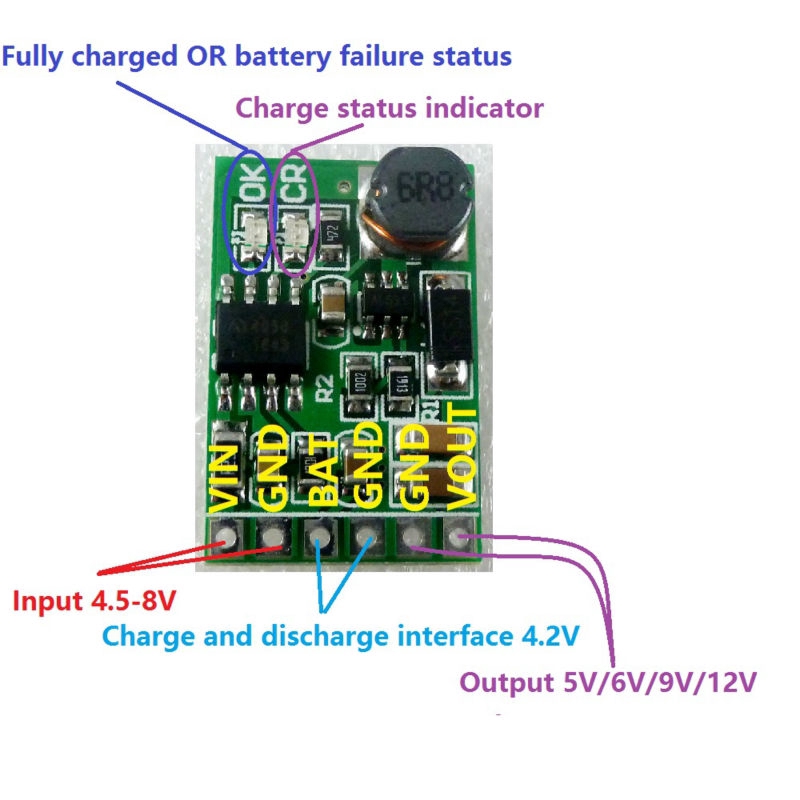

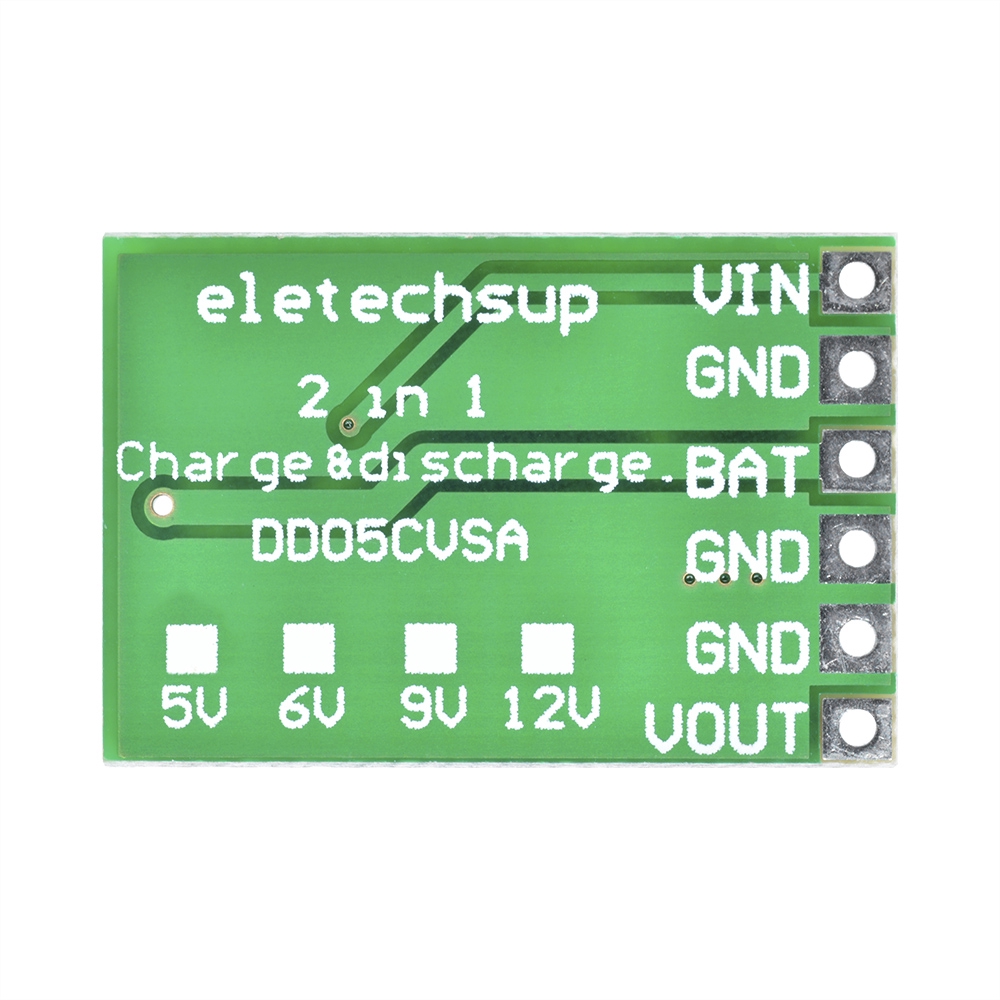

Description: 2 in 1 charge and Discharger(boost) modules Charge voltage : DC 4.5V-8V(Recommend DC 5V) Charging current : 0-1A Full charge voltage : 4.2V+-2%. Led indicator : "OK" LED is fully charged OR battery failure status indicator; "CR" LED is charge status indicator (Boost in)Discharge current : 0-2A; (Boost in)Discharge quiescent current : 450uA (Boost in)Discharge conversion efficiency : 78%-90% (Boost out)Output current : 0-1.2A(5V),0-1A(6V),0-0.66A(9V),0-0.5A(12V); Operating ambient temperature : -40° to +85° Storage temperature : -65° to +125° Does not include pin size : 23 x 15.4 x 5.7mm Weight : 2.2g(with Pin),1.8g(no Pin)

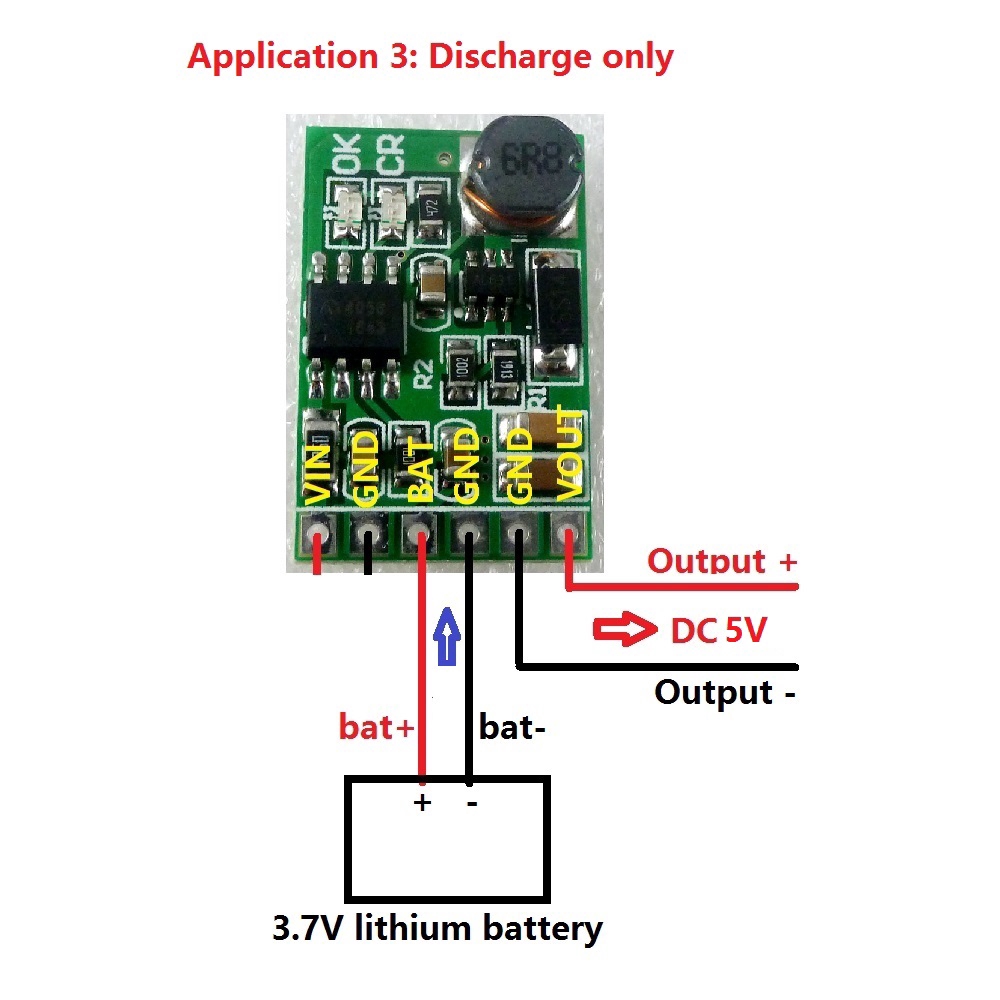

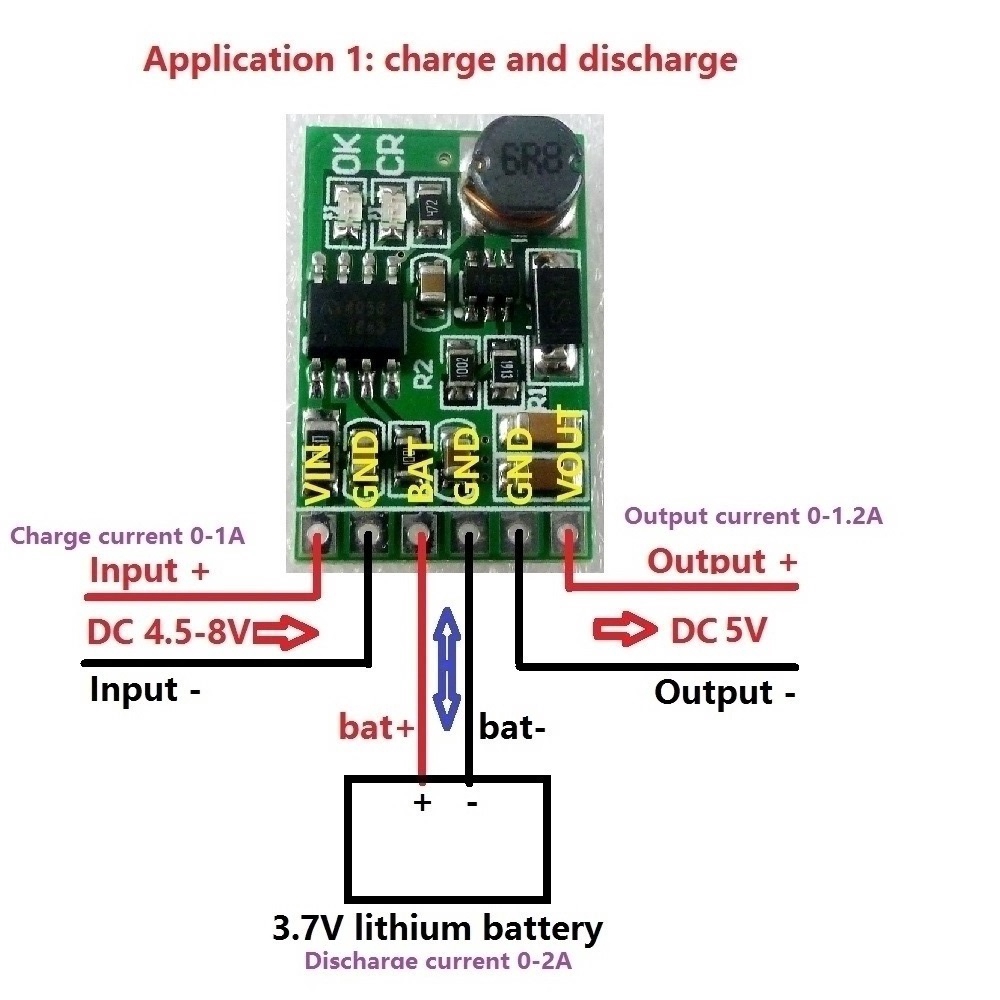

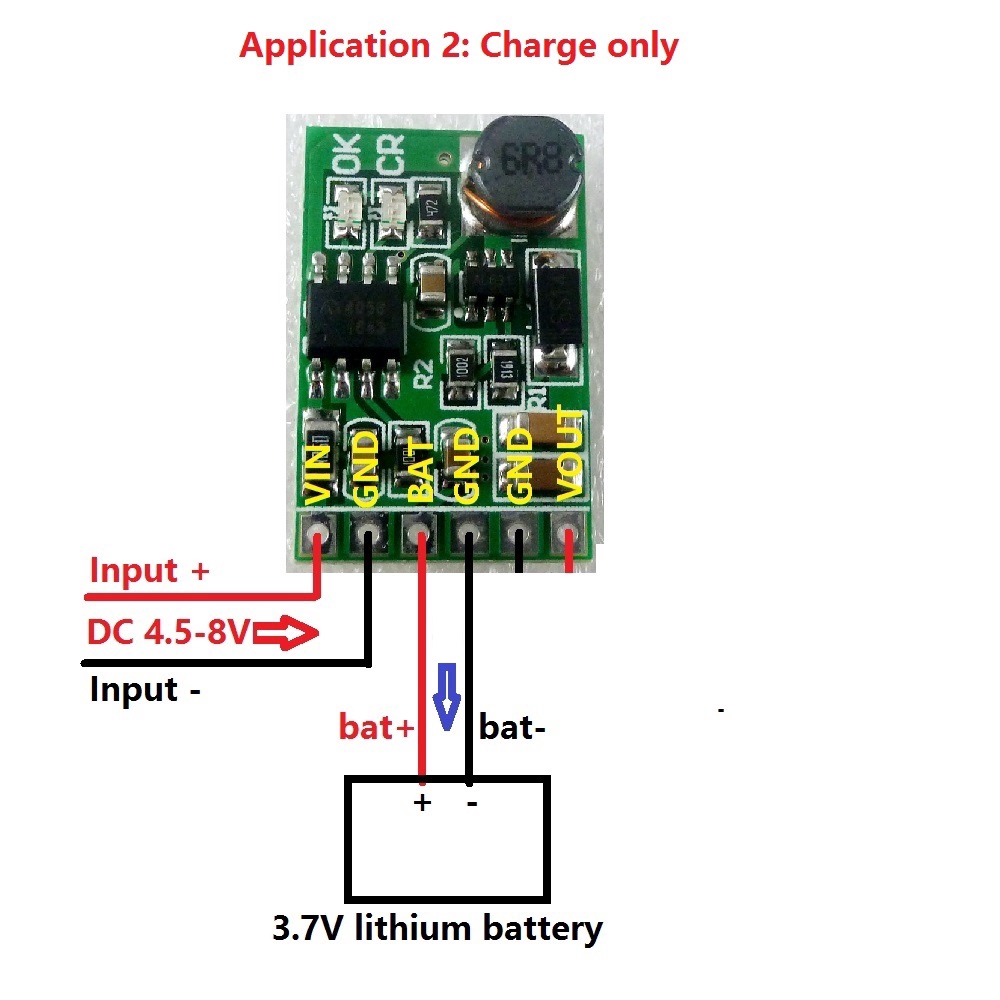

Applications: Battery powered equipment Lithium Battery 18650 14500 Mobile phone diy UPS power supply equipment diy Solar charging MP3/MP4 player Audio equipment Video equipment Portable Devices Bluetooth Applications
Package included: 1PC 5V UPS Mobile Power Diy Board Charger Step Up DC DC Indicator Converter Module
【After sales policy】 We will provide a free replacement or repair service in the following cases: 1. We make logistics mistakes 2.We send the wrong product 3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty 4.You receive a fake one
