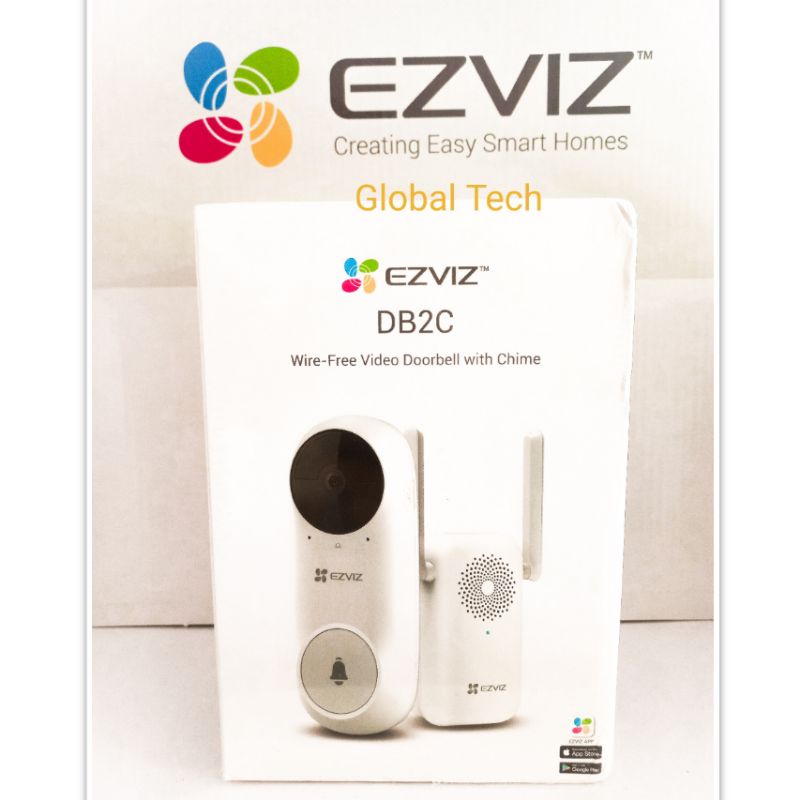

EZVIZ DB2C Wireless Video Doorbell With Chime GARANSI RESMI

Detail EZVIZ DB2C Wireless Video Doorbell With Chime GARANSI RESMI

Camera Parameters
Image Sensor 1/2.7" Progressive Scan CMOS
(Supports low light sensitivity)
Lens 2.2 mm@F2.4, Ultra FOV 160° Vertical
Day & Night IR-cut filter with auto-switching
IR Range Max. 6 m (20 ft)

Video Parameters
Max. Resolution 1536 x 1536 FHD
DNR 2D/3D DNR
Video Compression H.265/H.264
Frame Rate Max: 15fps; Self-Adaptive during network transmission

PIR Sensor
Sensing Angle 100°
Sending Distance Max. 5 m (16.4 ft)
Sensitivity User adjustable (High, Medium and Low Sensitivity)

Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Reset button Yes

Network Parameters
Intelligent Alarm PIR Person Detection
Tamper Alarm Sound and light anti-dismantling alarm
(support alarm to mobile phone)
Video Intercom Long-distance video two way talk
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol

General
Operation Conditions -10°C to 45°C (14°F to 113°F), Humidity
95% or less (non-condensing)
Ingress Protection Grade No IP Grade
Weight 206 g (0.45 lb)
Size 146 mm x 60 mm x 34 mm (5.75” x 2.36” x 1.34”)
Battery Capacity 5200mAh rechargeable lithium battery
Power Supply DC5V±10%
Power Consumption Max.7.5W

Model / Chime
Size 100 x 54 x 37 mm (3.94” x 2.13” x 1.46”)
Power Supply AC 100 ~ 240V
Wi-Fi Standard IEEE802.11b/g/n
Audio Output 65dB within 3 meters
Storage Supports TF card up to 256 G
Weight 120 g (0.26 lb)

In the box:
- 1x Doorbell
- 1x Chime
- 1x Mounting Plate
- 1x Screw Kit
- 1x Foam Sticker
- 1x Drill Template
- 1x Pin
- 1x Power Cable
- 1x Quick Start Guide
