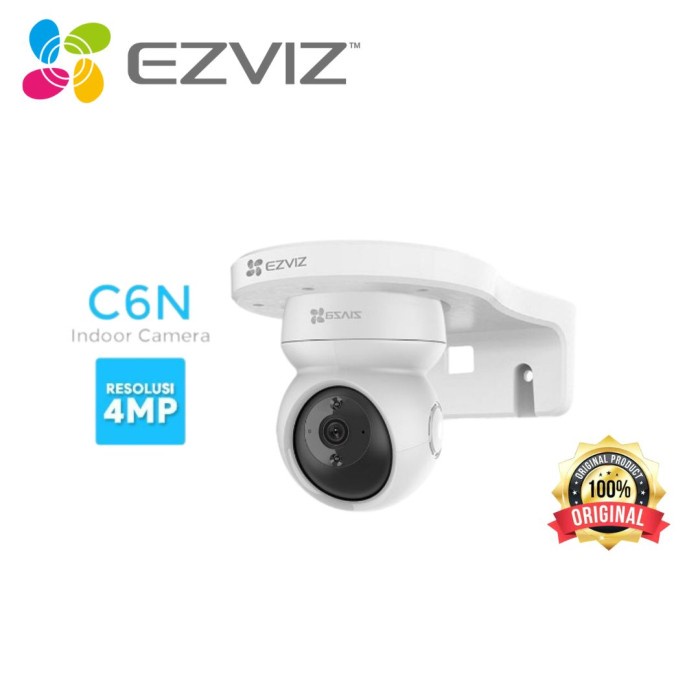

EZVIZ CCTV C6N 4MP Bundle Wall Mount - Smart Wifi & port RJ45 Pan & Tilt

Detail EZVIZ CCTV C6N 4MP Bundle Wall Mount - Smart Wifi & port RJ45 Pan & Tilt

Model Parameters

Model CS-CMT-Bracket-Wall Mount


WALLMOUNT Untuk C6N C6CN C6C C4W C6TC


General

Dimensions 153,3 × 113,4 × 55 mm (6,04 × 4,46 × 2,17 inci)

Packaging Dimensions 156 × 115 × 58 mm (6,14 × 4,53 × 2,28 inci)

Weight Produk: 108 g Kemasan: 178 g


Tentang Pengiriman

• Pengiriman kami menggunakan bubble wrap untuk melindungi isi paket.


Tentang Garansi

• Garansi Resmi EZVIZ Indonesia 1 tahun.

• Panduan klaim garansi secara online, terdapat pada kartu garansi di bagian
dalam produk.


⚙️ Specifications


Model Parameters

• Model:CS-C6N-A0-1C2WFR


📷 Camera

• Image Sensor:1/4" Progressive Scan CMOS

• Shutter Speed:Self-adaptive shutter

• Lens:4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical

• Lens Mount:M12

• Day & Night:IR-cut filter with auto-switching

• DNR:3D DNR

• WDR:Digital WDR


📁Compression

• Video Compression:H.264

• Video Bit Rate:Adaptive bit rate.


🖼️ Image

• Max. Resolution:1920 × 4MP

• Frame Rate:Max. 15fps; Self-adaptive during network transmission


🖧 Network

• Smart Alarm:Motion detection

• Wi-Fi Pairing:AP Pairing

• Protocol:EZVIZ Cloud Proprietary Protocol

• Interface Protocol:EZVIZ Cloud Proprietary Protocol


🔘 Interface

• Storage:MicroSD card slot (Max. 256 GB)

• Power:Micro USB

Wired Network:RJ45 X 1 (10M/100M self-adaptive Ethernet port)


📶 Wi-Fi

• Standard:IEEE802.11 b/g/n

• Frequency Range:2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth:Supports 20MHz

• Security:64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Transmission Rate:11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

📣 Rekaman untuk 1 hari (24jam) membutuhkan space memori 11,5GB kamera dapat di
set juga hanya merekam apabila ada pergerakan (motion detect)

Gambar produk
