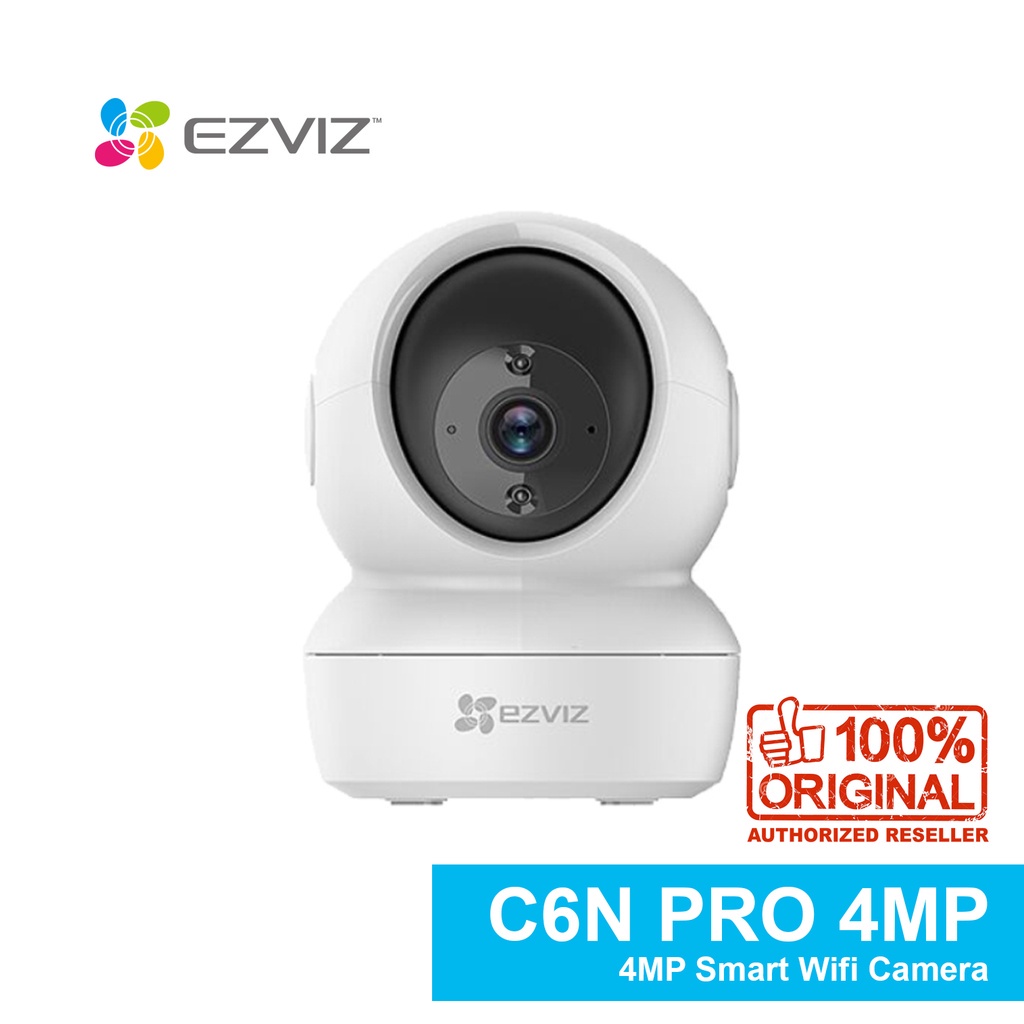

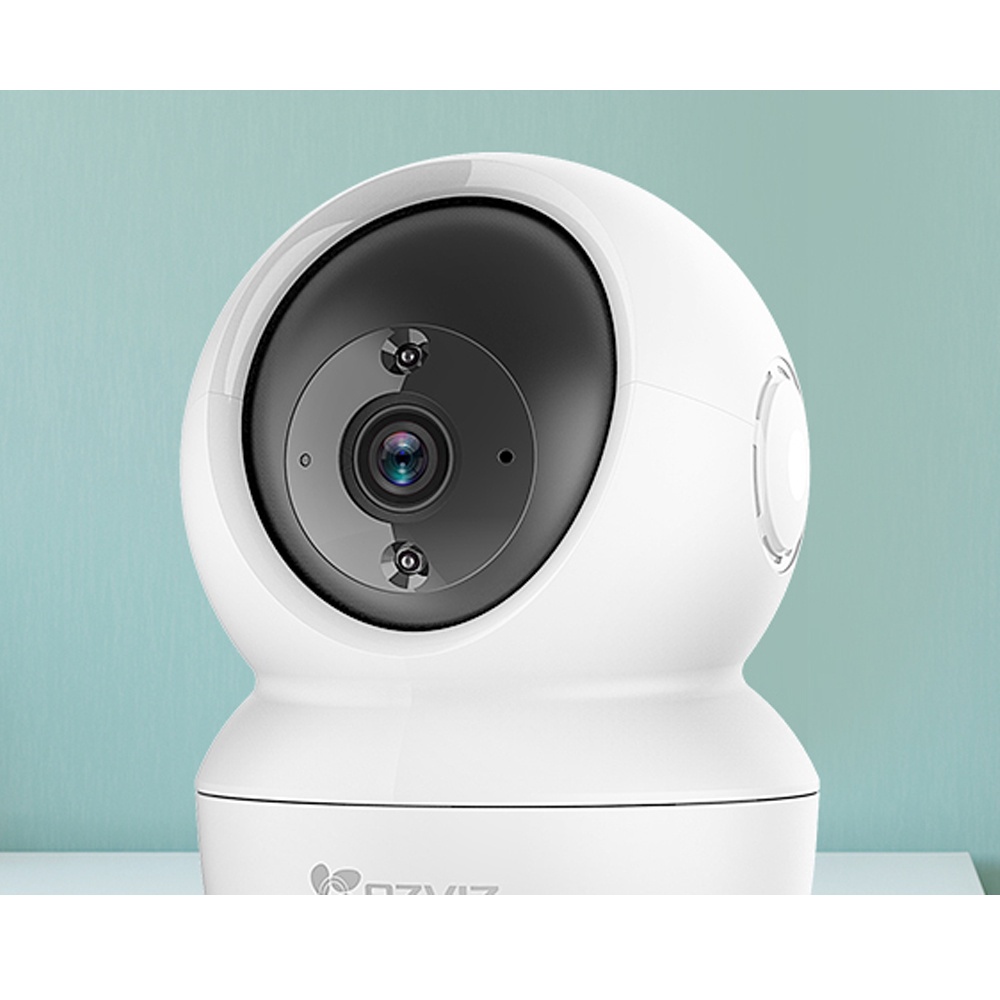

Ezviz C6N 4MP 2K Smart Wi-Fi Pan & Tilt Ip Camera

Detail Ezviz C6N 4MP 2K Smart Wi-Fi Pan & Tilt Ip Camera

Specifications

Model : CS-C6N-D0-8B4WF

Camera

Image sensor : F2.2@1/3" Progressive Scan CMOS

Shutter Speed : Self-adaptive shutter

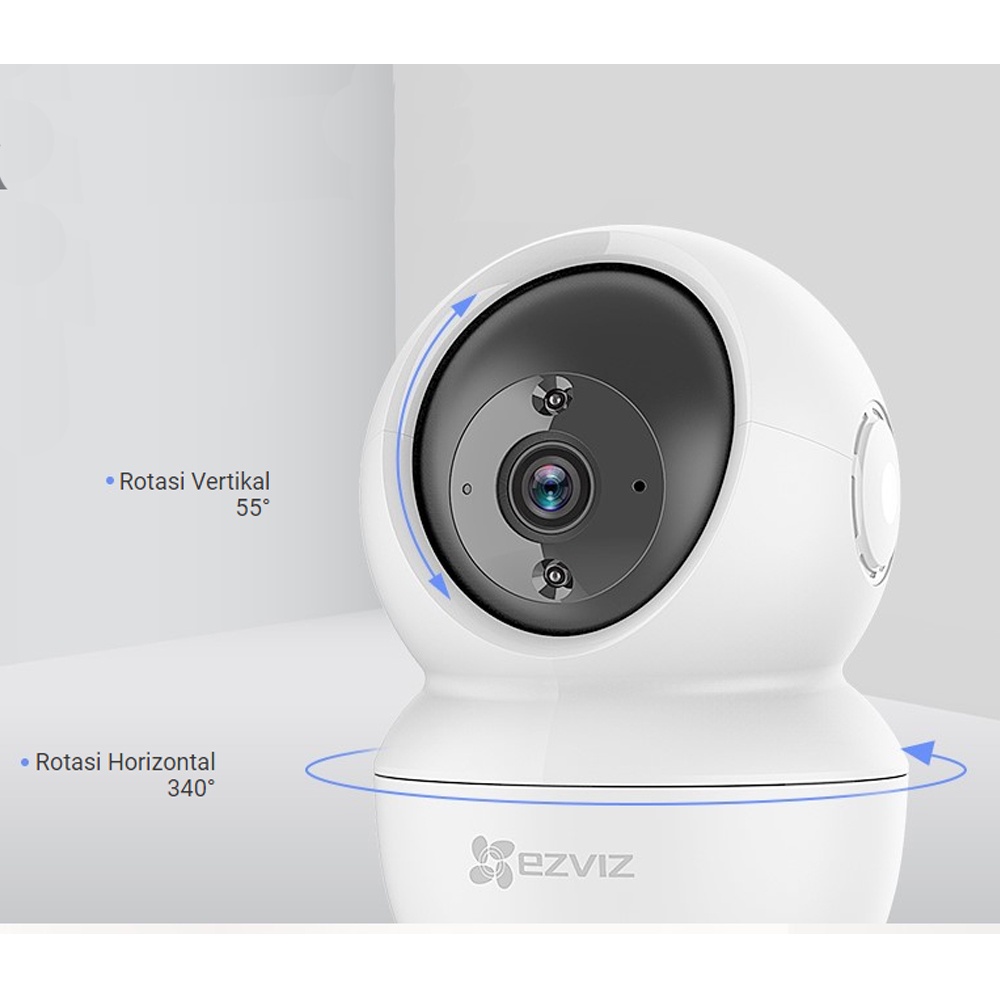

Lens : 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)

Lens Mount : M12

Day & Night : IR-cut filter with auto-switching

DNR : 3D DNR

WDR : Digital WDR

Compression

Video Compression : H.265 / H.264

Video Bit Rate : Adaptive bit rate


Max. Resolution : 2560 × 1440

Frame Rate : Max. 20 fps; Self-Adaptive during network transmission

Network

Smart Alarm : Motion detection

Wi-Fi Pairing : AP pairing

Protocol : EZVIZ cloud proprietary protocol

Interface Protocol : EZVIZ cloud proprietary protocol

Interface

Storage : Micro SD card slot (Max. 256G)

Power : Micro USB

Wired Network : RJ45 × 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard : IEEE802.11b, 802.11g, 802.11n

Frequency Range : 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth : Supports 20MHz

Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate : 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

Output Power (EIRP) : 19 dBm

Antenna Gain : 1.9 dBi

General

Operating Conditions : -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less
(non-condensing)

Power Supply : DC 5V/2A

Power Consumption : Max. 5W

IR RangeMax. 10 m (32.81 ft)

Dimensions : 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch)

Packaging Dimensions : 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 inch)

Bare Weight : 252g (8.89 oz)




In the box:

- C6N Camera

- Base

- Screw Kit

- Power Cable 3m (9.8 ft.)

- Drill Template

- Power Adapter

- Quick Start Guide

- Regulatory Information
