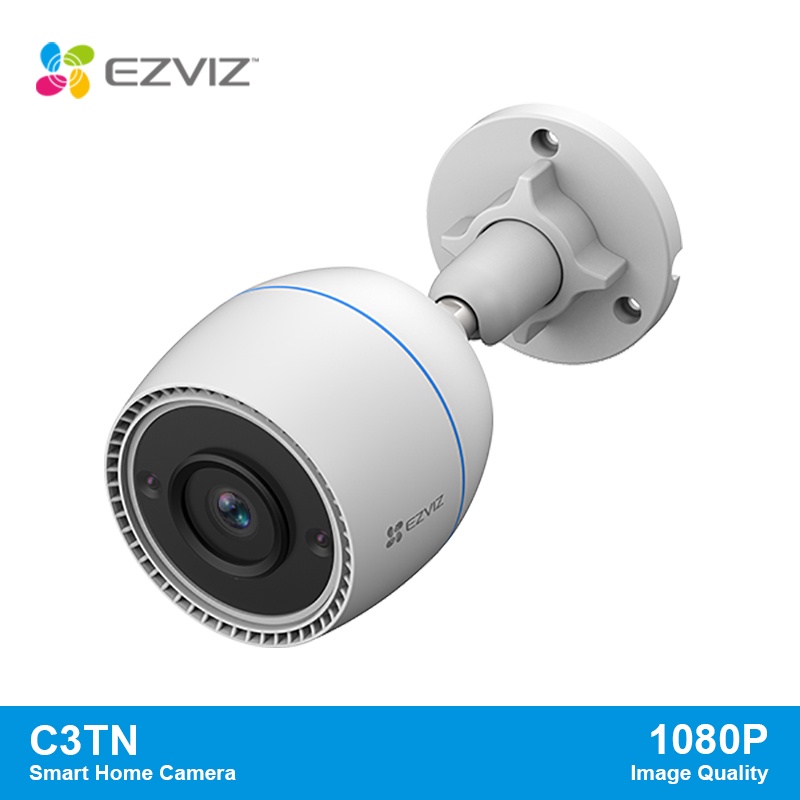

Ezviz C3TN 2MP 1080P Wireless Smart Home Camera IP

Detail Ezviz C3TN 2MP 1080P Wireless Smart Home Camera IP

Model CS-C3TN(2MP)
Camera
Image Sensor 1/2.7”
Progressive Scan CMOS
Minimum Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed Self-adaptive shutter
Lens 2.8 mm @ F2.0, view angle: 106° (Horizontal), 122°(Diagonal)
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.265 / H.264
Video Bit Rate Ultra-HD; HD; Standard. Adaptive bit rate.
Max. Resolution 1920 × 1080
Frame Rate Max: 30fps; Self-Adaptive during network transmission
Network Wi-Fi
Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol Interface
Protocol EZVIZ Cloud Proprietary Protocol
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection,
Watermark
Max. Bitrate 2M
Interface Storage Micro SD card slot (Max. 256 GB)
Wired network RJ45 × 1(10M/100M Adaptive Ethernet Port)
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range2.4GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps
General
Operating Conditions -4°F to 122 °F (-20ºC to 50ºC ); Humidity 95% or less (
non-condensing)
Power Supply DC 12V/1A
Power Consumption Max. 6W
IP Grade IP 67
Night Vision Distance (Black/White Night Vision Mode) Max. 30 m (98 ft)
Dimensions72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch)

Packaging
Dimensions 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Net Weight253 g (8.9 oz)

In the box
- C3TN Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
