Ezviz C1HC 2MP H.265 Wireless Smart IP WiFi Camera

Detail Ezviz C1HC 2MP H.265 Wireless Smart IP WiFi Camera

Deskripsi KAMERA WIFI EZVIZ C1HC 2MP SMART INDOOR CAMERA
Model Parameters
Model CS-C1HC-D0-1D1WFR / CS-C1HC-D0-1D2WFR
Camera
Image Sensor 720p : 1/4" Progressive Scan CMOS 1080p : 1/2.9" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 720p: 2.8mm @ F2.4, view angle: 92° (horizontal), 110° (diagonal) 1080p: 2.8 mm @ F2.0, view angle: 106° (horizontal), 130° (diagonal)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
Compression
Video Compression H.264
H.264 Type Main profile
Video Bit Rate 720p: HD; Standard; Basic. Adaptive bit rate. 1080p : Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate Self-adaptive
Max. Bitrate 2 Mbps
Max. Resolution 720p: 1280 x 720 1080p: 1920 x 1080
Frame Rate 720p: max. 25fps; 1080p: max. 20fps Self-adaptive during network transmission
Interface
Storage MicroSD card slot (Max. 256 GB)
Power Micro USB
Network
Smart Alarm Motion detection
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
General Features Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Wi-Fi
Standard IEEE802.11b / g / n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
General
Power Supply DC 5V±10%
Power Consumption MAX. 4.0 W
IR Range MAX. 12 meters (40 feet)
Product Dimensions 54 x 54 x 90.5 mm (2.13” x 2.13" x 3.56")
Packaging Dimensions 102 x 79 x 114.5 mm (4.02” x 3.11"x 4.51")
Suttle Weight 88.5 g (0.19 lb)
Package Contents

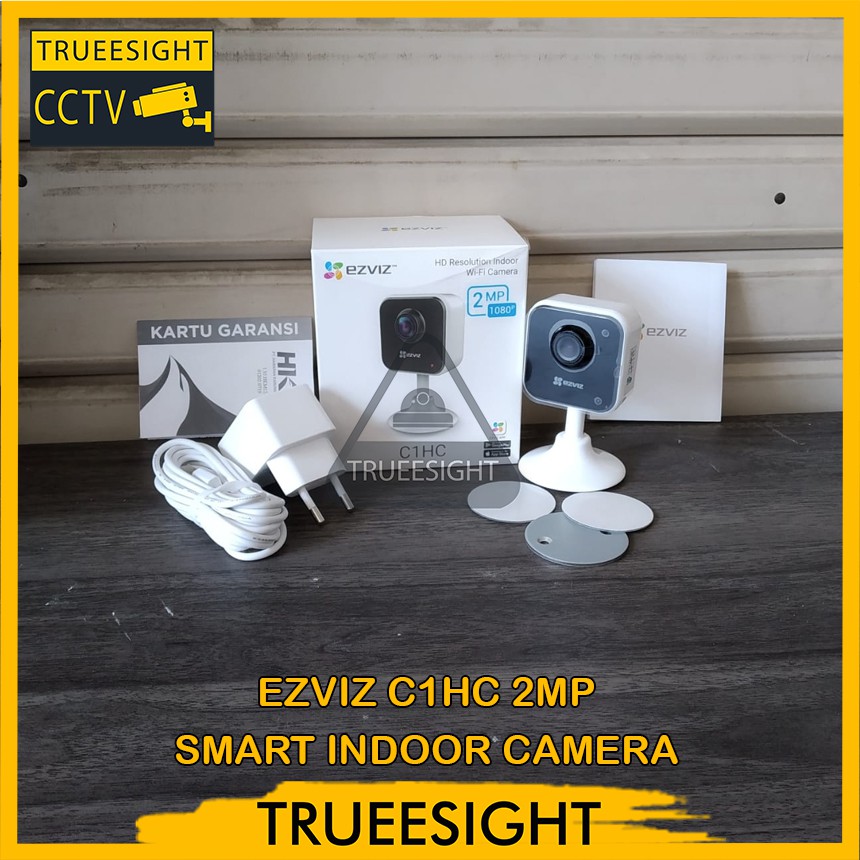

Package Contents C1HC Camera; 3-Meter (9.8-foot) USB Cable; Power Adapter; Two Foam Stickers; Metal Plate (3.5 mm / 0.14 ft. Hole Diameter); Quick Start Guide
Operating Environment
Temperature -10°C to 45°C (14°F to 113°F)
Humidity 95% or less (non-condensing)
Certificates
Certificates FCC / CE / UL / REACH / WEEE / RoHS

Gambar produk
