EZCAP 327 USB 3.0 SDI Video Capture Live CAM Streaming / EZCAP327

Detail EZCAP 327 USB 3.0 SDI Video Capture Live CAM Streaming / EZCAP327

Features:
Capture SDI in 1080p60 full HD, and Capture
HDMI videos in 4Kp30 Ultra HD.
Support SDI/HDMI signal Output
Supports UVC standard, no need
driver installation
This capture card streams video signal
via USB3.0/Type C . port
Supports most software
third party video capture.
Live streaming for Twitch, Youtube and
other live streaming platforms

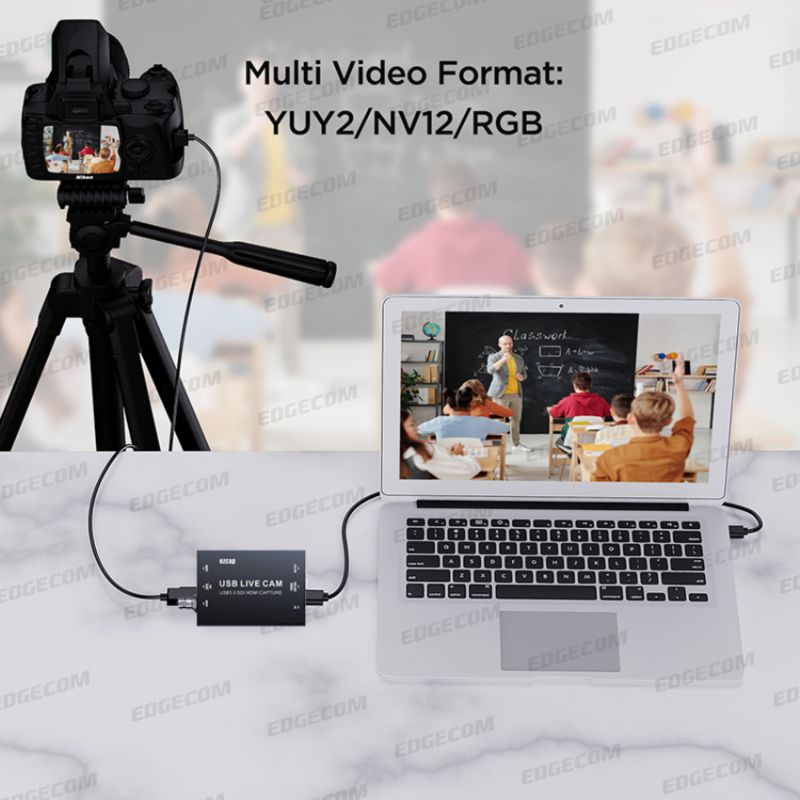

Output Video Format: YUY2,NV12,XRGB
Compatible with Windows and Mac systems
Operating system: for Windows 10x64, USB 3.0 type-
c or Type-a port X1For 4Kp30 or 1080p120 recording:
-Intel Core i5-6XXX / AMD Ryzen 3 XXX or above
tall
-NVIDIA GTX 1060 / AMD RX 5700 or higher-8 GB RAMFor 1080p60 recording:
-Intel Core i5-3330 or above (i7-3770 recommended)
-NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or higher-4 GB RAM
RAM must be DDR4 2400 or more For M a c system requirements: for M a c O S X
HIGH Sierra 10.15 and above, USB 3.0 type-c
or USB3.0 Port X1
For 4Kp30 or 1080p120 recording:
-Intel Core i5-6XXX I AMD Ryzen 3 XXX or above
tall
NVIDIA GTX 1060 / AMD RX 5700 or higher-8 GB RAM For 1080p60 recording:
-Intel Core i5-3330 or above (17-3770 recommended) NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or higher 4 GB RAM* RAM must be DDR4 2400 or more For M a c system requirements: for M a c O SX
HIGH Sierra 10.15 and above, USB 3.0 type-c
or USB3.0 Port X1Input resolution:720x480(60p), 720x576(50p), 1280x720(5op),
1280x720(60p), 1920x1080(50i), 1920x1080(60i),
1920x1080(24p), 1920x1080(25p),
1920x1080(30p), 1920x1080(50p),
1920x1080(60p), [3840x2160(30p)-only for
HDMI input Maximum device output:
NV12: 4kp30-only for HDMI input, 2Kp120,
1440p60, 720p60.
Yuyv2: 2Kp60, 1440p50, 720p60.
XRGB: 2Kp30, 720p60 Software compatibility:
For OBS Studio (Windows, O S X), OBS Broadcast
(Windows, M a c O S X),Adobe Flash Media Live
Encoder (Windows, OS X), Real Manufacturer Plus
(Windows), fast time broadcaster (O S X), player
fast time (O S X), Windows Media encoder
(Windows), Potplayer (Windows), for broadcasters
Xsplit (Windows, O S X), VLC (Windows, O S x, Linux),
Wirecast (Windows, O S X), VMix (Windows), AMCAP,
and others.

Software compatibility:
For OBS Studio (Windows, O S X), OBS Broadcast
(Windows, M a c O S X) Adobe Flash Media Live
Encoder (Windows, O S X), Real Manufacturer Plus
(Windows), fast time broadcaster (0 S X), player
fast time (O S X), Windows Media encoder
(Windows), Potplayer (Windows), for broadcasters
Xsplit (Windows, O S X), VLC (Windows, O S X, Linux),
Wirecast (Windows, O S X), VMix (Windows), AMCAP and others.Specifications:
Interface: USB 3.1

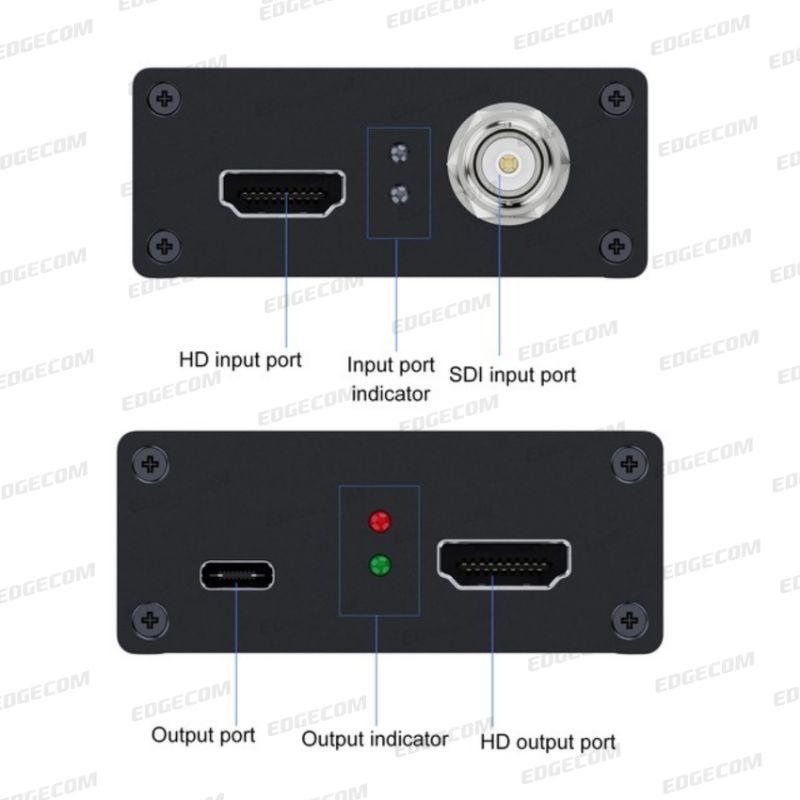

Video Inputs: SDI, HDMI
Audio Input: SDI, HDMI

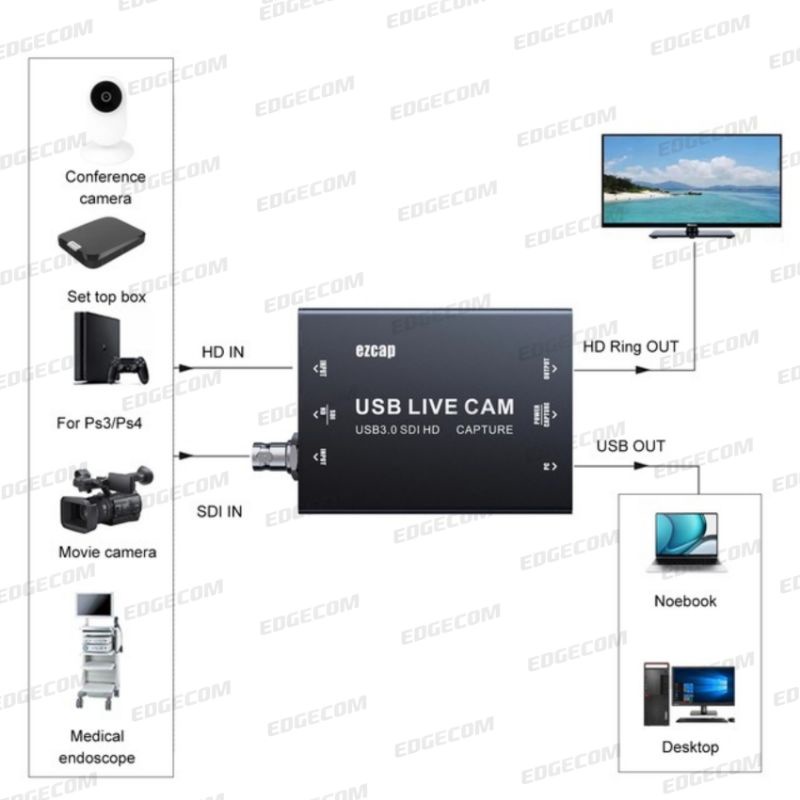

Applicable connections: cameras, medical devices..
Max capture: SDI: 1080p60;HDMI:
1080p120, 2160p30, 1440p60
Package includes: Ezcap327 USB Live Cam SDI HDMI Capture,
Type-c to C cable,
Type-c to cable,Manual
