Ezcap 284 HDMI Video Capture HD 1080P 2Port(in/out)

Detail Ezcap 284 HDMI Video Capture HD 1080P 2Port(in/out)

Deskripsi Ezcap 284 HDMI Video Capture HD 1080P 2Port(in/out)
Features:
1080P recording with one click, no PC required. Plug and Play, easily use it without any set-up.Just click RECORD button to record your gameplay.
Support HD video signal, resolution up to 1080P.
More video input choice, like HDMI, Component Video, Composite Video.
With 1080P HDMI by through, you can play HD gameplay when recording it. With MIC in, allow you record voice with game together.
support U-disk and SD card memory.
Specifications:
Connections
Interface: USB 2.0 host, support SD card .
Video Input: Digital: HDMI; Analog: Component Video, Composite Video
Audio Input: Digital: HDMI; Analog: RCA Audio L/R, 3.5mm Microphone In.(Note: Microphone without pass through for HDMI input)
Video Output: Digital: HDMI (Pass-through from HDMI or Component or Composite Input).
Audio Output: Digital: HDMI(Pass-through from HDMI or RCA L/R Input); Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

Application Connections with Game Consoles
HDMI: WiiU, Xbox 360, Xbox One, PS4
Component: WiiU, Xbox 360, PS3
Composite: WiiU, Xbox 360, PS3
Note: HDCP contents cannot be recorded.
Hardware Extra
Codec: Hardware MPEG4 encoder
User Interface: On-board Hot Button for one-click recording; LED indicator for working status.

Standards
Storage Media: USB Flash Disk, Portable Hard Disk, SD Card
Max. Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
Input Resolution / Pass-through:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture Resolution:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record Format: Video: AVI; Audio: AAC Stereo
Record Quality: Max 18Mbps@1080P

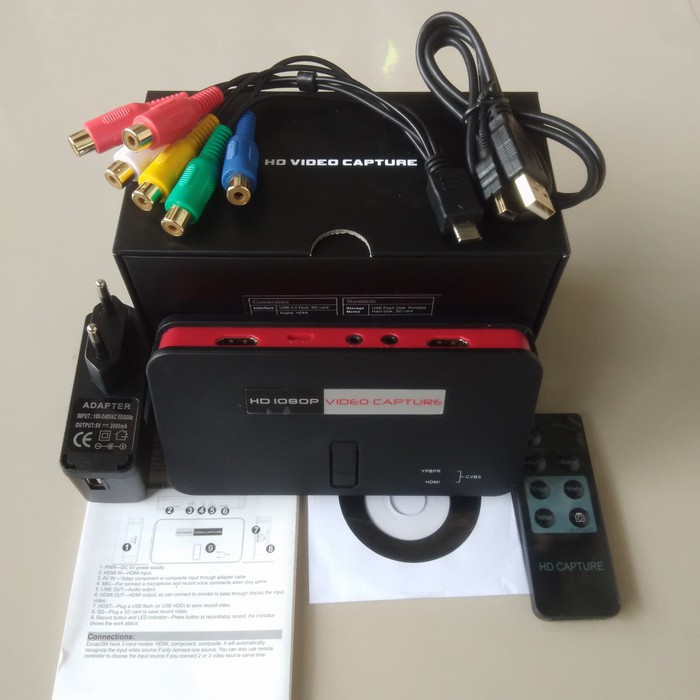

Gambar produk
