Detail ETHERNET SHIELD W5100 ARDUINO ETHERNET SHIELD
Hi #RekanEasyWare ...EasyWare Part#: EP000431

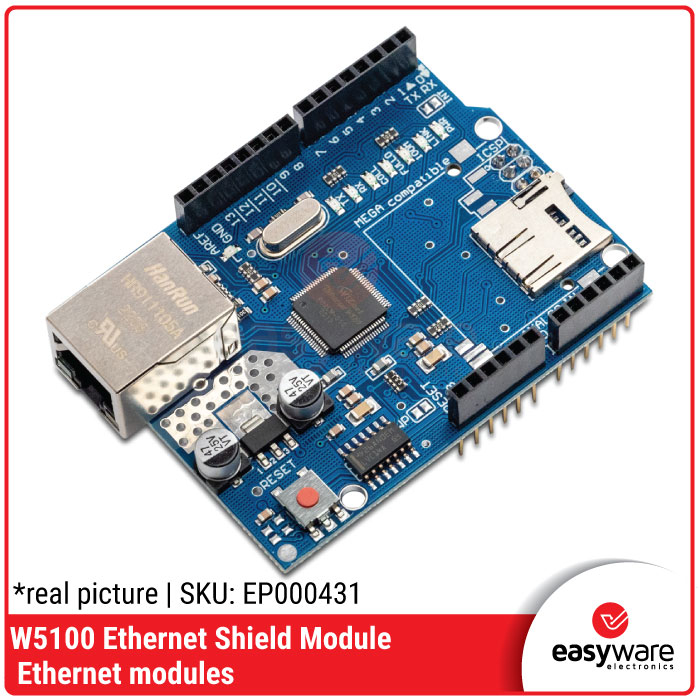

The Ethernet Shield V2.0 is finally released and supports both Mega 1280 and 2560. Besides, it also supports micro SD card read/write. The ethernet shield is fully functional now. The V2 Ethernet Shield is fully compatible with Ardunio Ethernet Shield. With the offical ethernet library, you can do exactly the same thing as the original one. But at a more affordable price.
The shield contains a number of informational LEDs:
* PWR: indicates that the board and shield are powered
* LINK: indicates the presence of a network link and flashes when the shield transmits or receives data
* FULLD: indicates that the network connection is full duplex
* 100M: indicates the presence of a 100 Mb/s network connection (as opposed to 10 Mb/s)
* RX: flashes when the shield receives data
* TX: flashes when the shield sends data
* COLL: flashes when network collisions are detected Compatibility
* Working with: Arduino Uno, Arduino Mega, Arduino Duemilanove.
DIMENSI :
* 70mm x 55mm x 10mm
KELENGKAPAN :
* W5100 ETHERNET SHIELD ARDUINO
