Ethernet Network Transceiver 3 FO SC - 2 RJ45

Elektronik > Elektronik Lainnya > Ethernet Network Transceiver 3 FO SC - 2 RJ45
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:lengkapediaLihat semua produk Elektronik oleh lengkapedia
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Ethernet Network Transceiver 3 FO SC - 2 RJ45

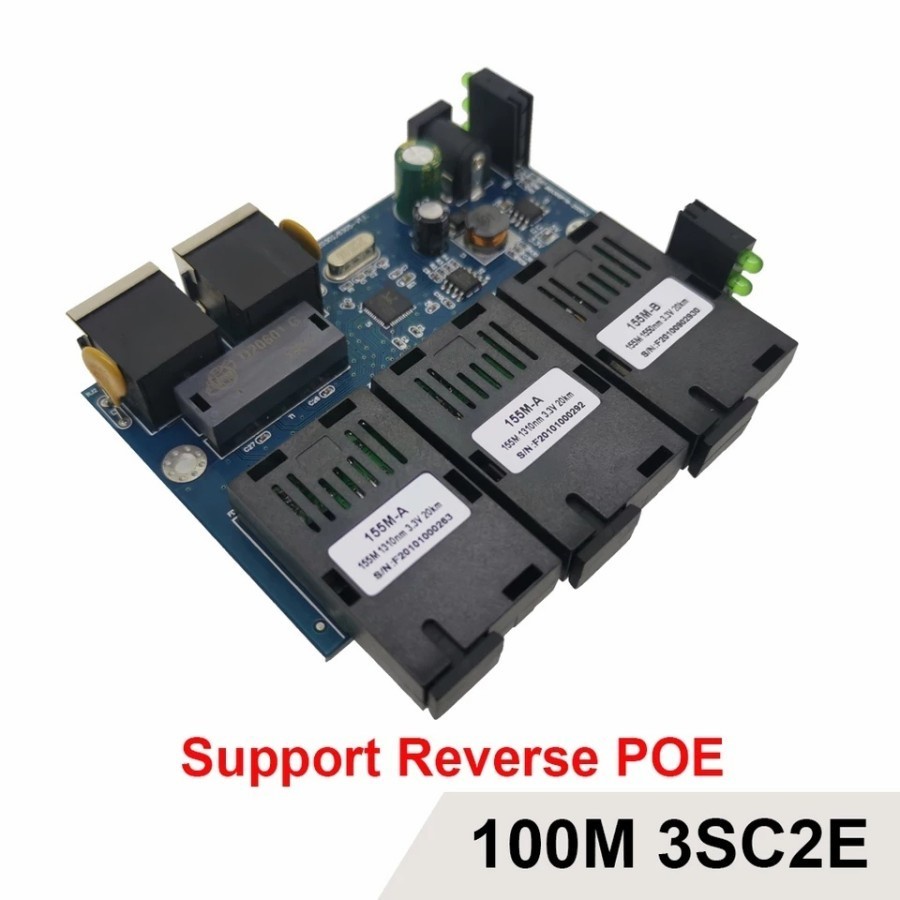

Ethernet Network Transceiver 3 FO SC - 2 RJ45 10/100 Mbps Board Only


1.Support the switch between 10/100Base-TX and 100Base-FX

2.2*155Gbps full-duplex fiber ports and 4*100M Ethernet ports with auto-negotiation function

3.Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

4.Each port has the complete LED Indicator light

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

6.Support IEEE802.1d Spanning Tree

7.Support high performance QoS function on each port

8.Support 5V voltage input

9.Support IEEE 802.3x flow control and back pressure control

10.Require no configuration and will instantly operate as soon as you power it up

11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications:

Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree


Ethernet Port
Connector: RJ45
Data Rate:10/100M
Distance: 100m
UTP Type: UTP-5E or higher level
Fiber Port
Connector: SC/FC/ST/SFP slot
Data Rate: 155M
Optical Wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 550m～120km

Performance
Processing Type: Store and Forward
MAC Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
Time Delay: ＜150μs

Power
Power type: external power supply
Input Voltage: AC100V～240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 2.2W～3.5W
Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF 100, 000 hours
Environment
Storage Temperature: -40～70℃
Operating Temperature: -10～55℃
Relative Humidity: 5-90% ( no condensation)
Mechanical Structures
Dimension: 215×107×26mm
Weight: 0.15
