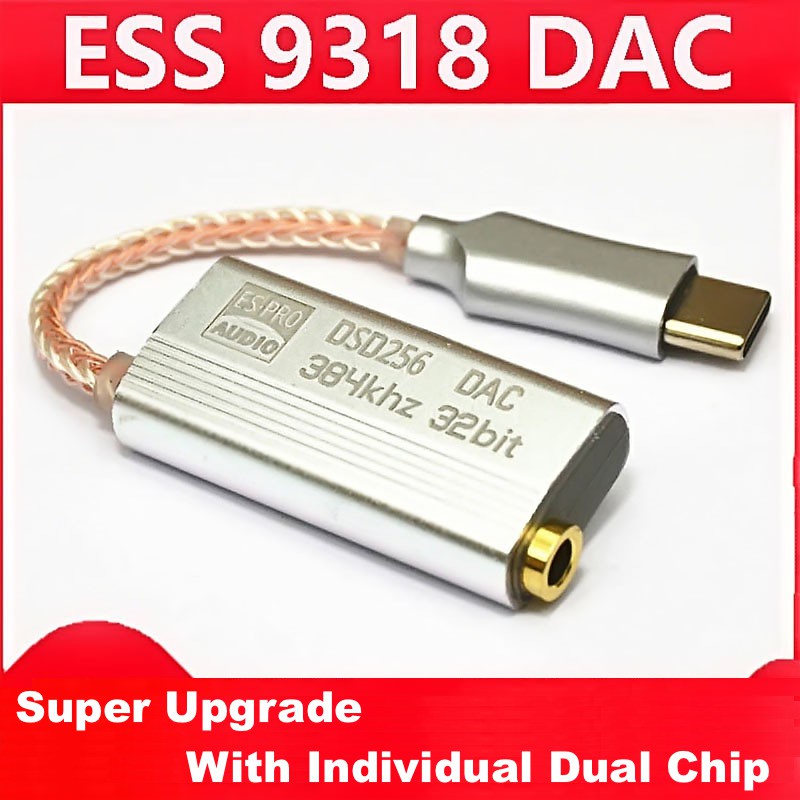

ESS SABRE DAC ES9318 Type C to 3.5mm DSD256 600 ohm

Detail ESS SABRE DAC ES9318 Type C to 3.5mm DSD256 600 ohm

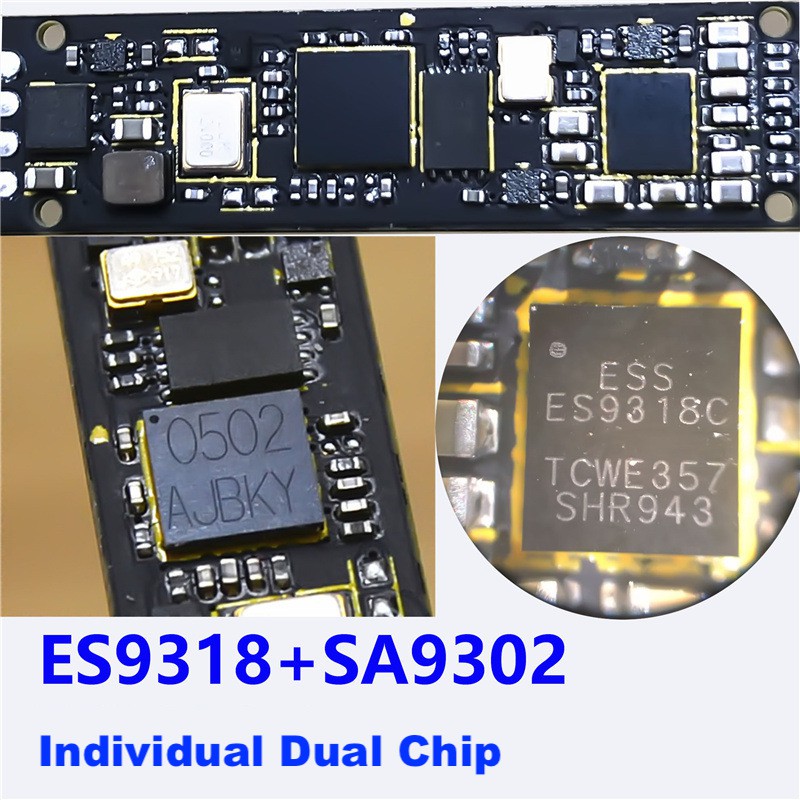

Sekarang upgrade ke ES9318 SABRE HiFi SoC , lebih improve dr es9118


Type c to 3.5mm ,
DSD256 ,600 ohm drive power , cable 8 braid hybrid , each cable 48 core , total 384 core

The ES9118 HiFi SoC leverages the company’s patented 32-bit HyperStream architecture to deliver up to 125 dB SNR and -112 dB Total Harmonic Distortion plus Noise (THD+N) ensuring audiophile quality sound all the way to the headphones. It also supports the industry’s most popular high resolution and lossless audio formats including FLAC, ALAC, AIFF and WAV.


Feature
Patented 32-bit HyperStream architecture
Enables an integrated SOC featuring the highest performance
32-bit mobile audio DAC with headphone amplifier

Patented Time Domain Jitter Eliminator
Unmatched audio clarity free from input clock jitter

64-bit accumulator & 32-bit processing
Distortion free signal processing

Versatile digital input
Supports master/slave PCM (I2S, LJ 16-32-bit) or DSD

Customizable filter characteristics
Seven preset filters with a user-programmable filter for custom
sound signature

Output switch for auxiliary source
Voice mode bypass with negligible power consumption

Integrated low-noise AVCC LDO
Eliminate external LDO and reduces PCB size

Adjustable analog gain with integrated HPA
feedback resistors
Reduce noise at real-life listening levels
Eliminates external thin film resistors and reduces PCB size

THD Compensation
Minimizes distortion from external PCB components and layout

Package options : 40-CSP or 40-QFN
Minimizes PCB footprint

Less than 65 mW quiescent power and less than
1 mW standby power
Maximizes battery life

1.8/3.3V Digital Supply
1.8/3.3V DAC Analog Supply
1.8V HPA Supply
Support 1.8/3.3V logic levels
Customizable DAC analog performance
Minimize HPA power consumption

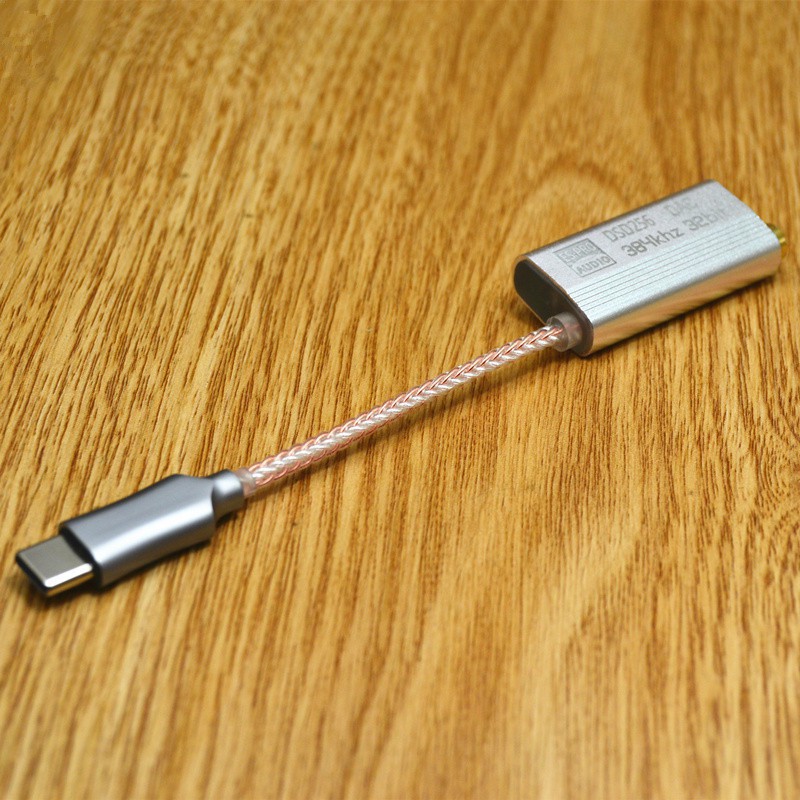

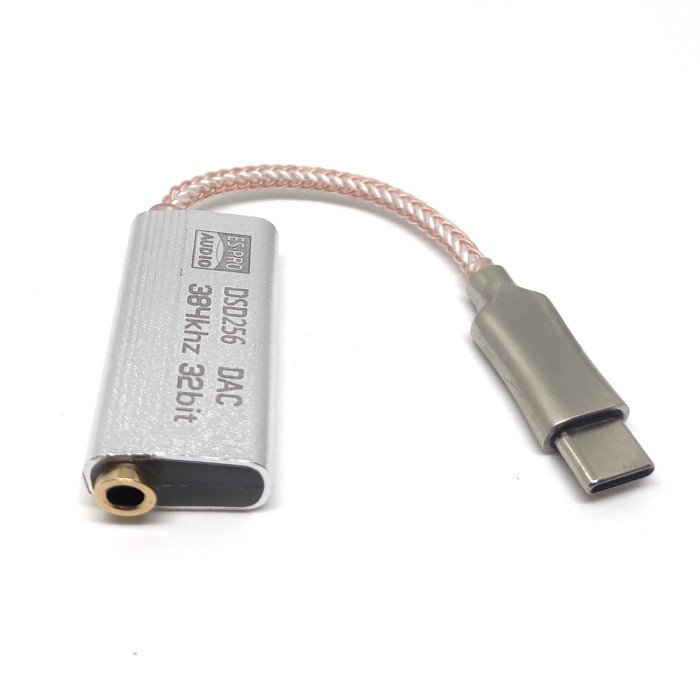

Gambar produk
