ESR METER TRANSISTOR TESTER SMART TFT LCD TC1 DENGAN BATTERY CHARGER

Detail ESR METER TRANSISTOR TESTER SMART TFT LCD TC1 DENGAN BATTERY CHARGER

Feature:
Self test with automatic calibration
Size: 70*90*26m/ 2.71x3.58x1.10 inch
Display: 3.5 inch TFT Screen, Color Screen
Diode Range: less than 4.5V
Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50M
Inductance: 0.01mH-20H
Power Voltage: 3.7V
Power: Built-in Rechargeable Lithium Battery

Measurement results using TFT graphic display (160x128)
One-button operation
Auto power off (timeout setting)
Built-in high-capacity rechargeable lithium-ion battery
Lithium-ion battery voltage detection
Support Chinese and English
Warning: Built-in lithium-ion battery, it is strictly forbidden to immerse the tester in water or near heat source!
Warning: For your personal safety, please strictly observe the specifications and precautions for using lithium-ion batteries!

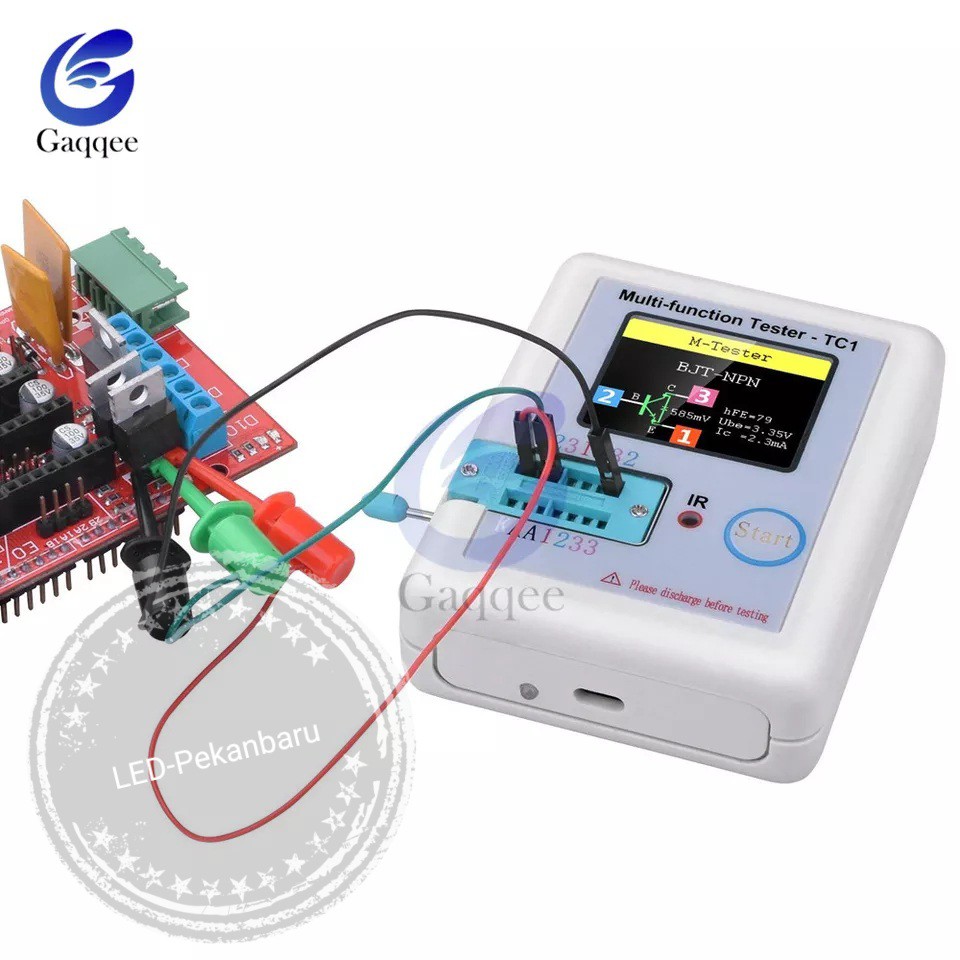

Transistor Detection:

After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle, press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.
Warning: Always discharge the capacitor before connecting them to the tester! The tester may be damaged before you turn it on!
Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

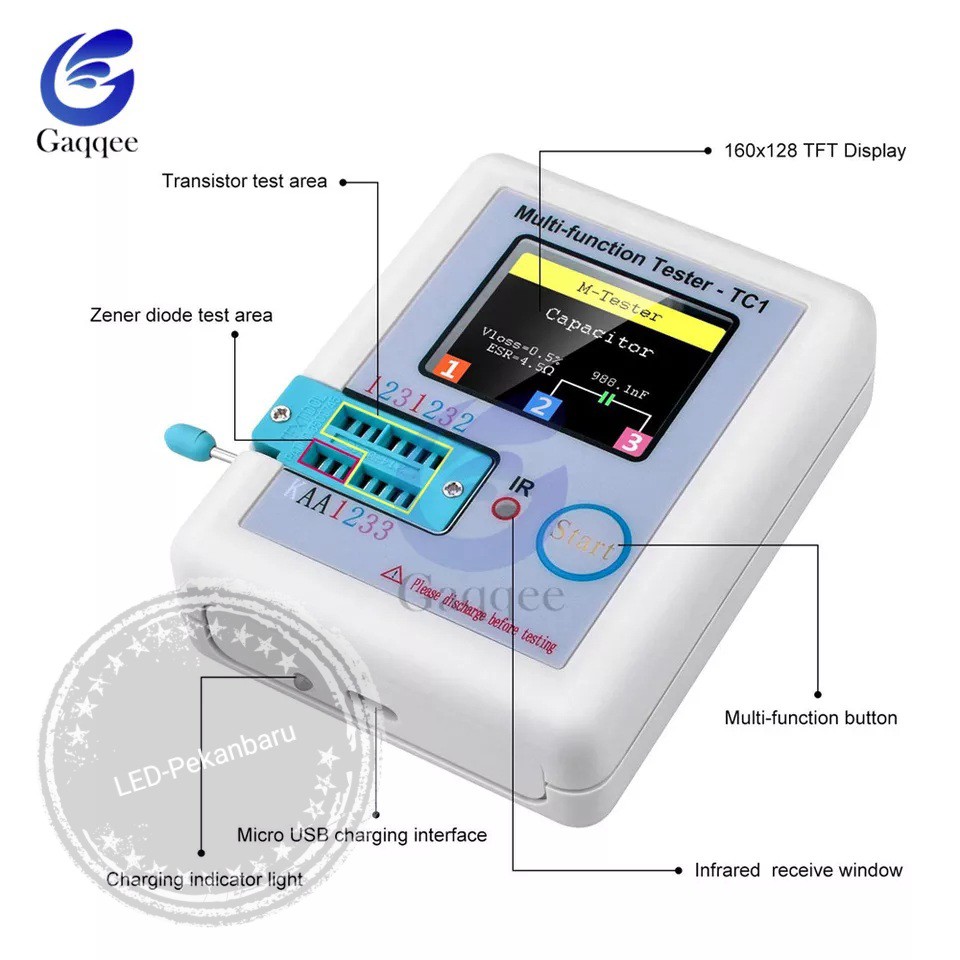

Component placement:
The test socket is divided into transistor and Zener diode test areas, as described in 1.1.

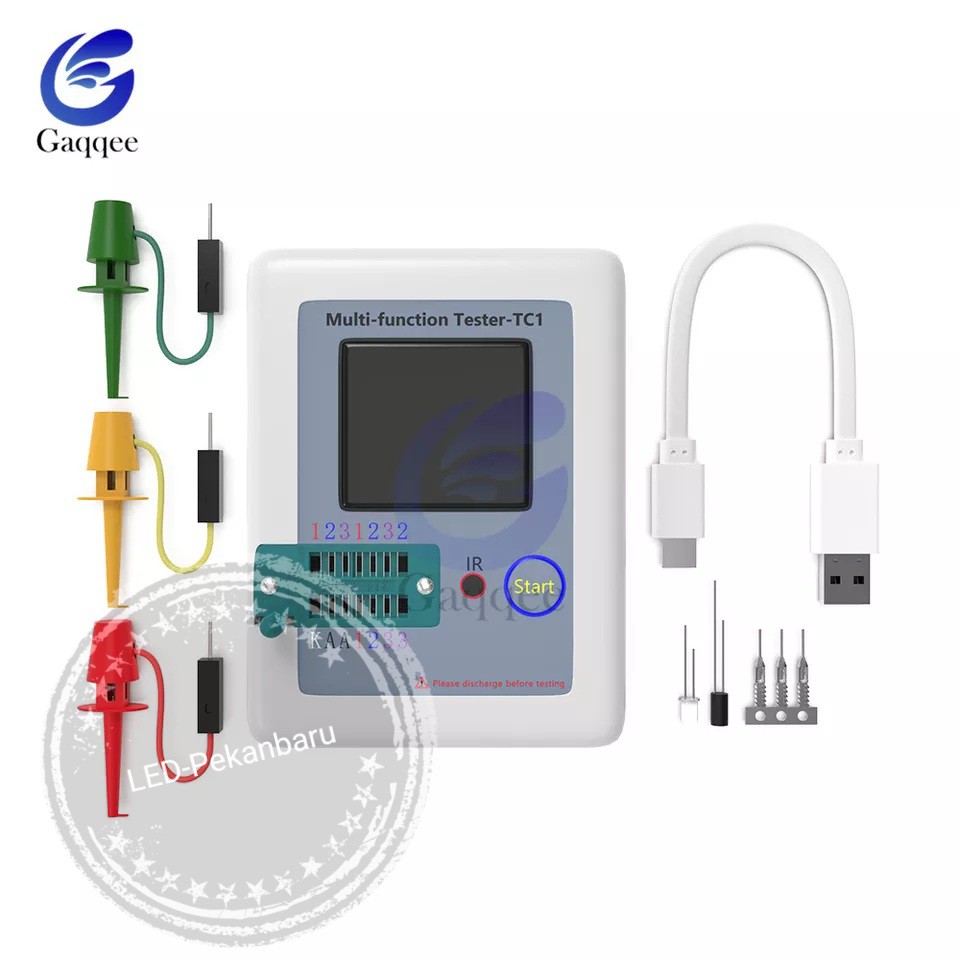

Packing List:
1 x multifunction TFT transistor tester
1 x electronic component group (sent random)
3 x test hook
*UNIT TIDAK BERGARANSI, UNIT DIPASTIKAN BEROPERSI NORMAL SEBELUM BIKIRIM
TERIMAKASIH
