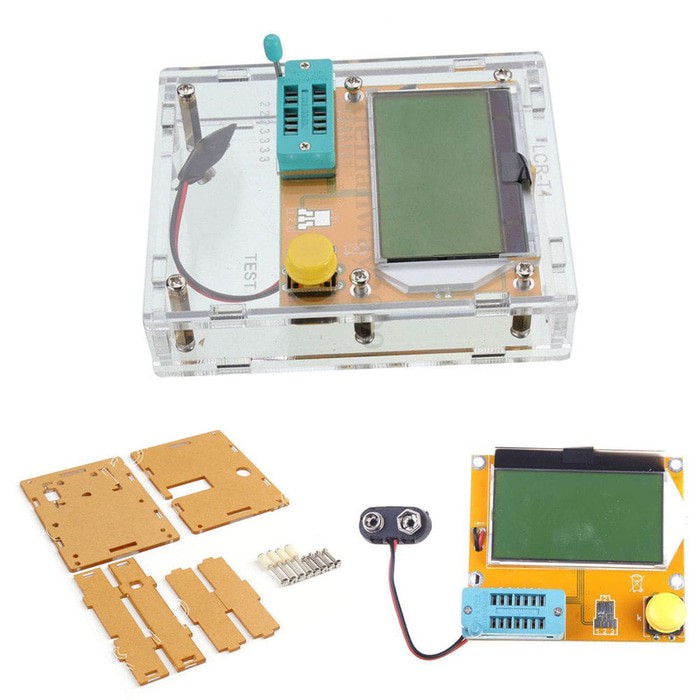

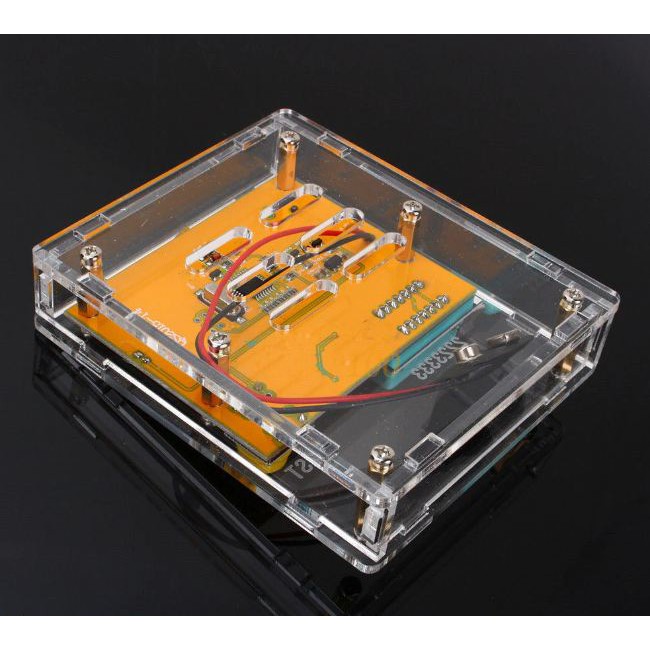

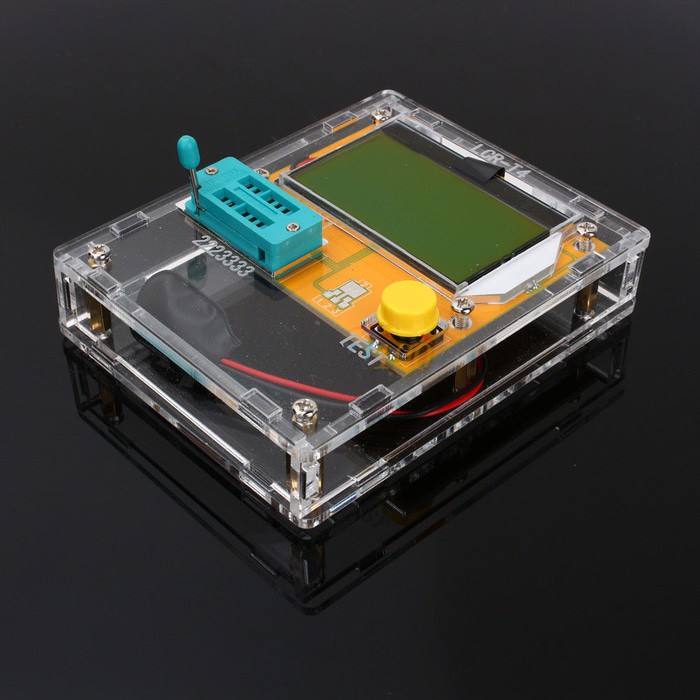

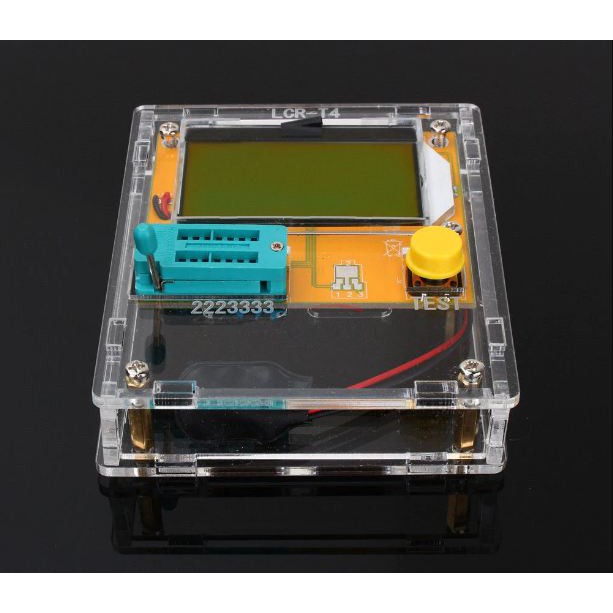

ESR Meter M328 Transistor Tester with Clear Acrylic Case Shell Housing

Detail ESR Meter M328 Transistor Tester with Clear Acrylic Case Shell Housing

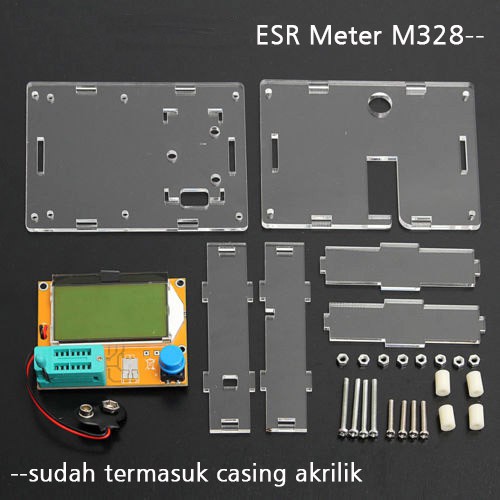

SUDAH TERMASUK CASING AKRILIK (BELUM DIRAKIT)

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, triodes, resistors, capacitors or other devices. Easy and convenient to operate.

Features:
The display is 128*64 LCD with backlight in yellow-green color.
Powered by 9V layer-built battery. 2 li-ion batteries combined can form a 8.4V battery pack for long time power.
New function of boot voltage detection.
Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, triodes, resistors, capacitors or other devices.
Automatically test the pins of a component and display on the LCD.
Measure the gate threshold voltage and gate capacitance of the MOSFET.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
One-button operation, automatic shutdown to avoid unnecessary waste.
Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection.

Note:
Please make sure that capacitors are discharged before testing.
The disassembled transistor tester in the picture is just for reference, please don't disassemble.
The pictures of testing process are also for reference, please in kind prevail!

Specifications:
Material: PCB
Display: 128 * 64 LCD
Normal Testing Speed: 2 seconds
Shutdown Current: 20nA
Item Size: 6.5 * 6.5 * 1.3cm / 2.6 * 2.6 * 0.5in

Test ranges:
Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR,
Resistance,Adjustable potentiometer
Resistance : 0.1 ohm resolution, maximum 50M ohm
Capacitor : 25pf -100,000 uf

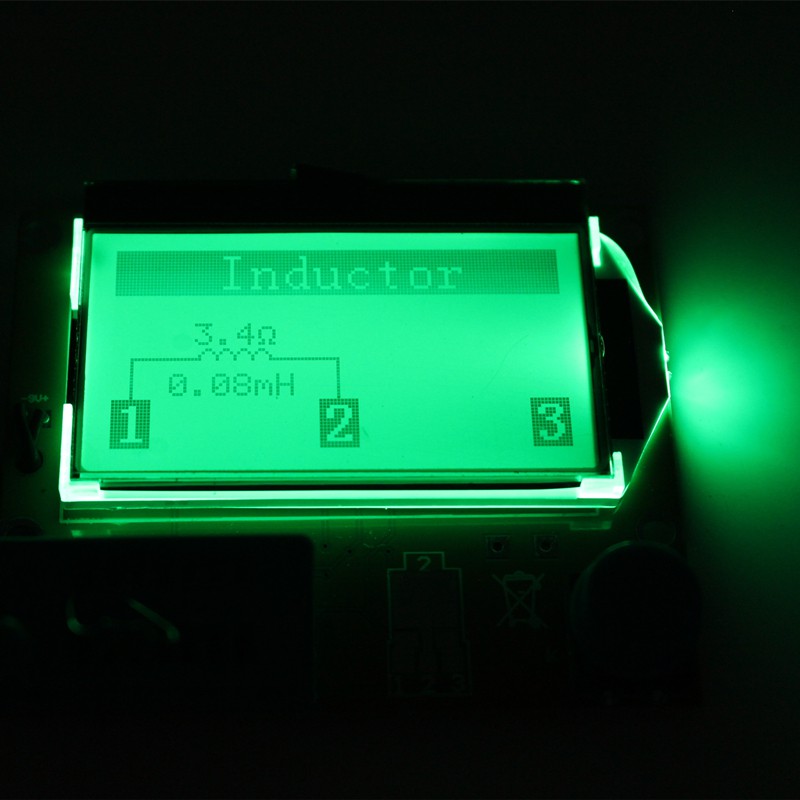

Inductors : 0.01mh-20H

Package List:
1 * Digital ESR Meter (Sudah di solder tinggal pakai)

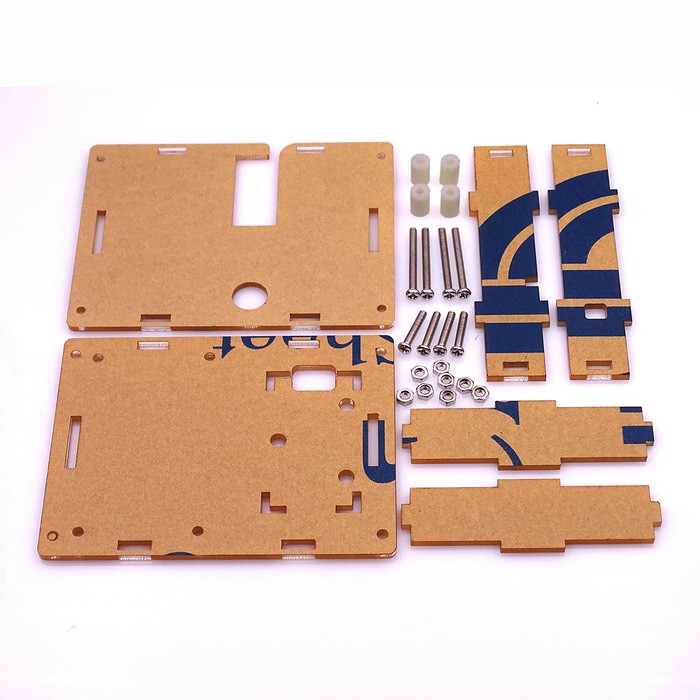

1 * set casing akrilik (belum di rakit)

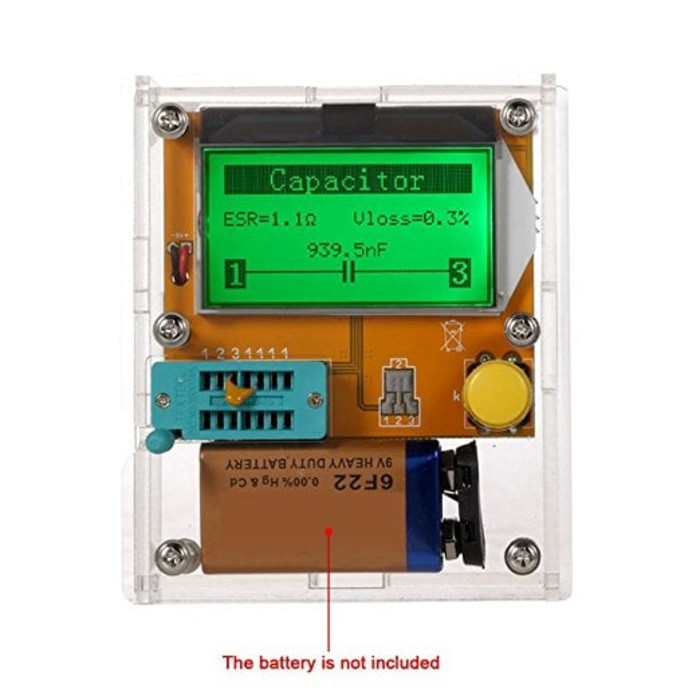

Baterai tidak termasuk

Gambar produk
