Detail ESP8266 ESP-12F ESP12F WiFi Serial Module WIRELESS Arduino Transceiver Module

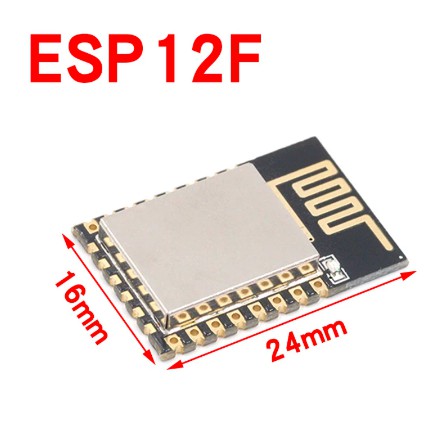

Spesifikasi produk :- Nama : Module ESP-12F
- Sinyal WiFi : standard 802.11 b
- Bit data : 32 Bit 80MHz
- Frequensi WiFi : 2.4GHz
- Daya standby : ± 1mW
Caution :
- This module requires a 3.3 volt supply for VCC, and 3.3V logic.
- It is not 5V tolant,Connect RX or TX on 5V for Arduino will destroy this module.
- You must use a logic level converter, or a 3.3V for Arduino
- The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module.
- You must provide a separate,higher 3.3V supply(about 300mA or better)
Package :
- 1x ESP8266 ESP-12F
Gambar produk
