ESP32 CAM ESP32-CAM WiFi & BLUETOOTH WITH OV2640 CAMERA MODULE

Detail ESP32 CAM ESP32-CAM WiFi & BLUETOOTH WITH OV2640 CAMERA MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP000291

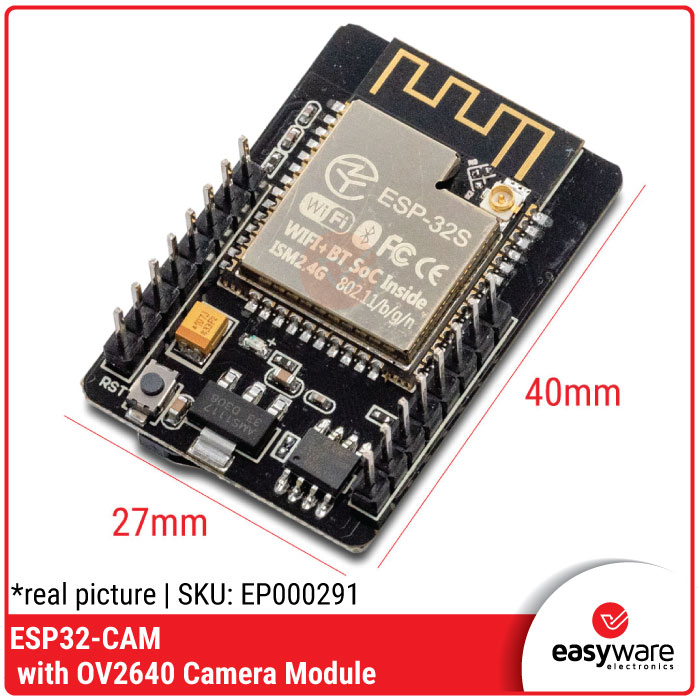

This development board is an ESP32 based board with WiFi and Bluetooth and has a built-in camera. In addition, the board also has a micro SD card connection.

Camera is supplied separately and can be mounted by folding up the black part of the FPC connector. The camera module can then be inserted into the connector and the black part of the FPC connector can be pushed back.
Don't forget to use a 3.3V compatible serial converter and if necessary put the serial converter on the 3.3V mode before you start programming!

The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.

FITUR DAN SPESIFIKASI :
* ESP32 chip with 240Mhz dual core processor
* Flash memory: 4MB
* Working memory: 512KB SRAM, 4MB PSRAM
* Camera: OV2640
* Up to 10x digital pins
* Up to 7x analog pins
* On-board voltage regulator for input voltage (5-12V on 5V pin (higher than 5V not recommended due to heat development))

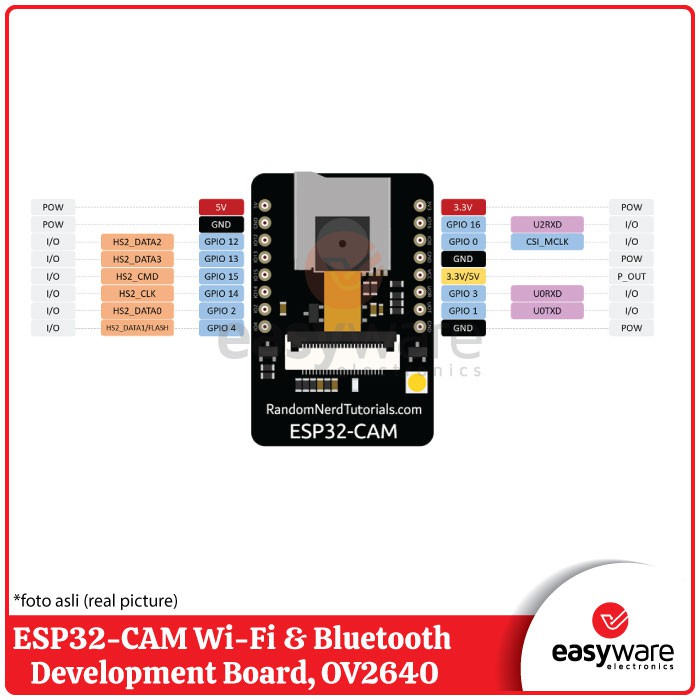

* Pinout: See images
* Dimensions: 40x27x12mm (including headers, without camera)
* If you want to use the board as Arduino, start here. After installation you can select the "AI Thinker ESP32-CAM" board

KELENGKAPAN :
* 1pcs ESP32 CAM WiFi + Bluetooth Development Board With OV2640 Camera Module


*deskripsi dan gambar diperoleh dari berbagai sumber di internet

Gambar produk
