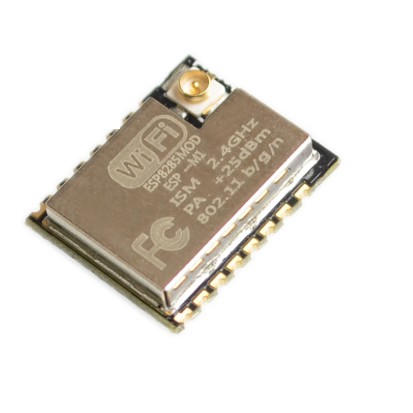

ESP-M1 ESP8285 serial port transparent wireless WiFi control module

Detail ESP-M1 ESP8285 serial port transparent wireless WiFi control module

ESP8285=ESP8266+1M Flash. Compared with the ESP8266, it can withstand temperatures up to 125 degrees Celsius! And the original ESP8266 source program can be used as it is.
The core processor of the ESP-M1/M2 module uses the cost-effective chip ESP8285. The chip integrates an enhanced version of Tensilica's L106 Diamond Series 32-bit core processor in a smaller package with on-chip SRAM. The ESP8285 has a full Wi-Fi network capability that can be used independently or as a slave to other host MCUs. When the ESP8285 hosts an application, it can be launched directly from external Flash. The built-in cache helps improve system performance and optimizes the storage system. In addition, the ESP8285 can be used as a Wi-Fi adapter via the SPI/SDIO interface or I2C/UART port for any microcontroller-based design.

- Built-in Tensilica L106 ultra-low power 32-bit microprocessor with 80MHz and 160MHz frequency support, RTOS support
- Built-in TCP/IP stack
- Built-in 1 10 bit high precision ADC
- Peripheral interface HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
- Deep sleep keeps current at 10uA and shutdown current is less than 5uA
- wake up, connect and pass packets within 2 ms
- Standby power consumption is less than 1.0mW (DTIM3)
- Built-in 1Mbyte SPI Flash

Wi-Fi features
- Support for 802.11 b/g/n/e/i
- Support Station, SoftAP, SoftAP+STA mode
- Support for Wi-Fi Direct (P2P)
- Support hardware acceleration for CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC
- P2P discovery, P2P GO mode/GC mode and P2P power management
-WPA/PA2 PSK and WPS
- 802.11 i security features: pre-authentication and TSN
- ? 802.11n (2.4 GHz)
- 802.1h/RFC1042 frame packing
- Seamless roaming support
- Support AT remote upgrade and cloud OTA upgrade
- Support for Smart Config (including Android and iOS devices)
