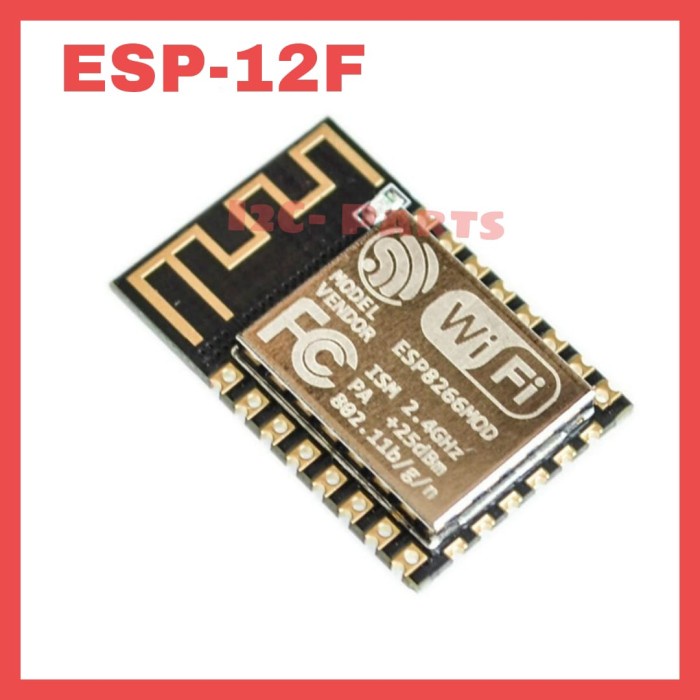

ESP-12F New ESP8266 Wifi Serial Module ESP-12 F ( Replace ESP-12 ) IOT

Detail ESP-12F New ESP8266 Wifi Serial Module ESP-12 F ( Replace ESP-12 ) IOT

ESP8266-12F is an enhanced version of ESP8266-12, perfect peripheral circuit, four-layer board technology, enhanced impedance matching, better signal output, whether it is stability or anti-jamming capability, PCB antenna through professional laboratory testing, ROHS certification, Have been greatly improved!For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient,More extensive!

Features
• 802.11 b/g/n
• Integrated low power 32-bit MCU
• Integrated 10-bit ADC
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLL, regulators, and power management units
• Supports antenna diversity
• Wi-Fi 2.4 GHz, support WPA/WPA2
• Support STA/AP/STA+AP operation modes
• Support Smart Link Function for both Android and iOS devices
• SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
• STBC, 1x1 MIMO, 2x1 MIMO
• A-MPDU & A-MSDU aggregation and 0.4s guard interval
• Deep sleep power <10uA, Power down leakage current < 5uA
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)
• +20dBm output power in 802.11b mode
• Operating temperature range -40C ~ 125C
• FCC, CE, and ROSH certified
