Detail ESP-01 ESP01 RELAY 5V DC MODULE RELAY ESP-01

Hi #RekanEasyWare ...
EasyWare Part#: EP000764

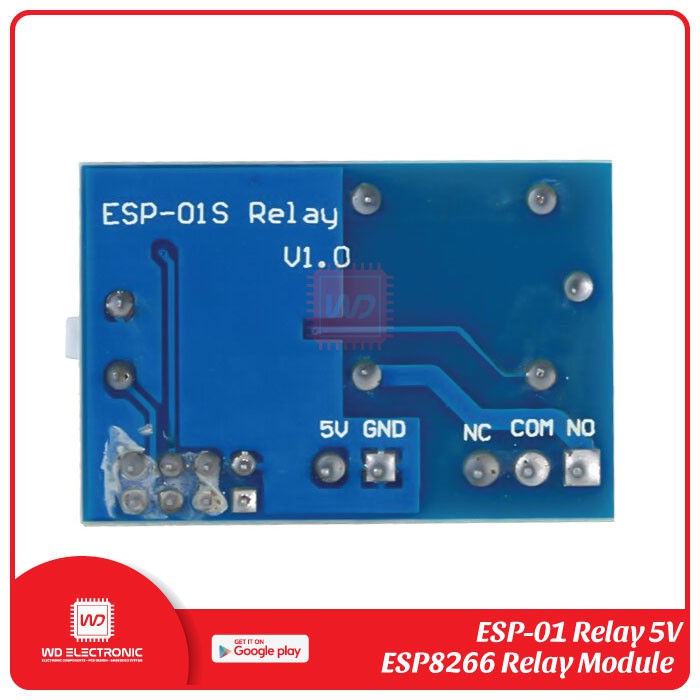

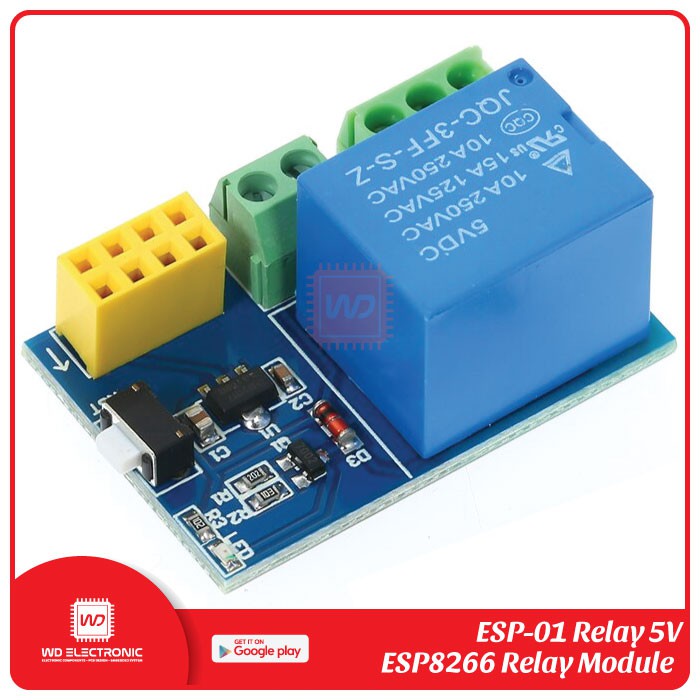

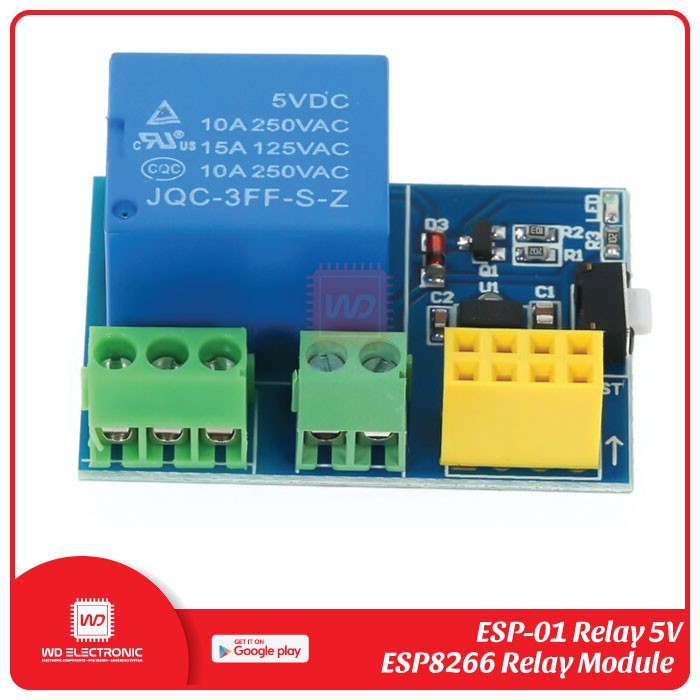

This intelligent relay module is designed based on ESP-01S W-F- module, which can be used for DIY intelligent switch.
It can be controlled remotely via mobile APP, APP and LUA sources are provided.
The relay module has DC5V working voltage.
Ready to use, simple and convenient, easy to get start with.

FITUR DAN SPESIFIKASI :
- Material: PCB
- Working Voltage: DC5V
- Load Capacity: 10A 250VAC, 10A 125VAC, 10A 30VDC, 10A 28VDC
- ESP-01S Module Size: 25 * 14mm / 0.98 * 0.55in

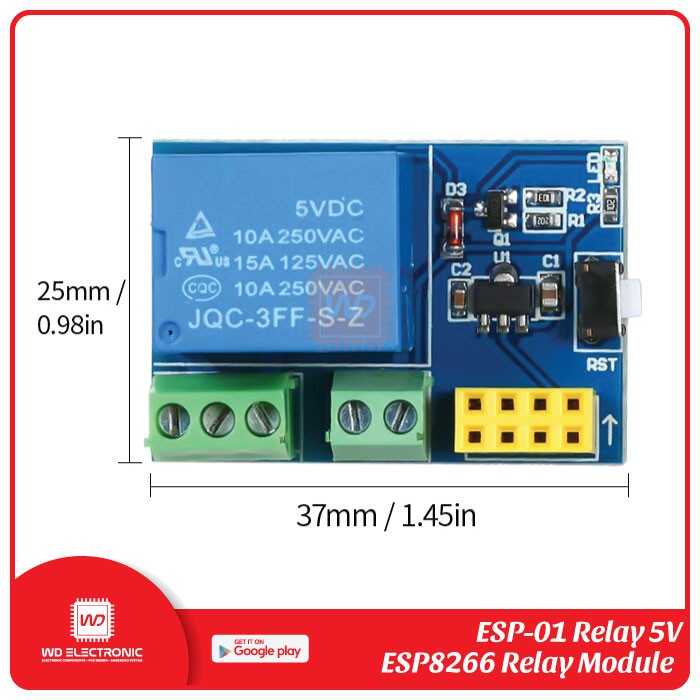

- Relay Module Size: 37 * 25mm / 1.45 * 0.98in
- Item Weight: 16g / 0.56oz
- Package Weight: 17g / 0.60oz
- Package Size: 10 * 7 * 2cm / 3.94 * 2.76 * 0.79in

KELENGKAPAN :
- 1pcs ESP8266 Module
- 1pcs SP-01S Module
