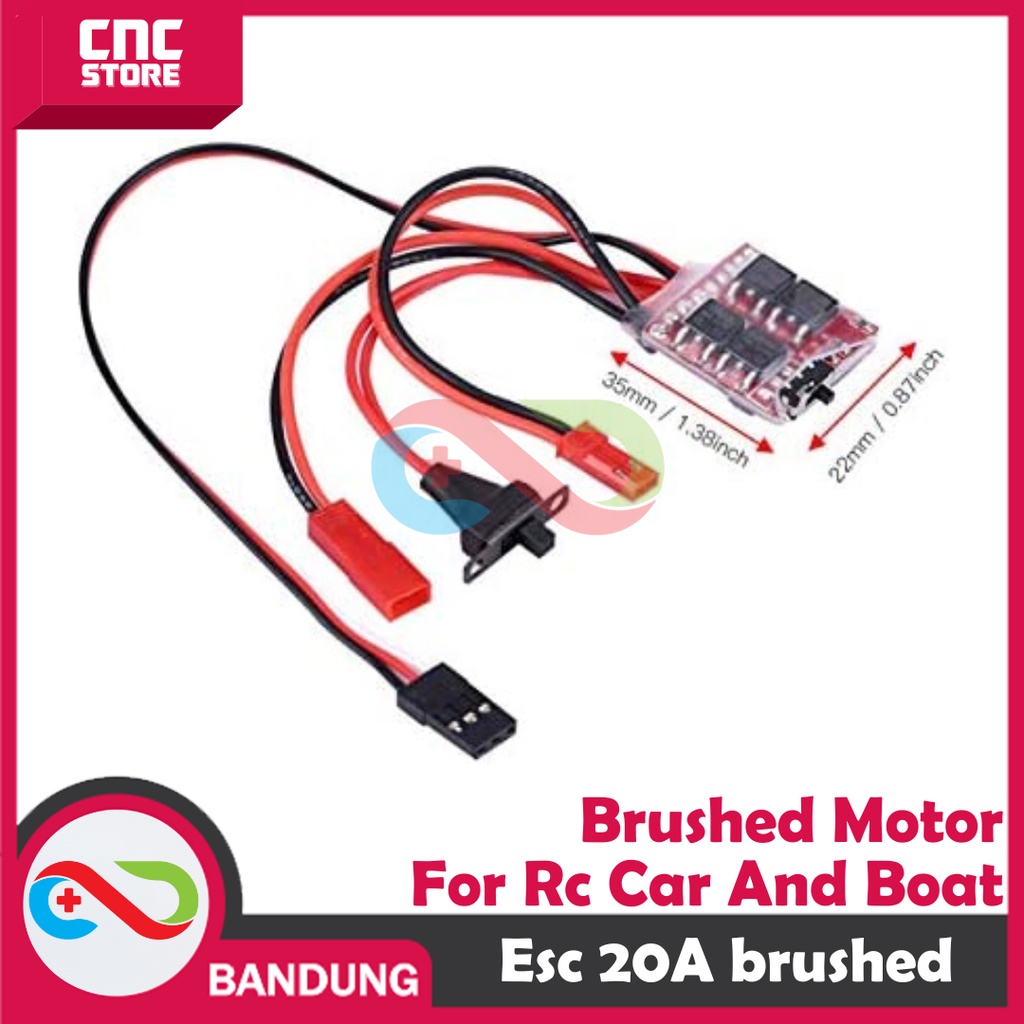

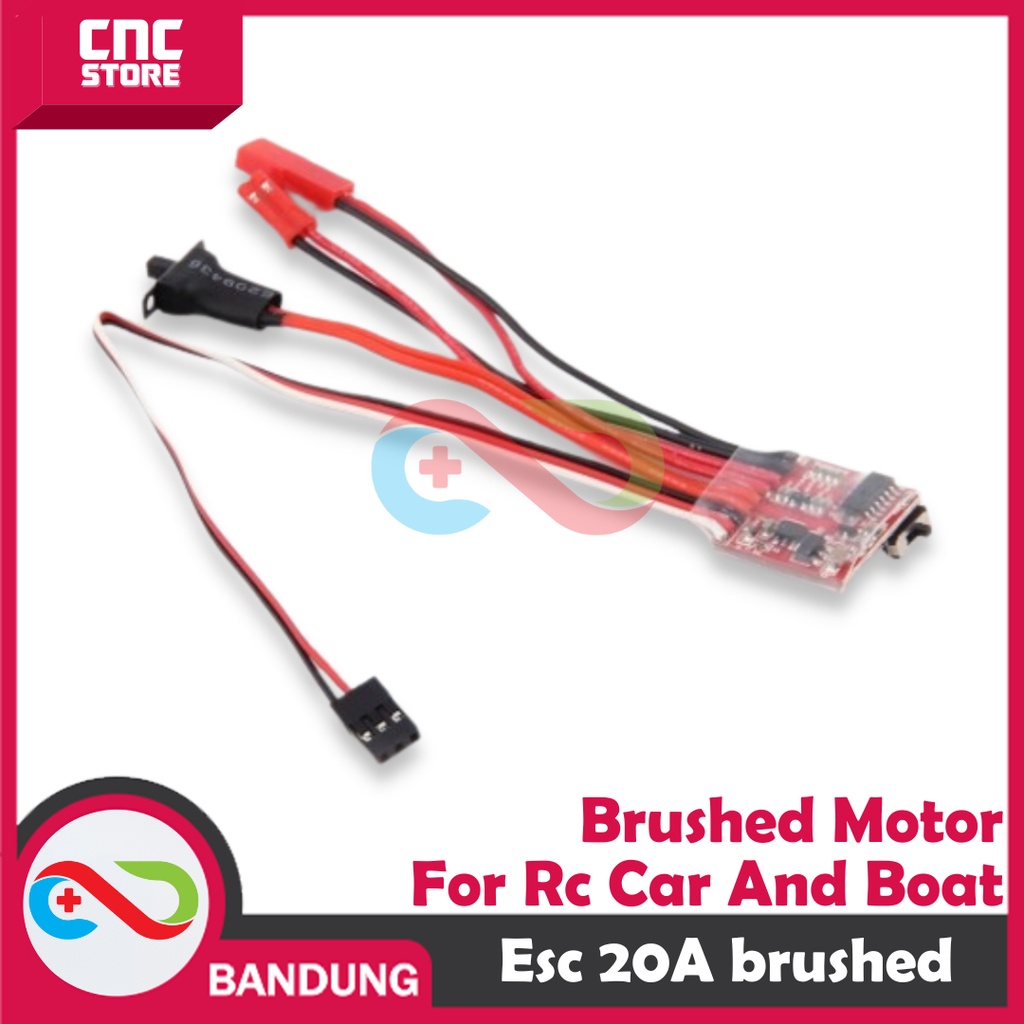

ESC 20A BRUSH MOTOR SPEED CONTROLLER WITH BRAKE

Detail ESC 20A BRUSH MOTOR SPEED CONTROLLER WITH BRAKE

 MTR-0123
==========


Deskripsi:
=======================
Baca deskripsi sampai selesai
- Produk sudah melaui QC, test normal sebelelum dikirim
- Keluhan komplain umum :
1. Lampu berwarna merah menyala terus
2. Motor tidak berputar/throttle/reverse


- Penjelasan : karena suply tegangan tidak stabil dan pasti akan merusak IC
bagian sub (IC sub akan sangat panas dan tidak bunyi/ tidak bunyi sama sekali
tanpa panas).
- Tegangan yang tidak stabil bisa langsung merusak IC tanpa bunyi maupun tanpa
panas (tidak sempat bunyi sama sekali)
****


-Fitur dan fungsi:
1. Connect the power supply and motor, insert receiving hine, and then there
will arise a sound of "DO" which means the ESC has been powered on.
2. If in the center position, the motor immediately sent DO BE MI.
If the level is not in the center, the motor will come up a sound of DO, DO.
To prompt the user, until the user mediate to center position, DO would stop and
immediately issued DO BE MI.
Center of a learning finished and start working.
3. The state of the LED, the remote control is in a central location, the LED
turn on or off, if go on or ba, LED light would be full on, LED fliers when no
signal state.


-Spesifikasi:
Operating voltage: 3.0 V - 9.4 V
The input signal types: PPM
Driving frequency: 2 KHZ
Item Output current:
Continuous 20A
30 seconds 25A
5 seconds 50A
Instantaneous current 80A
Weight: 11 g (including wire and plug)
Size: 30 X 23 X 5 mm/1.18"X0.98"X0.2" (length X width X thiness)
Remarks: (Line on the JST) the red is positive, bla is the cathode
1 X 3 p line bla (cathode), red (the anode).The white line (Signal)


Paket:
=======================
1 x ESC 20A BRUSH MOTOR SPEED CONTROLLER WITH BRAKE


UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
