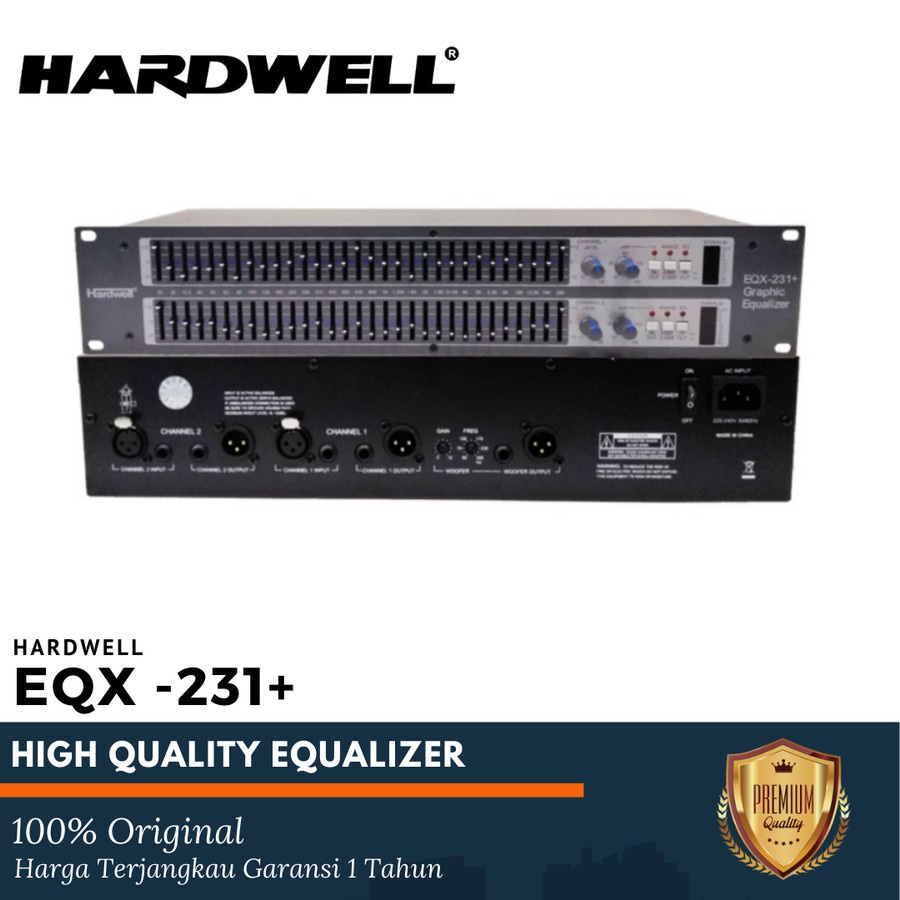

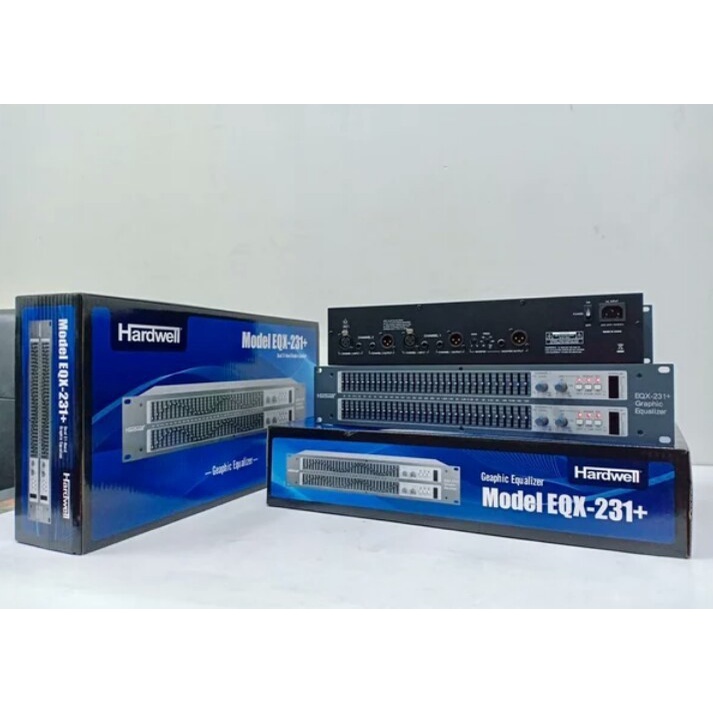

Detail Equalizer HARDWELL EQX 231+ With Sub Out Original Kualitas Terbaik
EQX -231+
2-Series Graphic Equalizers
Features
Silent In/Out Switching
Signal Present and Clip LEDs
Precision Wein Bridge Filters
20mm Faders
Constant "Q" Design
Switchable Low Cut Filter
Selecteble 12dB or 6dB Range
Balanced XLR, 1/4" Inputs
Servo-Balanced XLR, 1/4" Outputs
Specifications
Frequency Response : 31.5Hz-16kHz +-0.25dB
THD : <0.01%@+20dBu
IM Distortion (SMPTE) : <0.01%@+20dBu
Output Hum & Noise (unweight) : -94dBu
Channel Separation : >85dB @ 1Khz
Type : Constant Q/Wein Bridge
Number : 31
Brandwidth : 1/3 Octave
Tolerance : +-3%
Range : +-6dB, +-12dB (switchable)
Subsonic Filter : 18dB/Octave @ 20-250Hz
Nominal Voltage : 100-120 VAC 50/60Hz ; 120 VAC 60Hz 230 VAC 50/60Hz
Power Consumption : 15W
