Detail equalizer dbx 215 subwoofer equalizer dbx eqx 215 sub

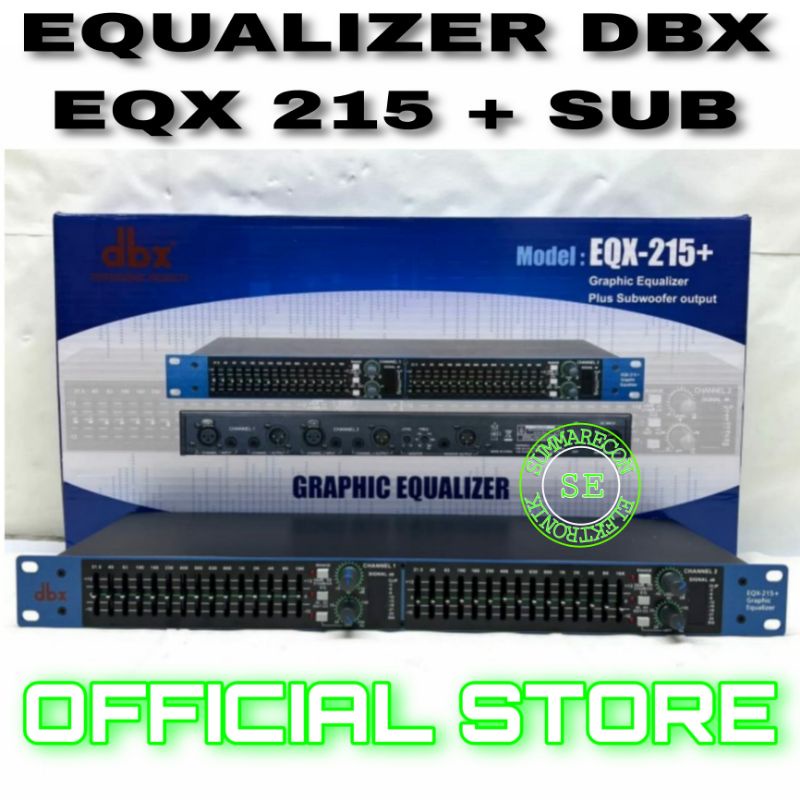

Equaliser DBX EQX 215 Plus Subwoofer Grade A
Specifications
Input Connectors 1/4" TRS, female XLR (pin 2 hot)
Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance Balanced 40 kOhm, unbalanced 20 kOhm
Max Input >+21dBu balanced or unbalanced
CMRR >40dB, typically >55dB at 1kHz
Output Connectors 1/4" TRS, male XLR (pin 2 hot)
Output Type Impedance-balanced/unbalanced, RF filtered
Output Impedance Balanced 100 ohm, unbalanced 50 ohm
Max Output >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
Bandwidth 20Hz to 20kHz, +0.5/-1dB
Frequency Response 50kHz, +0.5/-3dB
Dynamic Range 108dB
Signal to Noise Ratio 90dB
THD+Noise 0 .004%
Interchannel Crosstalk Bypass Switch Bypasses the graphic equalizer section in the signal path
Low cut Switch Activates the 40Hz 18dB/octave Bessel high-pass filter
Range Switch Selects either +/- 6dB or +/- 12dB slider boost/cut range
Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption 12W
Power Connector IEC receptacle
Semua barang dijamin baru dan sebelum dikirim barang selalu kami test terlebih dahulu. Untuk packing juga kuat supaya barang aman sampai tujuan
