Equalizer Betavo BEQ-231+

Merek: Betavo | Lihat selengkapnya produk Audio dari Betavo
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > Equalizer Betavo BEQ-231+
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Equalizer Betavo BEQ-231+

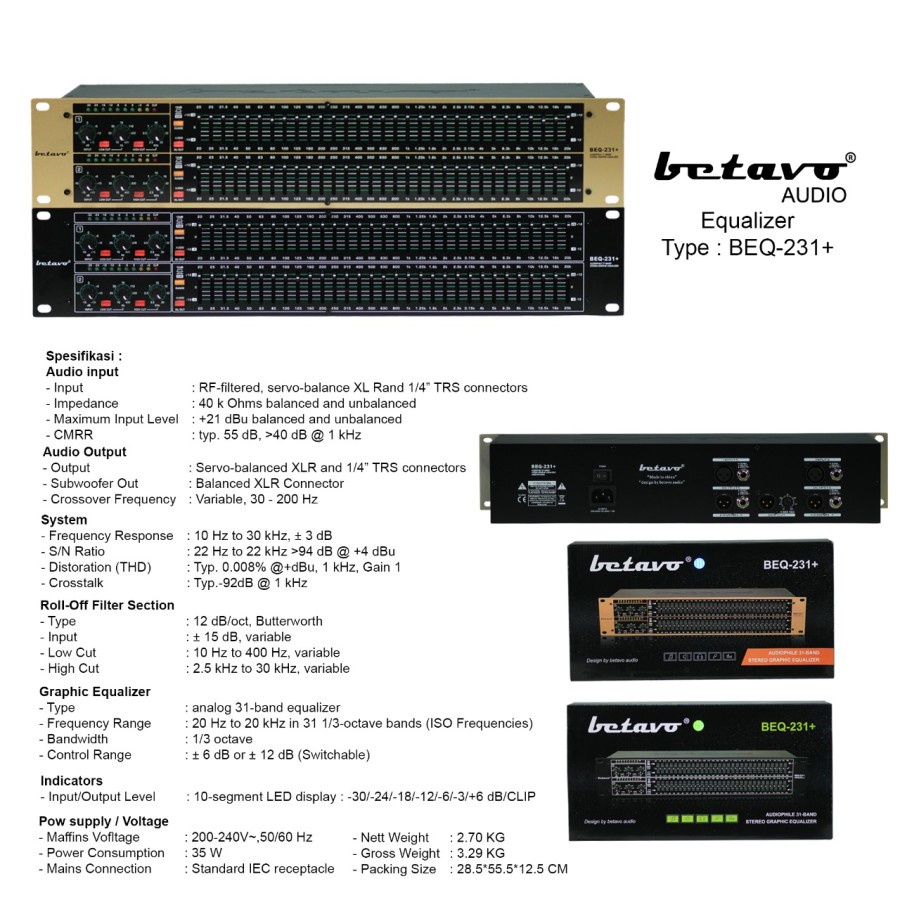

Betavo Professional Equalizer BEQ -231+ all variant
Spesifikasi :

AUDIO INPUT
- Input : RF-filtered, servo-balance XL Rand 1/4" TRS connectors
- Impedance : 40 K Ohms balanced and unbalanced
- Maximum Input Level : +21 dBu balanced and unbalanced
- CMRR : typ. 55 dB, >40 dB @ kHz

AUDIO OUTPUT
- Output : Servo-balanced XLR and 1/4" TRS connectors
- Subwoofer Out : Balanced XLR Connector
- Crossover Frequency : Variable, 30 - 200 Hz

SYSTEM
- Frequency Response : 10 Hz to 30 kHz, +0 3 dB
- S/N Ratio : 22 Hz to 22 kHz >94 dB @ 4 dBu
- Distoration (THD) : Typ. 0.008% @ +dBu, 1 kHz, Gain 1
- Crosstalk : Typ. -92 dB @ 1 kHz

ROLL-OFF FILTER SECTION
- Type : 12 dB/oct, Butterworth
- Input : +- 15 dB, variable
- Low Cut : 10 Hz to 400 Hz, Variable
- High Cut : 2.5 kHz to 30 kHz

GRAPHIC EQUALIZER
- Type : Analog 31-band equalizer
- Frequency Range : 20 Hz to 20 kHz in 31 1/3-octave bands (ISO Frequencies)
- Bandwidth : 1/3 octave
- Control Range : +- 6 dB or +- 12 dB (Switchable)

INDICATORS
- Input/Output : 10
-segment LED display : -30/-24/-18/-6/-3/+6 Db/CLIP

POW SUPPLY / VOLTAGE
- Maffins Voltage : 200-240V ~,50/60 Hz
- Power Consumption : 35 Watt
- Mains Connection : Standard IEC receptacle

- Nett Weight : 2.70 Kg
- Gross Weight : 3.29 Kg
- Packing Size : 28.5*55.5*12.5 CM

Gambar produk

Equalizer Betavo BEQ-231+
Equalizer Betavo BEQ-231+
