Equaliser XTA GQ 600 2 x 31 Channel

Detail Equaliser XTA GQ 600 2 x 31 Channel

SPECIFICATION
Inputs
Two, electronically balanced [++]
Impedance > 10k ohms
CMRR > 65dB 50Hz – 10kHz

Outputs
Two, electronically balanced [++]
Source Imp. < 60 ohms
Min. Load 600 ohms

Max. Level ± 23dBm into 600 ohm load
Gain ± 10dB via rotary control
Frequency Resp. ± 0.5dB 20Hz to 20kHz with controls “flat”

Eq’v. Input Noise <- 100dBm (20Hz – 20kHz un-weighted) with controls “flat”
Distortion @ +18dBm< 0.01% @ 1kHz
Channel Separation > 80dB @ 1kHz

Peak Indicator Threshold: + 20dBu

H.F Trim
Filter Type 2nd order, optimum phase, shelving
Frequency 2K – 20kHz
Gain ± 8dB
H.F Trim In/Out Front panel switch with LED

High-pass Filter
Filter Type 12dB/octave H.P
Frequency (-3dB) 10Hz – 150Hz
Low-pass Filter
Filter Type 18dB/octave 3dB @ 27kHz
LPF In/Out Link selectable on PCB

Equaliser Section
Filters 2 x 301/3 octave, 25Hz-20kHz
Filter Type High performance simulated LCR network
Freq. Tolerance ± 3%
Range ± 10dB

Power
110/120 ± 15% @ 50/60Hz
Consumption < 20W



Weight 5.0 kG Net (6.7 kG Shipping)
Size 5.25″ (3U) x 19″ x 9.3″ (133 x 482 x 237mm)
excluding connectors.

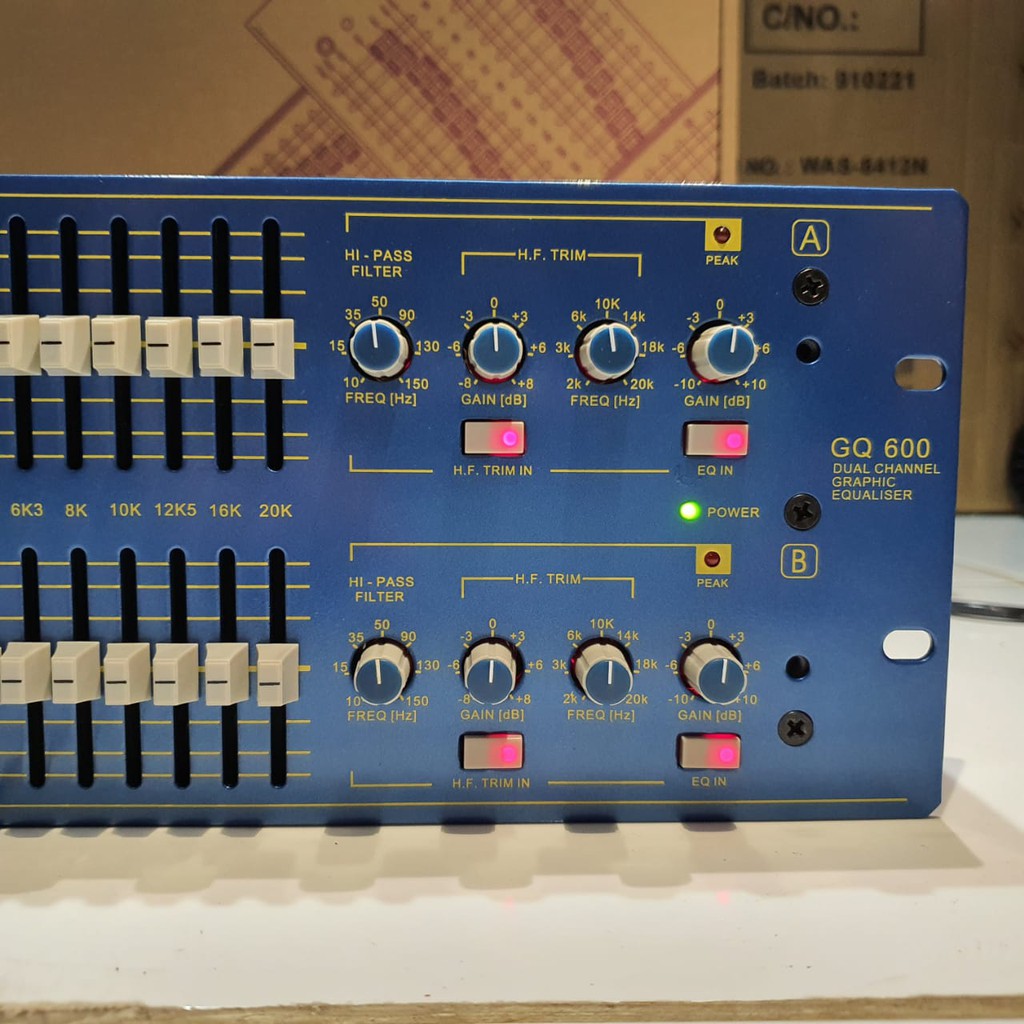

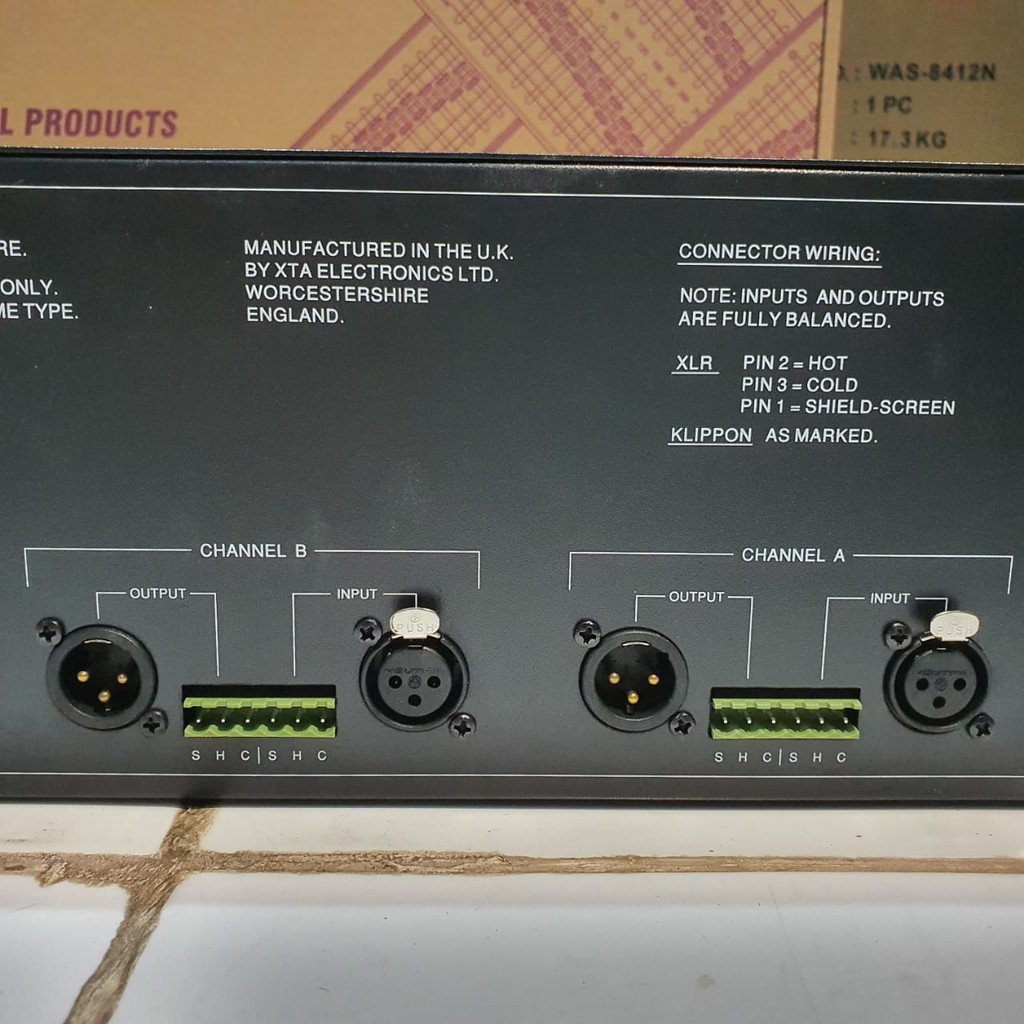

Gambar produk
