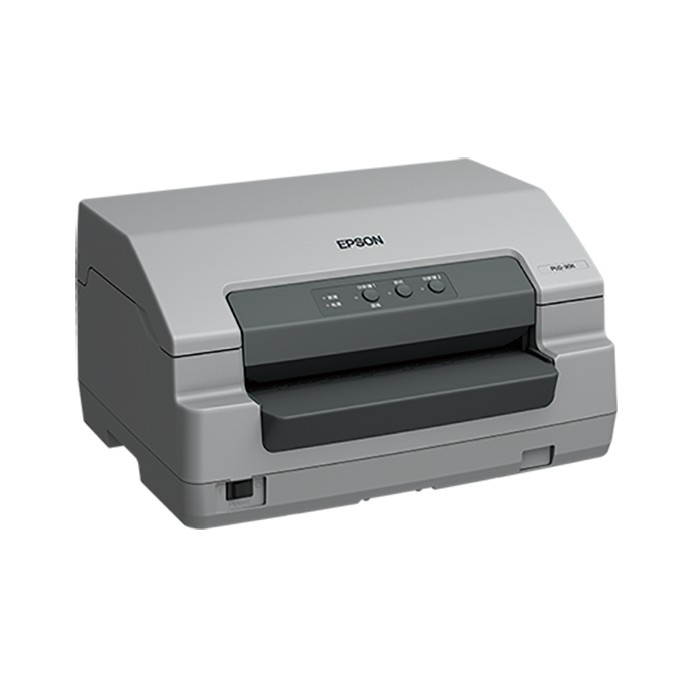

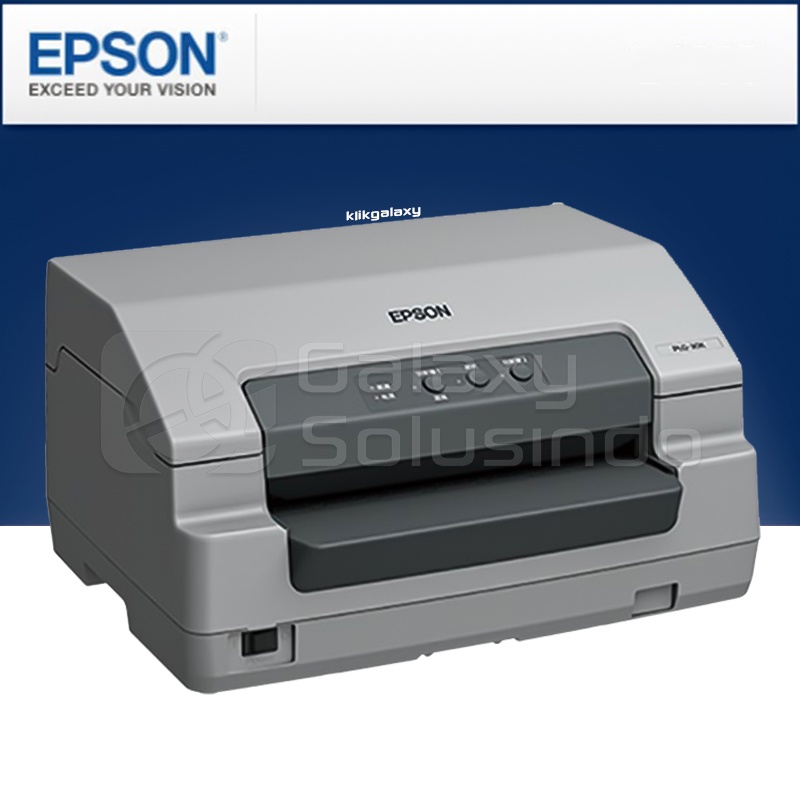

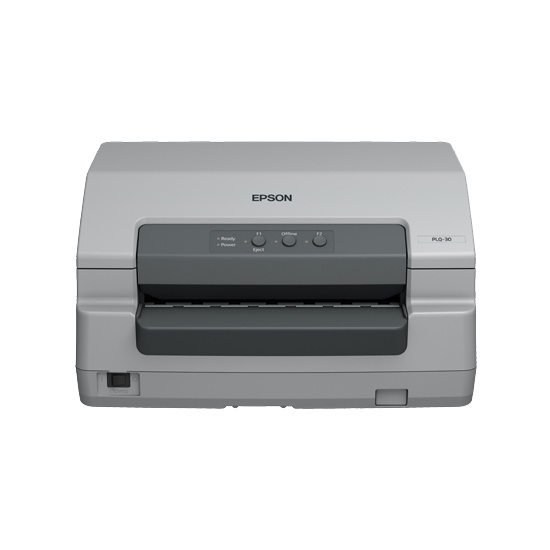

Epson PLQ-30 Passbook Printer

Detail Epson PLQ-30 Passbook Printer

SPECIFICATION :
Printing Technology:
Print Method:
24 pins Impact Dot Matrix
Print Direction:
Bi-direction with logic seeking
Colour:
Black
Control Code:
PR2, WNI4915, IBM4722, ESC / P2, ESC / P2 + ESC / MC, IBM PPDS emulation
Print Speed:
Ultra High Speed Draft:
(PR2 Emulation) 10cpi: 585 cps
(ESC / P2, Others) 10cpi: 585 cps
High Speed Draft:
(PR2 Emulation) 10cpi: 520 cps
(PR2 Emulation) 12cpi: 468 cps
(ESC / P2, Others) 10cpi: 520 cps
(ESC / P2, Others) 12cpi: 624 cps
Draft:
(PR2 Emulation) 10cpi: 390 cps
(PR2 Emulation) 12cpi: 390 cps
(ESC / P2, Others) 10cpi: 390 cps
(ESC / P2, Others) 12cpi: 468 cps
(IBM4722) 10cpi: 390 cps
NLQ:
(PR2 Emulation) 10cpi: 195 cps
(PR2 Emulation) 12cpi: 195 cps
(IBM4722) 10cpi: 260 cps
Letter Quality:
(PR2 Emulation) 10cpi: 130 cps
(PR2 Emulation) 12cpi: 156 cps
(ESC / P2, Others) 10cpi: 130 cps
(ESC / P2, Others) 12cpi: 156 cps
(IBM4722) 10cpi: 130 cps
Reliability:
MVBF:
7 million lines
MTBF:
12,000 POH
Printhead Life:
400 million strokes / wire
Scan Life:
200,000 scans
Print Characteristics:
Character Sets:
International, PC-437 International
Barcode:
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Coda bar (NW-7), Industrial 2 of 5
Paper Path:
Manual Insertion:
Front in, Front out / Front in, Rear out
Paper Media:
Passbook:
(Width) 110 - 241.3 mm
(Length) Horizontal: 127 - 220 mm, Vertical: 85 - 220 mm
(Thickness) Maximum: 2.6 mm, Cover Page: 0.2 - 0.5 mm, Each Page: 0.1 - 0.15 mm
Cut Sheet Size:
(Width) 65 - 245 mm
(Length) 67 - 297 mm
(Thickness) Single Sheet: 0.065 - 0.19 mm, Multi Part: 0.12 - 0.53 mm
Line Spacing:
4.23 mm
General:
Multipart Copy Capability:
1 original + 6 copies
Supported OS and Applications:
Supported OS:
Windows 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10
Dimensions and Weight:
Dimensions (W x D x H):
384 x 280 x 203 mm
Weight:
Approx. 8.0kg
Environmental Conditions (Operating):
Temperature:
5 - 35 °C
Humidty:
10 - 80 % RH
Acoustic Noise:
Acoustic Noise:
PLQ-30: Approx. 52 db(A)
PLQ-30M: Approx. 55 dB(A)
Interface:
Interface:
Bi-directional parallel interface (IEEE-1284 nibble mode supported), Serial I/F, High Speed USB 2.0
Printable Columns:
Pitch:
10 cpi: 94 cpl, 12 cpi: 112 cpl
Ribbon Cartridge:
Colour:
Black
Type:
Fabric
Ribbon Life:
Approx. 5 million characters (LQ 10 cpi, 48 dots / character). Approx. 10 million characters (Draft 10 cpi, 24 dots / character)
