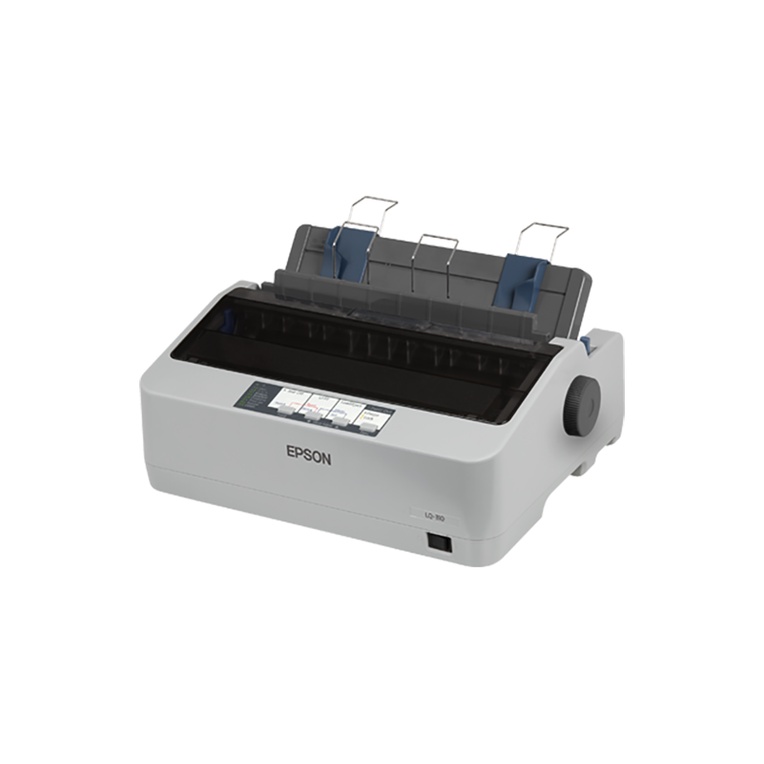

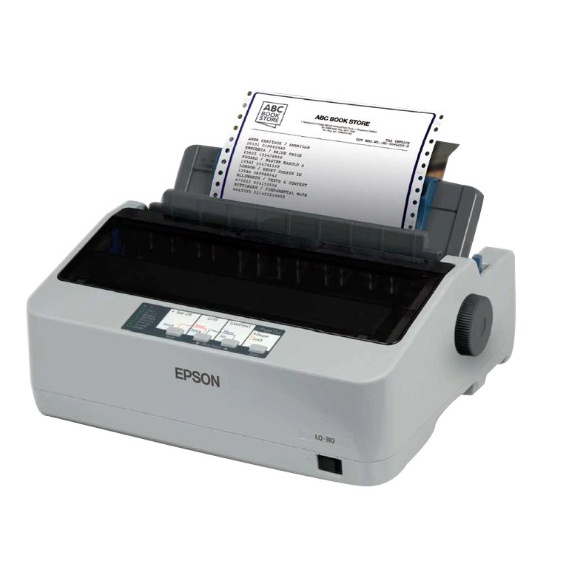

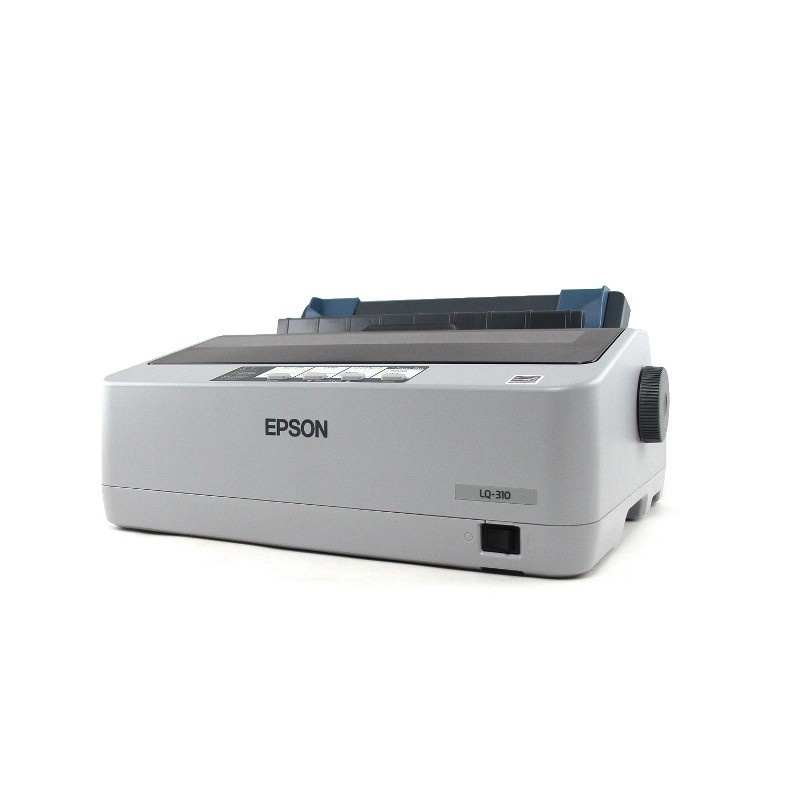

EPSON LQ-310 Dot Matrix Printer - LQ310

Detail EPSON LQ-310 Dot Matrix Printer - LQ310

24-Pin Narrow Carriage Impact Printer

Your fast and affordable printing solution

Narrow carriage 24-pin SIDM

High 416 CPS print speed at 12CPI

10,000 power on hour MTBF

USB, Serial and Parallel port


Specification :
Reliability:
MVBF:
Approx. 20 million lines (Except print head)
MTBF:
Approx. 10,000 POH (25% Duty)
Print head life:
Approx. 400 million strokes/wire
Printer Speed:
High Speed Draft:
10 / 12 cpi; 347 / 416 cps
Draft:
10 / 12 / 15 cpi; 260 / 312 / 390 cps
Draft Condensed:
17 / 20 cpi; 222 / 260 cps
LQ:
10/12/15 cpi; 86 / 103 / 129 cps
LQ Condensed:
17/20 cpi ; 147 / 172 cps
Print Characteristics:
Character Sets:
Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap Fonts:
Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational
Barcode:
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Printable Columns:
Pitch:
10 / 12 / 15 / 17 / 20 cpi; 80 / 96 / 120 / 137 / 160 cpl
Line Spacing:
Single Sheet:
Manual Insertion; Rear in, Top out
Roll Paper; NA | 216mm (8.5") | 0.07 - 0.09mm (0.0028 - 0.0035")
Envelopes (No. 6); 92mm (3.6") | 165mm (6.5") | 0.16 - 0.52mm (0.0063 - 0.0205")
Continuous Paper (Single Sheet / Multi-part); 105mm (4.1") | 241mm (9.5") | 0.16 - 0.52mm (0.0063 - 0.0205")
Paper Feeding:
Standard:
Friction, Push Tractor
Optional:
Roll Paper Holder
Copies:
Original + 3 copies
Line Spacing:
4.23mm (1/6") or programmable in increments of 0.118mm (1/216")
Input Data Buffer:
128 KB
