Epson LQ 2190 Dot Matrix Printer - LQ2190

Detail Epson LQ 2190 Dot Matrix Printer - LQ2190

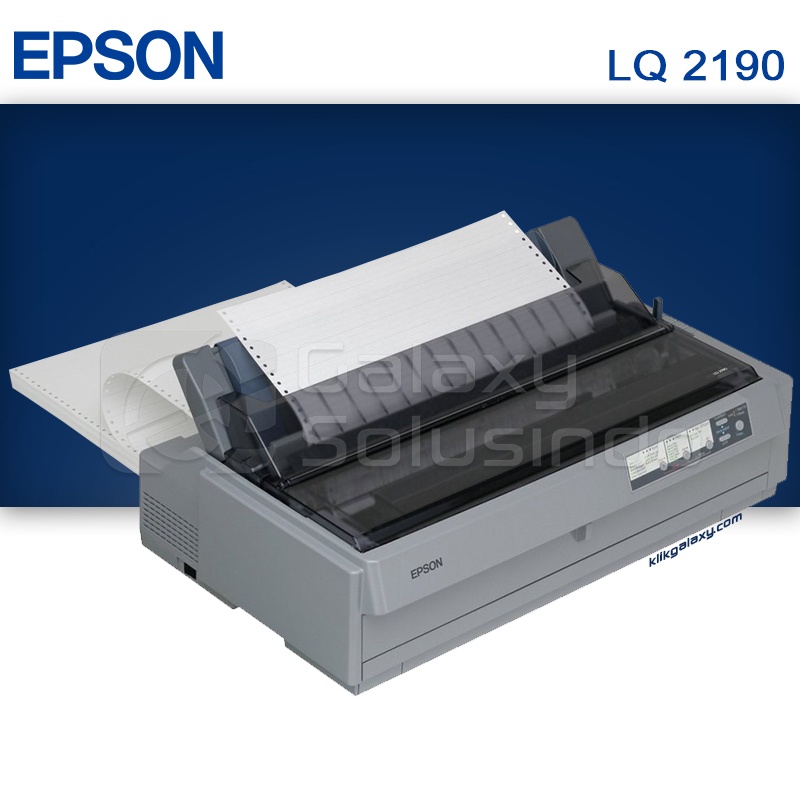

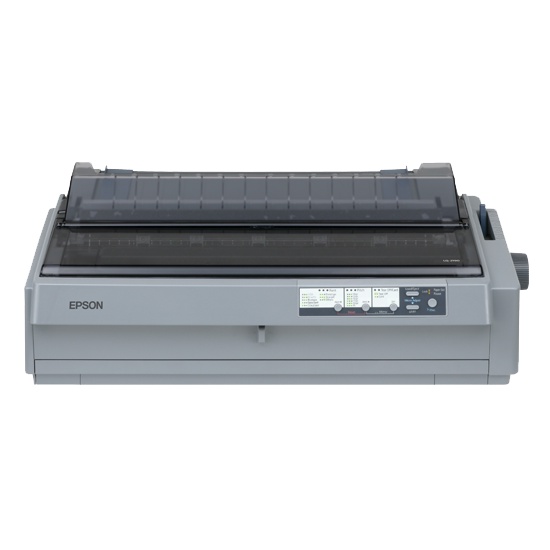

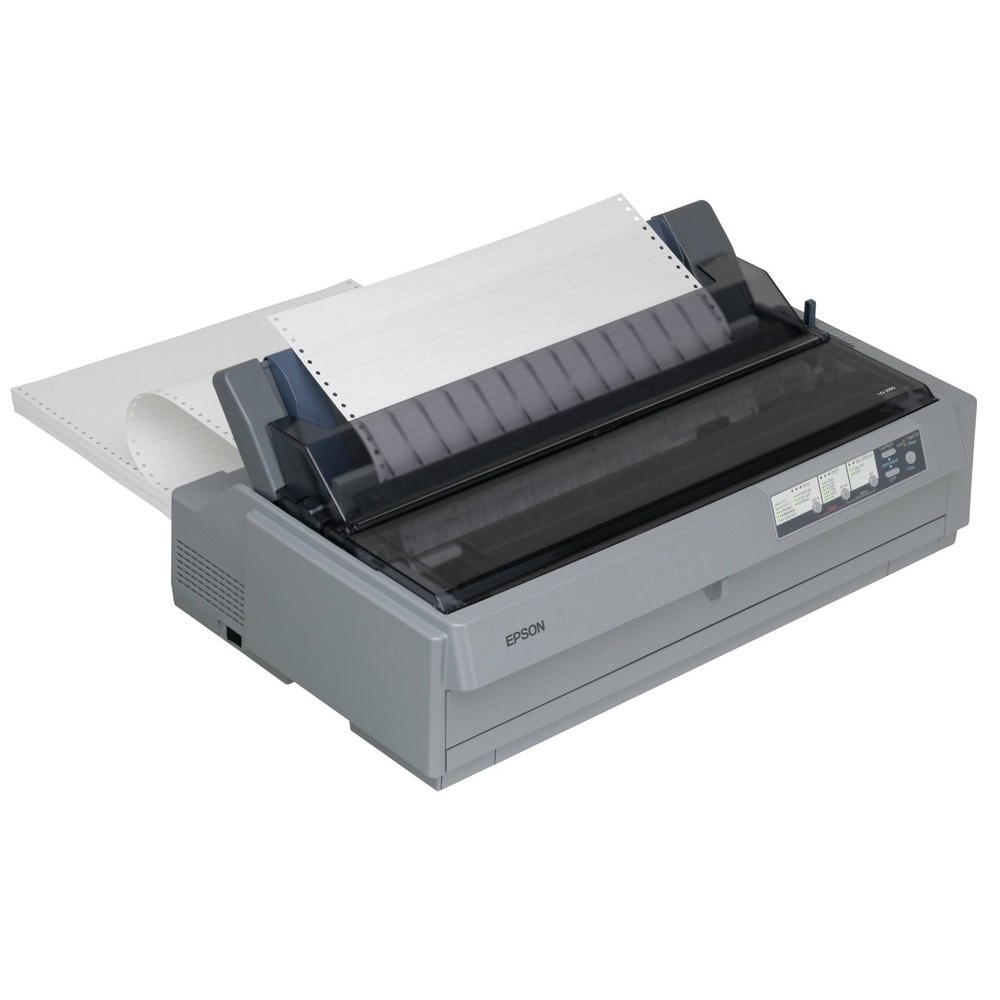

Epson LQ-2190 Dot Matrix Printer
HIGHLY DEPENDABLE FOR THE MOST DEMANDING BUSINESS ENVIRONMENTS
The 24-pin 136 column printer is designed to offer busy offices unparalleled performance and reliability.

24-pin wide carriage
Speed: up to 480 cps (10cpi)
MTBF: 20,000 Power on Hours
USB and Parallel ports
Optional network print server

High Speed
The 24-pin wide carriage LQ-2190 boosts a high print speed of up to 480 cps (10 cpi) makes it an ideal solution for high volume applications.

Robust and Reliable
With MTBF (mean time between failure) of 20,000 power-on hours and a print head life of 400 million strokes per wire, this extremely robust printer is suitable for medium and large print volumes. Both features guarantee uninterrupted operation and less maintenance, in turn enhancing your productivity and reducing your total cost of ownership.

Versatile Connectivity
With a built-in USB, parallel interface and optional network print server, the LQ-2190 is engineered for versatile connectivity. What’s more, choice of front, rear and bottom paper paths gives you even more control over desk space management.

High Ribbon Yield
With a ribbon life of around 15 million characters, the ribbon replacement intervals are longer which in turn lower running costs and total cost of ownership.

SPECIFICATION:
Printing Technology:
Print Method:
Impact dot matrix
Control Panel:
6 switches and 10 LEDs are located on the panel
Print Direction:
Bi-direction with logic seeking
Number of Pins in Head:
24 pins
Control Code:
ESC/P2 and IBM PPDS emulation
Print Speed:
High Speed Draft:
10 cpi: 480 cps
12 cpi: 576 cps
Draft:
10 cpi: 360 cps
12 cpi: 432 cps
15 cpi: 540 cps
(Condensed) 17 cpi: 308 cps
(Condensed) 20 cpi: 360 cps
Letter Quality:
10 cpi: 120 cps
12 cpi: 144 cps
15 cpi: 180 cps
(Condensed) 17 cpi: 205 cps
(Condensed) 20 cpi: 240 cps
Reliability:
MVBF:
40 million lines (except print head)
MTBF:
20,000 Power On Hours (POH) (25% Duty)
Printhead Life:
400 million strokes/wire
Print Characteristics:
Character Sets:
14 international character sets and one legal character sets. 1 Italic and 12 graphical character tables: Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap Fonts:
Epson Draft / Epson Courier: 10cpi, 12cpi, 15cpi; Epson Roman / Epson Sans Serif: 10cpi, 12cpi, 15cpi, Proportional; Epson Prestige: 10cpi, 12cpi; Epson Script / OCR-B / Orator / Orator-S / Epson Script C: 10cpi, Proportional
Scalable Fonts:
Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)
Barcode:
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Paper Path:
Manual Insertion:
Front or Rear In, Top out
Push Tractor:
Front of Rear In, Top out
Pull Tractor:
Front or Rear or Bottom in, Top out
