Detail Epson EB-W51 WXGA 3LCD Projector
Specification:
Projection Technology:
RGB liquid crystal shutter projection system (3LCD)
Brightness*2:
White Light Output (Normal/Eco):
4,000 lm
Colour Light Output:
4,000 lm

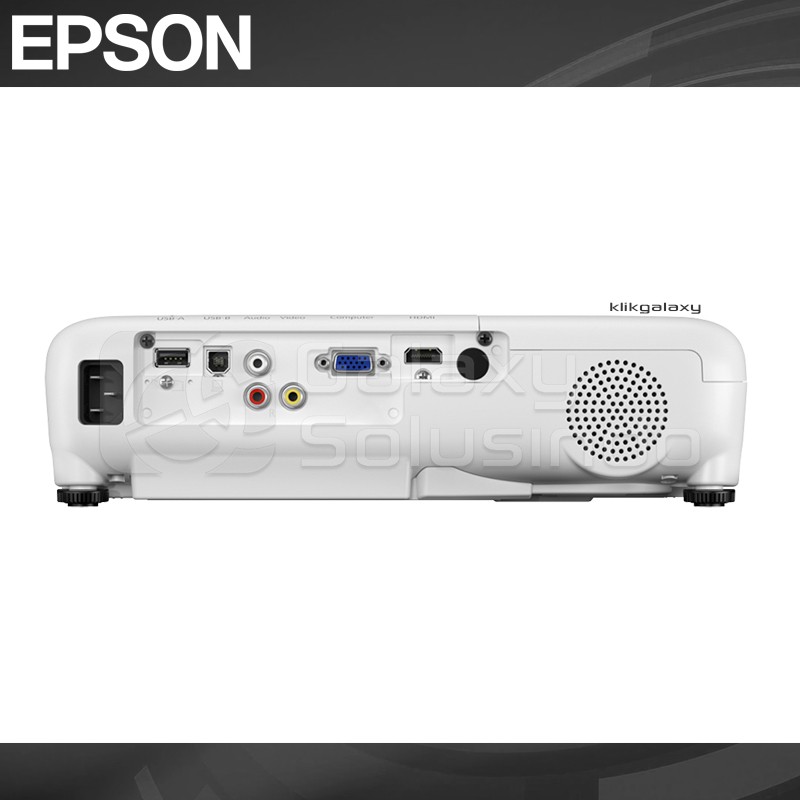

Connectivity:
USB Interface:
USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)
Network:
Wireless: Optional (ELPAP11)
Analog Input:
Composite: 1 RCA
D-Sub 15pin: 1
Digital Input:
HDMI: 1
Audio Input:
2RCA (White & Red): 1
Contrast Ratio:
Contrast Ratio:
16,000:1
Screen Size (Projected Distance):
Standard Size:
Tele: 33” to 320” [1.10 to 10.89 m]
Wide: 33” to 320” [0.91 to 9.07 m]
Geometric Correction:
Vertical/Horizontal Keystone:
±30° / ±30° (Auto Vertical Keystone only)
Quick Corner:
Yes
Operating Temperature:
Operating Temperature:
Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)
Operating Altitude:
Operating Altitude:
0 – 3,048 m <0 – 10,000 ft>
Start-Up Period:
Start-Up Period:
Up to 6 seconds, Warm-up Period: 30 seconds
Cool Down Period:
Cool Down Period:
Instant Off
Direct Power On/Off:
Direct Power On/Off:
Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):
302 x 77 x 234 mm
Weight:
Weight:
Approx. 2.5 kg
Air Filter:
Type:
High Efficiency Filter
Maintenance Cycle:
6,000 / 12,000 hours*3
Fan Noise:
Fan Noise (Normal / Eco):
37dB / 28dB
Power:
Power Supply Voltage:
100 – 240 V AC ±10%, 50/60 Hz
Wireless Specification (Wireless LAN: Built-in and Optional):
Supported Speed for each Mode:
IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2
Wireless LAN Security:
Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)
Specifications of Main Parts:
LCD:
Size: 0.59” (C2fine)
Native Resolution: WXGA (1280 x 800)
Lightsource:
Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hours
Aspect Ratio:
16:10
Projection Lens:
Type: Optical Zoom (Manual) / Focus (Manual)
Zoom Ratio: 1 – 1.2
Focal Length: 16.90 – 20.28 mm
Throw Ratio: 1.30 – 1.56 (Wide to Tele)
F-Number: 1.49 – 1.72
