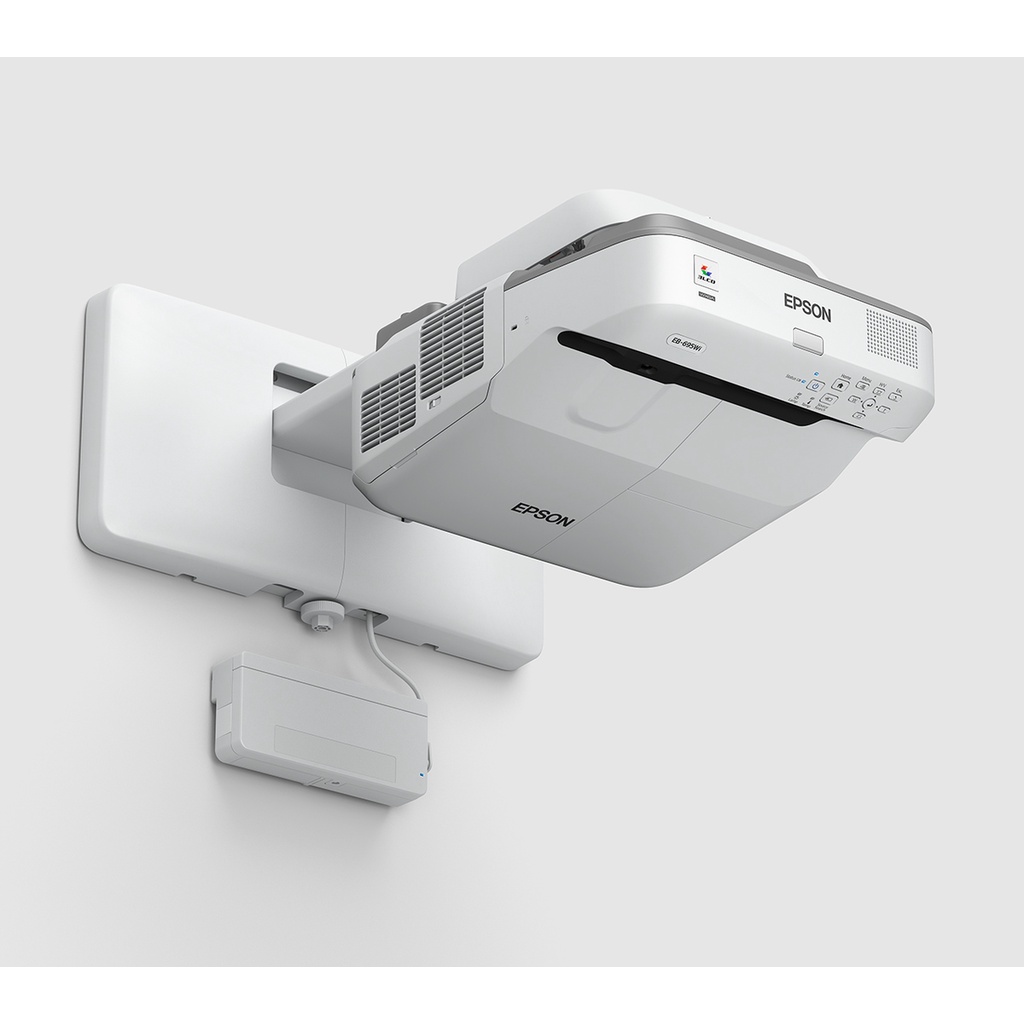

Epson EB-695Wi Ultra-Short Throw Interactive WXGA 3LCD Projector

Detail Epson EB-695Wi Ultra-Short Throw Interactive WXGA 3LCD Projector

SPECIFICATION :
Projectors Facets:
Resolution, Projectors Facets:
WXGA
Contrast Ratio, Projectors Facets:
14,000:1
Inputs & Interfaces, Projectors Facets:
Interactive
Brightness Range Lumens, Projectors Facets:
2000
Short Throw / Ultra Short Throw, Projectors Facets:
Ultra Short Throw
Features, Projectors Facets:
Wifi
Quick Corner
Laser / Lamp, Projectors Facets:
Lamp
Brightness2:
White Light Output (Normal/Eco):
3,500lm / 2,900lm
Colour Light Output:
3,500lm
Connectivity:
Network:
Wired LAN RJ45 x 1 (100Mbps)
Wireless: Optional (ELPAP10)
Analog Input:
D-Sub 15Pin: 2 (Blue)
Composite: RCA x 1 (Yellow)
Digital Input:
HDMI: 3 (HDMI1 in common with MHL)
Output Terminal:
D-Sub 15Pin:1 (Black) In common with Computer2
Audio Input:
Stereo Mini Jack: 3
Audio Output:
Stereo Mini Jack: 1
Control I/O:
RS-232C: D-Sub 9pin x 1
Interactive Sync: Stereo Mini Jack IN x 1, OUT x 1
Touch Unit: Mini DIN 8-pin: Yes
Others:
USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings)
Microphone Input: 1
Contrast Ratio:
Contrast Ratio:
14,000:1
Wireless Specifications (Wireless LAN: Built-in):
Supported Speed for Each Mode:
IEEE 802.11b: 11 Mbps*3
IEEE 802.11g: 54 Mbps*3
IEEE 802.11n: 130 Mbps*3
Wireless LAN Security:
WPA/WPA2-Personal (with optional ELPAP10)
Screen Size (Projected Distance):
Screen Size (Projected Distance):
60” - 100” [35.4 - 60.1 cm] 74.3” screen 44.3cm
Operating Temperature:
Single Use:
5 - 40 °C <41 - 104 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 35 °C <41 - 95 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation)
Multi-projection Use:
5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 30 °C <41 - 86 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation)
Operating Altitude:
Operating Altitude:
0 - 3,000m <0 - 9,843 ft> (over 1,500m / 4,921 ft: with High altitude mode)
Start-Up Period:
Start-Up Period:
About 8 seconds, Warm-up Period: 30 seconds
Cool Down Period:
Cool Down Period:
Instant Off
Internal Speaker(s):
Sound Output:
16W Mono
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):
367 x 149 mm x 400
Weight:
Weight:
Approx. 5.8kg
Air Filter:
Type:
Electrostatic Filter
Maintenance Cycle*4:
5,000 hours (Power Consumption: Normal)
10,000 hours (Power Consumption: Eco)
Fan Noise:
Fan Noise (Normal / Eco / Eco2):
35dB / 30dB / 29dB
Power:
Power Supply Voltage:
100 - 240 V AC ±10%, 50/60 Hz
Keystone Correction:
Vertical/Horizontal:
±3° / ±3°
Quick Corner:
Yes
Touch Unit:
Dimension Excluding Protrusion (DxWxH):
51 x 210 x 95 mm
Weight:
450g
Direct Power On / Off:
Direct Power On / Off:
Yes
Specifications of Main Parts:
LCD:
Size: 0.59” (D9 C2fine)
Native Resolution: WXGA
Lamp:
Type: 250W UHE
Life (Normal / Eco / Eco2)*1: 5,000 hours / 10,000 hours / 9,000 hours
Interactive Unit:
Technology:
Infrared
