EPON OLT Kabel Fiber Optik Mini 1.25g 4pon Port Ftth Kualitas Tinggi

Detail EPON OLT Kabel Fiber Optik Mini 1.25g 4pon Port Ftth Kualitas Tinggi

4pon port OLT
1.Product Description
JYD-04OLT is designed for chassis OLT device which provides 4 downlink GE- PON ports, 2 uplink GE SFP ports,2 ports 10/100/1000M RJ45 ports. Each PON supports up to 64 terminals, the whole device supports up to 128 ONUs under full configuration. JYD-04OLT is applied for commercial and grid network digital management to provide perfect, smart, strong, advanced, professional solutions for “automatic distribution” and “electricity information collection” in the implemented project for the national grid.

2.Product Features

Carrier-class stability and network resiliency
Support PON fiber redundancy protection and device redundancy protection protocol

Dual power supply input and power redundancy

All PON and GE ports provide L2 full-line speed without losing packets

Full PON service
Each PON support 1:64 splitting ratio ( The maximum quantity of 64 ONU)

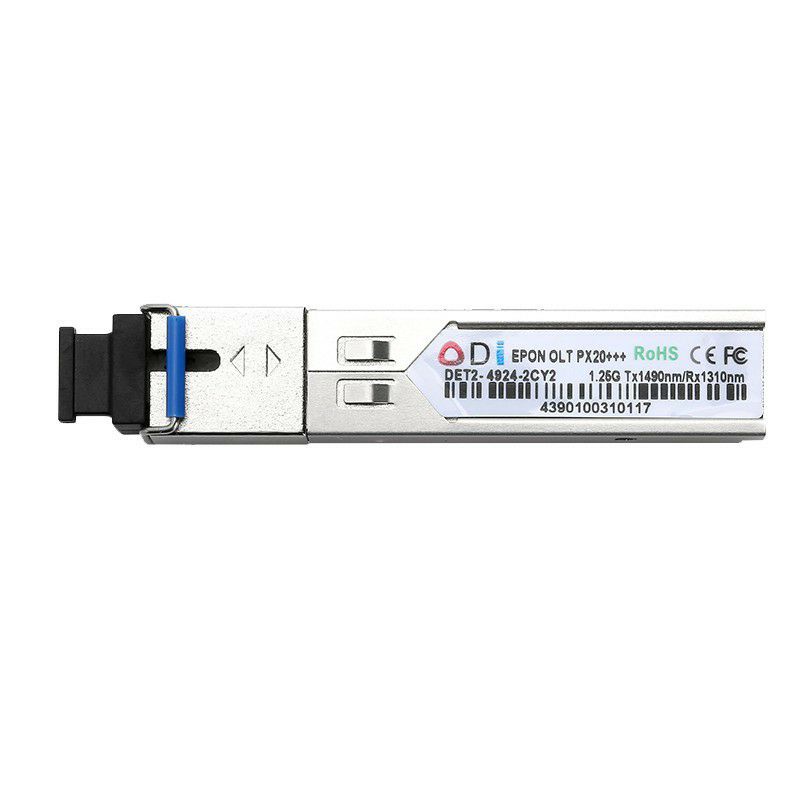

Hot plug PON fibber module design, the farthest 40Km transmission distance

Support 128bits triple churning function to ensure the confidential for the data transmission

Support dynamic bandwidth distribution DBA algorithm

Powerful OAM
Use packet forwarding based on hardware to be effective for feature detection and packet filtering

Support auto protection and user blocking for ARP attack based on MAC address

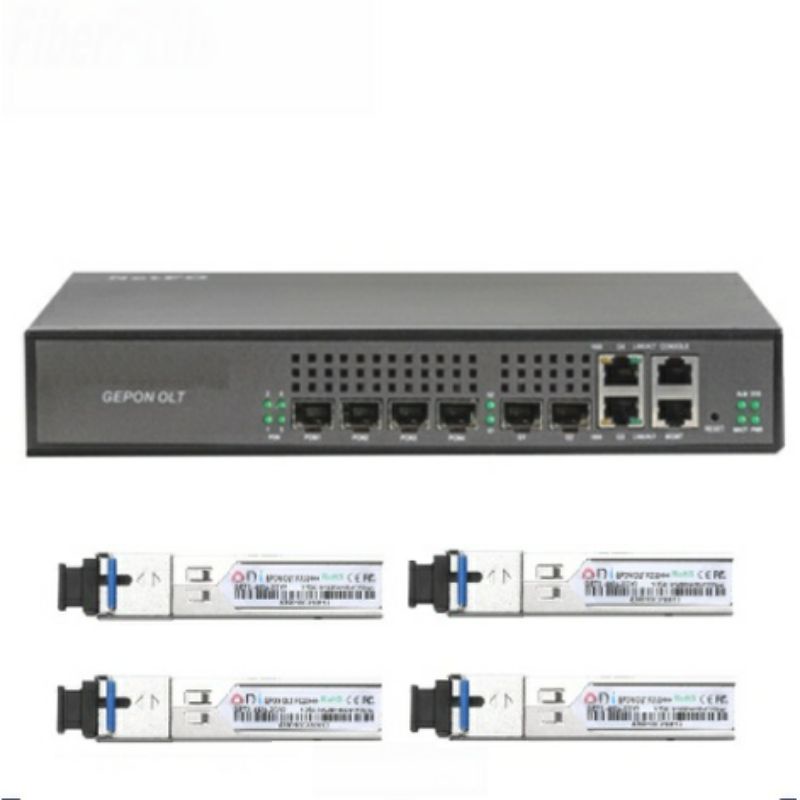

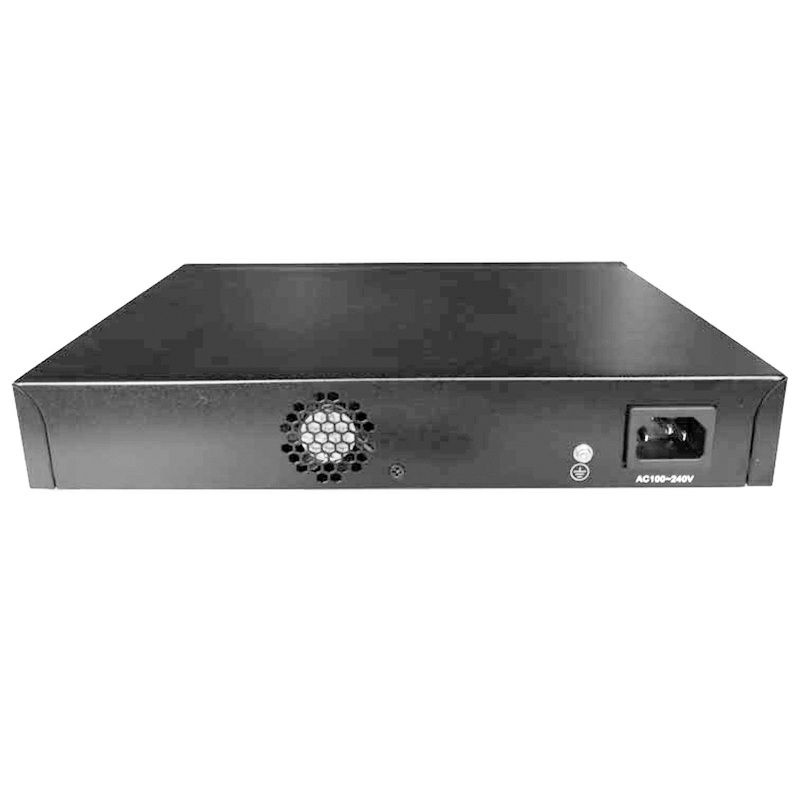

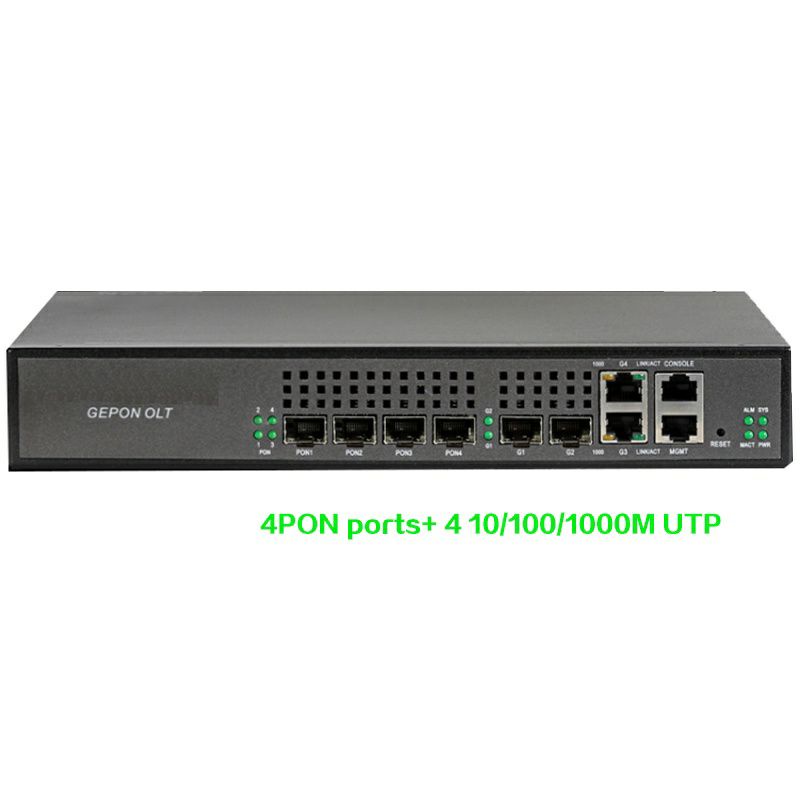

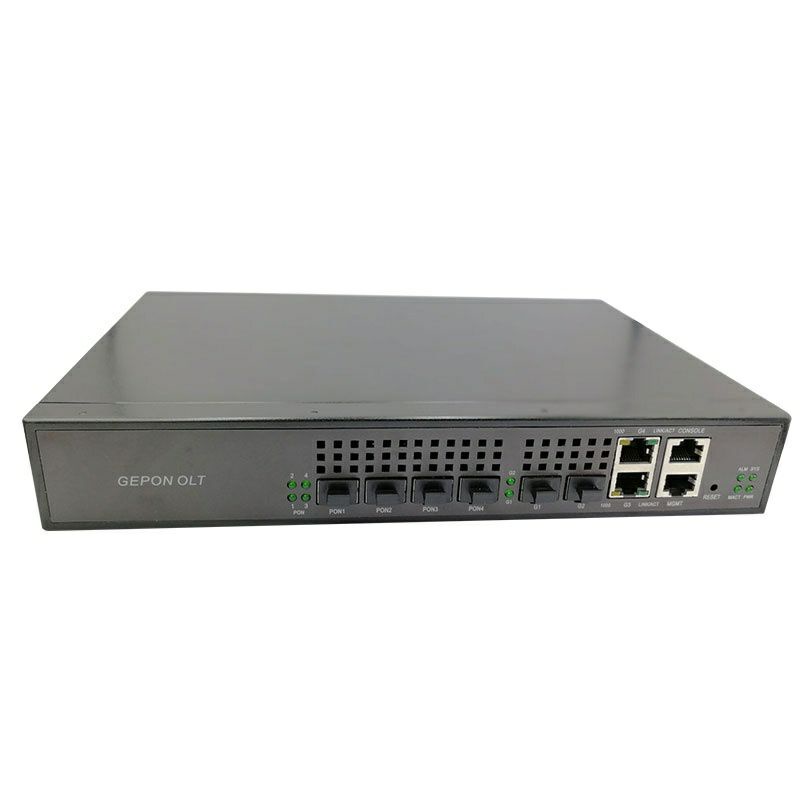

Gambar produk
