Enermax SquA RGB Single Pack 12CM UCSQARGB12P-SG

Detail Enermax SquA RGB Single Pack 12CM UCSQARGB12P-SG

SquA RGB
Model Number UCSQARGB12P-SG UCSQARGB12P-BP3
Fans/Model 1 pc 3 pcs
Dimension (mm) 120(W) x 120(H) x 26(D)
Speed (RPM) 300- 1500 (±10%)
Air Flow (CFM) 24.53 ~ 68.27
Air Flow (m3/h) 41.67 ~ 115.99
Static Pressure
(mm-H2O) 0.17 ~ 1.898
Maximum Noise (dBA) 12 ~ 23
Rated Voltage Fan (V) 12
Rated Current Fan (A) 0.21
Rated Voltage
RGB LED (V) 5 (or 12V when connecting
to the PWM header only) 5
Rated Current
RGB LED (A) 0.68 (or 0.28A when connecting
to the PWM header only) 0.68
MTTF (hours) ≧100,000 @ 25°C
Connector 1 x 4-pin PWM connector
1 x 4-pin ARGB connector (5V/D/-/G)
Accessory
1 x ARGB Y cable (5V/D/-/G)
1 x GIGABYTE ARGB adapter
1 x Molex adapter
4 x Screw

1 x ENERMAX integrated RGB control box
1 x ARGB 3 to 1 cable (5V/D/-/G)
1 x GIGABYTE ARGB adapter
1 x PWM 3 to 1 cable
1 x Molex adapter
12 x Screw

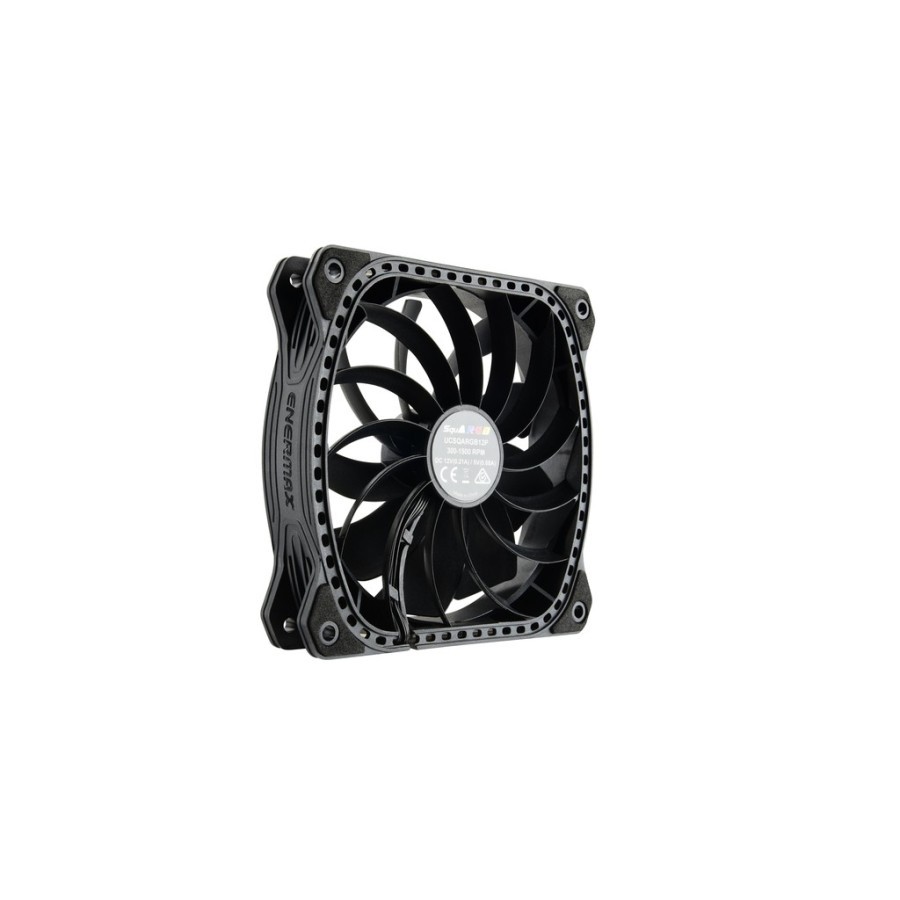

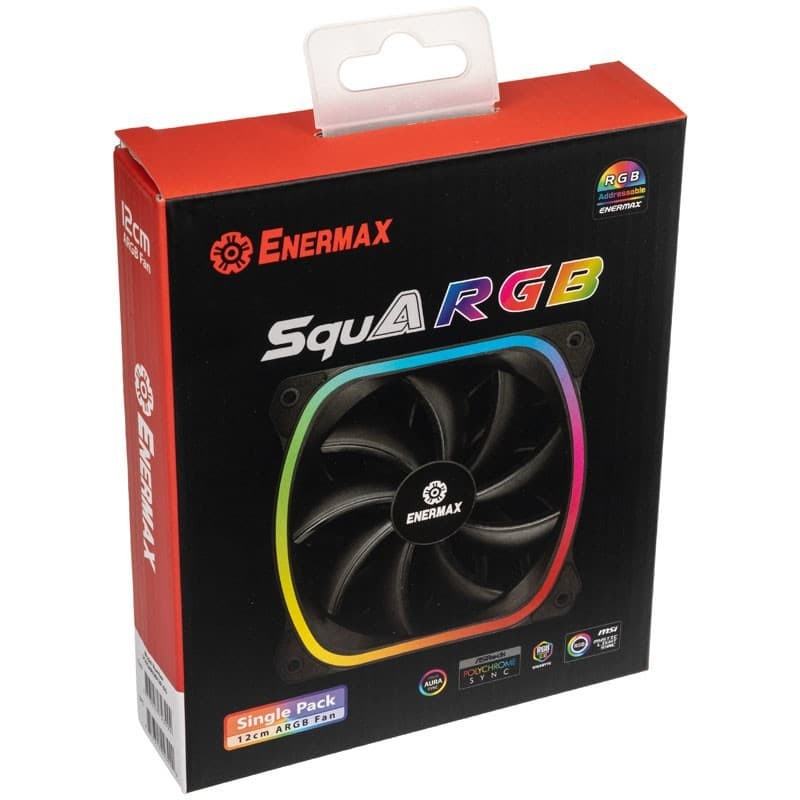

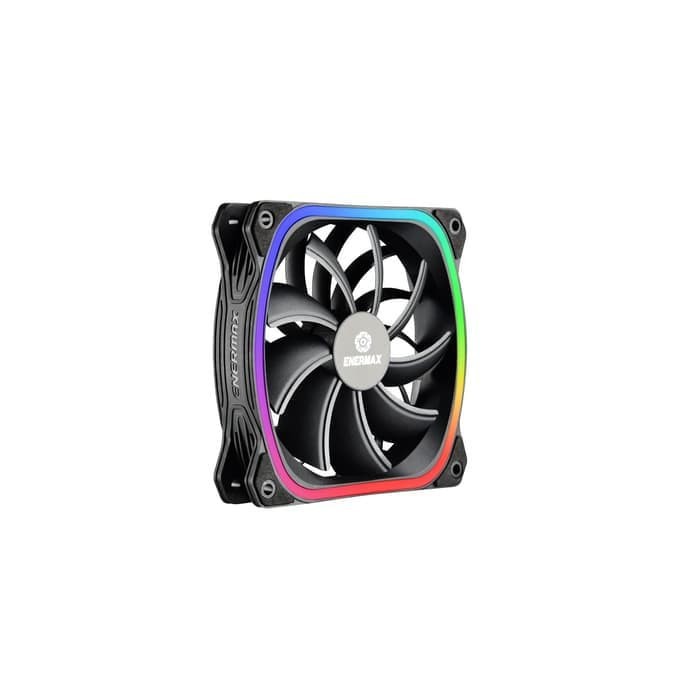

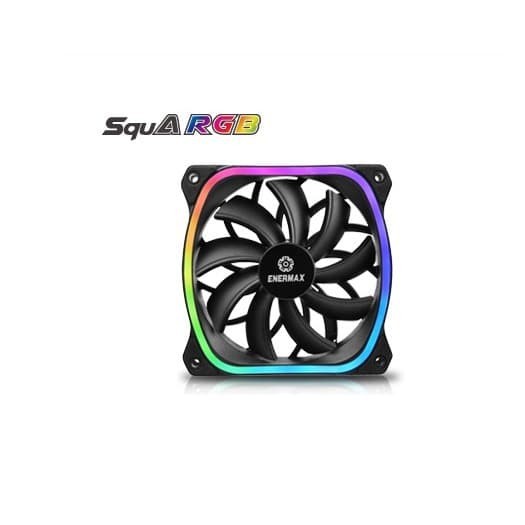

Gambar produk
