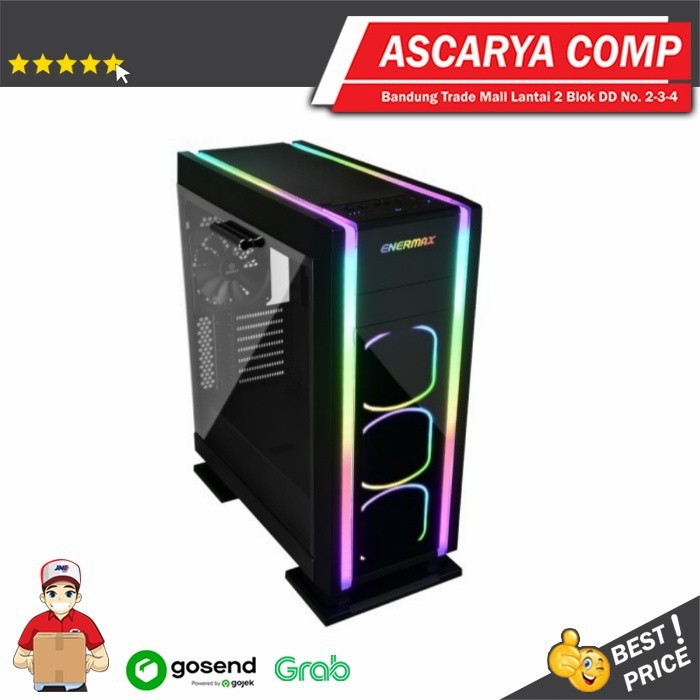

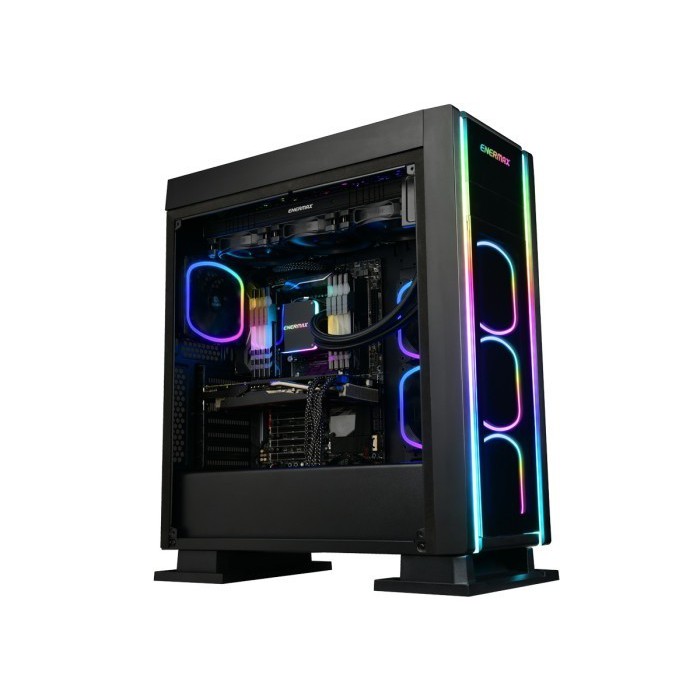

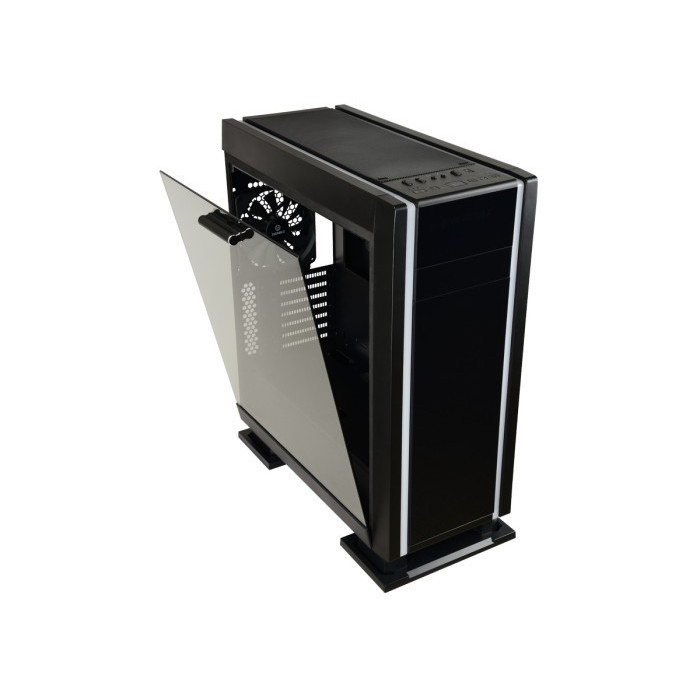

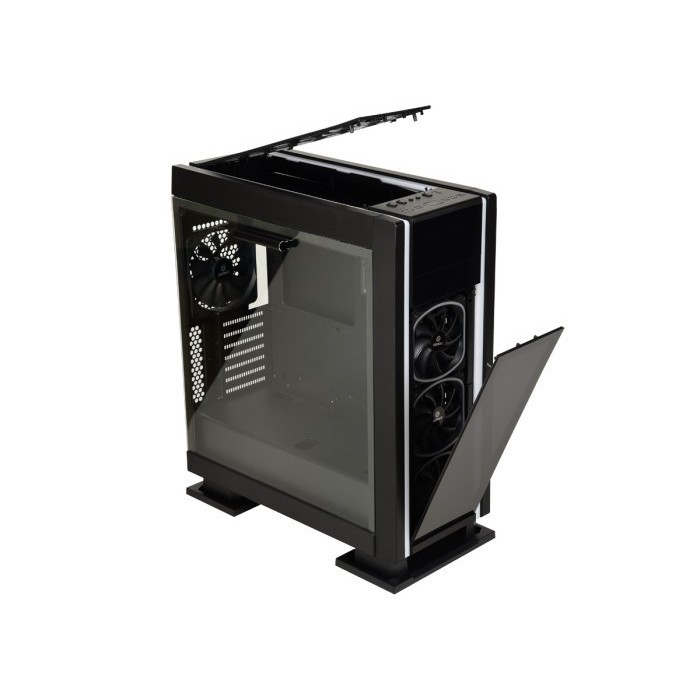

ENERMAX SABERAY ADVANCE / Casing Gaming

Detail ENERMAX SABERAY ADVANCE / Casing Gaming

General
Color Black with RGB LED
Material 0.8mm SPCC steel, 4mm tempered glass
Dimensions 478 x 223 x 566mm
RGB & Fan Control Hub
Fan Connections 6x 3-pin ports (3x used by preinstalled fans)
LED Connections 5x 4-pin ports
Power Connector SATA-Power
Fan Hub Max. Current 2A (0.39A used by preinstalled fans)
LED Hub Voltage 5V
LED Hub Max. Current 10A (7.8A used by preinstalled LEDs)
RGB Sync. Connector 4-pin addressable (5V/Data/-/GND)
RGB Sync. Compatibility Asus, Asrock, MSI and Gigabyte
LED Stripes
LED Type WS2812B addressable RGB
Rated Voltage LED 5V
Rated Current LED 5.76A
SquA R.G.B. Fans
LED Type WS2812B addressable RGB
Rated Voltage LED 5V
Rated Current LED 2.04A (3x 0.68A)
Rated Voltage Fans 12V
Rated Current Fans 0.39A (3x 0.13A)
Fan Slots
Front 3 x 120mm (3 x 120mm SquA R.G.B. fans preinstalled)
Top 3 x 120/ 2 x 140mm
Rear 1 x 120/ 140mm (1 x 140mm fan preinstalled)
Side 2 x 120mm
Liquid Cooling
Front 240/ 360mm radiator (62mm clearance)
Top 240/ 280/ 360mm radiator (63mm clearance)
Rear 120/ 140mm radiator
Side 240mm radiator
Installation Slots
Front 5,25″ ODD
Side 2 x 2.5″ HDD/ SSD
Motherboard Tray 2 x 2,5″ HDD/ SSD
Bottom Drive Bays 2 x 2,5″/ 3.5″ HDD/ SSD
Expansion Slots 7 x

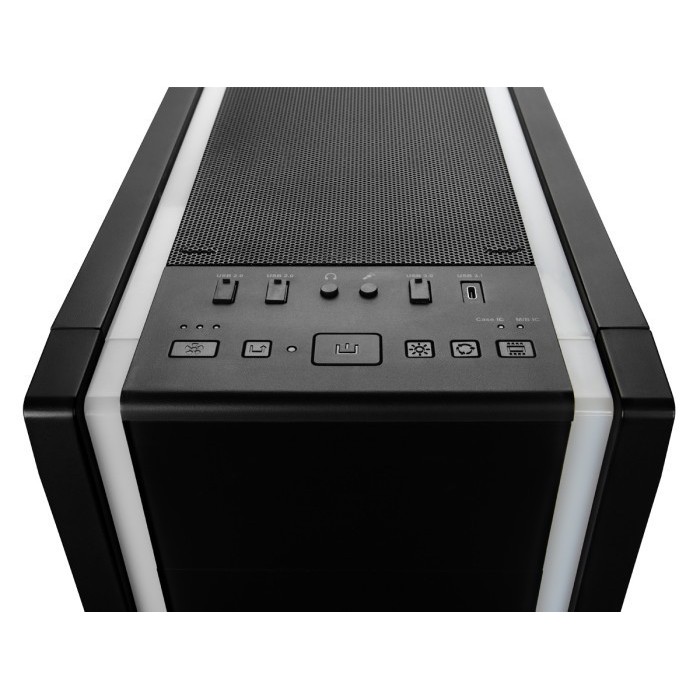

I/O Panel
1 x USB-C (USB 3.2 Gen2x1)*, 1x USB-A (USB 3.2 Gen 1×1)*, 2x USB-A (USB 2.0), HD Audio, fan controller, LED control, RGB Sync Switch
Maximum Compatibility
Graphics Card Length 420mm (280mm with side radiator/fans installed)
CPU Cooler Height 175mm
PSU Size Standard ATX
Motherboards ATX, micro ATX, mini ITX

Gambar produk
