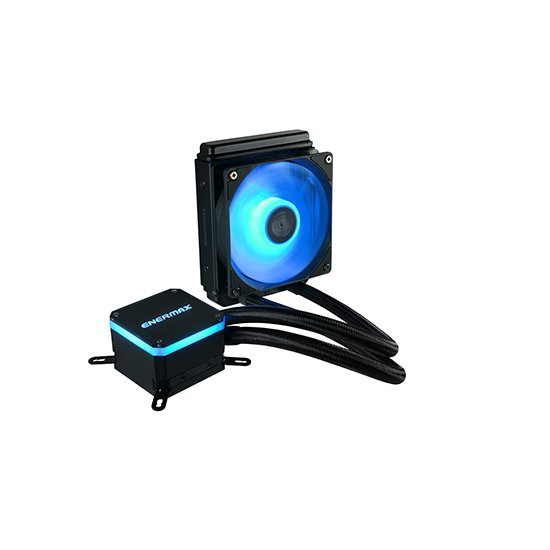

ENERMAX LIQMAX III 120 RGB AIO CPU Cooler 120mm

Detail ENERMAX LIQMAX III 120 RGB AIO CPU Cooler 120mm

SPECIFICATION :
Overview
ELC-LMT120-RGB
Intel® compatible Sockets LGA 1200, LGA 115x, 1366, 2011(-3) Square ILM, 2066
AMD® compatible Sockets FM1, FM2(+), AM2(+), AM3(+), AM4
Cold Plate Material Copper
Weight without Fan 0.690 kg
Thickness including Fan 53mm
Thermal Design Power (TDP) 260W
Thermal Grease Dow Corning® TC-5121 2g
RGB Connector 4 pin (12V/G/R/B)
RGB Sync. Compatibility Asrock, Asus, MSI, Gigabyte
Lighting Modes –
Pump
Bearing Type Ceramic bearing
MTBF 50,000h
Motor Speed 3.100RPM
Rated Voltage 12V
Rated Current 0.4A [or 0.49A if not connected to 4 pin RGB connector(12V/G/R/B)]
LED Type 5050 RGB
Rated Current LED 0.18A
Pump Power Connector 3 pin (GND/12V/Tacho)
Radiator
Dimensions 154 x 120 x 27mm
Material Aluminium
Tubes
Length 400mm
Material Rubber (Polyamide)
Fan
Fan Model Dual-Convex RGB Fan
Bearing Type –
MTBF 50,000h
Fan Dimensions 120 x 120 x 25mm
Fan Speed 500 – 1,600RPM
Rated Voltage Fan 12V
Rated Current Fan 0.17 A
Rated Voltage LED 12V
Rated Current LED 0.36 A
Fan Power Connector 4 pin PWM (GND/12V/Tacho/PWM)
Quantity 1
Noise Level 14 – 27dB(A)
Air Flow 22.5 – 72.1CFM
Static Pressure 0.2 – 1.98mm-H2O

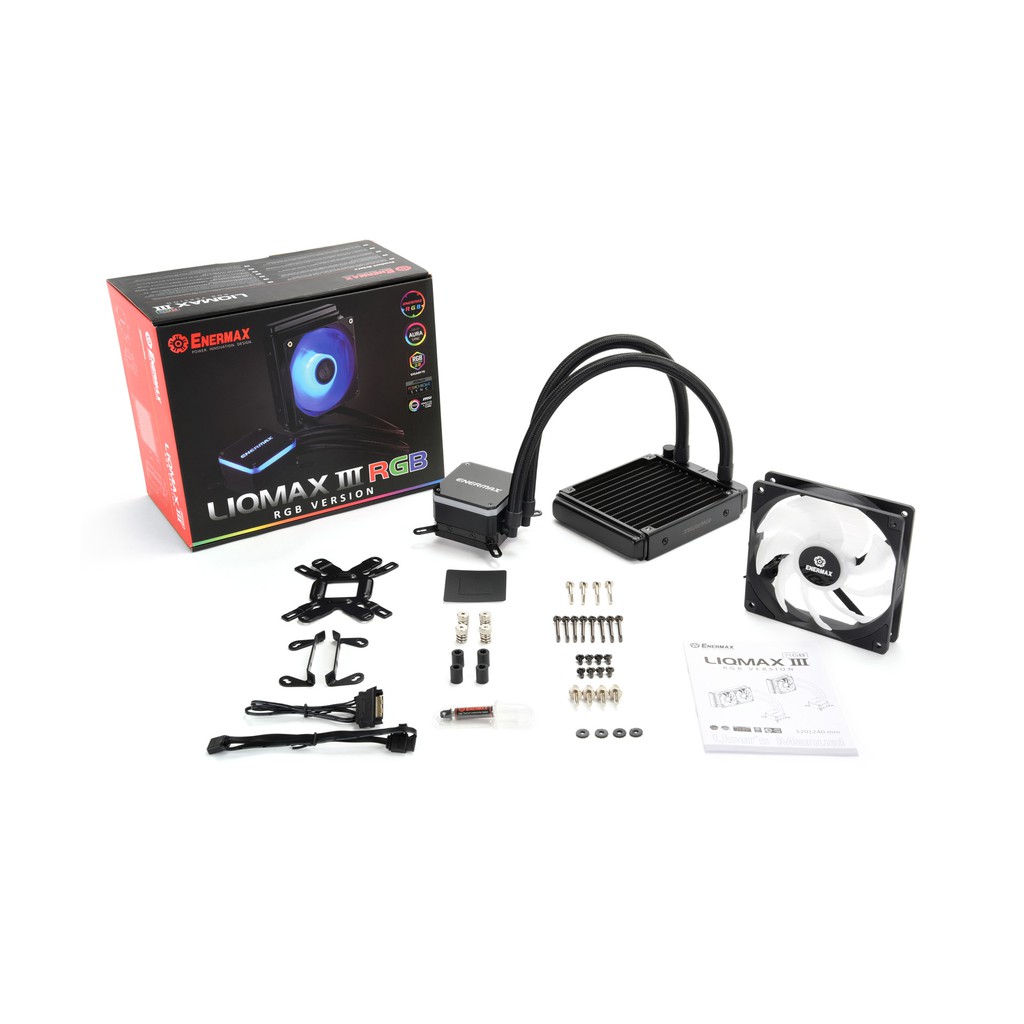

Included in the delivery Liquid cooler, 12 cm Dual-Convex RGB PWM fan, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), RGB sync cable, SATA to 4 pin PWM power cable, installation guide
