ENC28J60 Ethernet LAN Network Module

Detail ENC28J60 Ethernet LAN Network Module

The MiNi ENC28J60 Ethernet LAN Network Module For Arduino SPI AVR PIC LPC is a stand-alone Ethernet controller with an industry standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI.

ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 a popular Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. This Ethernet LAN module connects directly to most microcontrollers.

The network module communicates with the Arduino type board through the SPI protocol ideal for projects with ARDUINO, PIC, AVR, STM32.

FITUR DAN SPESIFIKASI :
- Fully Compatible with 10/100/1000Base-T Networks
- Integrated MAC and 10Base-T PHY
- Supports One 10Base-T Port with Automatic Polarity Detection and Correction
- Supports Full and Half-Duplex modes
- Programmable Automatic Retransmit on Collision
- Programmable Automatic Rejection of Erroneous Packets
- SPI Interface with Clock Speeds Up to 20 MHz
- The board 25MHZ crystal.
- Programmable Padding and CRC Generation
- The network interface board HR911105A.
- 3.3 V power supply pin.
- Stable performance.
- For Arduino, SPI, AVR, PIC, LPC, STM32.

KELENGKAPAN :
- 1pcs Mini ENC28J60 Ethernet LAN Network Module

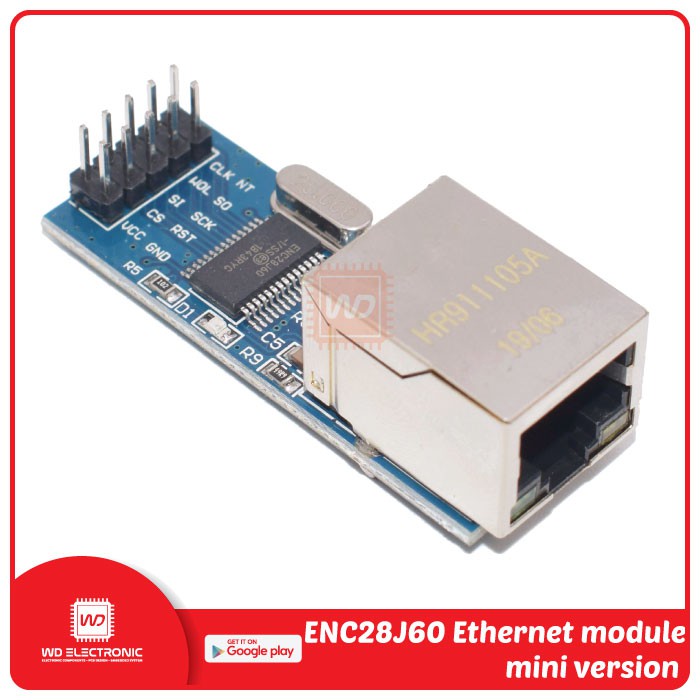

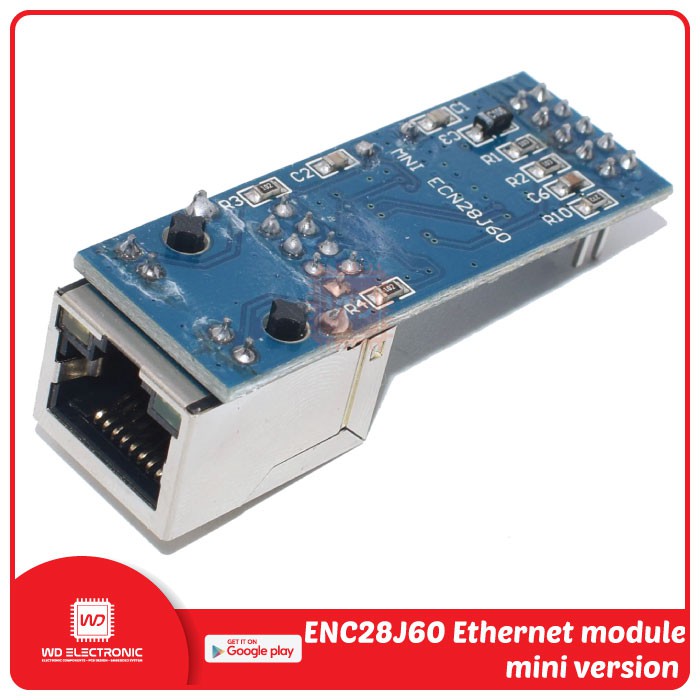

Gambar produk
