Embedded Module Barcode Scanner EP1800C USB 1D/2D

Perlengkapan Rumah > Perlengkapan Rumah Lainnya > Embedded Module Barcode Scanner EP1800C USB 1D/2D
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Embedded Module Barcode Scanner EP1800C USB 1D/2D

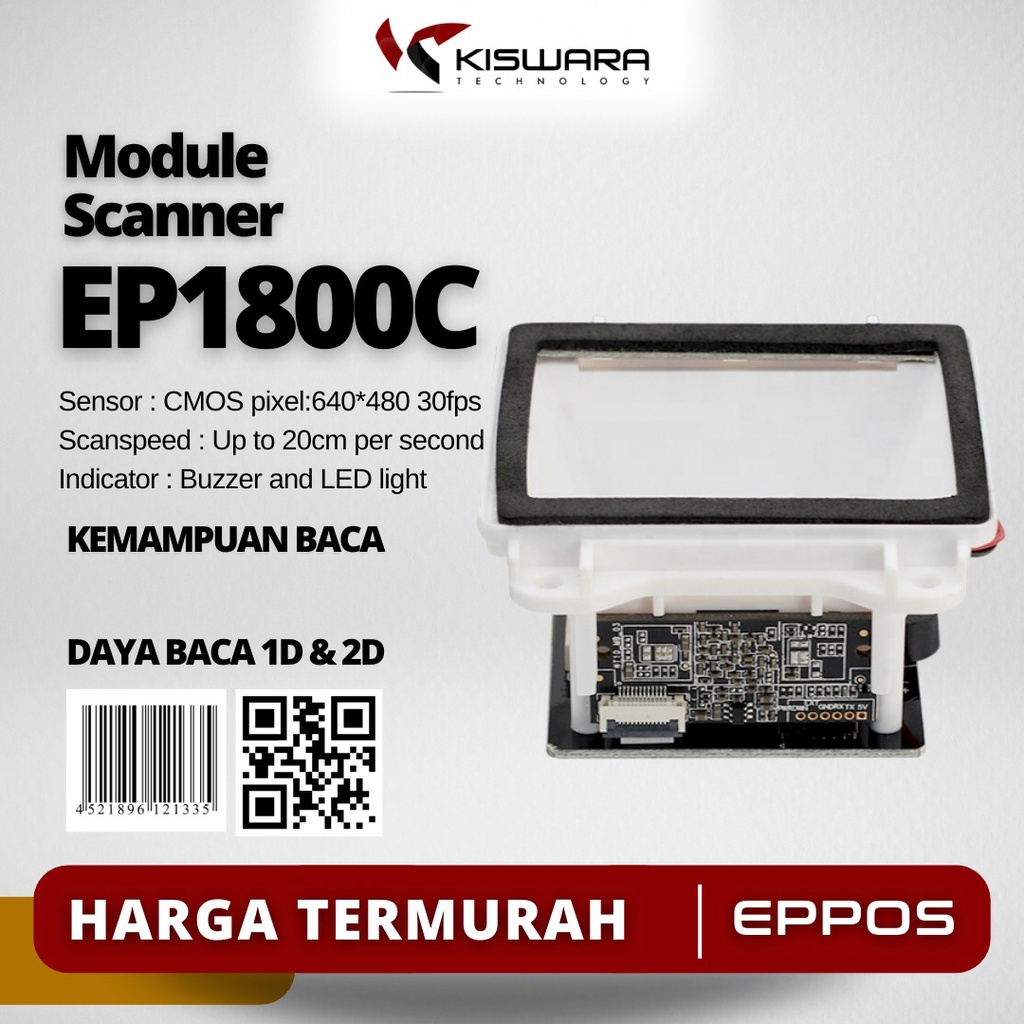

Embedded Module Barcode Scanner 1D/2D EP1800C - USB Profesional barcode scanner modul mendukung 1D/2D barcode pada kertas/film/layar.
960*680 COM sensor & terkemuka kemampuan decoding memindai semua jenis barcode dengan cepat dan akurat. Decoding perangkat lunak algoritma mendukung pengembangan sekunder.
Atomisasi distribusi cahaya perangkat, memberikan pencahayaan lembut dan perawatan mata.
Pasang dan gunakan, tidak ada driver yang diperlukan.
Tahan debu dan tahan guncangan, layanan panjang kehidupan.
Lebar Rentang aplikasi: mesin akses kontrol, self-service mesin penjual snack industri produksi, cerdas Kabinet, self-service store check-in mesin bank mesin.


Light source : LED white light
Imaging Sensor : CMOS pixel:640*480 30fps
pixel resolution : ≥4mil
Depth of scanning field : 0-30cm
Scanning speed : Up to 20cm per second for 13mil UPC
Scanning View Angle : Level 80°,Vertical 60°
Scanning Angle : Rotation 360°,Tilt 65°, Deflection 65°
Minimum Contrast : 25%
Trigger mode : Auto mode
Indicator : Buzzer and LED light
Supported interface : USB HID,USB COM,TTL UART
Barcode type : 1D:Code 39, Code 32, Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5,
Codabar, Matrix 2 of 5, Industrial 2 of 5 etc.
2D:QR Code, Data Matrix, PDF417 etc.
Language : Support multi-languages
Socket : 12pin FPC socket 0.5mm pitch
6pin socket 1.5mm pitch
4pin MicroUSB
Input voltage : 12pin--3.3V or 4V to 5.5VDC, the typical is 5VDC
4pin/6pin 4V to 5.5VDC, the typical is 5VDC
Operating current : 100mA
Max Current : 120mA
Scanner size : 65*61*37.5mm
weight : 15g
cable length : 1M
Shock resistance : 1.8M
Operating temperature : -20℃~60℃
Storage temperature : -40℃~85℃
Operating humidity : 5%~95%(non-condensing)
Storage humidity : 5%~95%(non-condensing)
