Embedded Module Barcode Scanner 1D/2D EP1880C - USB Sby

Detail Embedded Module Barcode Scanner 1D/2D EP1880C - USB Sby

Embedded Module Barcode Scanner 1D/2D EP1800C - USB Profesional barcode scanner modul mendukung 1D/2D barcode pada kertas/film/layar.
960*680 COM sensor & terkemuka kemampuan decoding memindai semua jenis barcode dengan cepat dan akurat. Decoding perangkat lunak algoritma mendukung pengembangan sekunder.
Atomisasi distribusi cahaya perangkat, memberikan pencahayaan lembut dan perawatan mata.
Pasang dan gunakan, tidak ada driver yang diperlukan.
Tahan debu dan tahan guncangan, layanan panjang kehidupan.
Lebar Rentang aplikasi: mesin akses kontrol, self-service mesin penjual snack industri produksi, cerdas Kabinet, self-service store check-in mesin bank mesin.


Light Source : 620nm Visible red light diode,white light
Imaging Sensor : CMOS
Error Rate : 1/8million
Resolution : ≥5mil
Depth of Scanning Field : 50mm-200mm (13mil) EAN-13
40mm-90mm (5mil) Code39
5mm-240mm (20mil) QR Code
50mm-90mm (10mil)Data Matrix
30mm-130mm (6.67mil) PDF 417
Scanning Speed : 300
Scanning Angle : Tilt ±55°,Deflection ±55°,Rotation :360°
Minimum Contrast : 25%
Barcode Type : 1D
EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,
Standard 25,Plessey, Matrix 2 of 5
2D
QR Code, Data Matrix, PDF417,Aztec, Maxicode,Hanxin code
Trigger Mode : Auto,Manual,Continuous
Indicator : Buzzer
Data Transfer : Wire
Client interface : USB,USB-COM,COM
Language : Support multi-languages
Power : 1100mW
Input Voltage : 5V
Operating Current : 170mA
standby Current : 400uA
Shell Material : ABS+PC
Color : Black
Scanner Size : 43*43*23mm
Weight : 120g
Cable Length : 1.35M
Shock Resistance : 1.5M
Waterproof : IP52
Operating Temperature : -20℃~50℃
Storage Temperature : -40℃~70℃
Operating Humidity : 5%~95%
Storage Humidity : 5%~95%
Certificate : CE,FCC,ROHS

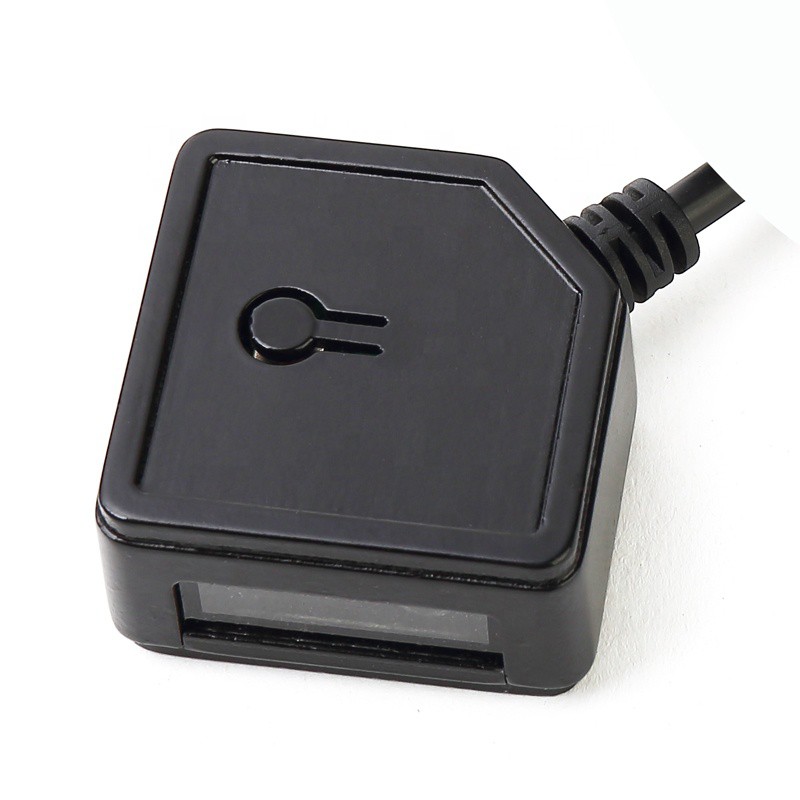

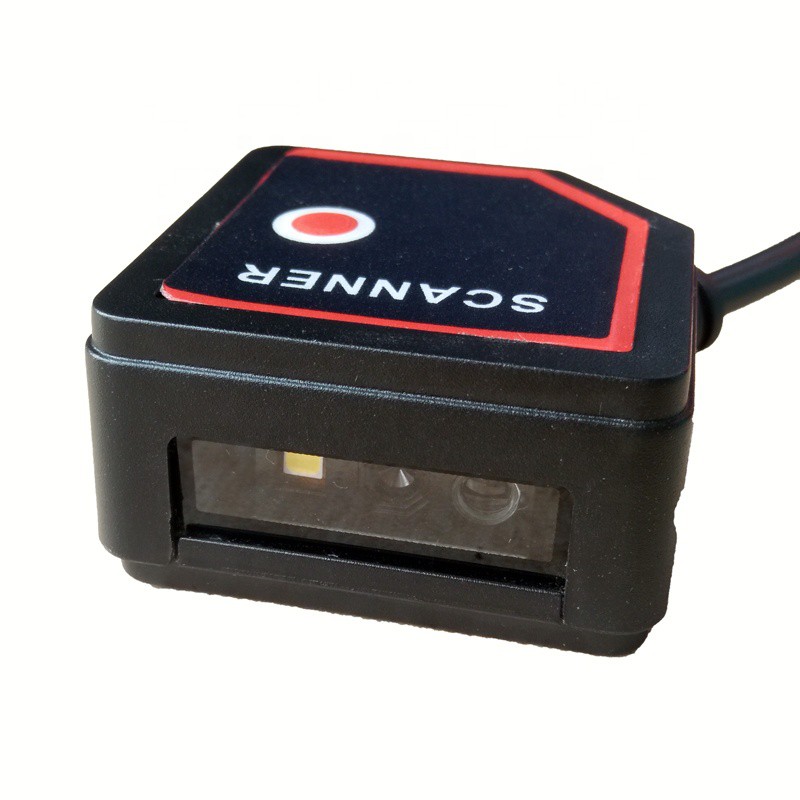

Gambar produk
