Embedded Barcode Scanner Self-Induction 1D/2D/QR Bar Code Reader Module Scanner USB Connection Support Command Control Compatible with Windows for Gate Machine Tickets Checking Mobile Payment

Detail Embedded Barcode Scanner Self-Induction 1D/2D/QR Bar Code Reader Module Scanner USB Connection Support Command Control Compatible with Windows for Gate Machine Tickets Checking Mobile Payment

Features:
Embedded bar code scanner, support scan 1D/2D/QR code, compatible with various software, suitable for different terminal systems, efficient use.
Using CMOS image scanning technology, it can scan paper code and screen code, high-performance decoding chip, no fear of incomplete and fuzzy bar code.

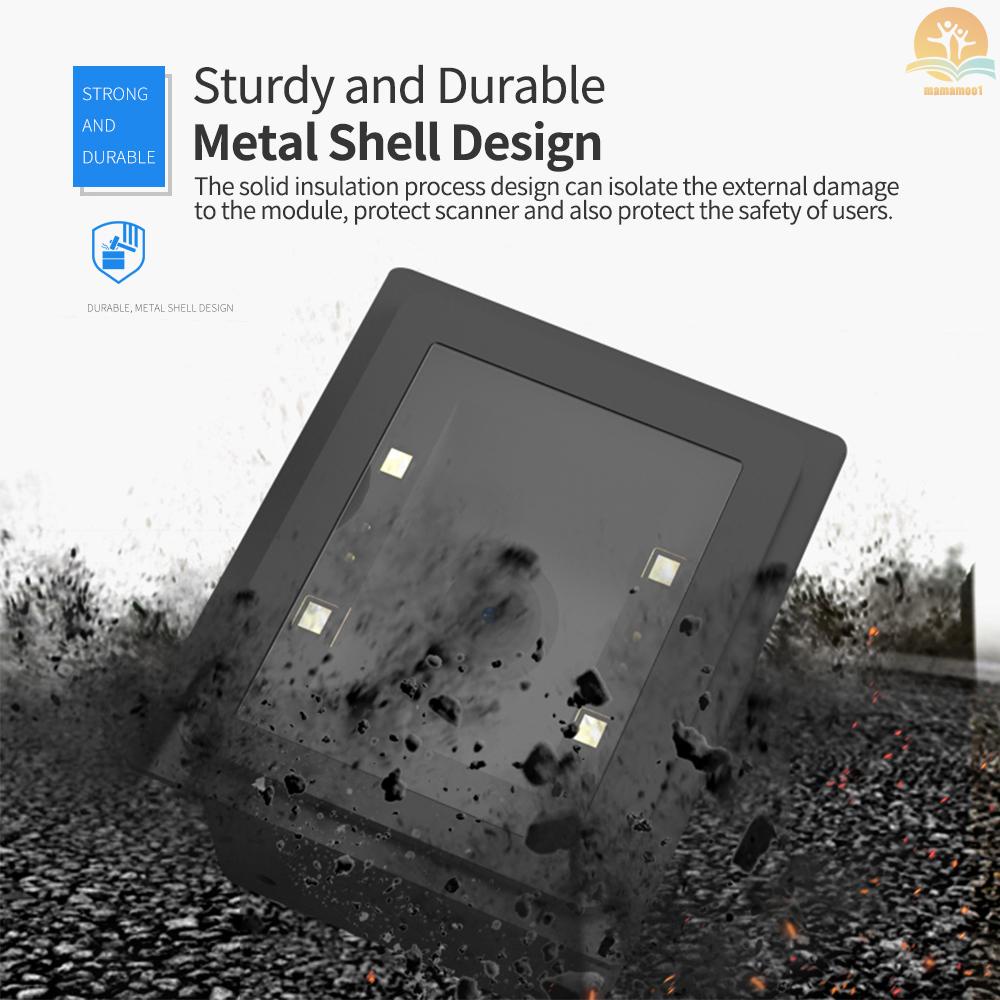

Solid insulation process design, to isolate the external damage to the module, not only protect the scanner, but also to protect the safety of users.

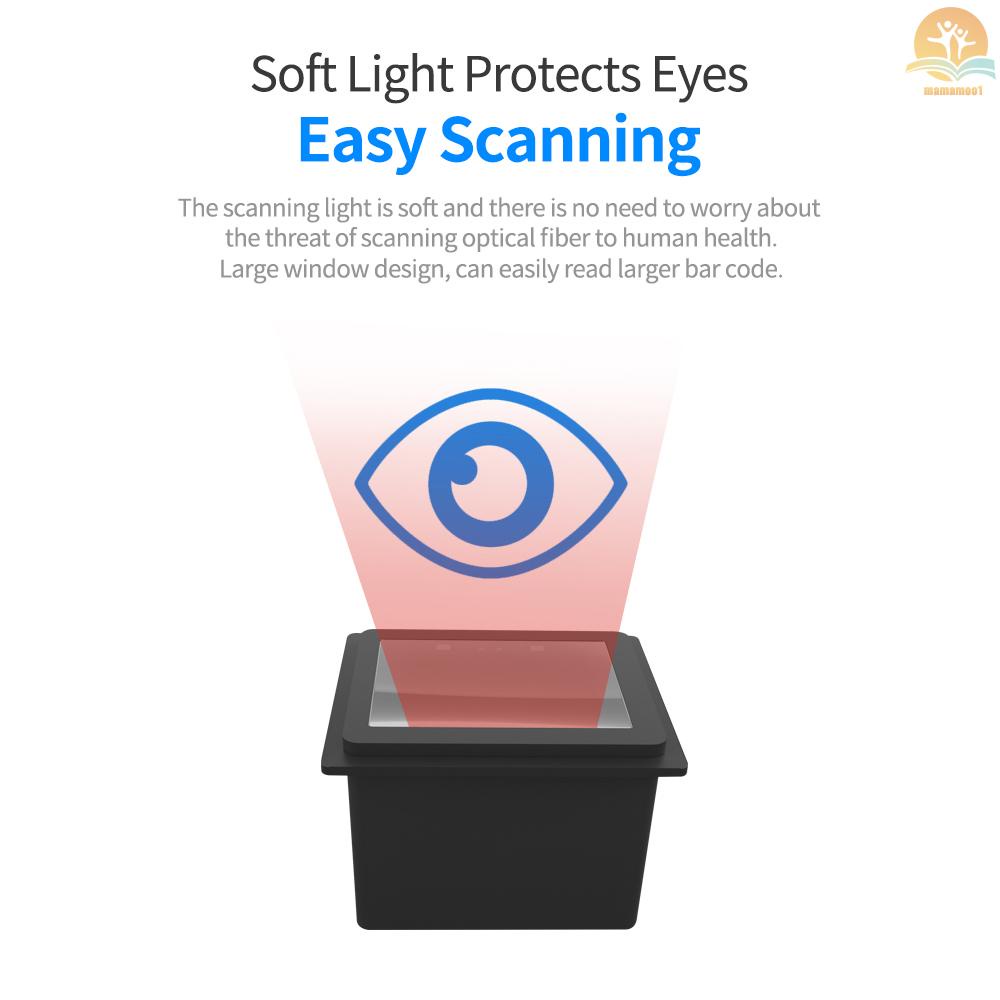

The scanning light is soft, and there is no need to worry about the threat of scanning optical fiber to human health. The large window design can easily interpret the larger barcode.

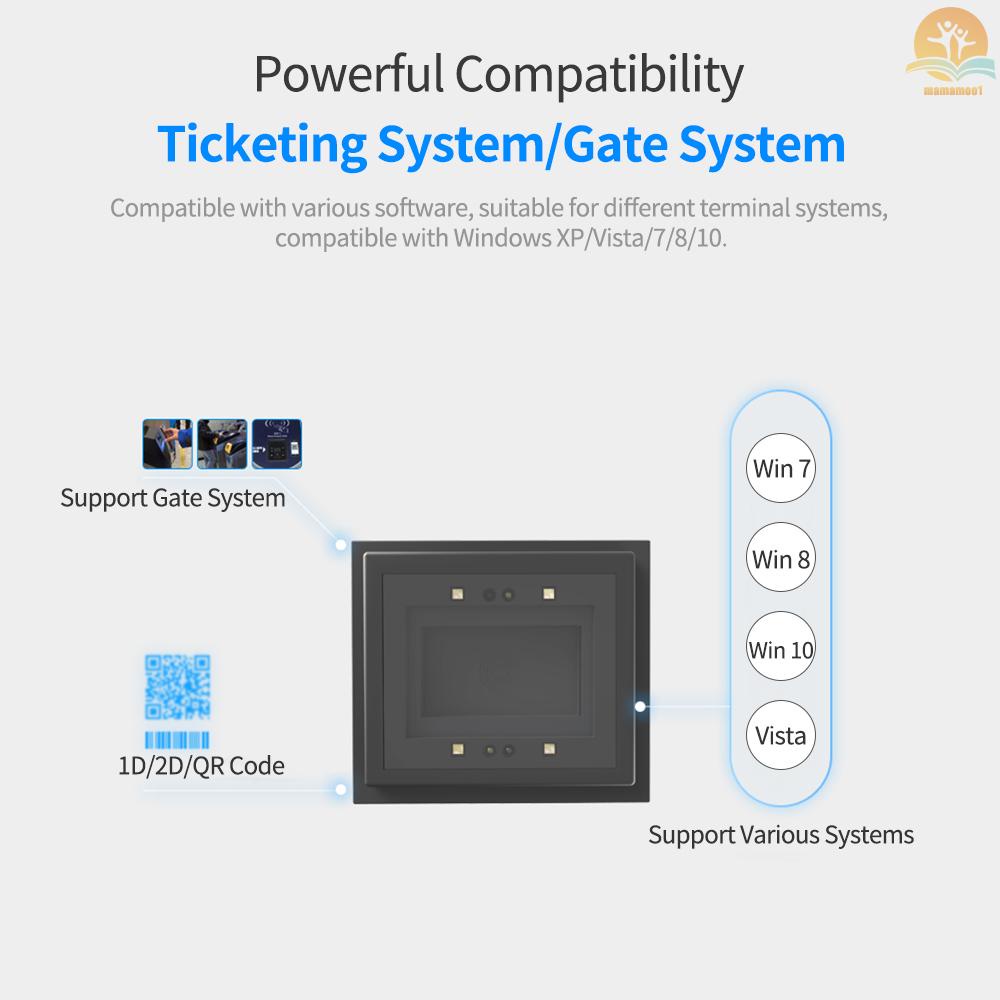

Modular design, tailored for self-service equipment, compatible with Windows XP/Vista/7/8/10, widely used in gate machine, ticket check, mobile payment, etc., easy to use.
Decode Capability: Smoothly scan and decode one-dimensional code(EAN-13, EAM-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Codc93, ITF-6, ITF-14, Interleaved 2 of s.Industrial 2 of 5, Standard 2 of s, Matrix 2 of5, GSI Databar(RSS-Expand, RSS-Limited, RSS-14), Code 39(Code 39 FULL ASCII), Code I1, MSI-Plessey, Plessey, etc.) and two-dimensional code(PDF417, Data Matrix, QR Code).

Specifications:
Color: Black
Material: ABS
Optical Resolution: 752*480 CMOS
MPU: IOTC 0370 CHIP
Scanning Window Size: 46.5 * 31.5mm
Scanning Mode: Inductive Reading
Scanning Speed: 200 times/s
Scanning Accuracy: 10mil
Light Source: White LED
Brightness: 0-100,000 LUX
View Angle: Horizontal 63.7°, Vertical: 70°
Decode Type:
--1D: EAN-13, EAM-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128(Including FNC1, FNC2, FNC3 subset), Codc93, ITF-6, ITF-14, Interleaved 2 of s.Industrial 2 of 5, Standard 2 of s, Matrix 2 of5, GSI Databar(RSS-Expand, RSS-Limited, RSS-14), Code 39(Including Code 39 FULL ASCII), Code I1, MSI-Plessey, Plessey, etc.
--2D: PDF417, Data Matrix, QR Code
Input Voltage: AC 100-240V, 50/60Hz
Output Voltage: DC 5V, 0.5A
Power Consumption: 1.75W
Interface: USB 1.1(HD-KBW, HID-POS)
Compatibility: Windows XP/Vista/7/8/10
Working Temperature: -10-50℃
Working Humidity: 5-95%(No Condensation)
Storage Temperature: -20-60℃

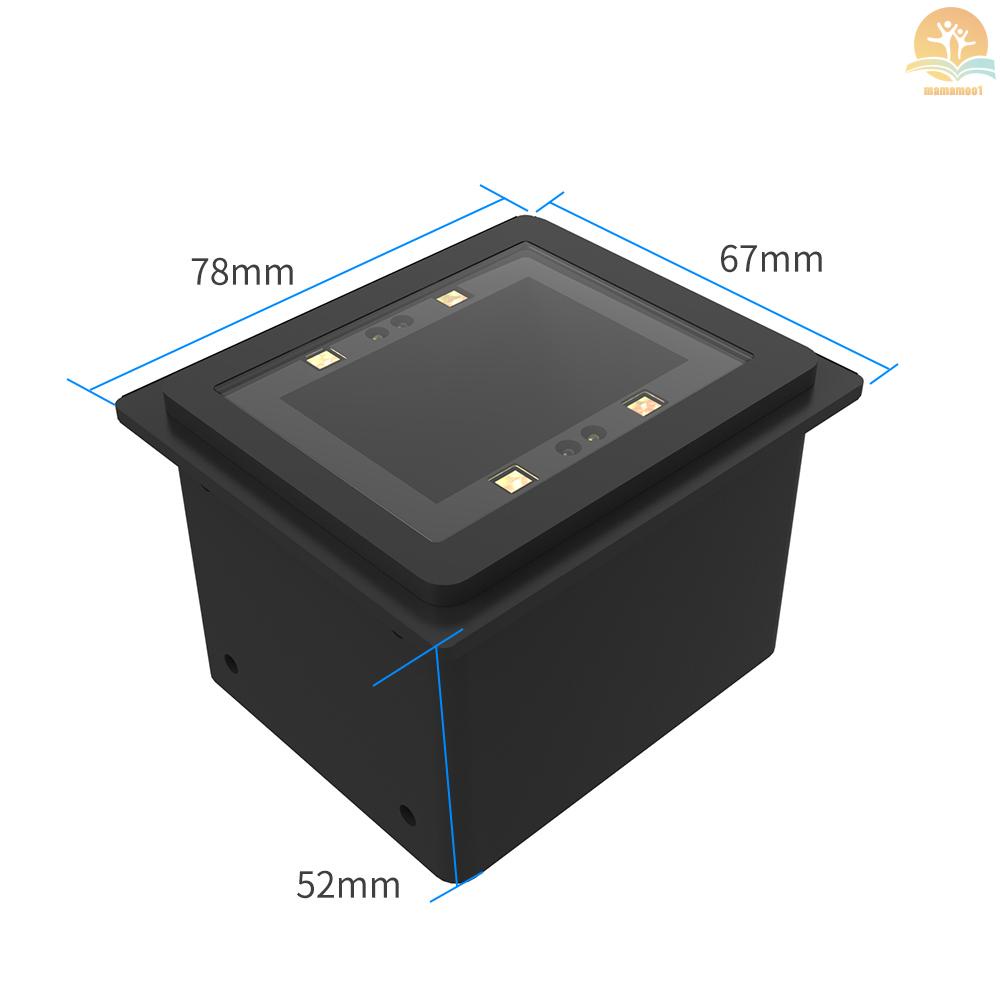

Item Size: 78.2 * 67.2 * 52.3mm/ 3.1 * 2.6 * 2.1in
Item Weight: 120g/ 4.2oz
Package Size: 17 * 9.4 * 6cm/ 6.7 * 3.7 * 2.4in
Package Weight: 192g/ 6.8oz
Packing List:
1 * Barcode Scanner
1 * USB Cable
1 * User's Manual
